Resilient Sounds Single 12" Gold Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 2 ft³
- Compatible woofer size: 12 inches
- Woofer mounting capacity: 1
- Port tuning: 33 Hz
- Port area (total): 28.69 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 12" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 12" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your Resilient Sounds Gold 12" subwoofer its specified airspace with this single 12" ported enclosure. Its 2.0 cubic-foot net volume and 33 Hz tuning are designed for deep bass, while the carbon gray finish gives the enclosure a clean, show-ready look.
Key Features & Benefits
- Gold 12" fit: The 11.2" cutout is specified for the Resilient Sounds Gold 12" subwoofer.
- Ported design: A 33 Hz tuning and 28.69 sq in port area support the enclosure’s intended deep-bass response.
- Rigid construction: 13-ply Russian Baltic Birch and a 17-ply front baffle provide substantial panel stiffness.

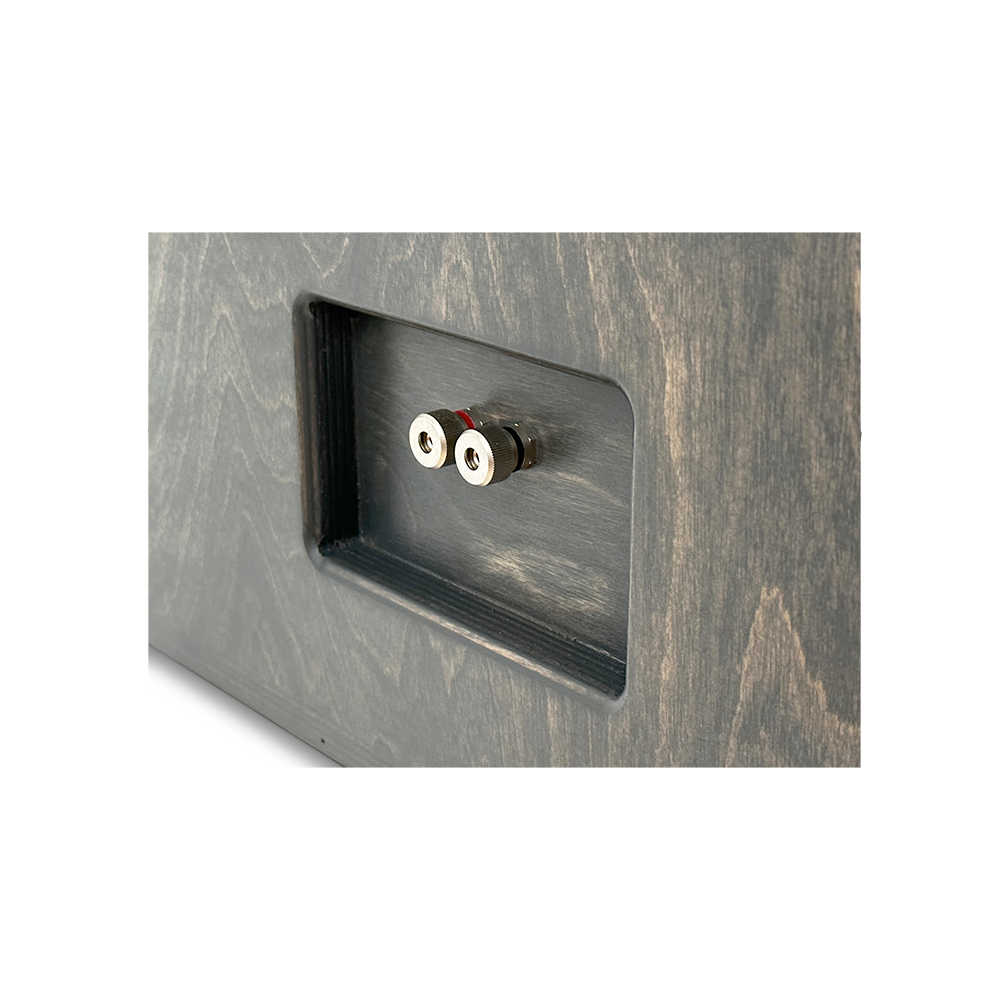

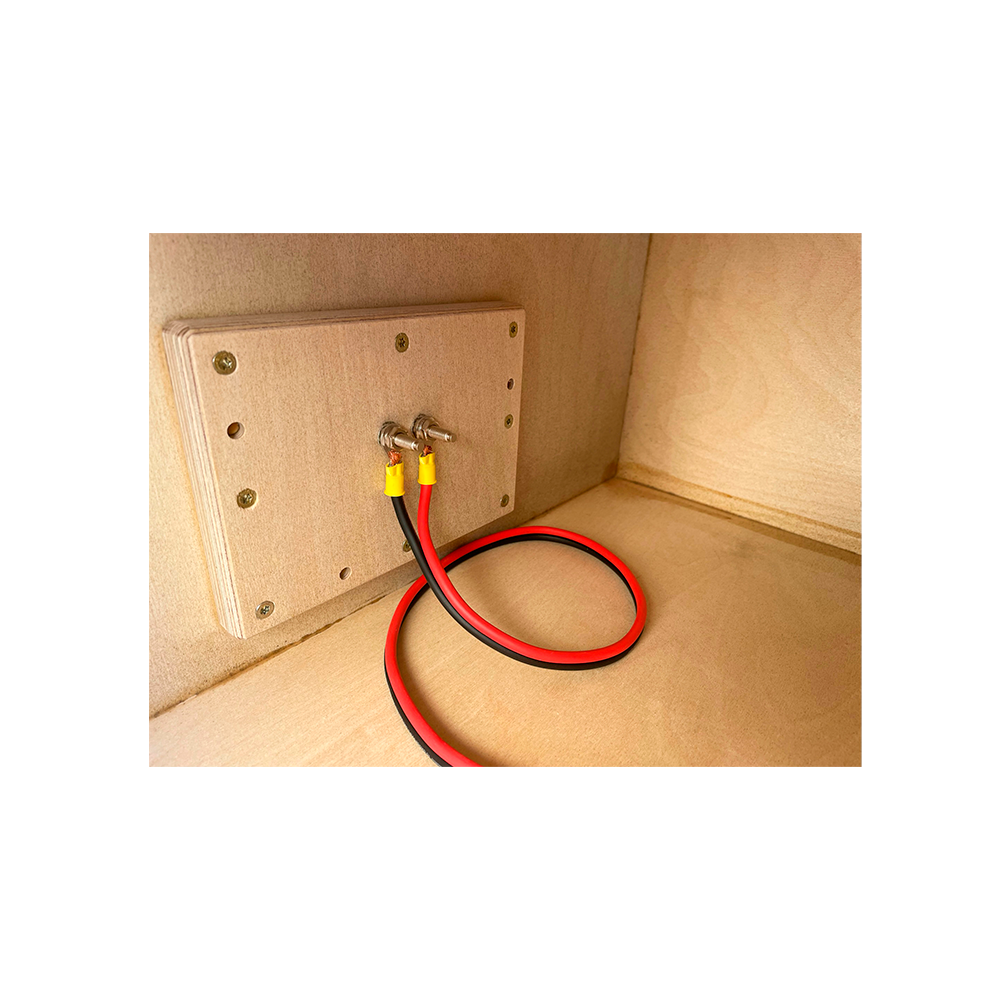

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify the connection process.
- Clean exterior: The carbon gray stain, polyurethane topcoat, and lack of visible exterior screws create a refined appearance.
- High-power rating: Rated up to 1750W RMS for use in a performance-focused system within the subwoofer’s capability.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Single 12" ported enclosure |
| Specified subwoofer | Resilient Sounds Gold 12" |
| Net volume | 2.0 cubic feet |
| Tuning | 33 Hz |
| Port area | 28.69 sq in |
| Port size | 13.501" x 2.125" |
| Subwoofer cutout | 11.2" |
| Enclosure construction | 3/4" (18mm) Russian Baltic Birch, 13-ply |
| Front baffle | 1" (24mm), 17-ply |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | Up to 1750W RMS |
| Dimensions | Height 15.0", Width 24.625", Depth 17.0" |
| Construction details | Handcrafted in the USA; zero visible exterior screws; fully glued with Titebond III |
| Build and lead time | Built to order; ships in 2–3 weeks |
Why Choose This Product?
This enclosure combines the specified volume and tuning for the Gold 12" with a rectangular port sized at 28.69 sq in. The design is intended to support deep bass while keeping output controlled, and the substantial port area helps move air efficiently at high power.
Its birch construction, fully glued joints, and reinforced front baffle make enclosure rigidity part of the design. Pre-wiring and a metal binding post also give you a clear connection point for your system.
Installation & Compatibility Notes
This enclosure is engineered for the Resilient Sounds Gold 12" subwoofer and has an 11.2" cutout. Before installation, compare the enclosure’s 15.0" height, 24.625" width, and 17.0" depth with your available space.
Match the amplifier and system setup to the subwoofer’s capabilities and the enclosure’s rating of up to 1750W RMS. The enclosure is built to order, with a stated lead time of 2–3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Gold 12" subwoofer.
What are the enclosure’s volume and tuning?
It has a 2.0 cubic-foot net volume and is tuned to 33 Hz.
What are the enclosure’s outside dimensions?
It measures 15.0" high, 24.625" wide, and 17.0" deep. Check these measurements against your available installation space.
How is the enclosure connected?
It comes pre-wired with 10ga OFC wiring and a metal binding post.
What is its power rating?
The enclosure is rated up to 1750W RMS. Match your system to the Gold 12" subwoofer’s capabilities.
