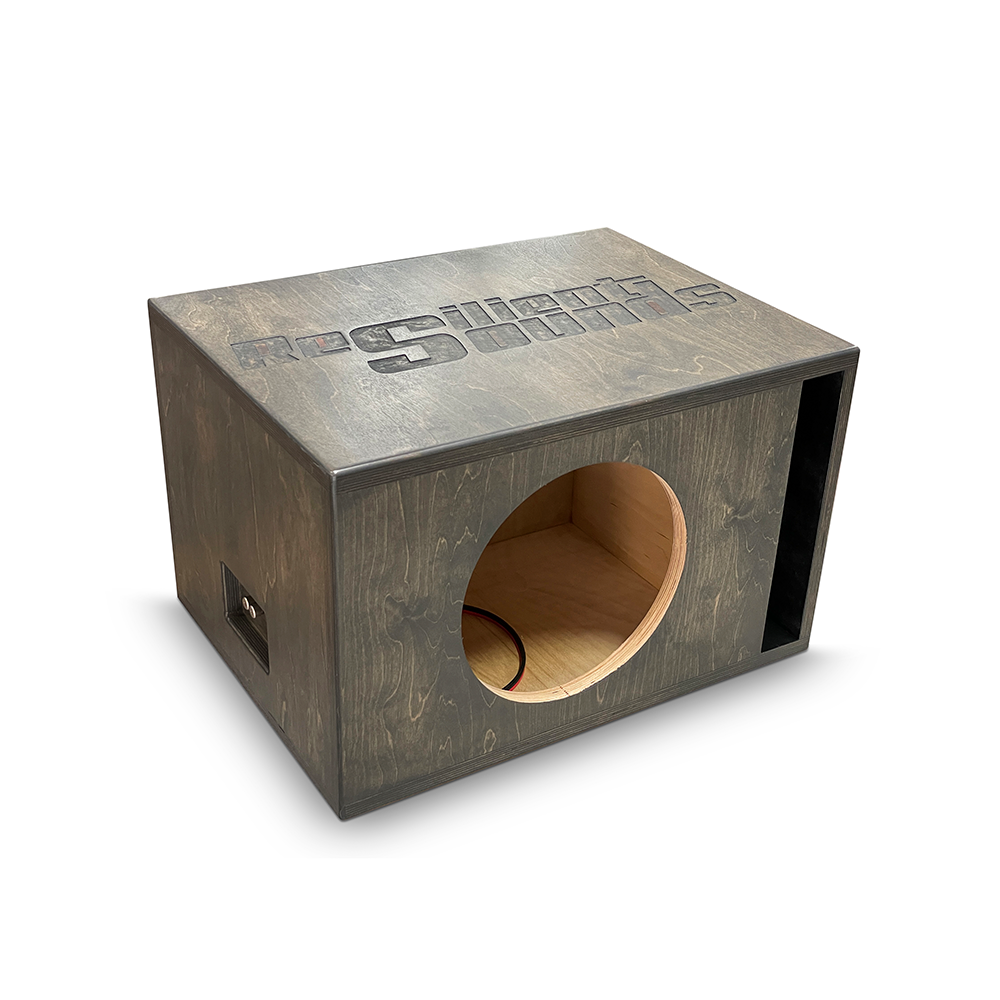

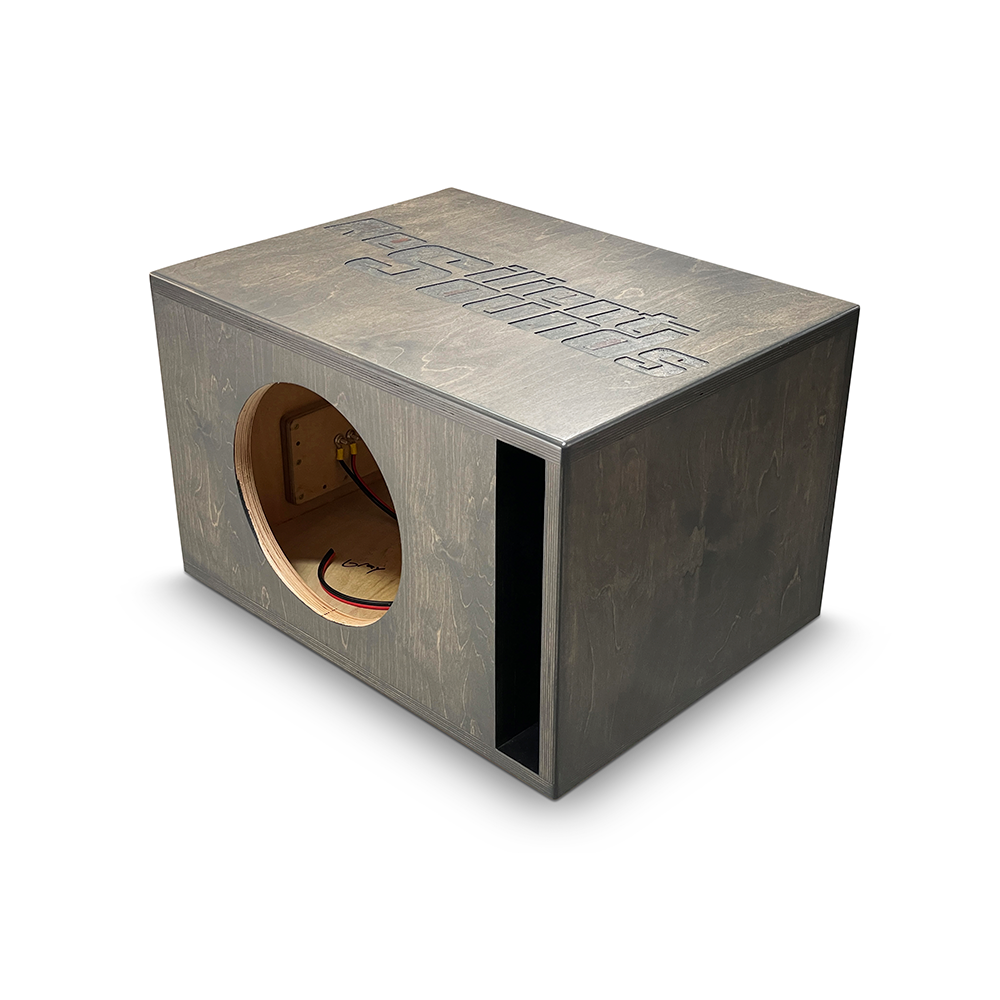

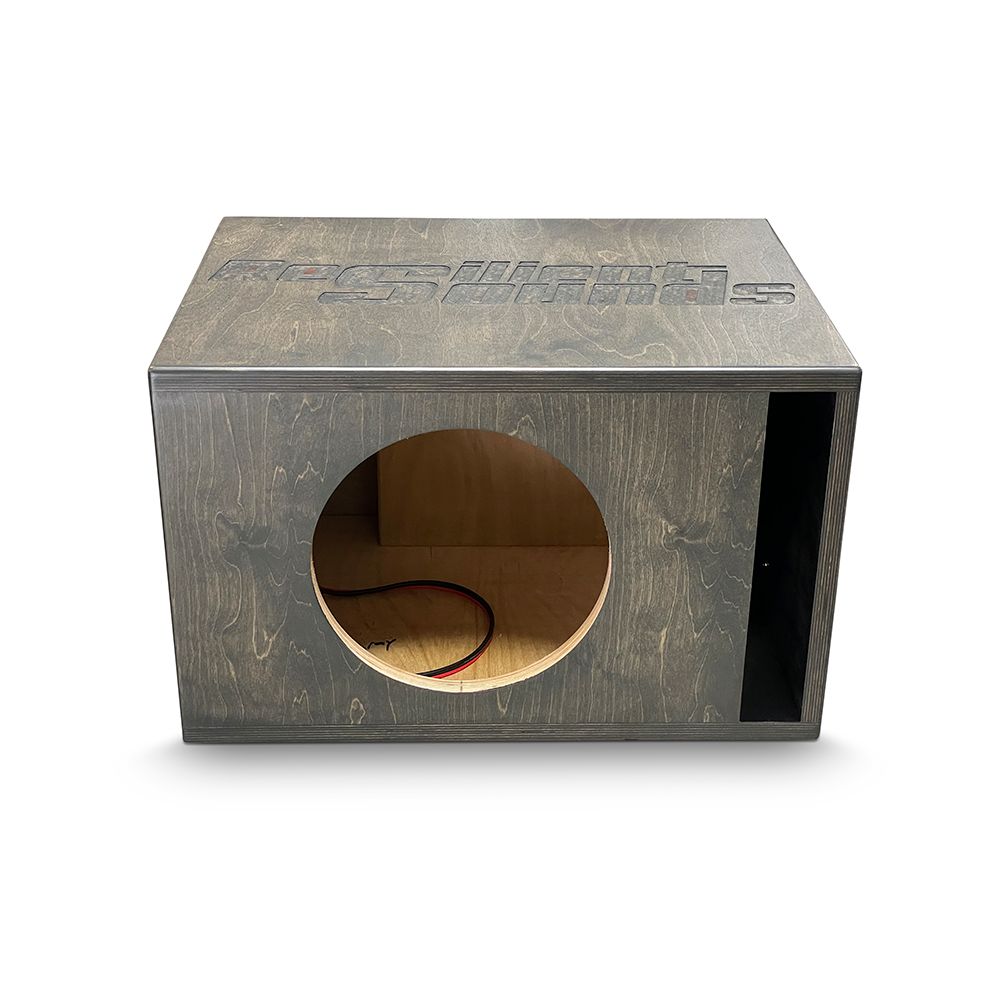

Resilient Sounds Single 12" Gold v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 2 ft³
- Compatible woofer size: 12 inches
- Woofer mounting capacity: 1
- Port tuning: 33 Hz
- Port area (total): 28.69 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 12" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 12" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your Resilient Sounds Gold v2 12" subwoofer a ported enclosure built around its intended airspace and tuning. The Resilient Sounds Single 12" Gold v2 Ported Enclosure combines a 2.0 cubic-foot net volume with a 33 Hz tune for deep bass and a controlled response.
Its carbon gray finish and screw-free exterior create a clean look in your vehicle, while pre-wiring makes the enclosure ready for subwoofer mounting and wiring.
Key Features & Benefits
- Gold v2-specific design: The enclosure’s airspace and 11.175" cutout are designed for the Gold v2 12" subwoofer.
- 33 Hz tuning: The low-frequency tune targets deep bass while supporting controlled cone movement at common listening levels.
- 28.69 sq in port area: The slot port’s cross-section helps sustain airflow at high output.
- Rigid construction: A 13-ply Russian Baltic Birch cabinet and solid 1" front baffle help limit panel flex and resonance.
- Pre-wired connections: Pre-wired 10ga OFC and a metal binding post simplify the wiring stage.
- Clean exterior: The carbon gray stain, polyurethane topcoat, and zero visible screw holes give the enclosure a polished appearance.
Technical Specifications
| Product type | Single 12" ported enclosure |
|---|---|
| Designed for | Resilient Sounds Gold v2 12" subwoofer |
| Net volume | 2.0 cubic feet |
| Tuning | 33 Hz |
| Port area | 28.69 sq in |
| Port size | 13.501" x 2.125" |
| Cutout | 11.175" |
| Construction | 3/4" (18mm) Russian Baltic Birch; 13-ply cabinet |
| Front baffle | Solid 1" (24mm) |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power handling | Up to 1750W RMS |
| Dimensions | Height 15.0", Width 24.625", Depth 17.0" |
| Assembly | Fully glued with Titebond III |
| Exterior | Zero visible screw holes |
| Origin | Handcrafted in the USA |
| Installation preparation | Ready to install; prepared for mounting and wiring of the subwoofer |
| Lead time | Built to order. Ships in 2-3 weeks. |
Why Choose This Product?
This enclosure brings the Gold v2 12" subwoofer’s specified airspace and tuning together in one purpose-built cabinet. Its 2.0 cubic-foot net volume and 33 Hz tune are intended to support deep bass with a controlled response, rather than leaving enclosure design as a separate project.
The Baltic Birch construction, thick front baffle, and fully glued assembly are practical choices for a bass enclosure. The finished, screw-free exterior also keeps the visible cabinet looking tidy in a vehicle.
Installation & Compatibility Notes
Plan for the enclosure’s 15.0" height, 24.625" width, and 17.0" depth when checking trunk or cargo-area space. Confirm the 11.175" cutout suits your Gold v2 12" subwoofer and that the enclosure can be positioned for your installation.

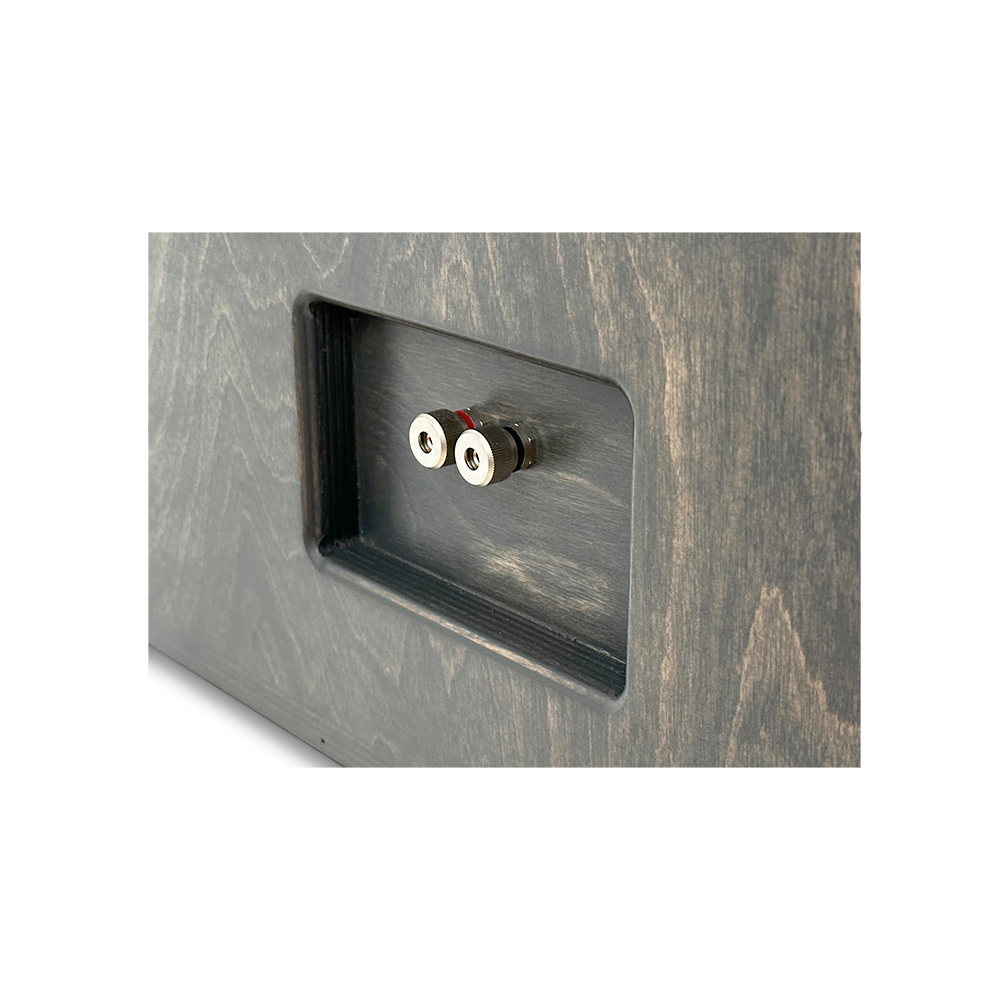

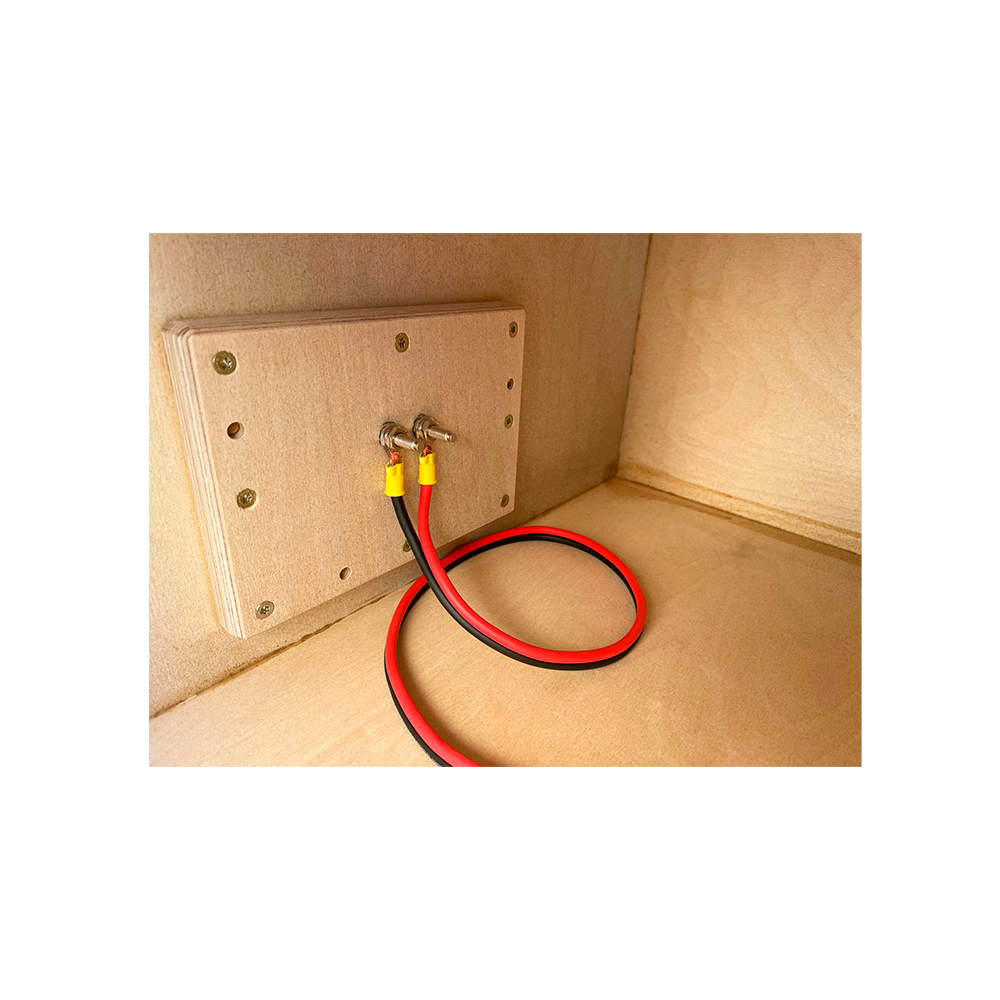

The enclosure is pre-wired with 10ga OFC and a metal binding post. Its power handling is up to 1750W RMS; match the subwoofer and supporting equipment to their respective ratings.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is purpose-built for a single Resilient Sounds Gold v2 12" subwoofer.
What does the 33 Hz tuning mean for my setup?
The enclosure is tuned to 33 Hz, targeting deep bass with a controlled response.
How much room should I allow?
The enclosure measures 15.0" high, 24.625" wide, and 17.0" deep. Check these dimensions against your available space.
What is the enclosure’s power handling?
It is rated for up to 1750W RMS. Match your equipment to its own ratings as well.
Is the enclosure prepared for installation?
Yes. It is described as ready to install and prepared for mounting and wiring the subwoofer, with pre-wired 10ga OFC and a metal binding post.
