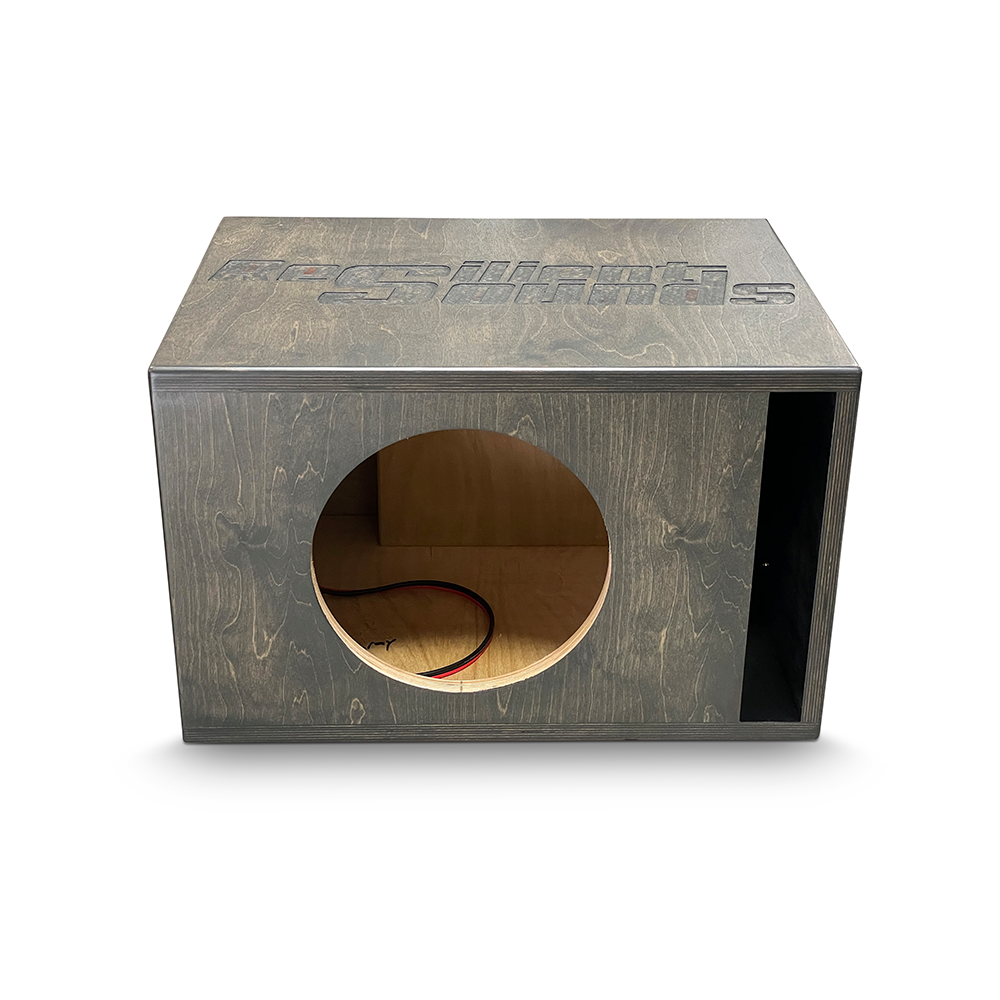

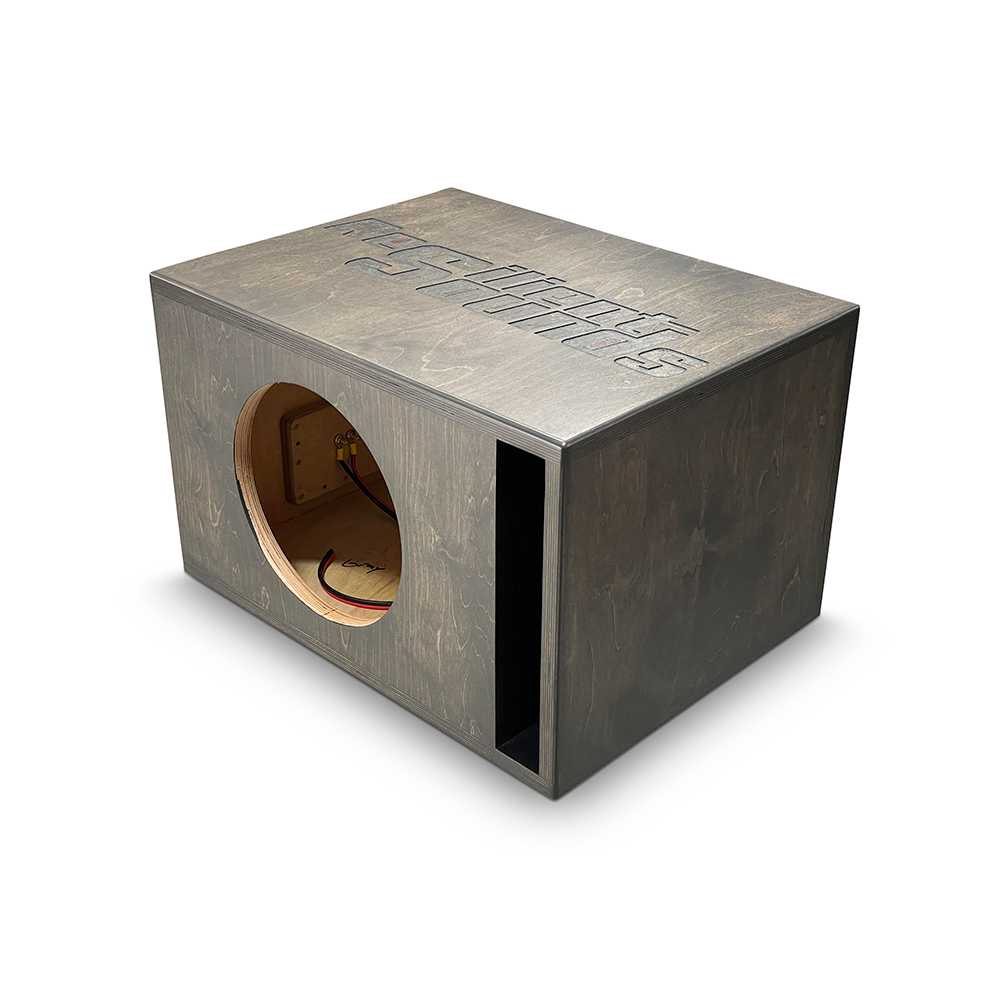

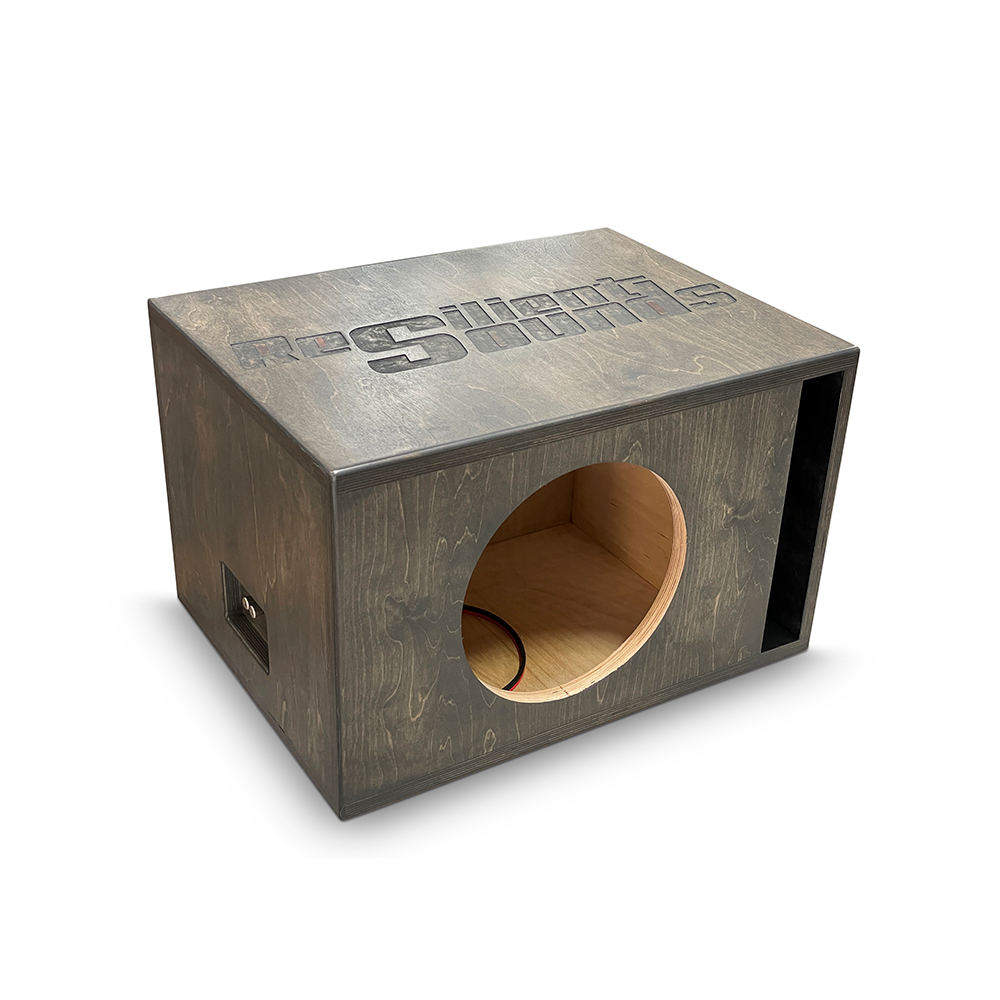

Resilient Sounds Single 12" Platinum v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 2.25 ft³
- Compatible woofer size: 12 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 32.2 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 12" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 12" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your Resilient Sounds Platinum v2 12-inch subwoofer a purpose-built home with this single 12-inch ported enclosure. Its 2.25 cubic-foot net volume and 32 Hz tuning are designed for deep, controlled bass in a clean-finished birch cabinet.
The carbon gray stain and polyurethane topcoat bring a polished look to your installation, while the zero-visible-screw exterior keeps the finish uncluttered.
Key Features & Benefits
- Purpose-built fit: Designed specifically for the Resilient Sounds Platinum v2 12-inch subwoofer.
- Ported design: A 32 Hz tuning supports strong low-frequency performance.
- Rigid birch construction: Seventeen plies and a 1-inch front baffle help limit panel flex under heavy bass signals.
- Clean exterior: No visible exterior screw holes create a show-ready appearance.

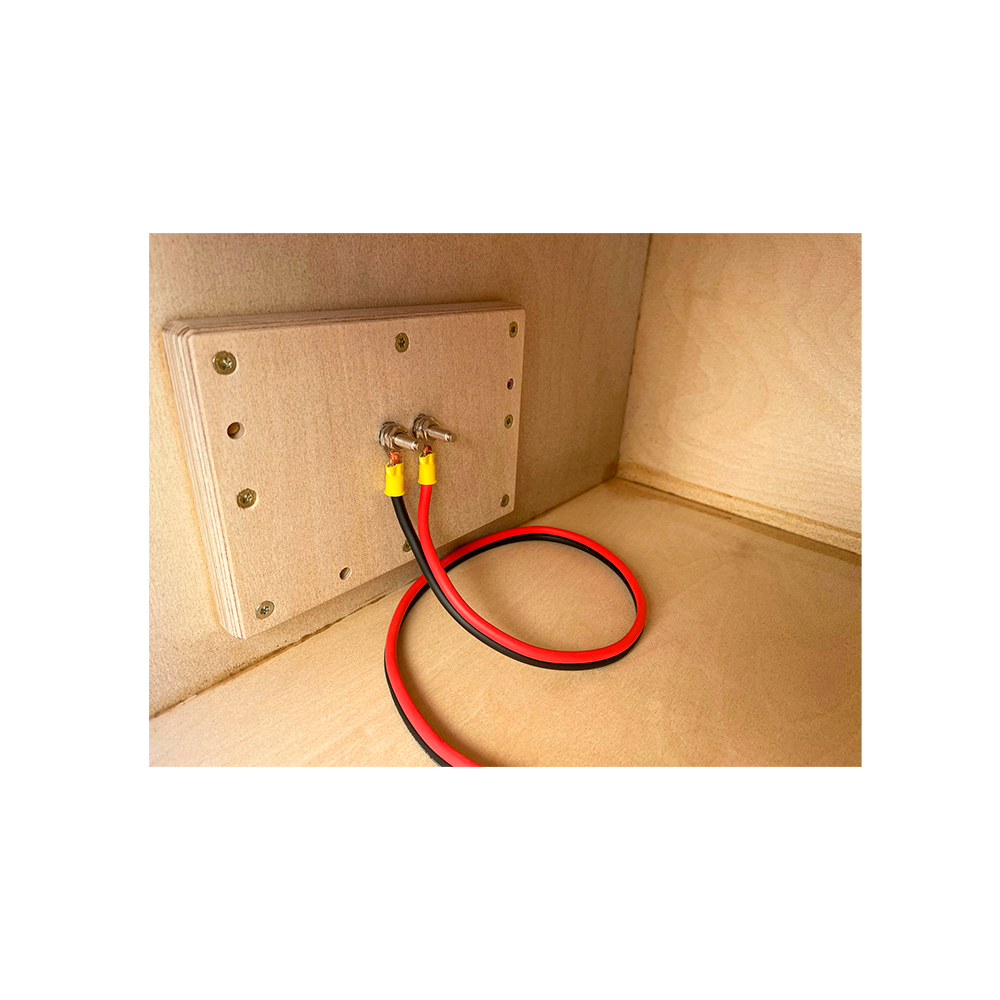

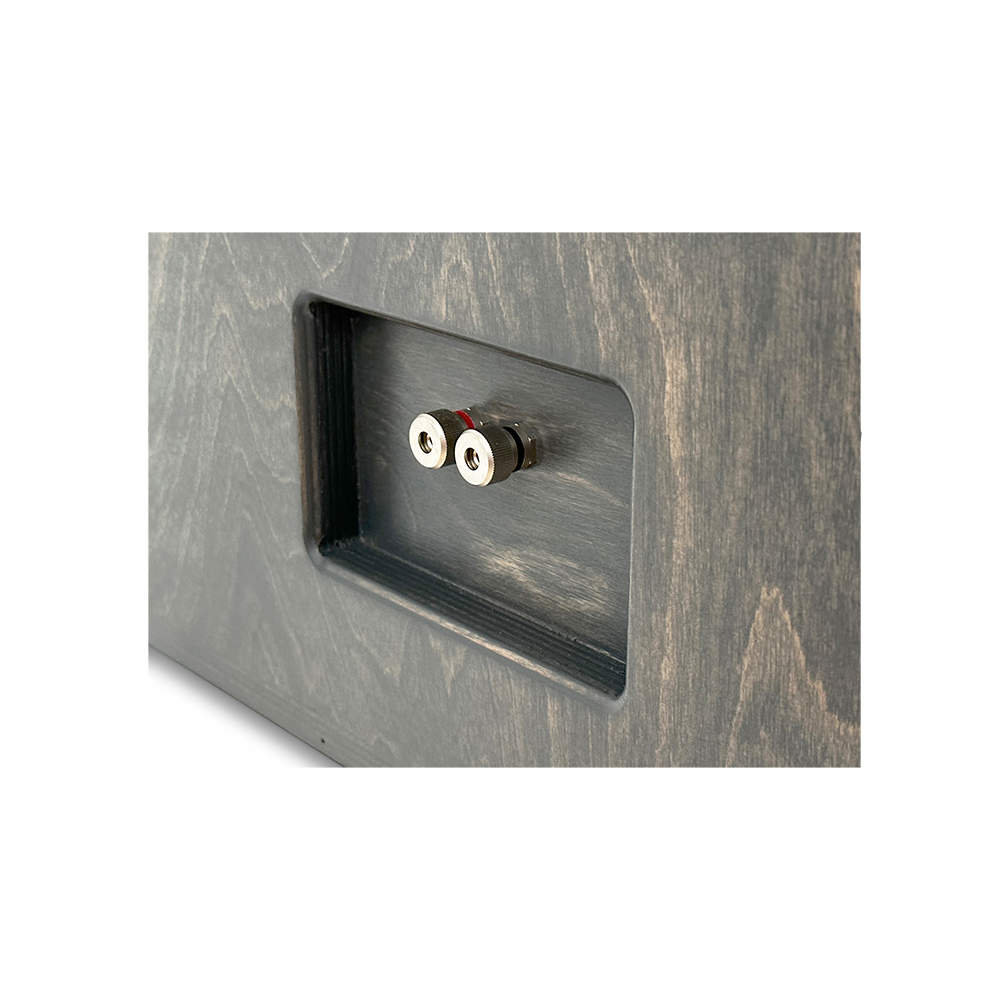

- Wiring ready: Pre-wired 10-gauge OFC cable and a metal binding post simplify connecting the subwoofer.
- Handcrafted assembly: Built in the USA and fully glued with Titebond III for airtight integrity.
Technical Specifications
| Product type | Single 12" ported enclosure |
|---|---|
| Designed for | Resilient Sounds Platinum v2 12" subwoofer |
| Net volume | 2.25 cubic feet |
| Tuning | 32 Hz |
| Port area | 32.2 sq in |
| Port size | 14.0" x 2.3" |
| Cutout | 11.175" |
| Construction | 1" (24mm) Russian Baltic Birch; 17 plies |
| Front baffle | 1" (24mm) |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | High power systems |
| Dimensions | Height 16.0", Width 25.25", Depth 19.0" |
| Assembly | Fully glued with Titebond III |
| Exterior | Zero visible screw holes |
| Origin | Handcrafted in the USA |
| Installation | Arrives ready to wire up your subwoofer |
| Lead time | Built to order. Ships in 2-3 weeks. |
Why Choose This Product?
This enclosure pairs defined internal volume and port dimensions with a 32 Hz tuning, giving your Platinum v2 setup a design tailored to its intended subwoofer. Its rigid birch panels and thicker front baffle are built for demanding, high-output applications, while the finished exterior suits a show-quality installation.
The stated dimensions make it suitable for a variety of trunk and rear-deck installations. The carbon gray finish offers a refined alternative to an unfinished enclosure.
Installation & Compatibility Notes
Confirm the available installation space against the enclosure’s 16.0" height, 25.25" width, and 19.0" depth. The 11.175" cutout is specified for the intended 12" subwoofer. This enclosure is engineered specifically for the Resilient Sounds Platinum v2 12" model.
It arrives ready to wire up your subwoofer. The enclosure is built to order and ships in 2-3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Platinum v2 12" subwoofer.
What does the ported design offer?
The enclosure uses a 32 Hz tuning for strong low-frequency performance and controlled output.
What should I measure before installation?
Check your available space against the enclosure’s height, width, and depth, and confirm the mounting cutout suits your subwoofer.
Is the enclosure ready to wire?
Yes. It is pre-wired with 10ga OFC and a metal binding post, and arrives ready to wire up your subwoofer.
