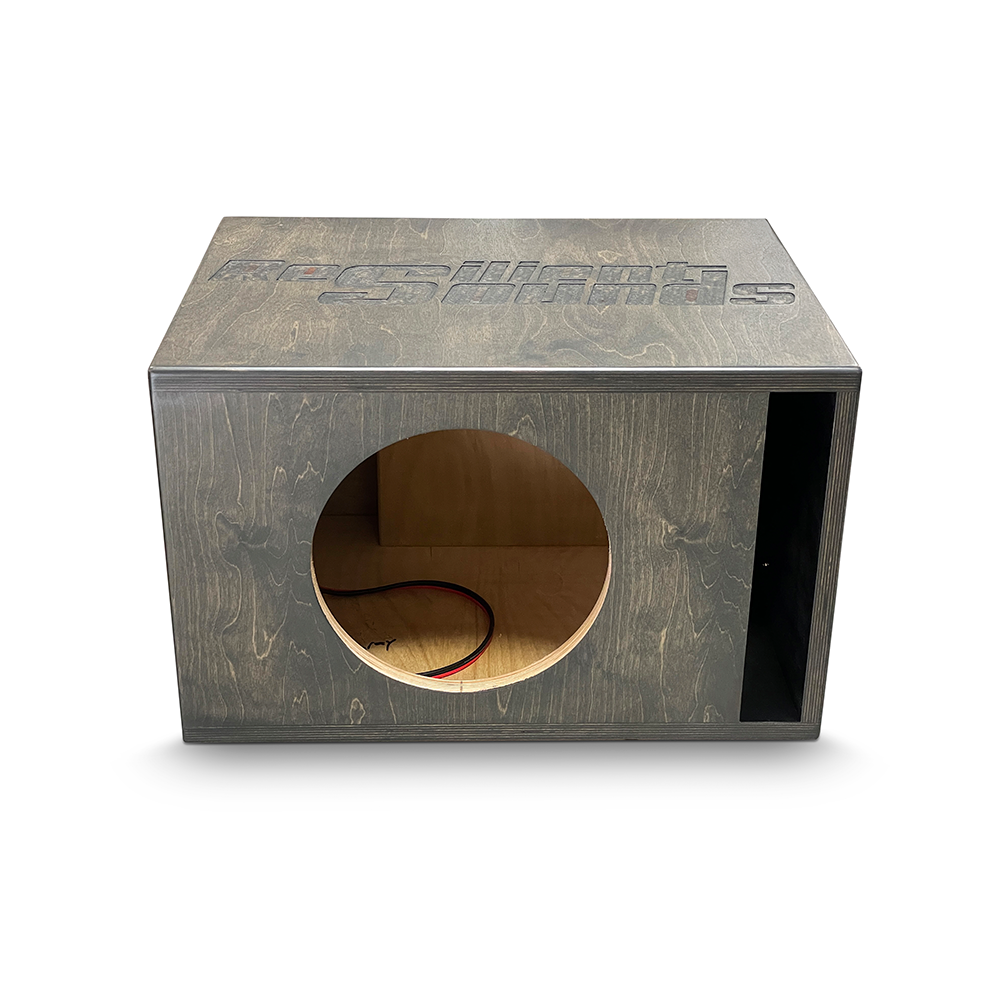

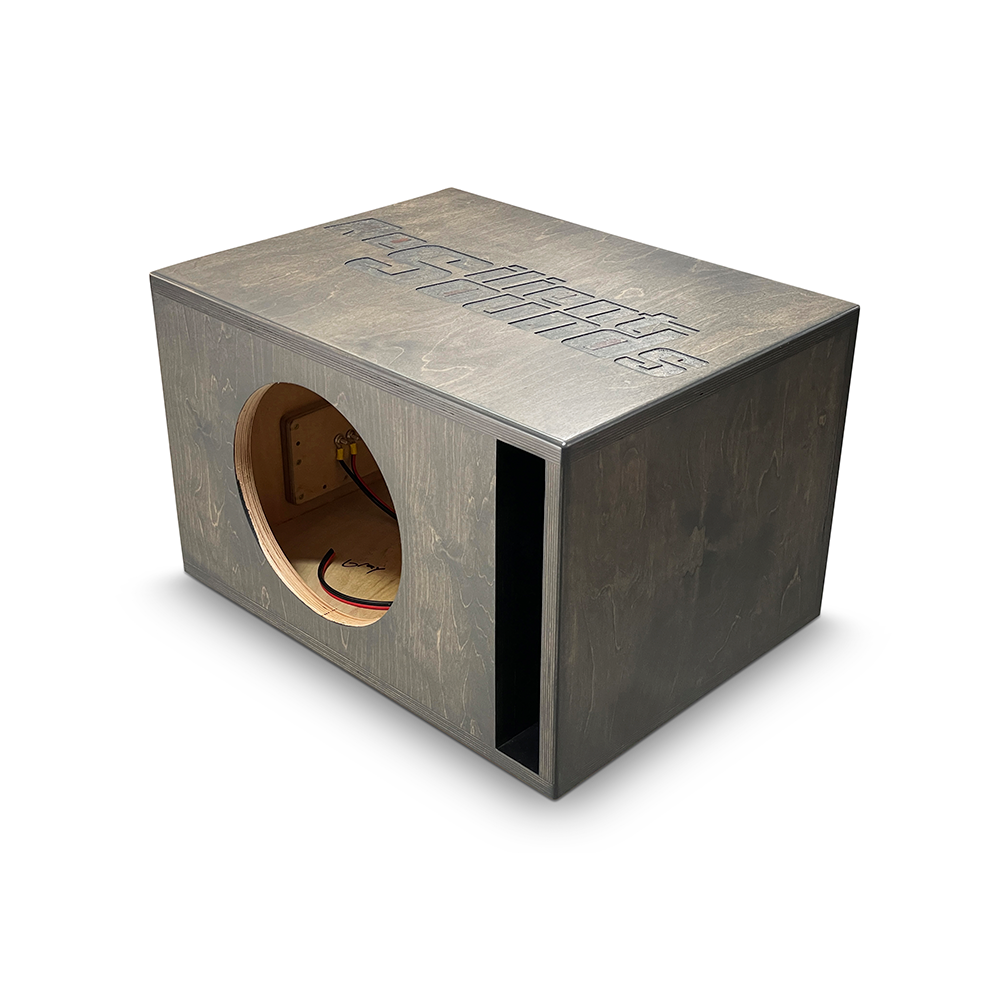

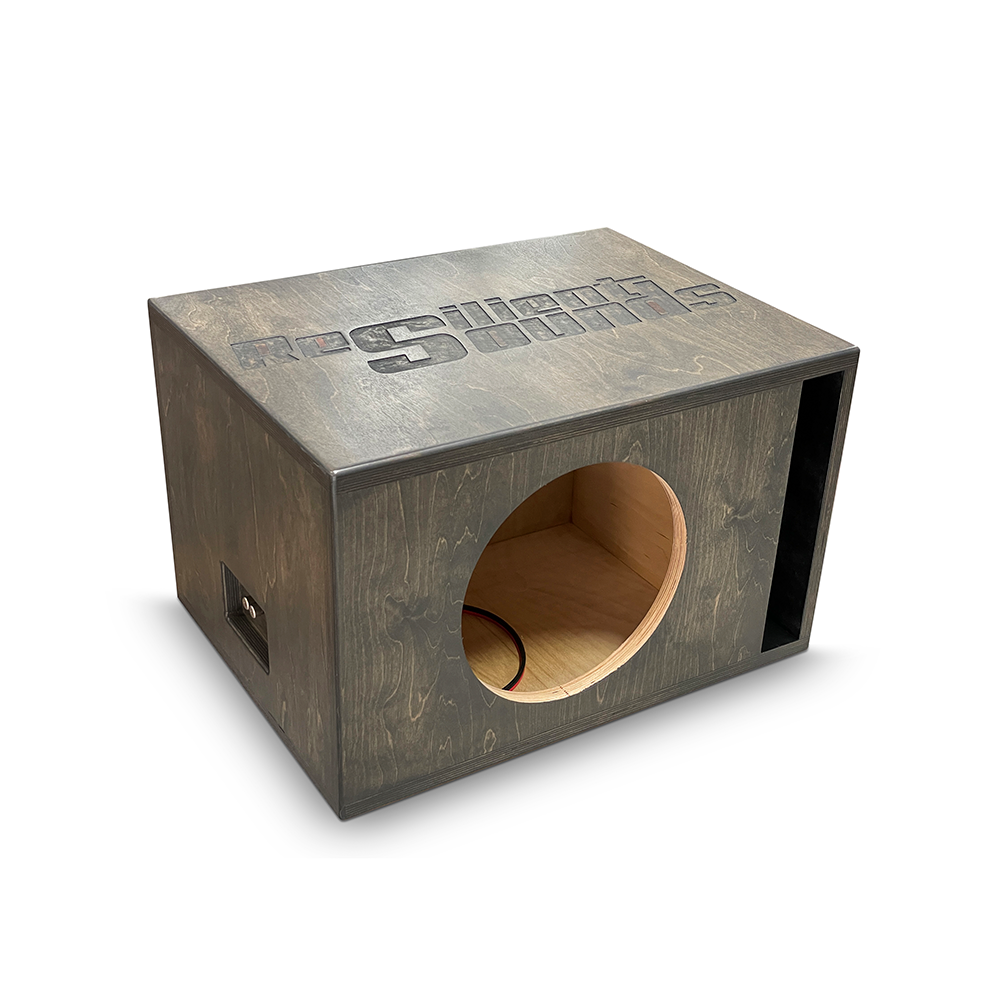

Resilient Sounds Single 15" Gold Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 3.25 ft³
- Compatible woofer size: 15 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 46.5 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 15" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 15" Gold Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a single-subwoofer setup around the Resilient Sounds Single 15" Gold Ported Enclosure, designed for the Resilient Sounds Gold 15" subwoofer. Its ported design and 32 Hz tuning target deep, controlled bass, while a thick front baffle and Baltic birch construction provide a rigid cabinet.
Key Features & Benefits
- Ported design: The specified tuning and port area support airflow for low-frequency playback.
- Rigid construction: Multi-ply Baltic birch sides and a thick front baffle help reduce cabinet flex.

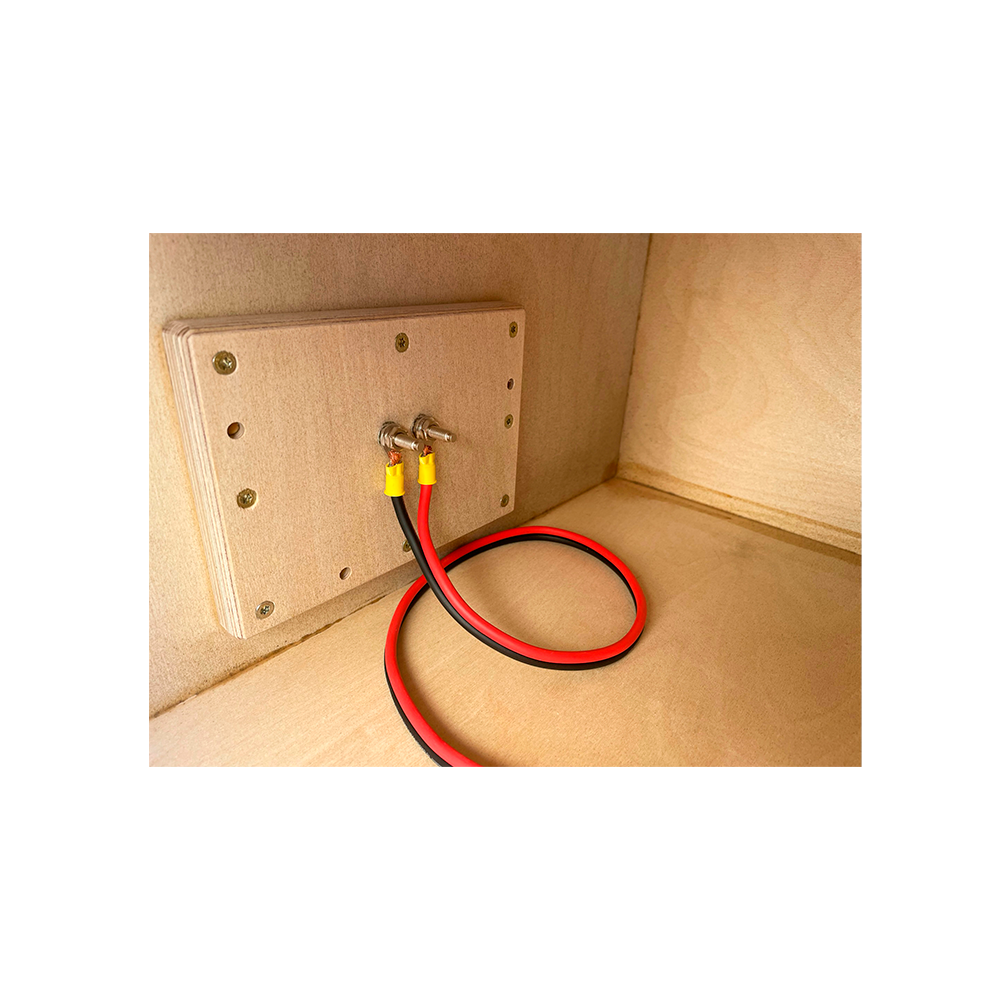

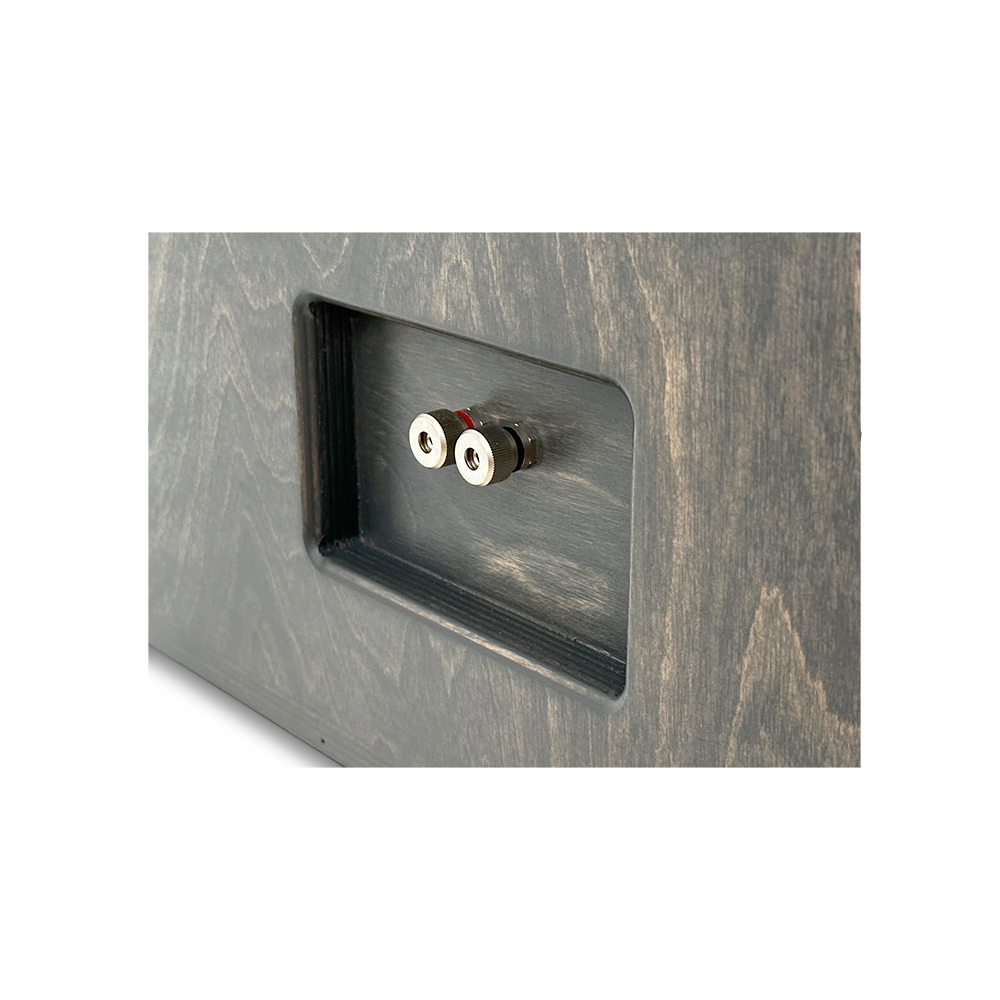

- Pre-wired connections: 10ga OFC wiring and metal binding posts simplify amplifier connections.
- Clean exterior: A carbon gray stain, polyurethane topcoat, and no visible exterior screw holes create a refined finish.
- Sealed assembly: Titebond III glue and fully glued construction support airtight integrity.
Technical Specifications
| Net volume | 3.25 cu ft |
|---|---|
| Tuning | 32 Hz |
| Port area | 46.5 sq in |
| Port size | 15.5" x 3.0" |
| Subwoofer cutout | 13.7" |
| Side construction | 3/4" (18mm) Russian Baltic Birch; 13-ply sides |
| Front baffle | 1" (24mm) thick; 17-ply |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding posts |
| Power rating | Up to 1750W RMS |
| Dimensions | Height 17.0", Width 27.875", Depth 20.0" |
| Assembly | Fully glued with Titebond III |
| Build and appearance | Handcrafted in the USA; zero visible exterior screw holes |
| Lead time | Built to order; ships in 2-3 weeks |
Why Choose This Product?
This enclosure is built around the Resilient Sounds Gold 15" subwoofer, with specified airspace and port dimensions for that setup. Its thick front baffle and glued construction are intended to limit cabinet flex and preserve airtight integrity during high-power use. The finished exterior also suits an installation where the enclosure remains visible.
Installation & Compatibility Notes
Use with a Resilient Sounds Gold 15" subwoofer. Before planning a trunk or hatch installation, compare the enclosure’s height, width, and depth with your available space. Confirm that your amplifier and system are appropriate for the enclosure’s stated power rating.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered for the Resilient Sounds Gold 15" subwoofer.
What does the 32 Hz tuning indicate?
The enclosure is tuned to 32 Hz, targeting deep bass frequencies.
What is the enclosure’s power rating?
Its stated rating is up to 1750W RMS.
How do I check whether it will fit my vehicle?
Compare the listed height, width, and depth with your available installation space.
How are the amplifier connections made?
The enclosure has pre-wired 10ga OFC wiring and metal binding posts.
