Resilient Sounds Single 15" Gold v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 3.5 ft³
- Compatible woofer size: 15 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 50.38 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 15" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 15" Gold v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

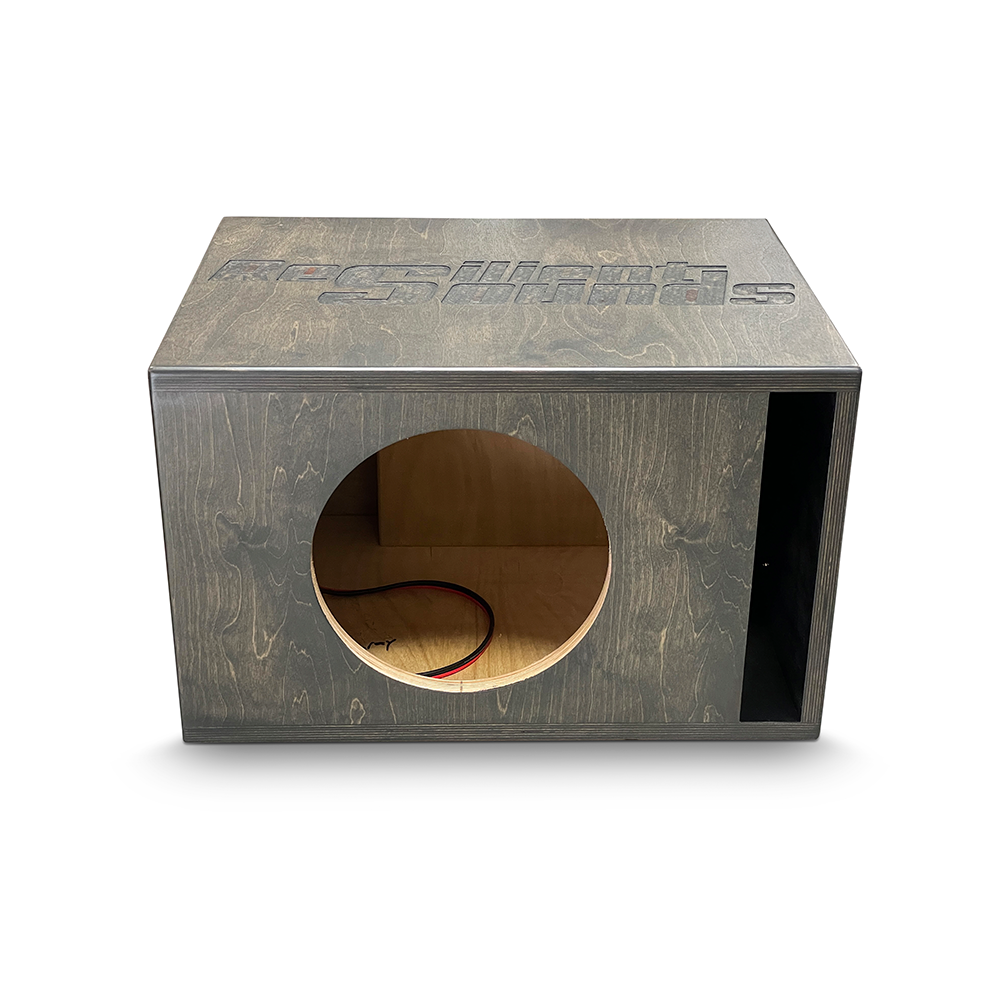

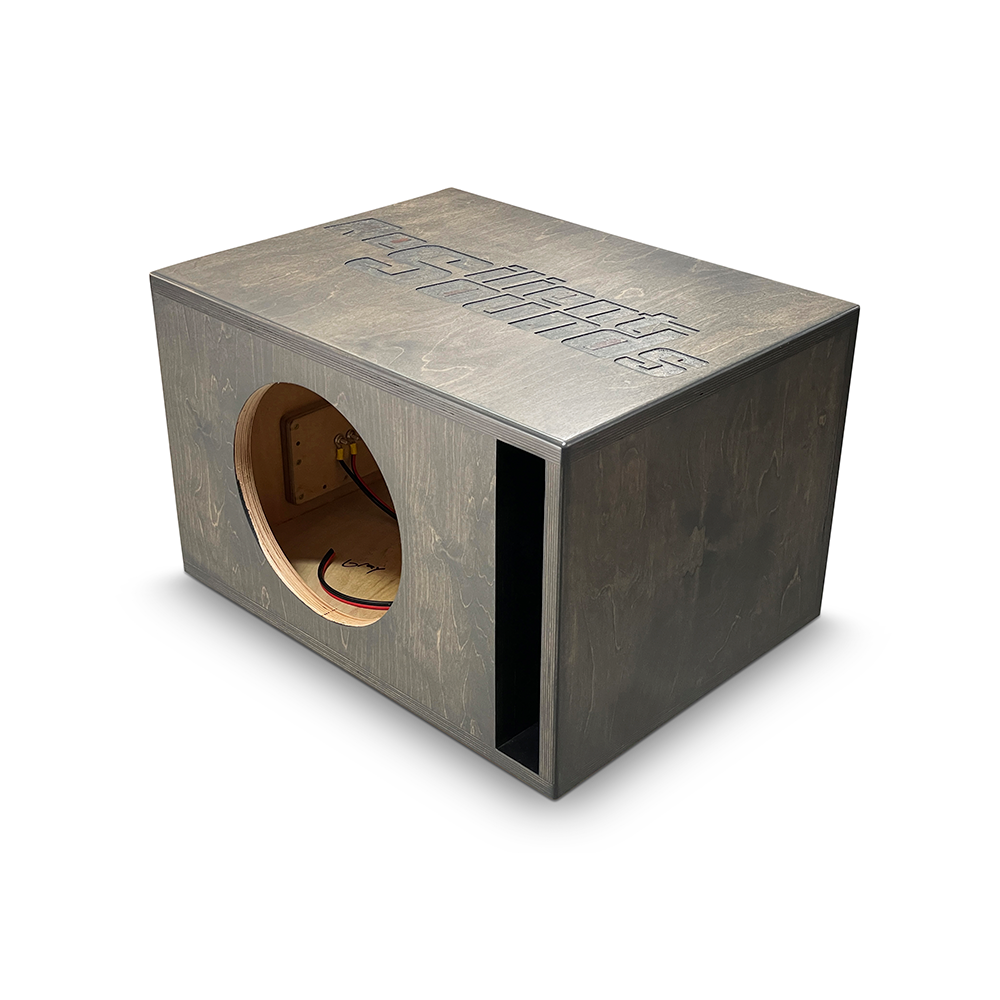

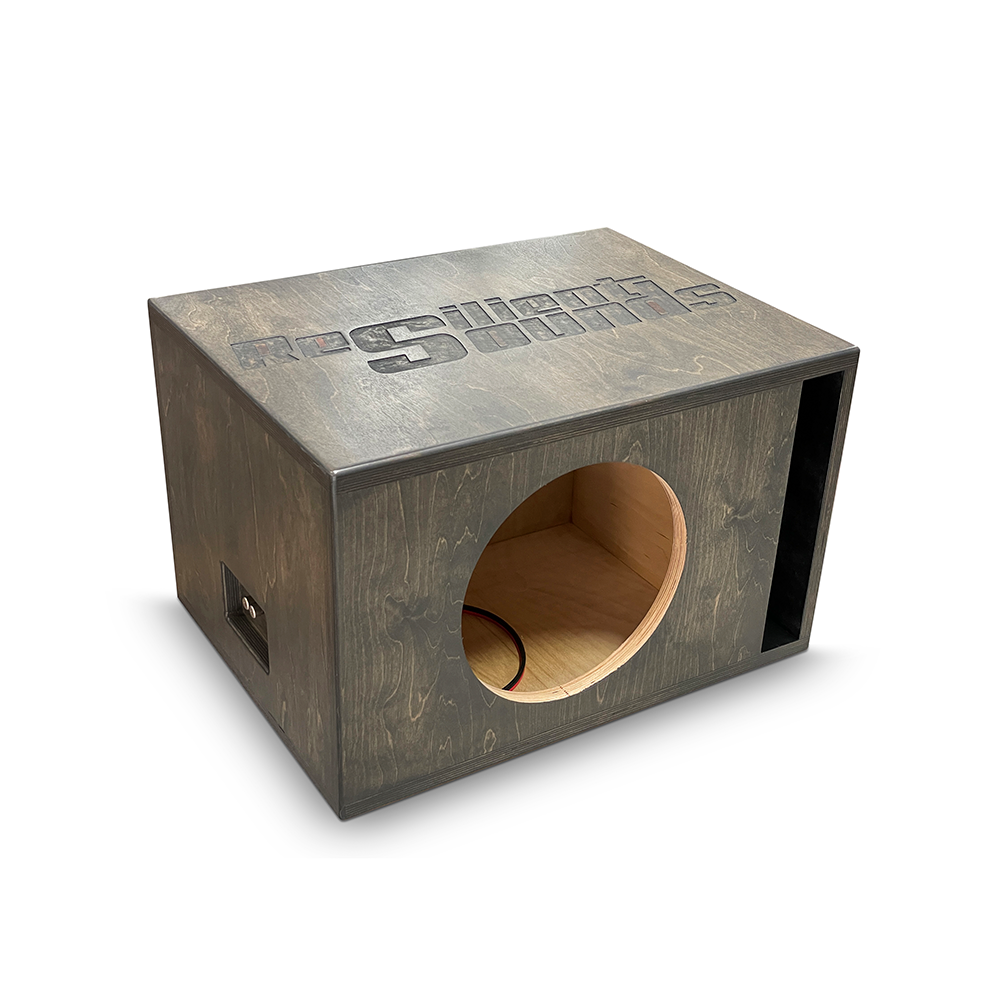

Give your Gold v2 15" subwoofer a purpose-built home with the Resilient Sounds Single 15" Gold v2 Ported Enclosure. Its 3.5 cubic feet of net volume and 32 Hz tuning are designed for deep, controlled bass, while the rigid birch construction helps keep the enclosure steady during playback.
The carbon gray finish and concealed screw holes give this ported subwoofer enclosure a clean look for a trunk or behind-seats installation.
Key Features & Benefits
- Purpose-built design: Made for the Gold v2 15" subwoofer, with a 14.236" cutout.
- Ported bass tuning: A 32 Hz tuning and 50.38 sq in port area support deep bass with controlled airflow.
- Rigid construction: 3/4" (18mm), 13-ply Russian Baltic Birch and a solid 1" (24mm) baffle help limit panel flex.
- Clean exterior: Carbon gray stain, a polyurethane topcoat, and no visible screw holes create a polished appearance.

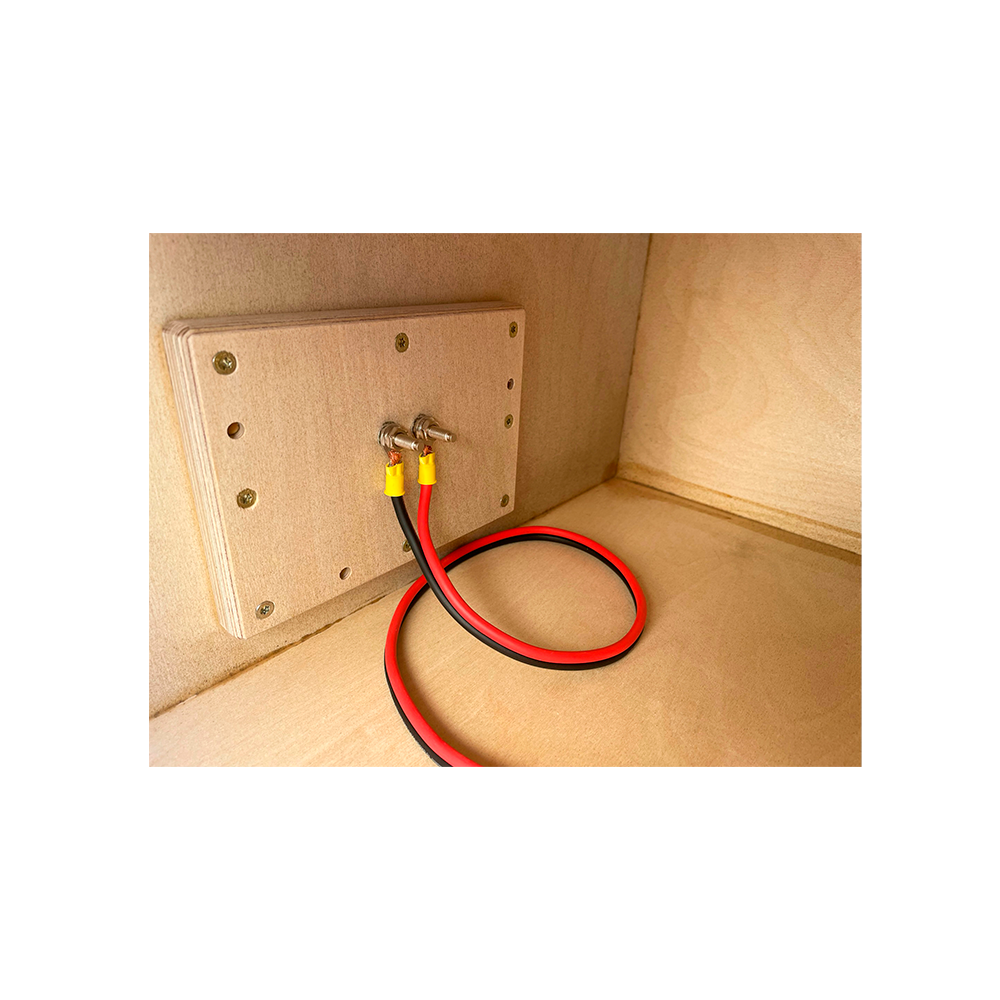

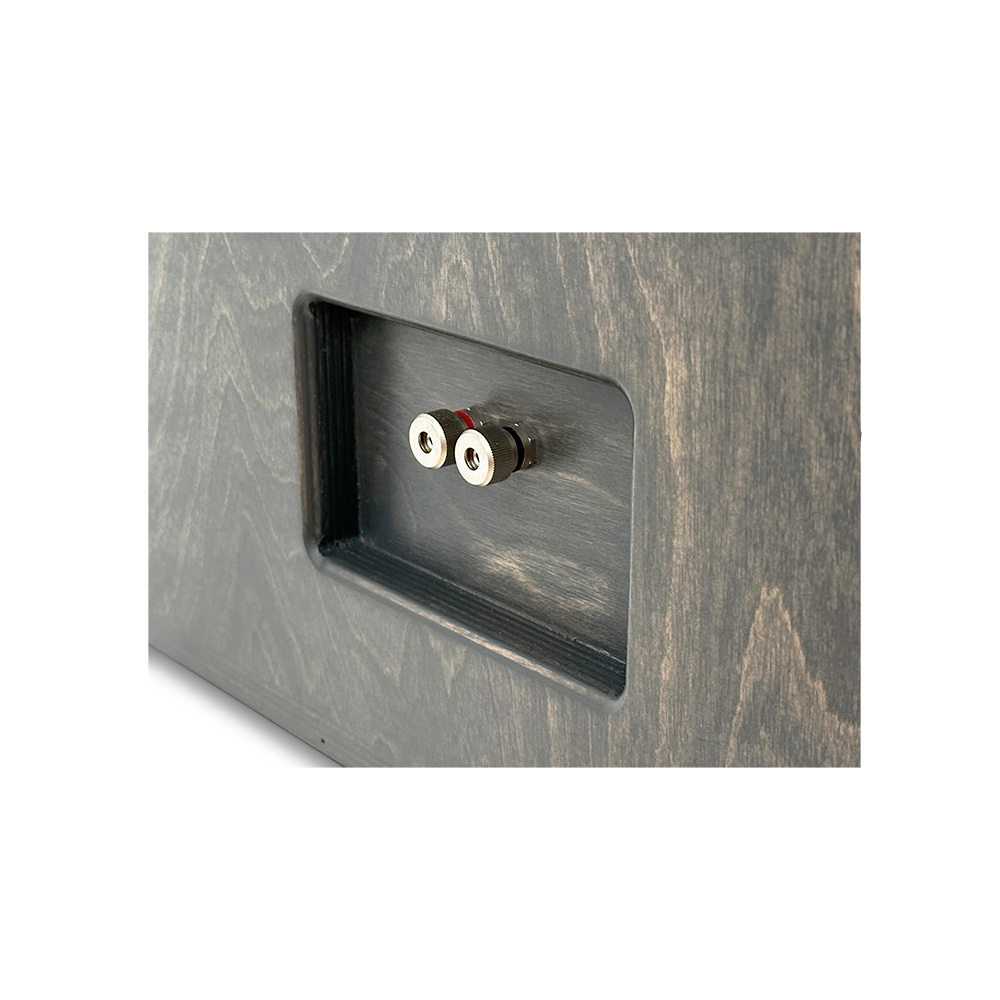

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify connection to your subwoofer.
- Built to order: Handcrafted in the USA and fully glued with Titebond III for airtight joints.
Technical Specifications
| Product | Resilient Sounds Single 15" Gold v2 Ported Enclosure |
|---|---|
| Designed for | Gold v2 15" sub |
| Net volume | 3.5 cubic feet |
| Tuning | 32 Hz |
| Port area | 50.38 sq in |
| Port size | 15.502" x 3.25" |
| Cutout | 14.236" |
| Construction | 3/4" (18mm) Russian Baltic Birch; 13-ply walls |
| Front baffle | Solid 1" (24mm) |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | Up to 1750W RMS |
| Dimensions | Height 17.0", Width 29.875", Depth 20.0" |
| Construction details | Fully glued with Titebond III; zero visible screw holes |
| Manufacture | Handcrafted in the USA |
| Preparation | Ready to install |
| Lead time | Built to order; ships in 2-3 weeks |
Why Choose This Product?
This enclosure combines the specified airspace and port tuning for the Gold v2 15" with construction details aimed at a rigid, airtight build. The 50.38 sq in port area is intended to help move air smoothly at the tuned frequency, while the thick baffle and birch walls help limit flex.
Its finished exterior suits an installation where appearance matters as much as a dedicated subwoofer enclosure. The enclosure is rated for up to 1750W RMS.
Installation & Compatibility Notes
Check that the 17.0" height, 29.875" width, and 20.0" depth fit your intended trunk or cargo area. Confirm the subwoofer is a Gold v2 15" and matches the 14.236" cutout before purchase.
The enclosure is pre-wired with 10ga OFC and a metal binding post. Review your system’s power requirements and installation plan before connecting equipment. This product is built to order and ships in 2-3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is designed specifically for the Gold v2 15" subwoofer and has a 14.236" cutout.
What does the 32 Hz tuning mean for bass?
The stated tuning favors deeper bass while maintaining controllable transient performance for daily driving.
How much space should I allow for the enclosure?
Plan around its full dimensions: 17.0" high, 29.875" wide, and 20.0" deep. Check the available space at the intended mounting location.
What wiring is on the enclosure?
It comes pre-wired with 10ga OFC and a metal binding post.
How long is the build lead time?
The enclosure is built to order and ships in 2-3 weeks.
