Resilient Sounds Single 15" Platinum Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 3.5 ft³
- Compatible woofer size: 15 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 50.4 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 15" Platinum Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 15" Platinum Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

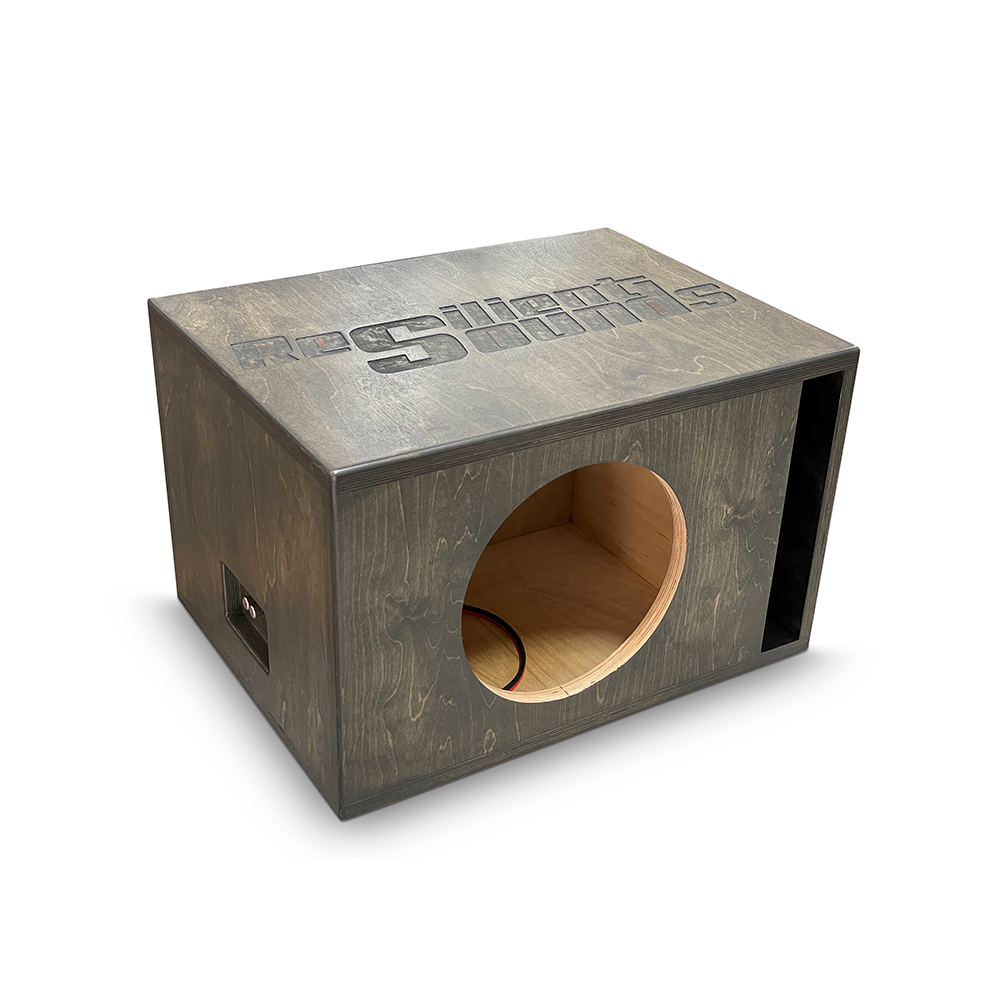

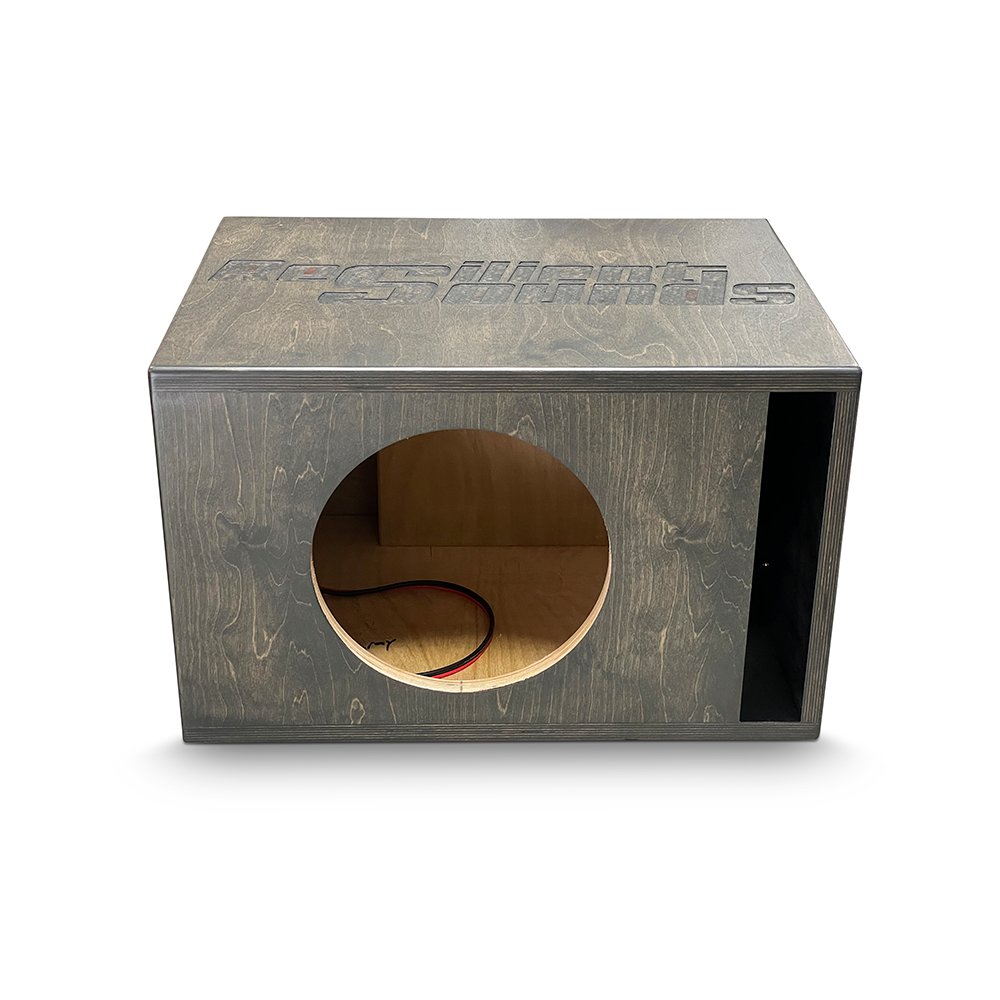

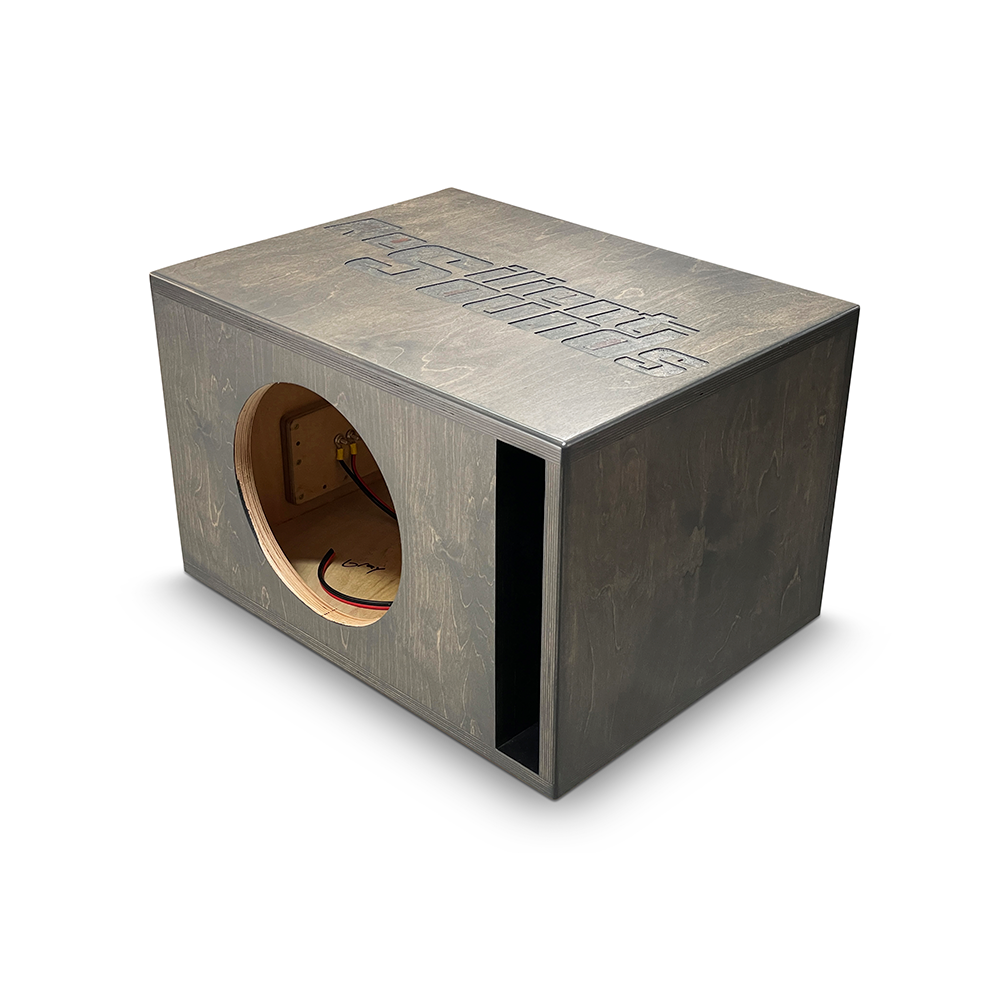

Build a deep-bass foundation for your car audio system with the Resilient Sounds Single 15" Platinum Ported Enclosure. It is designed specifically for the Resilient Sounds Platinum 15" subwoofer, with a 3.5 cubic-foot net volume and 32 Hz tuning. Its carbon gray finish gives the enclosure a clean look in a trunk or rear compartment.
Key Features & Benefits
- Purpose-built airspace: The 3.5 cubic-foot net volume and 32 Hz tuning are designed around the Platinum 15" subwoofer.
- Port design: A 50.4 sq in port area supports airflow at the tuning frequency.
- Rigid construction: 1" Russian Baltic Birch with 17 plies and a 1" front baffle helps limit cabinet flex.
- Finished exterior: Carbon gray stain with a polyurethane topcoat suits a visible installation.

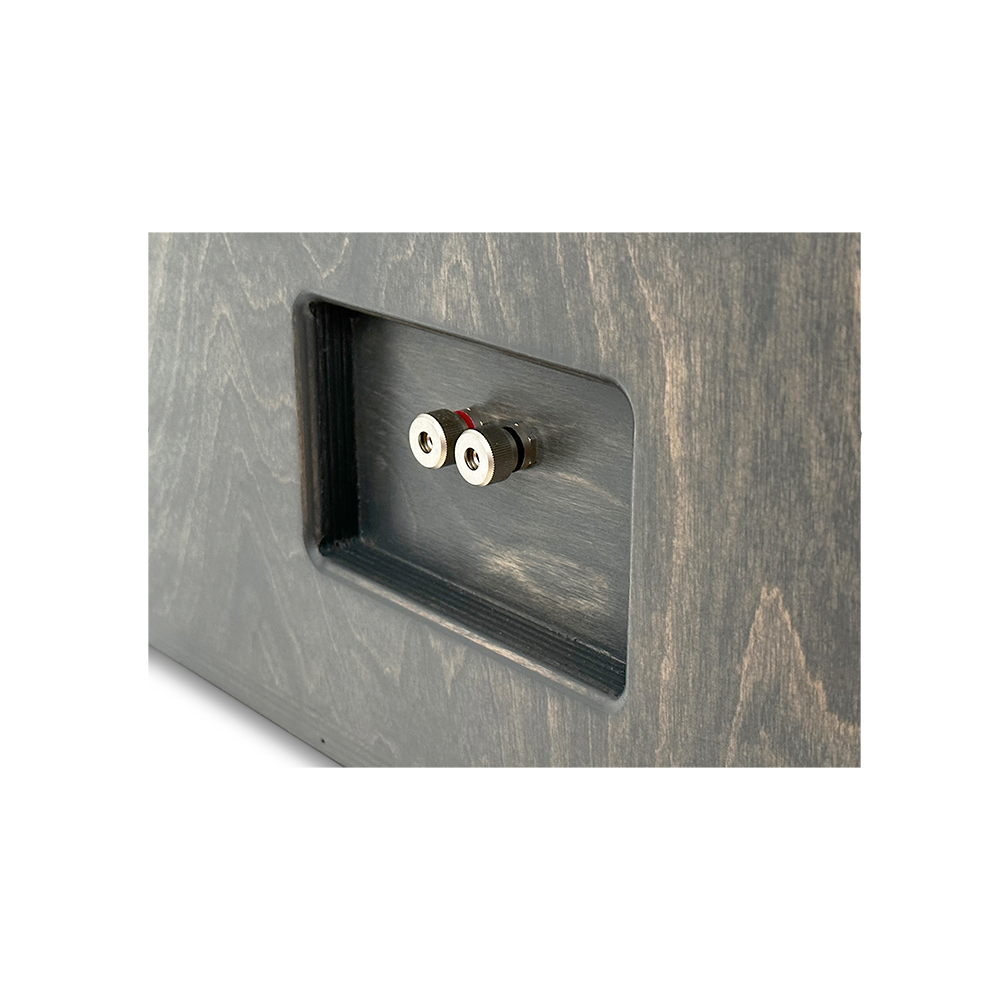

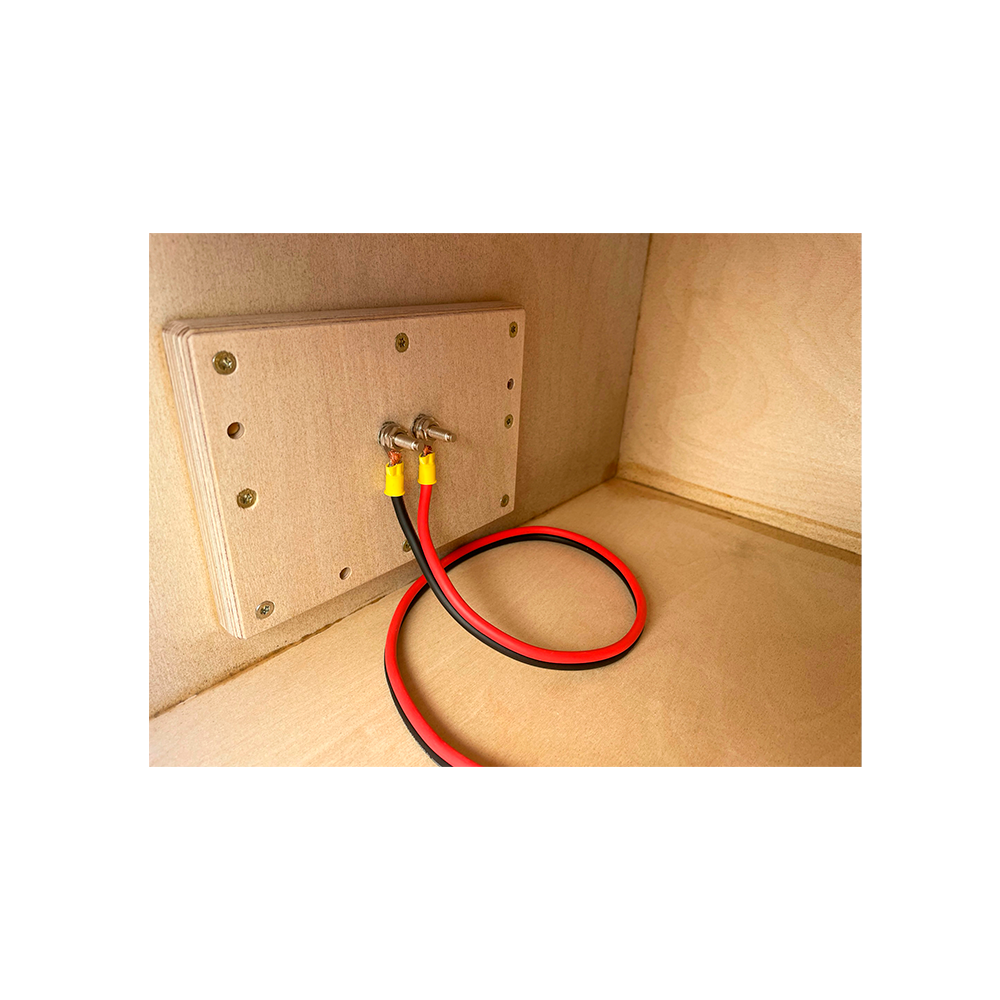

- Pre-wired connection: 10ga OFC wiring and a metal binding post provide a ready connection path for the subwoofer.
- Clean assembly: The enclosure is fully glued with Titebond III and has no visible exterior screw holes.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Resilient Sounds Single 15" Platinum Ported Enclosure |
| Net Volume | 3.5 cubic feet |
| Tuning | 32 Hz |
| Port Area | 50.4 sq in |
| Port Size | 16.0" x 3.15" |
| Cutout | 13.7" |
| Construction | 1" Russian Baltic Birch (17 ply) |
| Baffle | 1" front baffle |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power Rating | High power systems |
| Dimensions | Height 18.0", Width 30.125", Depth 20.0" |
| Origin | Handcrafted in the USA |
| Exterior assembly | Zero visible screw holes on the exterior; fully glued with Titebond III for airtight integrity and long-term durability |
| Lead Time | Built to order; ships in 2–3 weeks |
Why Choose This Product?
This enclosure pairs a specified volume and tuning with a port sized for the Platinum 15", making it a dedicated option for that subwoofer rather than a generic cabinet. Its Baltic Birch construction, thick front baffle, and glued assembly are designed to reduce cabinet flex and port noise during demanding bass playback.
The carbon gray finish and concealed exterior fasteners keep the cabinet visually tidy when it sits in view. Pre-wired connections also simplify the enclosure-side wiring step after the subwoofer is mounted.
Installation & Compatibility Notes
This enclosure is engineered specifically for the Resilient Sounds Platinum 15" subwoofer and requires a 13.7" cutout. Before purchasing, compare its 18.0" height, 30.125" width, and 20.0" depth with the available trunk or cargo space.
It is described for high-power systems, but no wattage figure is listed. Check the subwoofer and amplifier requirements for your system before installation. The enclosure includes pre-wired 10ga OFC and a metal binding post.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Platinum 15" subwoofer.
What space and cutout should I allow?
Allow for the enclosure dimensions of 18.0" high, 30.125" wide, and 20.0" deep. The subwoofer cutout is 13.7".
What does the 32 Hz tuning mean for use?
The enclosure is tuned to 32 Hz to target deep bass extension while maintaining port efficiency and overall control.
What amplifier power does it support?
It is described for high-power systems, but no specific wattage is given. Match your amplifier to the Platinum 15" subwoofer’s power requirements.
How long is the build lead time?
This enclosure is built to order and ships in 2–3 weeks.
