Resilient Sounds Single 15" Platinum v2 Ported Enclosure
Key features
Empty enclosure; drivers and amplifier not included
- Net volume (total): 3.5 ft³
- Compatible woofer size: 15 inches
- Woofer mounting capacity: 1
- Port tuning: 32 Hz
- Port area (total): 50.4 in²
- Finish: Carbon gray stain with polyurethane topcoat
Resilient Sounds Single 15" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Resilient Sounds Single 15" Platinum v2 Ported Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a single-subwoofer system around the Resilient Sounds Platinum v2 15" with this purpose-designed ported enclosure. Its 3.5 cubic-foot chamber is tuned to 32 Hz for deep bass, while rigid Baltic Birch construction and a generous port support high-output use.
Key Features & Benefits
- Platinum v2 fit: The 14.236" cutout is sized for the Resilient Sounds Platinum v2 15" subwoofer.
- 32 Hz tuning: The tuned chamber supports deep bass extension with controlled cone motion.
- 50.4 sq in port area: The wide port supports airflow at high output and helps reduce compression.
- Rigid construction: 1" (24mm), 17-ply Russian Baltic Birch helps limit panel flex.

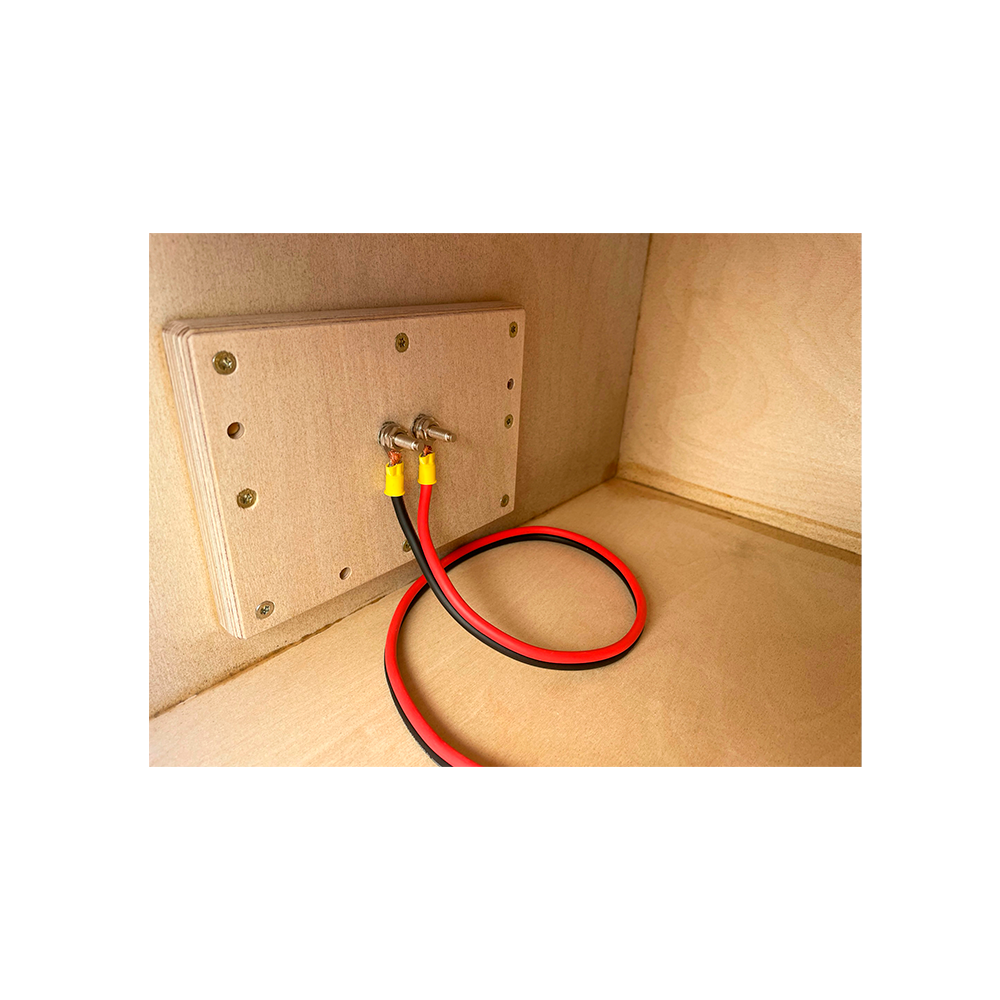

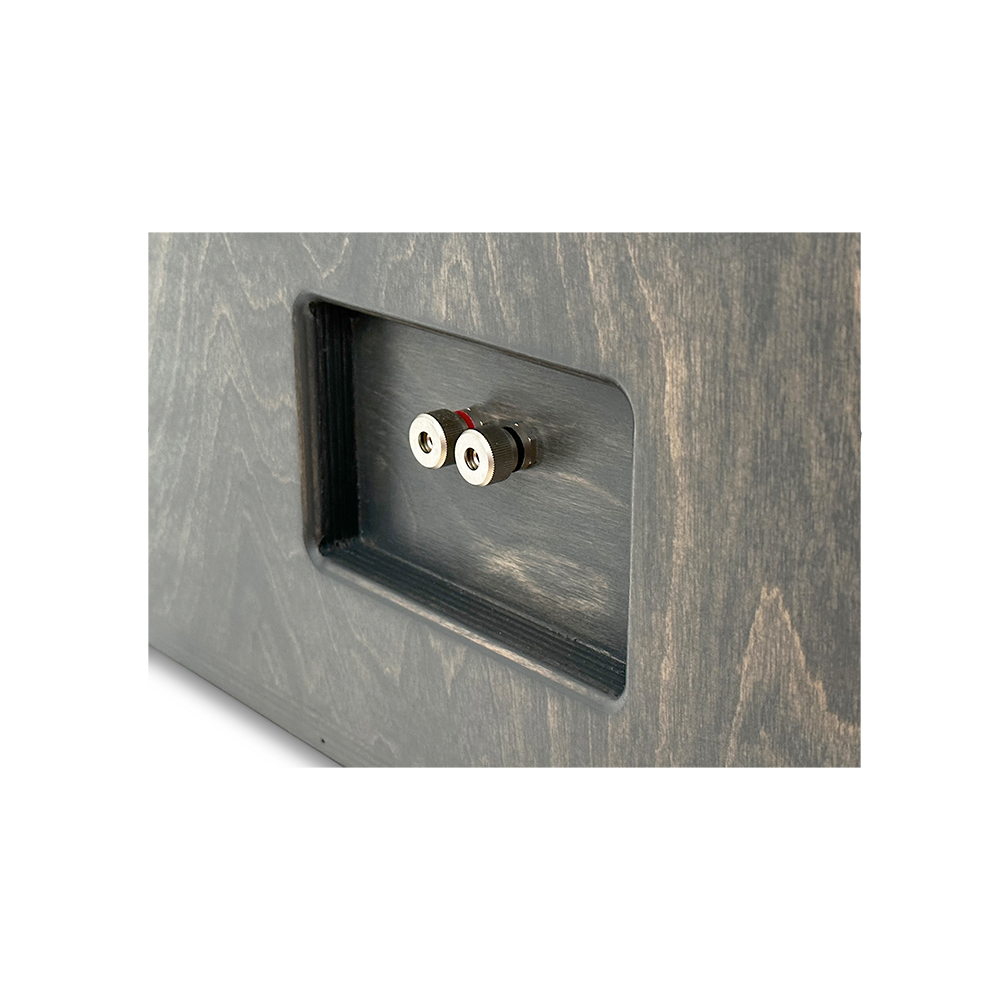

- Pre-wired connection: 10ga OFC wiring and a metal binding post simplify amplifier connection.
- Finished exterior: Carbon gray stain, a polyurethane topcoat, and no visible exterior screw holes create a clean appearance.
Technical Specifications
| Specification | Details |
|---|---|
| Product type | Single 15" ported enclosure |
| Subwoofer fit | Resilient Sounds Platinum v2 15" |
| Net volume and tuning | 3.5 cubic feet @ 32 Hz |
| Tuning | 32 Hz |
| Port area | 50.4 sq in |
| Port size | 16.0" x 3.15" |
| Cutout | 14.236" |
| Construction | 1" (24mm) Russian Baltic Birch, 17-ply |
| Front baffle | 1" front baffle |
| Finish | Carbon gray stain with polyurethane topcoat |
| Wiring | Pre-wired 10ga OFC with metal binding post |
| Power rating | High power systems |
| Dimensions | Height 18.0", Width 30.375", Depth 20.0" |
| Exterior design | Zero visible screw holes on the exterior |
| Gluing | Fully glued with Titebond III |
| Manufacture | Handcrafted in the USA |
| Lead time | Built to order. Ships in 2-3 weeks |
Why Choose This Product?
This enclosure pairs a defined chamber volume and tuning target with a 50.4 sq in port, giving you specific design details to consider when planning a high-power, single-subwoofer build. Its Baltic Birch panels, reinforced front baffle, and fully glued construction are designed to maintain enclosure rigidity.
The carbon gray finish and screw-free exterior suit a build where the enclosure remains visible. The pre-wired connection also means the enclosure arrives with 10ga OFC wiring and a metal binding post in place.
Installation & Compatibility Notes
Confirm that your subwoofer is the Resilient Sounds Platinum v2 15" and that its mounting requirements match the 14.236" cutout. Check the enclosure’s 18.0" height, 30.375" width, and 20.0" depth against your intended installation space.
The enclosure is described for high-power systems. Plan for its built-to-order lead time of 2-3 weeks.
Frequently Asked Questions
Which subwoofer is this enclosure designed for?
It is engineered specifically for the Resilient Sounds Platinum v2 15" subwoofer.
What are the enclosure’s volume and tuning?
It has a net volume of 3.5 cubic feet and is tuned to 32 Hz.
How much space should I allow for the enclosure?
Its external dimensions are 18.0" high, 30.375" wide, and 20.0" deep. Measure your installation area before planning the build.
How does the enclosure connect to an amplifier?
It has pre-wired 10ga OFC wiring and a metal binding post.
How long is the build lead time?
The enclosure is built to order and ships in 2-3 weeks.
