Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7" Display
Key features
- Screen size: 2.7 inches
- Camera inputs: 1
- Screen style: In-dash
- RCA output channels: 4
- Backup-camera ready: Yes
Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7" Display is backordered and will ship as soon as it is back in stock.
Rockford Fosgate PMX-3 Compact Digital Media Receiver w/ 2.7" Display is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring radio, Bluetooth audio, camera input, and sound tuning together in a compact receiver built for marine and motorsport installations. The Rockford Fosgate PMX-3 compact digital media receiver features a 2.7-inch full-color display, weather-resistant controls, and connectivity for boats, ATVs, and other motorsport setups.
Its sun-optimized display can show album art from connected iPhones, while the illuminated rotary encoder gives you a tactile volume control that remains visible at night.
Key Features & Benefits
- Marine-oriented protection: IPX6 design, a wet-bonded display, and an epoxy-coated PCB help protect the receiver in exposed installations.
- Flexible audio sources: Use AM/FM Weatherband radio, Pandora control, Bluetooth streaming, or compatible SiriusXM satellite radio.
- Expandable system: RCA rear/sub outputs let you add aftermarket amplifiers, while support for up to three wired remotes allows control from multiple locations.
- Rear USB connection: Play media from the rear USB port and charge compatible devices at 1A.
- Camera input: Composite video input and day/night display adjustments support a connected rear-view camera.

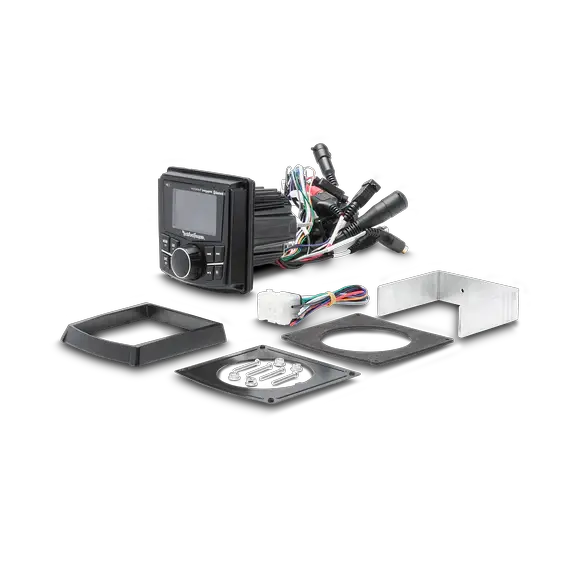

- Flexible mounting: The two-piece mounting system provides a panel-to-mounting-surface installation arrangement.
Technical Specifications
| Display | 2.7" full-color TFT; sun-optimized, wet-bonded panel; album art display from connected iPhones; day/night display adjustments |
|---|---|
| Environmental protection | IPX6 Marine Grade; wet-bonded display and epoxy-coated PCB for increased protection against moisture and salt exposure |
| Controls | Water-resistant rotary encoder with white LED illumination |
| Internal amplifier | 4x45W @ 2Ω; 2Ω stable |
| Outputs | Single zone output; front full-range plus rear/sub selectable RCA outputs |
| Crossover and tuning | 12dB or 24dB crossover slopes per zone; dedicated DSP per zone; 7-band EQ and Punch EQ |
| Radio | AM/FM Weatherband digital tuner with RDS |
| Satellite radio | SiriusXM Ready; compatible with SXV300 module; color channel logos and 18 channel presets |
| Streaming and media | Pandora control; A2DP Bluetooth streaming with album art display from connected devices; rear USB media playback and 1A charging |
| Camera input | Composite video input |
| Remote support | Wired remote ready; supports up to three remotes |
| Memory and updates | EEPROM memory for settings; firmware and Bluetooth software upgrades via USB |
| Mounting | Two-piece mounting system |
| Android compatibility | Limited functionality with some Android devices; refer to the manual for specifics |
Why Choose This Product?
The PMX-3 brings several source options and audio controls into one compact receiver for installations where space and exposure to the elements matter. Its built-in amplifier can drive front channels, while selectable rear/sub RCA outputs give you options for adding aftermarket amplifiers.
Dedicated DSP per zone, EQ adjustments, and selectable crossover slopes let you tailor the system’s sound. EEPROM memory retains settings, and USB-accessible software updates let you update firmware and Bluetooth software without replacing the receiver.
Installation & Compatibility Notes
Plan your panel opening and mounting surface around the receiver’s two-piece mounting system. The product details do not specify mounting dimensions, so check the installation manual for the measurements needed for your setup.
For satellite radio, the PMX-3 is compatible with the SXV300 module. Some Android devices have limited functionality; consult the manual for device-specific details. Check that your connected equipment and planned system layout match the receiver’s inputs and outputs.
Frequently Asked Questions
What does the internal amplifier rating mean?
The receiver is rated at 4x45W @ 2Ω and is 2Ω stable. The rating is stated at a 2Ω load.
Can I add aftermarket amplifiers?
Yes. The receiver has rear/sub RCA outputs for connecting aftermarket amplifiers.
Can I connect a rear-view camera?
Yes. It has a composite video input and day/night display adjustments for a connected camera.
What do I need for SiriusXM satellite radio?
The PMX-3 is SiriusXM Ready and compatible with the SXV300 module.
Will it work with my Android device?
Some Android devices have limited functionality. Refer to the manual for specifics about your device.
Can I use wired remotes with the receiver?
Yes. It supports up to three wired remotes.
