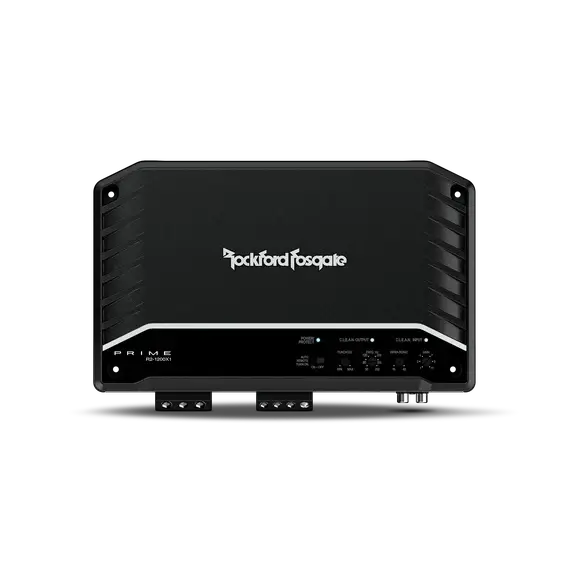

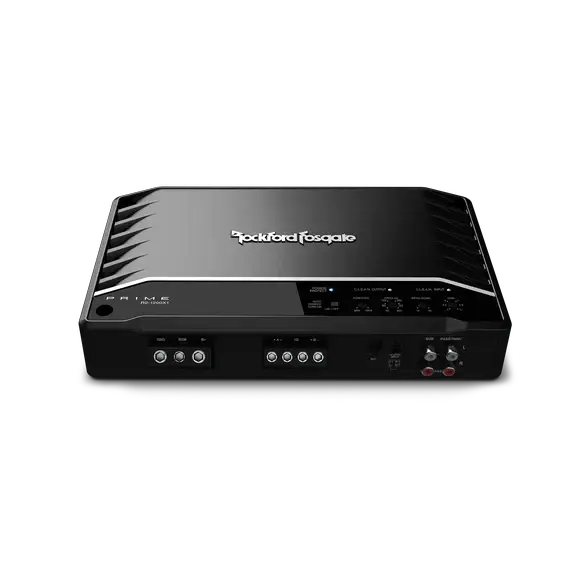

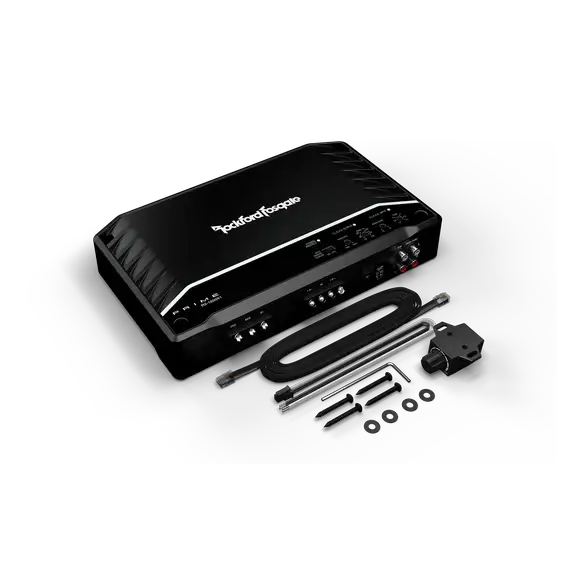

Rockford Fosgate Prime R2-1200X1 1,200 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 400.0 W
- RMS output at 2 ohms: 800 W
- RMS output at 1 ohm: 1200 W
Rockford Fosgate Prime R2-1200X1 1,200 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Prime R2-1200X1 1,200 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add dedicated subwoofer power with the Rockford Fosgate Prime R2-1200X1 monoblock amplifier. It delivers up to 1,200 watts RMS at 1Ω and combines built-in bass controls with inputs for factory-led or aftermarket systems.
Key Features & Benefits
- Three RMS power ratings: Match the output to a subwoofer load of 4Ω, 2Ω, or 1Ω.
- Class-D design: The switching amplifier and convection-cooled cast aluminum heatsink support high output in a compact format.

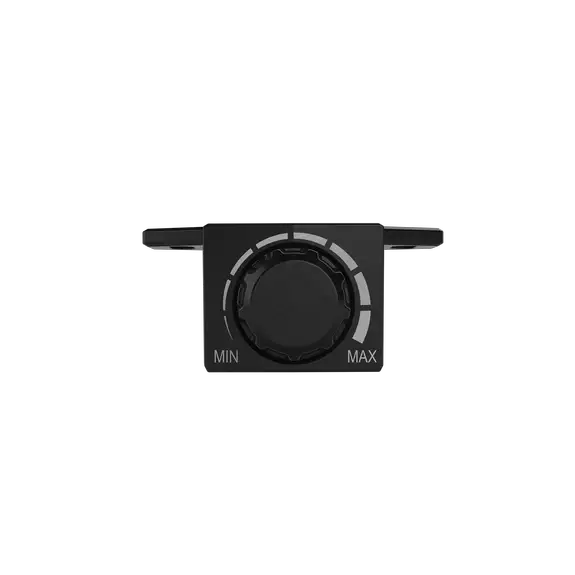

- Included RLC remote: Adjust bass level from the dash or seating position while tuning your system.
- Adjustable bass shaping: Low-pass and infrasonic crossovers, plus Punch EQ, let you tailor the signal to your setup.
- Integration features: Balanced differential inputs, RCA pass-through outputs, and RAP-equipped vehicle Auto-Sense bypass support system planning.
- Protection circuits: Short circuit, over-current, and rollback protection help guard the amplifier during operation.
Technical Specifications
| Product | Rockford Fosgate Prime R2-1200X1 monoblock amplifier |
|---|---|
| Total power (RMS) | 400W x 1 @ 4Ω; 800W x 1 @ 2Ω; 1200W x 1 @ 1Ω |
| Amplifier topology | Class-D switching design |
| Cooling | Convection-cooled cast aluminum heatsink |
| Crossovers | 12 dB/Octave Butterworth; low-pass 50 Hz–250 Hz; infrasonic 15 Hz–40 Hz |
| On-board Punch EQ | 0 to +18 dB boost at 45 Hz |
| Remote level control | RLC remote level control included |

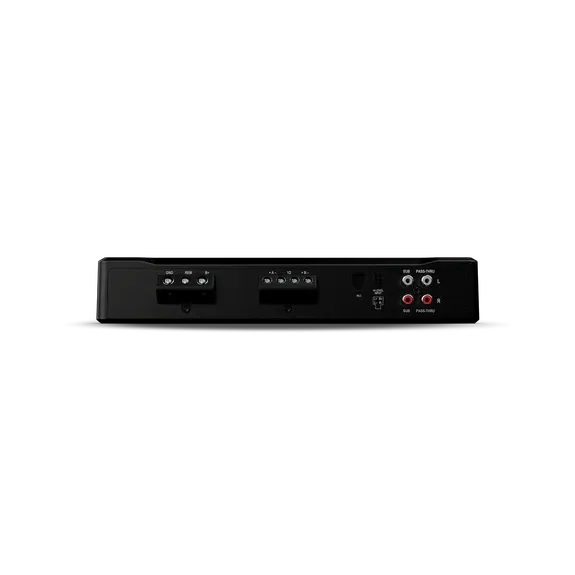

| Inputs and outputs | Balanced differential inputs; RCA pass-through outputs |
| Vehicle integration | Auto-Sense bypass for RAP-equipped vehicles |
| Protection | Short Circuit & Over Current Protection with Rollback Protection |
| Compliance | CEA-2006 and CE compliant |
| Dimensions | 1.9" H x 6.8" W x 11.3" D; 1U-like compact dimensions |
| Warranty | 1 Year Warranty |
Why Choose This Product?
The R2-1200X1 is designed for a dedicated subwoofer channel when you want substantial bass power in a compact amplifier. Its three RMS ratings give you clear output figures to compare with your subwoofer’s impedance and power requirements.
Built-in crossover and EQ controls give you options for shaping bass without an external processor. Class-D operation and the cast aluminum heatsink pair high output with a compact cooling design.
Installation & Compatibility Notes
Check your subwoofer’s impedance and power requirements against the amplifier’s ratings before choosing a setup. The amplifier has balanced differential inputs and RCA pass-through outputs; the Auto-Sense bypass is specified for RAP-equipped vehicles.
Measure the intended mounting space against the amplifier’s 1.9" H x 6.8" W x 11.3" D dimensions. Plan crossover and Punch EQ settings around your subwoofer and system setup.
Frequently Asked Questions
How much RMS power does the R2-1200X1 provide?
It is rated at 400W x 1 at 4Ω, 800W x 1 at 2Ω, and 1200W x 1 at 1Ω.
What crossover adjustments are available?
It has 12 dB/Octave Butterworth crossovers, with a low-pass range of 50 Hz–250 Hz and an infrasonic range of 15 Hz–40 Hz.
Can I adjust bass from the front seating area?
Yes. The included RLC remote level control allows adjustment from the dash or seating position.
What are the amplifier’s dimensions?
It measures 1.9" H x 6.8" W x 11.3" D.
What protection features does it have?
It includes Short Circuit & Over Current Protection with Rollback Protection.
