Rockford Fosgate Prime R2-200X2 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 50 W
- RMS per channel at 2 ohms: 100 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–4 V low-level; 450 mV–12 V high-level
- Crossover: variable 50–250 Hz high-pass/low-pass, 12 dB/octave
Rockford Fosgate Prime R2-200X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Prime R2-200X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add adjustable, two-channel power to a car audio system with the Rockford Fosgate Prime R2-200X2 Class-D amplifier. It delivers up to 200 watts total and includes crossover controls and C.L.E.A.N. setup for system integration.
Key Features & Benefits
- Two-channel Class-D design: Efficient switching helps limit heat and current draw in compact installations.
- Flexible power options: Use two channels or bridge the amplifier for a mono configuration, subject to the listed ratings below.
- Adjustable crossovers: High-pass and low-pass controls help direct frequencies to the connected speakers or subwoofer.
- Balanced inputs and RCA pass-through: Connect a signal source and pass it along to another component.
- C.L.E.A.N. setup: Adjustable setup controls support clean signal routing and straightforward tuning.
- Cast-aluminum heat sink: Convection cooling dissipates heat without adding a fan.
Technical Specifications
| Amplifier type | 2-Channel Class-D |
|---|---|
| Total Power (Sum of Rated Power) | 200 Watts |
| Rated Power (RMS) | 50 Watts x 2 @ 4Ω; 100 Watts x 2 @ 2Ω; 200 Watts x 1 @ 4Ω Bridged/Mono |
| Bridged/Mono | Yes — capable of bridging to a single channel for higher output when needed (60W x 2 @ 4Ω, 107W x 2 @ 2Ω, 215W x 1 @ 4Ω in bridged/mono configurations) |
| Frequency Response | 20 Hz – 20 kHz |
| Input Sensitivity | Low-Level 150 mV – 4 V; High-Level 450 mV – 12 V |

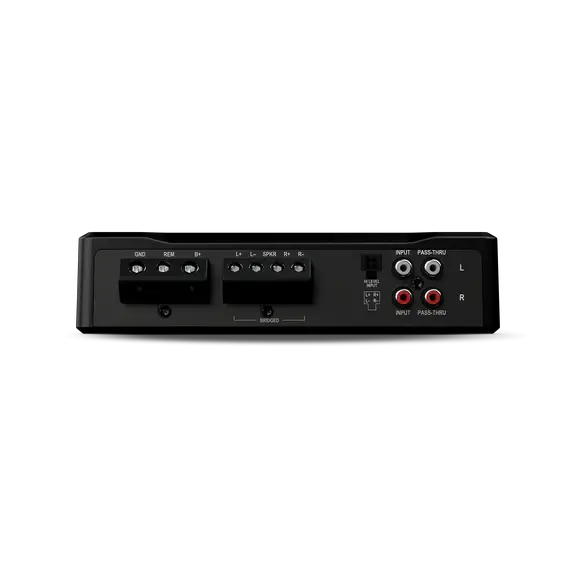

| Signal Input / Output | Balanced Differential Inputs with RCA Pass Through Outputs; 2 RCA low-level input; 4-Pin Molex high-level input |
| Crossover Controls | High-Pass 50 Hz – 250 Hz @ 12 dB/Octave Butterworth; Low-Pass 50 Hz – 250 Hz @ 12 dB/Octave Butterworth; All-Pass: Yes |
| C.L.E.A.N. Setup | Fully Adjustable for clean signal routing and straightforward tuning |
| Remotes / Indicators | Top Mounted Control Panel; Power/Protect (Blue/Red) indicators |
| Protection | Short Circuit & Over Current Protection |
| Heat Dissipation | Cast aluminum heat sink with convection cooling |
| Power and Wiring | Power Input Connector: 4 AWG; Speaker Output Connector: 8 AWG |
| Recommended Fuse | 30 A (not included) |
| Operating Voltage | 9 – 16 VDC |
| Certifications | CEA-2006 Compliant & CE Compliant |
| Additional feature | Auto-sense RAP bypass |
Why Choose This Product?
The R2-200X2 offers flexible signal connections and adjustable filtering in one compact amplifier. Its balanced inputs and RCA pass-through can simplify signal distribution, while the crossover controls let you set high-pass or low-pass filtering for your system.
Its two-channel design supports a front-stage setup, and the product details also describe bridging for a mono configuration. Check the power ratings for your intended setup when selecting an amplifier.
Installation & Compatibility Notes
Confirm your system’s input connection, speaker load, and available operating voltage before installation. The amplifier has a 4 AWG power input connector and 8 AWG speaker output connector. Its recommended 30 A fuse is not included.
Use the high-pass and low-pass controls within their stated 50 Hz – 250 Hz ranges. Follow the amplifier’s installation instructions when planning connections and setup.
Frequently Asked Questions
Can the R2-200X2 run in bridged mono?
Yes. The product details describe bridging to a single channel. Review the listed bridged/mono ratings and your speaker’s impedance before choosing a configuration.
What crossover adjustments does it offer?
It has high-pass and low-pass controls, each adjustable from 50 Hz – 250 Hz at 12 dB/Octave Butterworth, plus an all-pass setting.
What input connections are listed?
The listed connections include two RCA low-level inputs and a 4-Pin Molex high-level input. Balanced Differential Inputs and RCA Pass Through Outputs are also specified.
Is the recommended fuse included?
No. The recommended fuse is 30 A and is listed as not included.
