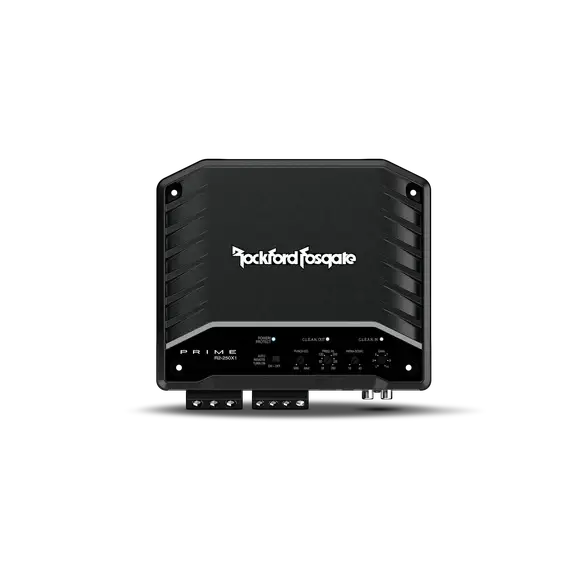

Rockford Fosgate Prime R2-250X1 250 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 150.0 W
- RMS output at 2 ohms: 250 W
- Frequency response: 20–250 Hz
- Input sensitivity: 150 mV–4 V low-level; 450 mV–12 V high-level
- Filters: variable 50–250 Hz low-pass and 15–40 Hz infrasonic
Rockford Fosgate Prime R2-250X1 250 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Prime R2-250X1 250 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a dedicated bass channel to your car audio system with the Rockford Fosgate Prime R2-250X1, a 1-channel Class-D monoblock amplifier. It delivers 250 watts x 1 at 2Ω and includes high- and low-level inputs, crossover controls, and a remote bass-level control.
Use it to power a dedicated subwoofer or provide the bass channel in a multi-amplifier setup. Its compact dimensions make it suitable for under-seat or trunk installations where space matters.
Key Features & Benefits
- Two load ratings: Choose between 250 watts x 1 at 2Ω and 150 watts x 1 at 4Ω for the supported load.
- Class-D design: Efficient operation reduces heat and supports a compact amplifier format.

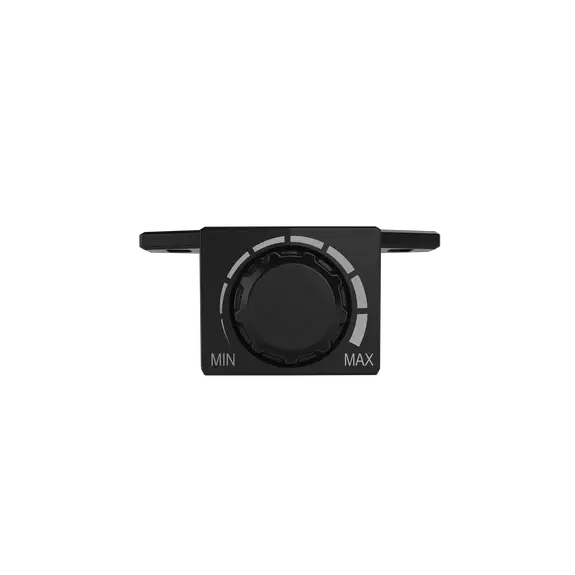

- Included RLC remote: Adjust bass level from the dash without reaching the amplifier.
- Flexible inputs: High-level and low-level connections support integration with factory or aftermarket sources.
- Adjustable filtering: Continuously variable Butterworth crossovers and an infrasonic filter help shape the bass signal.

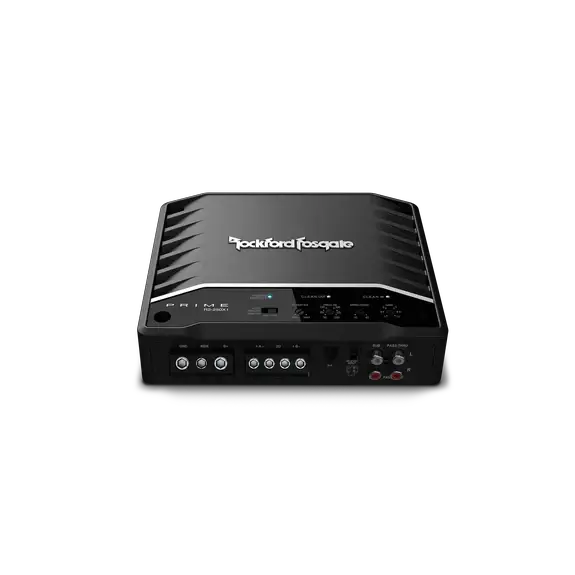

- Accessible controls: The top-mounted control panel is easy to reach during setup in a tight installation.
Technical Specifications
| Specification | Details |
|---|---|
| Channels | 1 |
| Amplifier type | Class-D monoblock |
| Power output | 250 watts x 1 @ 2Ω; 150 watts x 1 @ 4Ω |
| Dynamic power | 209 watts x 1 @ 4Ω; 328 watts x 1 @ 2Ω |
| Frequency response | 20 Hz – 250 Hz |
| Input sensitivity, low-level | 150 mV – 4 V |
| Input sensitivity, high-level | 450 mV – 12 V |

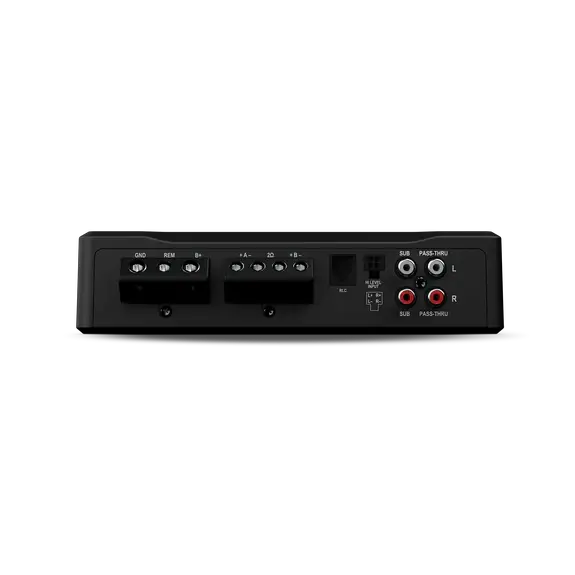

| Inputs and outputs | High-level input capable; balanced differential inputs; RCA pass-through outputs |
| Crossovers | Continuously variable 12 dB/octave Butterworth crossovers |
| Infrasonic filter | 15 Hz – 40 Hz |
| Tone controls | 0 to +18 dB @ 45 Hz |
| Power input | 4 AWG |
| Recommended fuse | 50 A |
| Operating voltage | 9–16 VDC, typical car electrical systems |
| Cooling and heat management | Cast aluminum heat sink; convection cooling |
| Protection | Short-circuit, over-current, and rollback protection |
| Compliance | CEA-2006 compliant; CE compliant |
| Remote control | RLC remote level control included |
| Bridgeable | No |
| Dimensions | 1.9" (H) x 6.8" (W) x 8.1" (D) |
Why Choose This Product?
The R2-250X1 combines a dedicated mono bass channel with controls for shaping how that channel integrates into your system. The adjustable crossovers and 15 Hz–40 Hz infrasonic filter let you tailor the signal for your bass path, while the 0 to +18 dB tone control at 45 Hz gives you another way to adjust bass presence.
Balanced differential inputs and RCA pass-through outputs support system integration, and the included remote puts bass-level adjustment within reach while driving. Its cast aluminum heat sink, convection cooling, and protection features are part of its design for music playback.
Installation & Compatibility Notes
Check that your subwoofer or bass channel uses a supported 2Ω or 4Ω load. This amplifier is not bridgeable and is designed as a single-channel power stage.
Allow for the amplifier’s 1.9" x 6.8" x 8.1" dimensions when planning an under-seat or trunk location. The power input is 4 AWG, the recommended fuse is 50 A, and the operating voltage is 9–16 VDC. High-level inputs allow connection with factory-radio signals; low-level inputs support compatible aftermarket sources.
Frequently Asked Questions
How much power does the Prime R2-250X1 deliver?
Its listed power output is 250 watts x 1 at 2Ω or 150 watts x 1 at 4Ω. Dynamic power is listed separately as 328 watts x 1 at 2Ω and 209 watts x 1 at 4Ω.
Can I connect it to a factory radio?
Yes. It is high-level input capable, with a stated high-level input sensitivity of 450 mV–12 V. Low-level input sensitivity is 150 mV–4 V.
Can this amplifier be bridged?
No. The R2-250X1 is a single-channel amplifier and is not bridgeable.
Does it include a remote bass control?
Yes. An RLC remote level control is included for adjusting bass level from the dash.
What are the amplifier’s dimensions?
It measures 1.9" high x 6.8" wide x 8.1" deep. Check available mounting space against these measurements before installation.
