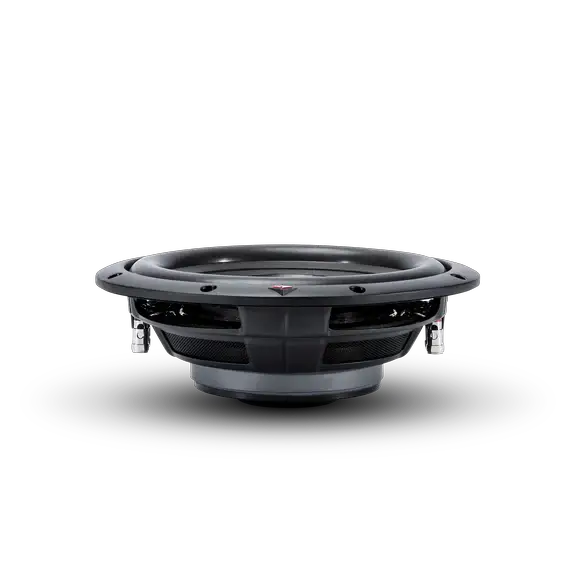

Rockford Fosgate Prime R2S Series 10" Shallow Mount Subwoofer
Key features
- Subwoofer size: 10.0 inches
- RMS power per subwoofer: 200 W
- Voice-coil options: S2, S4
- Mounting depth: 3.42 inches
- Cutout diameter: 9.13 inches
- Overall driver diameter: 10.84 inches
Rockford Fosgate Prime R2S Series 10" Shallow Mount Subwoofer - Single 2 Ohm is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Prime R2S Series 10" Shallow Mount Subwoofer - Single 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Make room for controlled low-frequency sound in a compact installation with the Rockford Fosgate Prime R2S Series 10-inch shallow mount subwoofer. Its shallow motor design needs just 3.417 inches of mounting depth, while its dual voice coil options give you flexibility when matching an amplifier.
Key Features & Benefits
- Shallow mounting depth: The 3.417-inch depth supports installations in tight spaces, including under seats or in compact cargo areas.
- Power handling: Rated at 200 watts RMS and 400 watts maximum for sustained power handling with headroom for dynamic bass.
- Dual voice coil options: Choose a dual 2-ohm or dual 4-ohm configuration to suit your system’s wiring and amplifier requirements.
- Mica-injected polypropylene cone: The cone’s rigid construction supports controlled bass response.
- Spider venting: Integrated venting in the StampCast basket helps cool the motor during high-output bass passages.
- Finished appearance: The integrated trim ring gives the mounted subwoofer a clean, finished look.
Technical Specifications
| Specification | Detail |
|---|---|
| Product | Rockford Fosgate Prime R2S Series 10-inch shallow mount subwoofer |
| Power handling | 200 Watts RMS / 400 Watts max |
| Nominal impedance configurations | Dual 2-Ohm or Dual 4-Ohm |
| Mounting depth | 3.417 in (86 mm) |
| Cutout diameter | 9.125 in (232 mm) |
| Cone material | Mica injected polypropylene |
| Voice coil | 2" (50 mm) dual voice coil |
| Voice coil former | Anodized aluminum |
| Basket and cooling | StampCast basket with integrated spider venting |
| Sealed box volume (Vb) | 0.7 cu ft (19.8 L) |
| Vented box volume (Vb) | 1.4 cu ft (39.6 L) |
| Magnet weight | 45 oz (1.28 kg) |
| Compliance | CEA-2031 compliant |
| SPL | 82.5 dB @ 1W/1m (2-Ohm); 83 dB @ 1W/1m (4-Ohm) |
| Fs | ~38.1 Hz (2-Ohm) / ~39.3 Hz (4-Ohm) |
| Re | ~3.80 Ω (2-Ohm) / ~6.60 Ω (4-Ohm) |
| Vas | ~20.4 L (2-Ohm) / ~21.7 L (4-Ohm) |
| Xmax | 8.0 mm |
| Voice coil diameter | 2" (50 mm) |
Why Choose This Product?
The Prime R2S 10-inch subwoofer is designed for builds where enclosure depth is limited. Its shallow motor structure reduces mounting depth, while its 8.0 mm Xmax and sealed-enclosure optimization support controlled low-frequency output in a compact system.
The dual voice coil design lets you select between dual 2-ohm and dual 4-ohm versions. Its anodized aluminum former and spider-vented basket add practical design details for demanding bass passages.
Installation & Compatibility Notes
Plan for a 9.125-inch (232 mm) cutout and 3.417-inch (86 mm) mounting depth. Confirm the available mounting space and enclosure dimensions before installation.
The listed enclosure volumes are 0.7 cu ft (19.8 L) for sealed and 1.4 cu ft (39.6 L) for vented designs. Check the subwoofer’s impedance configuration against your amplifier and system wiring requirements.
Frequently Asked Questions
How much power does the Prime R2S handle?
It is rated for 200 watts RMS and 400 watts maximum.
Which impedance configuration should I choose?
This subwoofer is available in dual 2-ohm or dual 4-ohm configurations. Match the selected version to your amplifier and wiring requirements.
How much space does it need?
Allow for a mounting depth of 3.417 inches (86 mm) and a cutout diameter of 9.125 inches (232 mm).
What enclosure volumes are listed?
The listed volumes are 0.7 cu ft (19.8 L) sealed and 1.4 cu ft (39.6 L) vented.
What does the package include?
The product details identify an integrated trim ring but do not list other included items.
