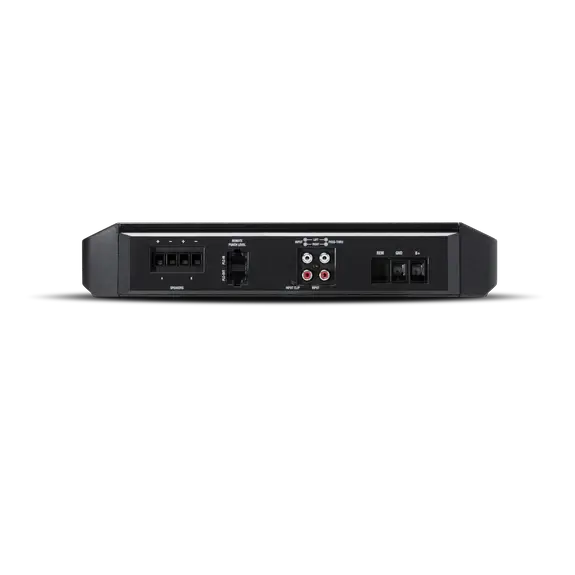

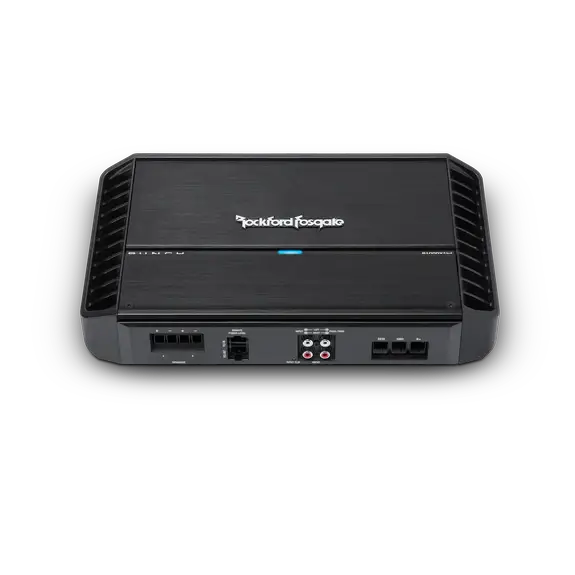

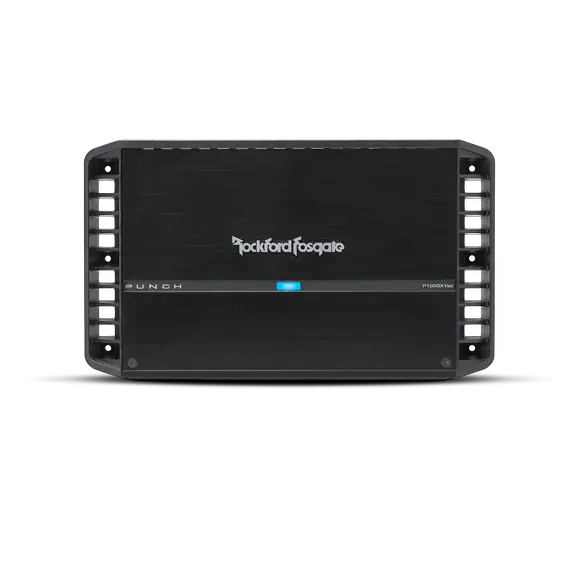

Rockford Fosgate Punch P1000X1bd 1,000 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 300.0 W
- RMS output at 2 ohms: 600 W
- RMS output at 1 ohm: 1000 W
Rockford Fosgate Punch P1000X1bd 1,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch P1000X1bd 1,000 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get dedicated subwoofer and mid-bass power from the Rockford Fosgate Punch P1000X1bd, a 1,000-watt monoblock car amplifier with Class BD topology. Its 1-ohm capability supports flexible subwoofer wiring, including a pair of 4-ohm DVC subs or a quad of 2-ohm DVC subs.
Key Features & Benefits
- 1-ohm operation: Choose from supported subwoofer wiring options to suit your system configuration.
- Adjustable bass shaping: The low-pass crossover and infrasonic filter let you tailor the bass signal.
- Punch EQ: Add up to +18dB of boost at 45Hz using the built-in bass adjustment.
- Factory-radio integration: High-level input and Auto Turn-On support integration with factory radios.

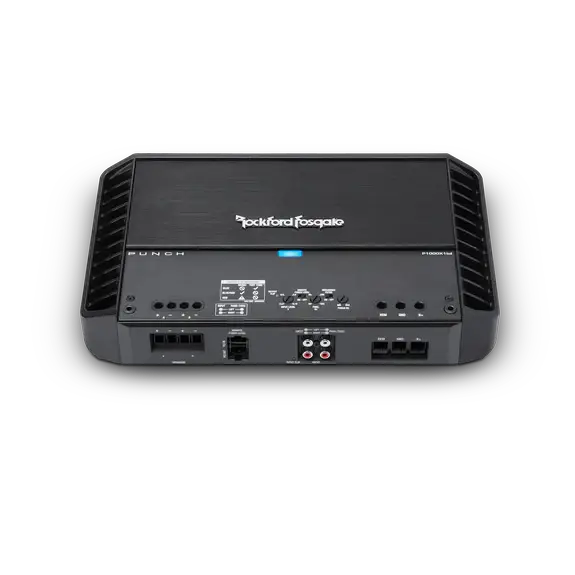

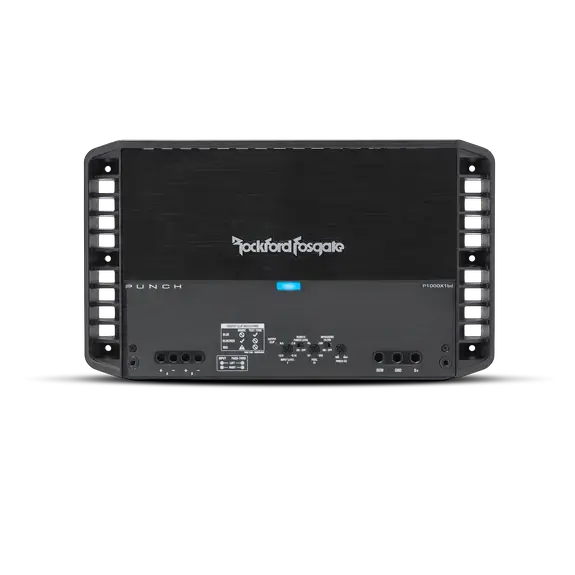

- Top-mounted controls: The stealth control panel keeps adjustments accessible at the amplifier.
- Protection features: Over-current and short-circuit protection help guard the amplifier during operation.
Technical Specifications
| Specification | Value |
|---|---|
| Number of Channels | 1 |
| Rated Power (RMS) at 4 Ω | 300 Watts x 1 |
| Rated Power (RMS) at 2 Ω | 500 Watts x 1 |
| Rated Power (RMS) at 1 Ω | 1000 Watts x 1 |
| Dynamic Power | 491 Watts x 1 @ 4Ω; 874 Watts x 1 @ 2Ω; 1,430 Watts x 1 @ 1Ω |
| Efficiency | 86% @ 4-Ohm |
| Frequency Response | 20Hz to 250Hz +/- 1.0dB |
| Input Sensitivity | 150 mV - 12 V |
| Signal Input | Hi/Low level: 1 RCA pair |
| Signal Output | Hi/Low level: 1 RCA pair |
| RCA Pass-Thru Outputs | RCA pass-thru outputs |
| Crossover | Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth |
| Infrasonic Filter | 28Hz @ 12dB/Octave Butterworth |
| Punch EQ | Bass: 0dB to +18dB @ 45Hz |
| C.L.E.A.N. Setup | Yes |
| Remote Ready | Optional Punch Level Control (PLC2) ready (w/ input clip indicator) |
| Protection & Construction | Over current protection; Short circuit protection; Muted turn on; Cast aluminum heatsink; Stealth top mounted control panel |
| Indicators | Power/Protect/Thermal LED; Input Clip LED; Output Clip LED |
| Remote Controls | PLC2 ready (optional) |
| CTA-2006 Compliant | Yes |
| Operating Voltage | 9 - 16 VDC |
| Recommended Fuse | 140 A |
| Average Current Draw | 65 A (Music) |
| Max Current Draw | 130 A (Sinewave) |
| Power Input Connector | 4 AWG |
| Speaker Output Connector | Captive C-Clamp; 8 AWG to 18 AWG |
| Speaker Wire Gauge | 8 AWG to 18 AWG |
| Power Wire Gauge | 4 AWG |
| Bridgeable | No |
| Dimensions (H x W x D) | 2.38 x 7.76 x 13.28 in |
| Dimensions (metric) | 6.05 x 19.71 x 33.73 cm |
| Shipping Weight | 12.9 Lbs. (5.85 Kg.) |
Why Choose This Product?
The Punch P1000X1bd combines a dedicated low-frequency design with adjustable filtering for system tuning. Its 50-250Hz low-pass crossover and 28Hz infrasonic filter give you separate controls for shaping the bass signal.
For added tuning flexibility, use the built-in Punch EQ or connect the optional PLC2 Punch Level Control. The cast aluminum heatsink and power, protection, thermal, and clip indicators provide practical features for demanding car audio installations.
Installation & Compatibility Notes
Plan space for the amplifier’s 2.38 x 7.76 x 13.28-inch dimensions and provide an operating voltage within 9 - 16 VDC. The power input connector is 4 AWG, and the recommended fuse is 140 A.
Speaker output connections use a captive C-clamp for 8 AWG to 18 AWG wire. The amplifier supports 1-ohm operation and is not bridgeable. Check your subwoofer impedance and wiring plan before installation.
Frequently Asked Questions
How much RMS power does the P1000X1bd deliver?
It is rated at 300 Watts x 1 at 4 Ω, 500 Watts x 1 at 2 Ω, and 1000 Watts x 1 at 1 Ω.
Can this amplifier operate at 1 ohm?
Yes. Its 1-ohm capability supports configurations such as a pair of 4-ohm DVC subs or a quad of 2-ohm DVC subs.
Can I connect it to a factory radio?
The amplifier has high-level input and Auto Turn-On for factory-radio integration.
Is a remote level control included?
The amplifier is PLC2-ready. The Punch Level Control (PLC2) is optional.
What space and wiring should I plan for?
Allow for its listed dimensions, 4 AWG power input, and speaker wire from 8 AWG to 18 AWG. The recommended fuse is 140 A.
