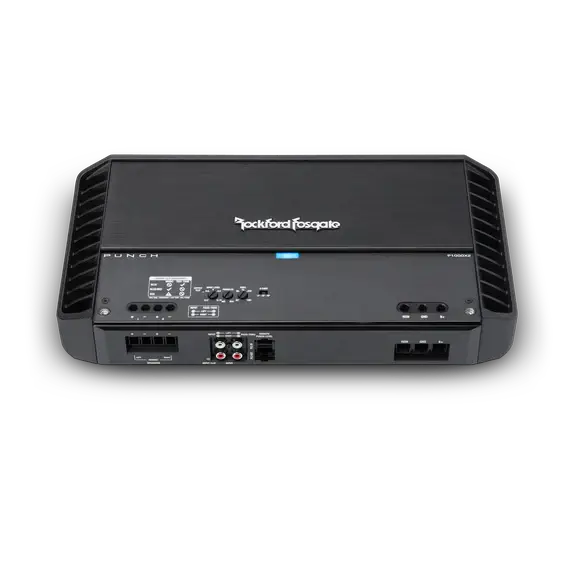

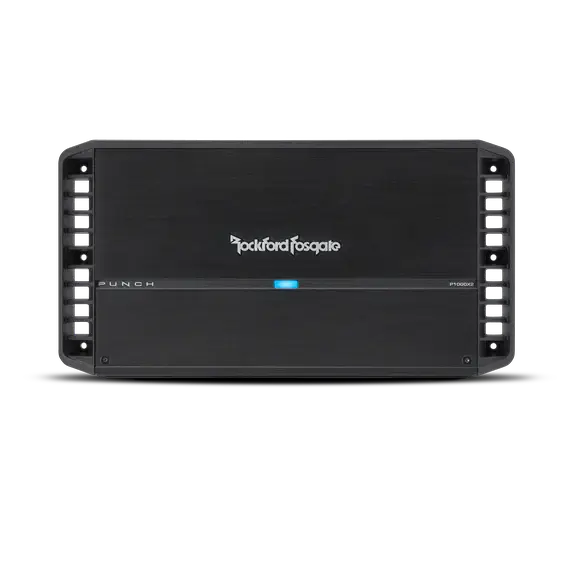

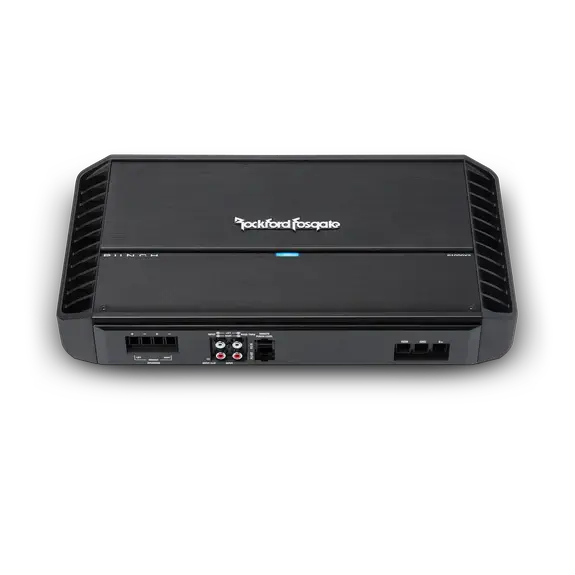

Rockford Fosgate Punch P1000X2 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 300 W
- RMS per channel at 2 ohms: 500 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–12 V
- Crossover: variable 50–250 Hz high-pass/low-pass, 12 dB/octave
Rockford Fosgate Punch P1000X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch P1000X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Make room for serious subwoofer power without giving up as much trunk space: the Rockford Fosgate Punch P1000X2 is a compact, two-channel car audio amplifier with 1000W RMS total power. Its selectable stereo and bridged ratings support different subwoofer setups, while onboard crossover and EQ controls let you shape the sound.
The supplied product details describe it for a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Its compact design suits a car audio build where installation space matters.
Key Features & Benefits
- Flexible power ratings: Stereo and bridged output options support different system configurations.
- 12dB/oct Butterworth crossover: Low- and high-pass filtering helps tailor bass response to your enclosure and subwoofers.
- Punch EQ: Adjustable bass and treble boost gives you options for shaping tonal balance.
- Hi-level input with Auto Turn-On: Connects with factory radios and turns on automatically.
- System expansion options: RCA pass-thru outputs and optional PLC2 Punch Level Control support signal routing and level adjustment.
- Top-mounted monitoring: Power, Protect, Thermal, input, and output LED cues help you check amplifier status.
Technical Specifications
| Specification | Details |
|---|---|
| Brand and model | Rockford Fosgate Punch P1000X2 |
| Amplifier type | 2-channel amplifier |
| Total RMS power | 1000W RMS total |
| Power by impedance | 300W x 2 @ 4Ω; 500W x 2 @ 2Ω; 1000W x 1 @ 4Ω bridged |
| Bridged Dynamic Power | 401W x 2 @ 4Ω (0°); 656W x 2 @ 2Ω (0°) when used in bridged/monaural applications |
| Crossover | 12dB/oct Butterworth low- and high-pass filtering |
| Punch EQ | Up to +18dB at 45Hz; up to +12dB at 12.5kHz |

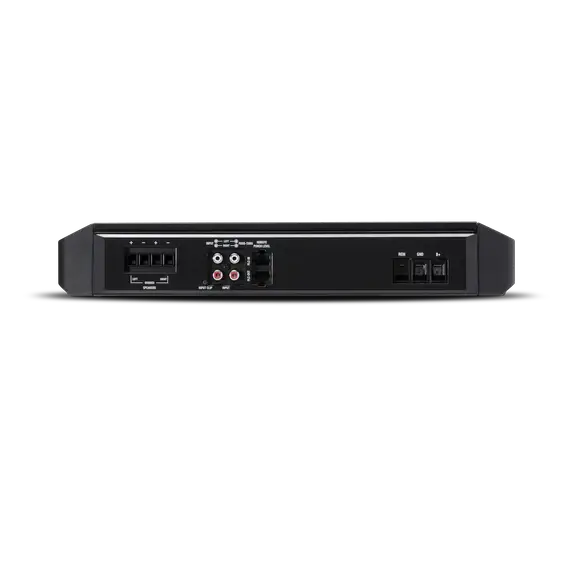

| Inputs and signal routing | Hi-level input with Auto Turn-On; RCA pass-thru outputs |
| Remote control | Ready for optional Punch Level Control (PLC2) |
| Protection | Short circuit and over-current protection |
| Cooling and construction | Cast aluminum heatsink with convection cooling |

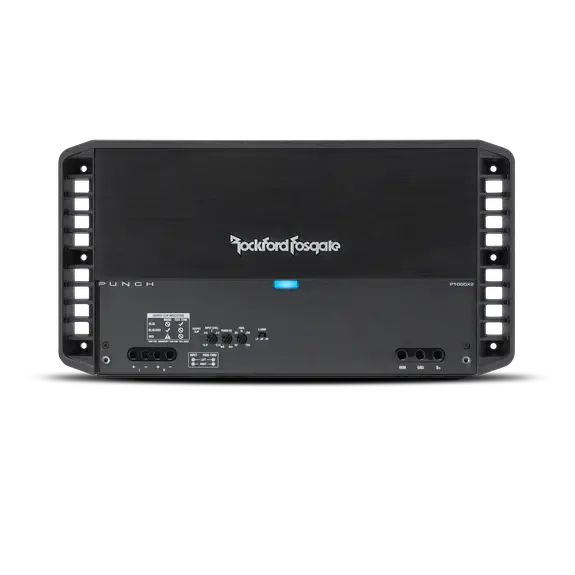

| Controls and indicators | Muted turn-on; stealth top-mounted control panel; Power/Protect/Thermal LED indicators; input/output LED cues |
| Compliance | CTA-2006 compliant |
| Dimensions (H×W×D) | 2.38" x 7.76" x 15.03" |
| Shipping weight | 15 lb |
| Operating voltage | 9–16V DC |
| Recommended fuse | 140A (not included) |
| Warranty | 1 year |
Why Choose This Product?
The P1000X2 combines a compact amplifier footprint with stereo and bridged power options, giving you flexibility when planning a subwoofer system. Its crossover, EQ, and optional remote control provide ways to adjust the system without changing amplifiers.
Muted turn-on and status indicators add practical controls and feedback, while the cast aluminum heatsink uses convection cooling. Short-circuit and over-current protection are also built in.
Installation & Compatibility Notes
Check the amplifier’s 2.38" x 7.76" x 15.03" dimensions against your available mounting space. It operates on 9–16V DC, and a 140A fuse is recommended; the fuse is not included.
The hi-level input and Auto Turn-On support connection with factory radios. Confirm your subwoofer impedance and planned amplifier configuration against the power ratings before installation. A PLC2 Punch Level Control is optional.
Frequently Asked Questions
What are the P1000X2’s power ratings?
It is rated at 300W x 2 @ 4Ω, 500W x 2 @ 2Ω, and 1000W x 1 @ 4Ω bridged. The listed Bridged Dynamic Power figures are 401W x 2 @ 4Ω (0°) and 656W x 2 @ 2Ω (0°) in bridged/monaural applications.
Which subwoofer setups are described for this amplifier?
The product details describe a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Check the amplifier’s power ratings against your system configuration.
Can it connect to a factory radio?
Yes. It has a hi-level input with Auto Turn-On for integration with factory radios.
What fuse does it require?
A 140A fuse is recommended, and it is not included.
Does it support a remote level control?
It is ready for the optional Punch Level Control (PLC2).
What are its dimensions?
The amplifier measures 2.38" high x 7.76" wide x 15.03" deep.
