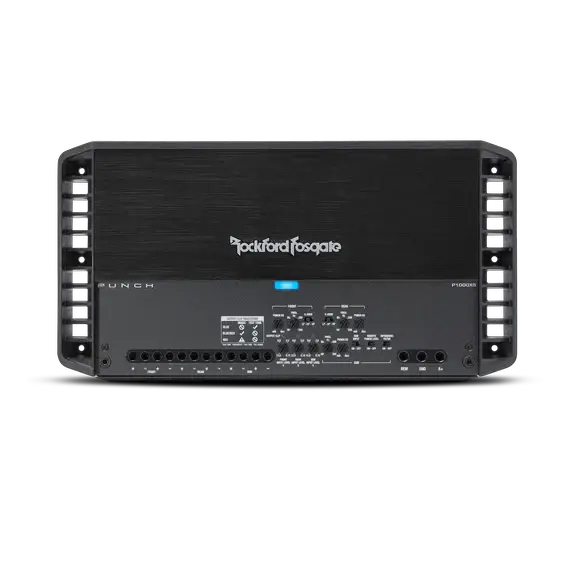

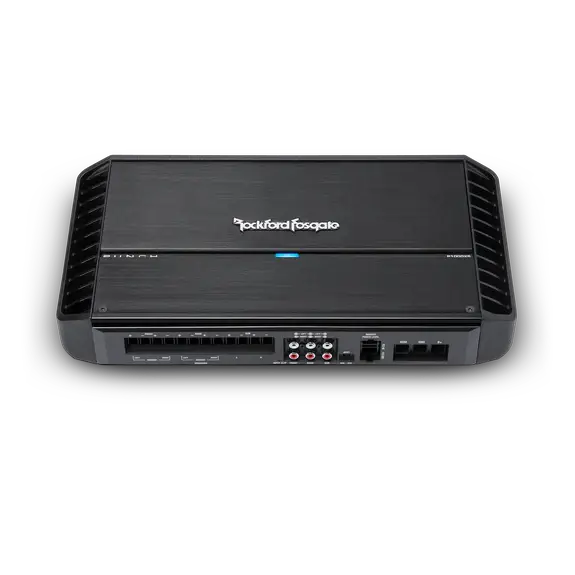

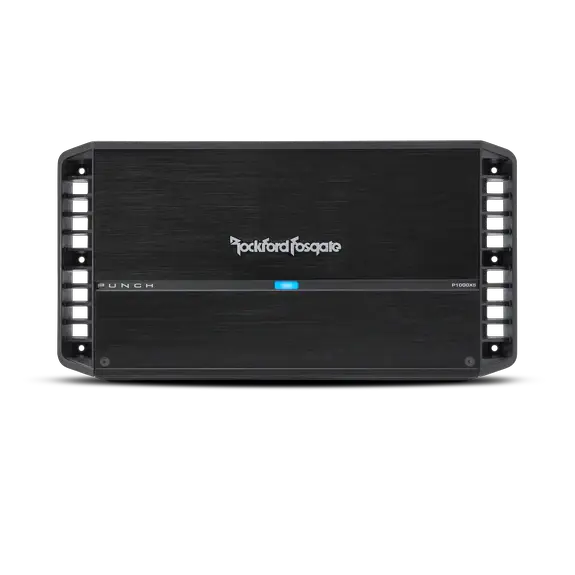

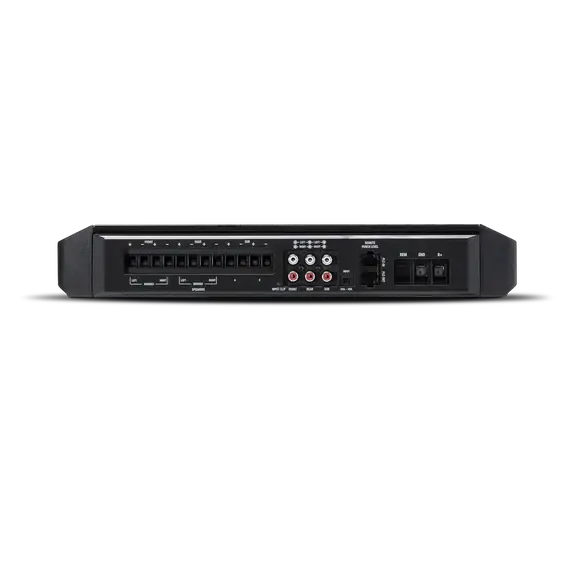

Rockford Fosgate Punch P1000X5 5-Channel Amplifier
Key features
- Amplifier channels: 5
- Speaker-channel RMS at 4 ohms: 75 W per channel
- Speaker-channel RMS at 2 ohms: 125 W per channel
- Subwoofer-channel RMS at 4 ohms: 150 W
- Subwoofer-channel RMS at 2 ohms: 300 W
- Subwoofer-channel RMS at 1 ohm: 500 W
Rockford Fosgate Punch P1000X5 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch P1000X5 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Run dash speakers, rear fill, and a subwoofer from one Rockford Fosgate Punch P1000X5 5-channel amplifier. Its onboard EQ, configurable front and rear crossovers, and dedicated sub channel give you control over a multi-zone car audio system.
Key Features & Benefits
- Five-channel design: Power front and rear speakers plus a subwoofer from one chassis.
- Onboard bass adjustment: Shape low-frequency output without adding separate processing hardware.
- Flexible signal inputs: Hi/low-level inputs and auto turn-on support integration with factory or aftermarket head units.
- Selectable input mode: Choose the 2/4-channel input setting to suit the system signal layout.
- Protection and cooling: Tri-stage protection and convection cooling support daily operation.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | Rockford Fosgate Punch P1000X5 |
| Amplifier type | 1,000-watt full-range 5-channel amplifier |
| Power architecture | 75 Watts x 4 + 150 Watts x 1 @ 4Ω |
| Power architecture | 125 Watts x 4 + 300 Watts x 1 @ 2Ω |
| Punch EQ | +18dB boost at 45 Hz |
| Front/rear crossover | 40–250 Hz; 12dB/octave Butterworth crossovers |
| Sub channel boost | 0dB to +18dB boost at 45 Hz |
| Sub channel control | Infrasonic filter |
| Bridgeable | Yes; front/rear channels |
| Inputs | Hi/Low level input with auto turn-on circuit |
| Input selector | 2/4 channel |
| Protection | Tri-stage protection: thermal, over-current, and short circuits |
| Turn-on | Muted turn-on |
| Cooling | Cast aluminum heatsink with convection cooling |
| Control panel | Stealth top-mounted control panel |
| Compliance | CTA-2006 compliant |
| Chassis dimensions | 6.05 x 19.71 x 38.18 cm (2.38 x 7.76 x 15.03 in) |
| Weight | 15.3 lb (6.93 kg) |
Why Choose This Product?
The P1000X5 brings speaker and subwoofer amplification together in one chassis for an enthusiast-grade five-channel setup. Front and rear crossover controls help shape those speaker channels, while the dedicated sub channel provides separate bass adjustment.
Its bridgeable front and rear channels offer another configuration option when planning a system. Consider your speaker loads, signal sources, and desired channel layout when choosing how to integrate the amplifier.
Installation & Compatibility Notes
Measure the available mounting space against the chassis dimensions and account for its 15.3 lb (6.93 kg) weight. The amplifier accepts hi/low-level input and includes an auto turn-on circuit; confirm your head unit’s signal connections and installation requirements before wiring.
Follow the amplifier’s installation guidance for power, grounding, speaker loads, and ventilation. The source specifies 2Ω and 4Ω power ratings; match the system configuration to the intended load.
Frequently Asked Questions
What power ratings are listed for the P1000X5?
The listed power architecture is 75 Watts x 4 + 150 Watts x 1 @ 4Ω, and 125 Watts x 4 + 300 Watts x 1 @ 2Ω.
Can it connect to a factory radio?
It has hi/low-level inputs and an auto turn-on circuit for integration with factory radios or aftermarket head units.
Can the front and rear channels be bridged?
Yes. The front and rear channels are listed as bridgeable.
What crossover controls are provided?
The front and rear channels have 40–250 Hz, 12dB/octave Butterworth crossovers. The dedicated sub channel also has an infrasonic filter.
How much bass boost can I adjust?
The sub channel offers 0dB to +18dB boost at 45 Hz. The onboard Punch EQ is also listed with +18dB boost at 45 Hz.
