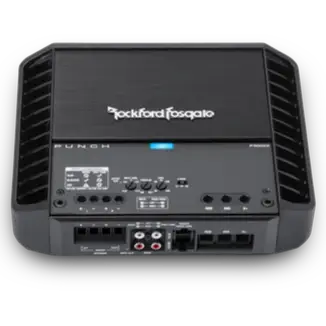

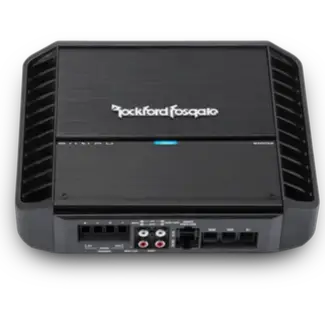

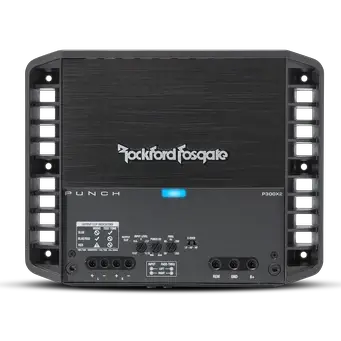

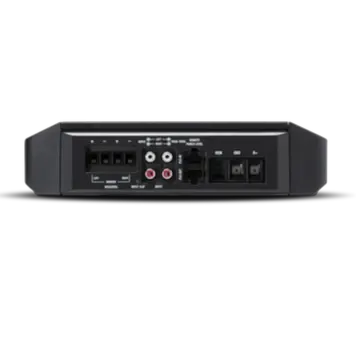

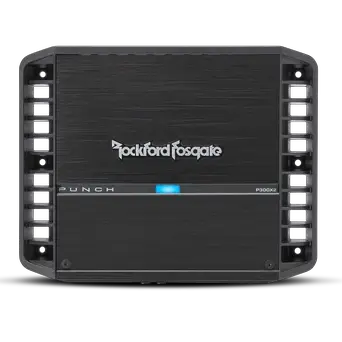

Rockford Fosgate Punch P300X2 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 150 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–12 V
- Crossover: variable 50–250 Hz high-pass/low-pass, 12 dB/octave
Rockford Fosgate Punch P300X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch P300X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give a pair of car speakers or a single subwoofer dedicated amplification with the Rockford Fosgate Punch P300X2 2-channel amplifier. Its stereo or bridged operation, adjustable crossovers, and high-level inputs make it a flexible option for compact car audio builds.
Use it to add controllable power for midrange and bass, whether you are integrating with high-level audio inputs or connecting through RCA inputs.
Key Features & Benefits
- Stereo or bridged operation: Choose two-channel speaker output or a single bridged channel for a mono load.
- Adjustable crossovers: High-pass and low-pass controls help tailor filtering to your system.
- High-level input with Auto Turn-On: Supports integration using high-level audio connections.
- RCA pass-thru outputs: Pass the signal on to additional amplifiers or processing.
- Punch EQ: Add low-frequency boost using the onboard control.
- Compact chassis: The cast aluminum heatsink and listed dimensions help with planning a space-conscious installation.
Technical Specifications
| Specification | Details |
|---|---|
| Number of Channels | 2-channel design |
| Total Power (Sum of Rated Power) | 300 Watts overall |
| Rated Power | 100 Watts x 2 @ 4 ohms; 150 Watts x 2 @ 2 ohms; 300 Watts x 1 @ 4 ohms bridged |
| Bridged Dynamic Power (PVC/PowerCube®) | 122 Watts x 2 @ 4 ohms, 0° Res; 215 Watts x 2 @ 2 ohms, 0° Res; 435 Watts x 1 @ 4 ohms bridged, 0° Res |
| Frequency Response | 20 Hz–20 kHz |
| Efficiency | 69% @ 4-ohms |
| Class | A/B topology |
| Crossover Controls | High-Pass and Low-Pass 50 Hz–250 Hz @ 12 dB/Octave Butterworth; All-Pass: Yes |
| Inputs/Outputs | High level input capable with Auto Turn-On; RCA pass-thru outputs |
| Remote Ready | Optional Punch Level Control (PLC2) with input clip indicator |
| Thermal/Protection | On-board Punch EQ with +18 dB boost @ 45 Hz; Power/Protect/Thermal LED indicators; Short circuit and over-current protection |
| Physical | Cast aluminum heatsink; convection cooling; stealth top-mounted control panel; captive C-Clamp power and speaker connections; 8 AWG–4 AWG power input; 8 AWG–18 AWG speaker wire ranges |
| Dimensions | 2.38" H x 7.76" W x 9.86" D (6.05 cm x 19.71 cm x 25.04 cm) |
| Shipping weight | 9.5 lb (4.3 kg) |
| Compliance | CTA-2006 compliant for standard car-audio installations |
Why Choose This Product?
The P300X2 gives you more than one way to configure a compact system: run a coaxial or component speaker pair in stereo, or bridge the amplifier for a single subwoofer. Its adjustable filtering and onboard low-frequency boost let you shape the signal around your setup.
For a system that may grow, the RCA pass-thru outputs provide a connection for additional amplification or processing. The top-mounted controls and status indicators keep adjustment and operating information accessible at the amplifier.
Installation & Compatibility Notes
Check your speakers’ impedance and the amplifier’s rated power at the intended load before choosing a stereo or bridged configuration. The listed bridged rating is at 4 ohms.
Measure the installation space against the amplifier’s dimensions, and account for its power and speaker wire ranges when planning connections. High-level inputs with Auto Turn-On are available for high-level signal integration. Optional remote level control is supported through the PLC2.
Frequently Asked Questions
Can the P300X2 power two speakers?
Yes. It is a two-channel amplifier, with rated output listed for two channels at 4 ohms and 2 ohms.
Can I bridge it for a subwoofer?
Yes. Its rated bridged output is 300 Watts x 1 @ 4 ohms.
What crossover adjustments are available?
High-pass and low-pass controls are adjustable from 50 Hz–250 Hz at 12 dB/Octave Butterworth. All-Pass is also listed.
Can I connect high-level audio inputs?
Yes. The amplifier supports high-level input with Auto Turn-On.
Is a remote level control included?
The Punch Level Control (PLC2) is listed as optional. It includes an input clip indicator.
