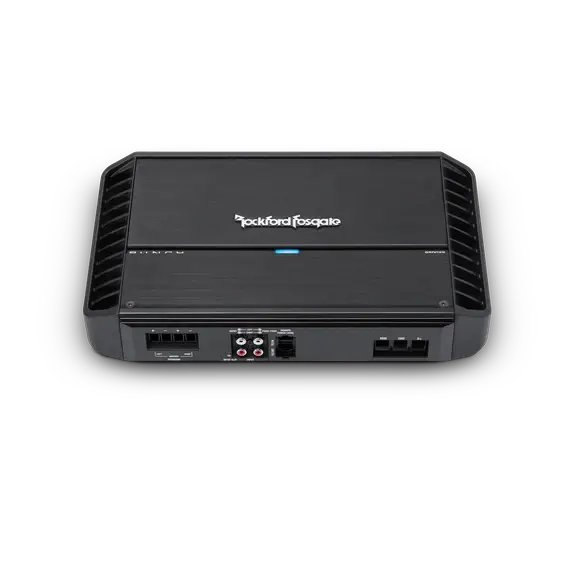

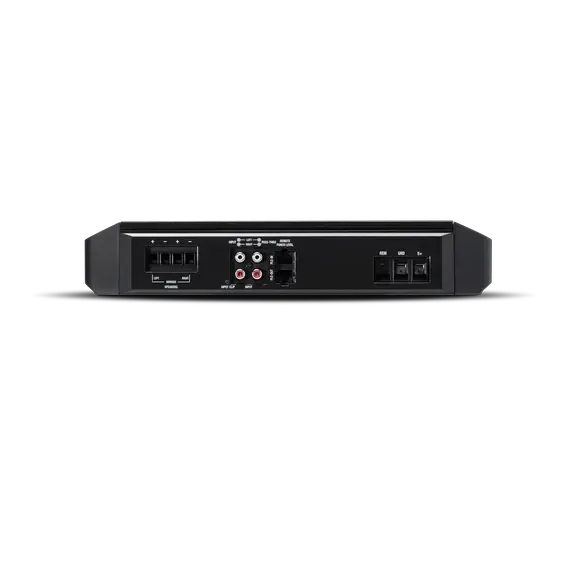

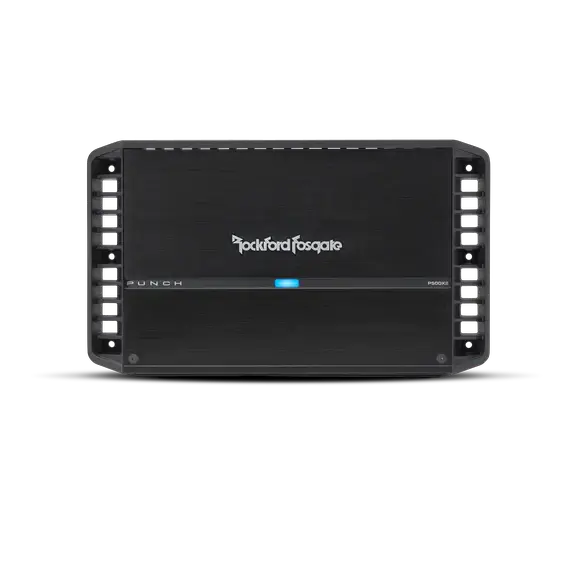

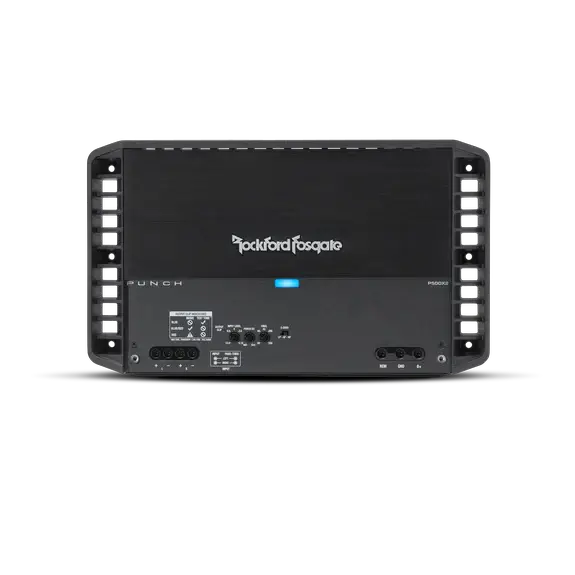

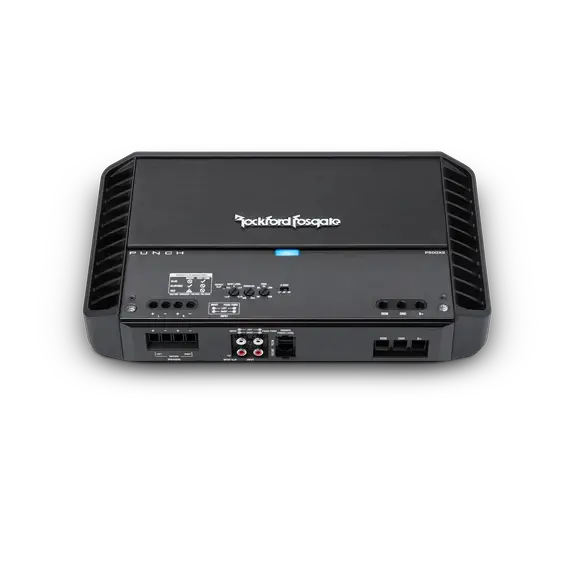

Rockford Fosgate Punch P500X2 2-Channel Amplifier
Key features
- Amplifier channels: 2
- RMS per channel at 4 ohms: 150 W
- RMS per channel at 2 ohms: 250 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–12 V
- Crossover: variable 50–250 Hz high-pass/low-pass, 12 dB/octave
Rockford Fosgate Punch P500X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch P500X2 2-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get tunable two-channel power for a compact car-audio installation with the Rockford Fosgate Punch P500X2 amplifier. It delivers 150W per channel at 4Ω, 250W per channel at 2Ω, or 500W bridged at 4Ω, with onboard crossovers and Punch EQ for shaping your system’s sound.
Key Features & Benefits
- Flexible output: Use two channels or bridge the amplifier for a compatible 4Ω load.
- Built-in sound controls: High-pass and low-pass crossovers, plus Punch EQ, let you adjust sound from the amplifier.
- Multiple input options: Hi/low-level input with Auto Turn-On supports different source-unit connections.
- Installation feedback: Input and output clip indicators help you monitor signal levels.
- Compact form: The 2.38 in H x 7.76 in W x 13.28 in D chassis helps conserve installation space.
- Thermal design: A cast aluminum heatsink and convection cooling support the amplifier’s operation.
Technical Specifications
| Specification | Value |
|---|---|
| Product type | 2-channel amplifier |
| Total power | 500W total (sum of rated power) |
| RMS power | 150W x 2 @ 4Ω; 250W x 2 @ 2Ω; 500W x 1 @ 4Ω when bridged |
| Bridgeable | Yes; capable of bridging to mono for higher bass output on compatible subs |
| Suggested subwoofer setups | A pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers |
| Frequency response | 20 Hz–20 kHz ±1.0 dB |
| Efficiency | 73% average at 4Ω |
| Crossovers | 12dB/oct Butterworth; high-pass 50–250 Hz; low-pass 50–250 Hz; All-Pass available |
| Punch EQ | +18dB at 45 Hz |
| Punch EQ2 | Bass 0–+18dB at 45 Hz; treble 0–+12dB at 12 kHz |
| Inputs and outputs | Hi/low-level input with Auto Turn-On; 1 RCA input; RCA pass-thru outputs |
| Input sensitivity | 150 mV–12 V |
| Remote and indicators | Optional Punch Level Control (PLC2) ready, with input clip indicator; Power/Protect/Thermal LED; Input Clip LED; 3 Output Clip LEDs |
| Protection and construction | Short circuit protection; over current protection; muted turn-on; cast aluminum heatsink; convection cooling; Stealth top-mounted control panel |
| Compliance | CTA-2006 compliant |
| Power wiring | 4 AWG power input; 8–18 AWG speaker wires; Captive C-Clamp |
| Dimensions | 2.38 in H x 7.76 in W x 13.28 in D |
| Shipping weight | 12.3 lb |
Why Choose This Product?
The P500X2 combines two-channel or bridged operation with onboard crossover and EQ controls. That gives you adjustment options at the amplifier, including bass shaping at 45 Hz and treble adjustment at 12 kHz through Punch EQ2.
Its RCA pass-thru outputs can carry a signal onward to another component. The top-mounted control panel keeps its controls on the amplifier, while the optional PLC2 offers an additional way to adjust level from the dash.
Installation & Compatibility Notes
Plan your installation around the amplifier’s 2.38 in H x 7.76 in W x 13.28 in D dimensions and its stated 4 AWG power input and 8–18 AWG speaker-wire range. Match the connected subwoofer load to the amplifier’s listed power ratings, especially when bridging to mono.
The product details describe use with a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Confirm the complete speaker configuration and installation requirements for your system before connecting equipment. The Punch Level Control (PLC2) is optional.
Frequently Asked Questions
How much power does the P500X2 produce?
It is rated at 150W x 2 at 4Ω, 250W x 2 at 2Ω, or 500W x 1 at 4Ω when bridged.
Can I bridge this two-channel amplifier?
Yes. It can be bridged to mono for a compatible 4Ω load, with a listed rating of 500W x 1.
Which subwoofer setups are described for this amplifier?
The product details list a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Check the final system load against the amplifier’s ratings.
Can I adjust bass without an external processor?
The amplifier has high-pass and low-pass crossovers and onboard Punch EQ controls. Punch EQ2 provides bass adjustment at 45 Hz and treble adjustment at 12 kHz.
Is a dash-mounted level control included?
