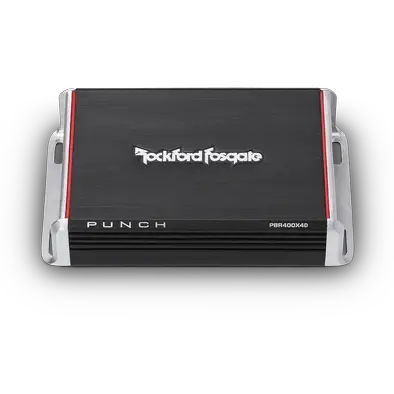

Rockford Fosgate Punch PBR400X4d 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 50 W
- RMS per channel at 2 ohms: 100 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–12 V
- Crossover: 80 Hz low-pass, full-range, or 60/80 Hz high-pass; 12 dB/octave
Rockford Fosgate Punch PBR400X4d 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch PBR400X4d 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add four-channel power without giving up much installation space with the Rockford Fosgate Punch PBR400X4d 4-channel amplifier. Its compact Class-D design delivers up to 400 watts total, with flexible output options for front and rear speakers or a bridged pair of channels.
Designed for compact installations, this amplifier also offers high-level auto turn-on and selectable crossovers. Element Ready™ amplifiers are designed for motorsports and motorcycle applications.
Key Features & Benefits
- Flexible four-channel output: Power front and rear speakers, or bridge two channels for a higher-output connection.
- Class-D design: Efficient full-range amplification suits installations where space is limited.
- OEM-friendly inputs: High-level inputs with auto turn-on support integration with factory-radio signals.
- Selectable crossovers: High-pass and low-pass settings help tailor the signal to your speaker setup.
- Monitoring and protection: C.L.E.A.N. clip detection, indicator LEDs, thermal sensing, and proprietary protection help monitor amplifier operation.
- Compact cooling design: The extruded aluminum heatsink uses convection cooling in a slim amplifier footprint.
Technical Specifications
| Specification | Details |
|---|---|
| Product | Rockford Fosgate Punch PBR400X4d 4-channel amplifier |
| Amplifier type | Full-range Class-D |
| Total power | Up to 400 Watts total |
| Power output | 50 Watts x 4 @ 4-Ohm; 100 Watts x 4 @ 2-Ohm; 200 Watts x 2 @ 4-Ohm (bridged) |
| Technology | Boosted Rail Technology |
| Inputs | Class-D differential full-range inputs; high-level auto turn-on |
| Power and ground | 8 AWG power/ground connector; recommended fuse 60 A |
| Protection and monitoring | C.L.E.A.N. input/output clip detection and indicator LEDs; real-time output and power-supply thermal sensing; Rockford Fosgate proprietary protection |
| Crossovers | Selectable 12dB/Octave Butterworth Crossovers |
| High-pass filter | 60/80 Hz @ 12dB/Octave |
| Low-pass filter | 80 Hz @ 12dB/Octave |
| Heatsink and cooling | Extruded aluminum heatsink; convection cooling |
| Remote feature | Remote-Out feature when using high level inputs |
| Speaker connections | Front/Rear speaker outputs use 4-Pin Harness connections |
| Compliance | CE/CEA-2006/CTA-2006 compliant |
| Warranty | 1-Year warranty |
| Dimensions (H x W x D) | 1.53 x 4.25 x 6.75 in |
| Shipping weight | 3.1 lb |
Why Choose This Product?
The PBR400X4d gives you several ways to configure a compact multi-channel system. Its listed power ratings support four-channel operation at 4-Ohm or 2-Ohm, or a bridged two-channel setup at 4-Ohm.
Selectable crossover points provide another way to shape the signal for your system. Clip indicators and thermal sensing add useful monitoring features when the amplifier is working in a confined vehicle installation.
Installation & Compatibility Notes
Plan for the listed 1.53 x 4.25 x 6.75-inch dimensions, 8 AWG power/ground connection, and recommended 60 A fuse. Check your available mounting space and wiring requirements before installation.
For system planning, match the speaker connections to the amplifier’s listed impedance and power ratings. High-level inputs with auto turn-on are available for factory-radio integration. Front and rear speaker outputs use 4-pin harness connections.
Frequently Asked Questions
What power does the PBR400X4d provide?
Its listed output is 50 Watts x 4 at 4-Ohm, 100 Watts x 4 at 2-Ohm, or 200 Watts x 2 at 4-Ohm when bridged.
Can I bridge channels on this amplifier?
Yes. The listed bridged output is 200 Watts x 2 at 4-Ohm.
Can it connect to a factory radio?
It has full-range high-level inputs and high-level auto turn-on for factory-radio signal integration.
What are the amplifier’s dimensions?
Its dimensions are 1.53 x 4.25 x 6.75 inches, measured as height x width x depth.
