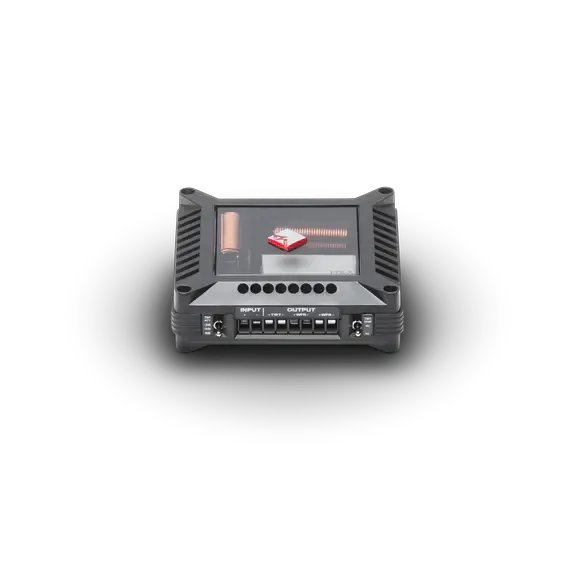

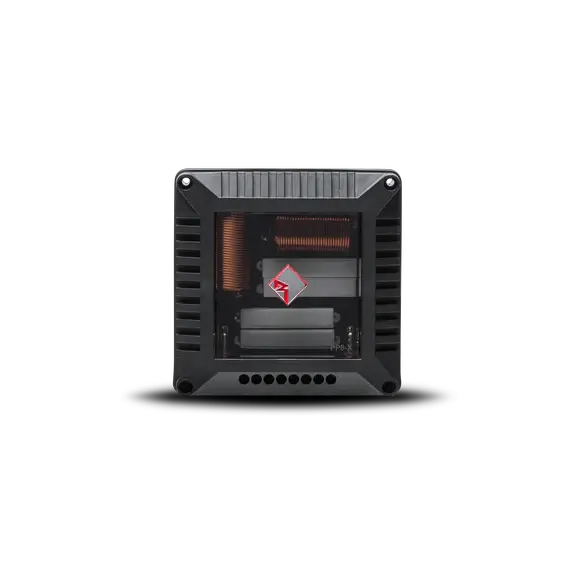

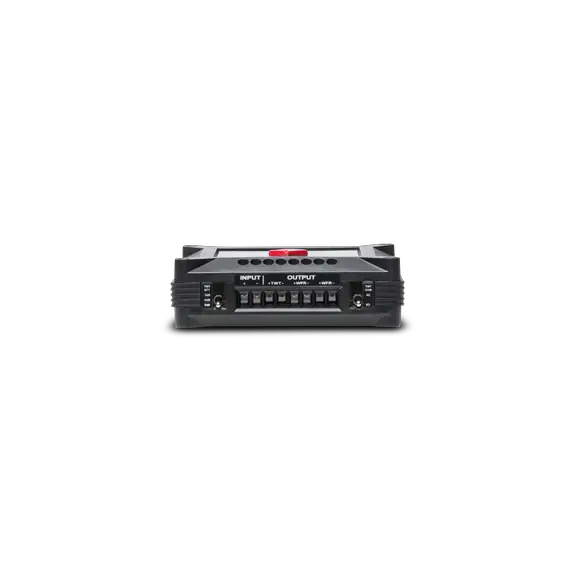

Rockford Fosgate Punch Pro PP4-X Passive Crossover (each)
Key features
- Midrange compatibility: Rockford Punch Pro 4-ohm drivers
- Tweeter impedance setting: selectable 4 or 8 ohms
- Tweeter attenuation: 0, -3 or -6 dB
- Speaker outputs: 1 tweeter and 2 woofer connections
- Dimensions: 4.57 × 4.57 × 1.42 in
Rockford Fosgate Punch Pro PP4-X Passive Crossover (each) is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Punch Pro PP4-X Passive Crossover (each) is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Give your Rockford Fosgate Punch Pro midrange drivers a dedicated low-pass signal with the PP4-X passive crossover. It is designed for Punch Pro midrange drivers and tweeters, with dual woofer outputs and selectable tweeter settings for system balancing.
Key Features & Benefits
- 3 kHz low-pass: The 6 dB/Octave filter limits high-frequency content sent to the woofer.
- Dual woofer outputs: Connect two Punch Pro midrange drivers through one crossover.
- Selectable tweeter impedance: Choose 4-Ohm or 8-Ohm to match the tweeter.
- Adjustable tweeter attenuation: Select 0 dB, -3 dB, or -6 dB to balance tweeter level against the midrange.
- Passive design: No external power is required for the crossover.

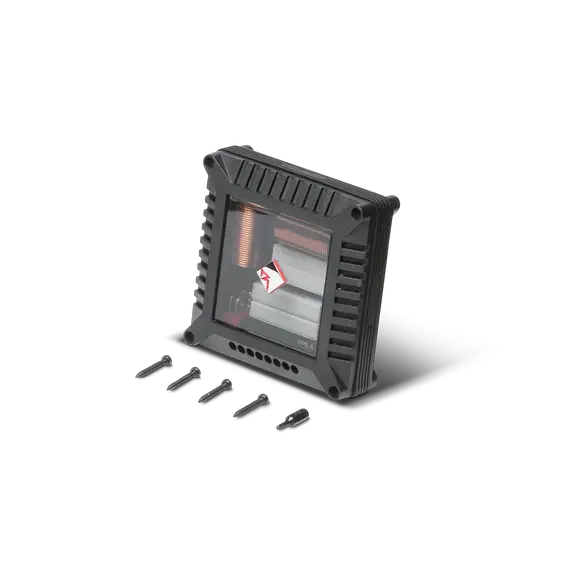

- Mounting hardware included: The supplied hardware supports installation in compatible enclosures or dash locations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | PP4-X |
| Type | Passive crossover |
| Woofer load | 4 Ohm |
| Woofer low-pass | 3 kHz, 6 dB/Octave |
| Woofer outputs | Dual outputs for two midrange drivers |
| Tweeter impedance options | 4-Ohm or 8-Ohm |
| Tweeter attenuation options | 0 dB, -3 dB, or -6 dB |
| Power handling | 125 Watts RMS / 250 Watts MAX |
| Tweeter crossover requirement | Must use the built-in 6 dB/Octave Punch Pro tweeter crossover |
| Mounting hardware | Included |
| Quantity | Sold individually |
| Warranty | 1 Year |
| Shipping weight | 1.23 Lbs |
Why Choose This Product?
The PP4-X provides a defined 3 kHz low-pass for the woofer while allowing two Punch Pro midrange drivers to share one crossover. Its selectable tweeter impedance and attenuation give you settings to match the tweeter and adjust its level in a Punch Pro system.
With 125 Watts RMS and 250 Watts MAX power handling, the crossover offers stated continuous and peak ratings for planning your system. It is sold as one unit, making the quantity clear when planning a multi-channel installation.
Installation & Compatibility Notes
This crossover is designed for Rockford Fosgate Punch Pro midrange drivers and tweeters. The tweeter must use its built-in 6 dB/Octave crossover; the PP4-X is not a replacement for that integrated crossover.
Confirm the 4-Ohm woofer load and the tweeter’s 4-Ohm or 8-Ohm impedance before installation. The crossover requires no external power. Mounting hardware is included for compatible enclosures or dash locations.
Frequently Asked Questions
What does the PP4-X send to the midrange drivers?
Its 3 kHz, 6 dB/Octave low-pass filters high-frequency content from the woofer output.
Can one PP4-X connect two midrange drivers?
Yes. It has dual woofer outputs for two Punch Pro midrange drivers.
Does this crossover replace the tweeter’s built-in crossover?
No. The tweeter must use its built-in 6 dB/Octave Punch Pro crossover.
What tweeter settings can I select?
You can select 4-Ohm or 8-Ohm tweeter impedance and choose 0 dB, -3 dB, or -6 dB attenuation.
How many crossovers are included?
The PP4-X is sold individually, with mounting hardware included.
