Complete Amp Install Kit for Select 1998+ Harley-Davidson Road King (Gen-2)
Complete Amp Install Kit for Select 1998+ Harley-Davidson Road King (Gen-2) is backordered and will ship as soon as it is back in stock.
Complete Amp Install Kit for Select 1998+ Harley-Davidson Road King (Gen-2) is backordered and will ship as soon as it is back in stock.
Description
Description
The next step in motorcycle performance, featuring simple plug-and-play installation creates the best in class on-bike audio experience.
Plug-and-Play Design: Designed to work right out of the box. Everything is included to make for easy installation and all to ensure less time in the garage and more time out riding.
Element Ready™: Purpose built for the harsh motorcycle environment. The speakers and amplifier are designed to stand up to water, dirt, UV, and motorcycle vibration, ensuring that your audio system will stand the test of time.
Compatibility Chart: Please review below tab for fitment before purchasing.
M5 Audio Kits | Lifestyle
Road King Amp Kit | Overview & Installation
M5 2014+ Amp | Tuning Guide
UNRELENTING PERFORMANCE
The RFK-HDRKM5 is a complete amplifier installation kit for Harley-Davidson® Road King models that include:
• (1) Bluetooth interface
• (1) Amp installation bracket
• (1) Plug-n-play wiring harness
• (1) Front lower expansion pigtail
For 2014+ Road King models, add:
• (1) M5-800X4 amplifier
• (1) TMS69BL14 saddlebag kit
For 1998-2013 Road King models, add:
• (1) M5-800X4 amplifier
• (1) TMS69BL9813 saddlebag kit
Refer to our COMPATIBILITY chart to verify fitment before purchasing.
FEATURES AT A GLANCE
- Simple one button pairing
- Manufacturer warranty: 2 years

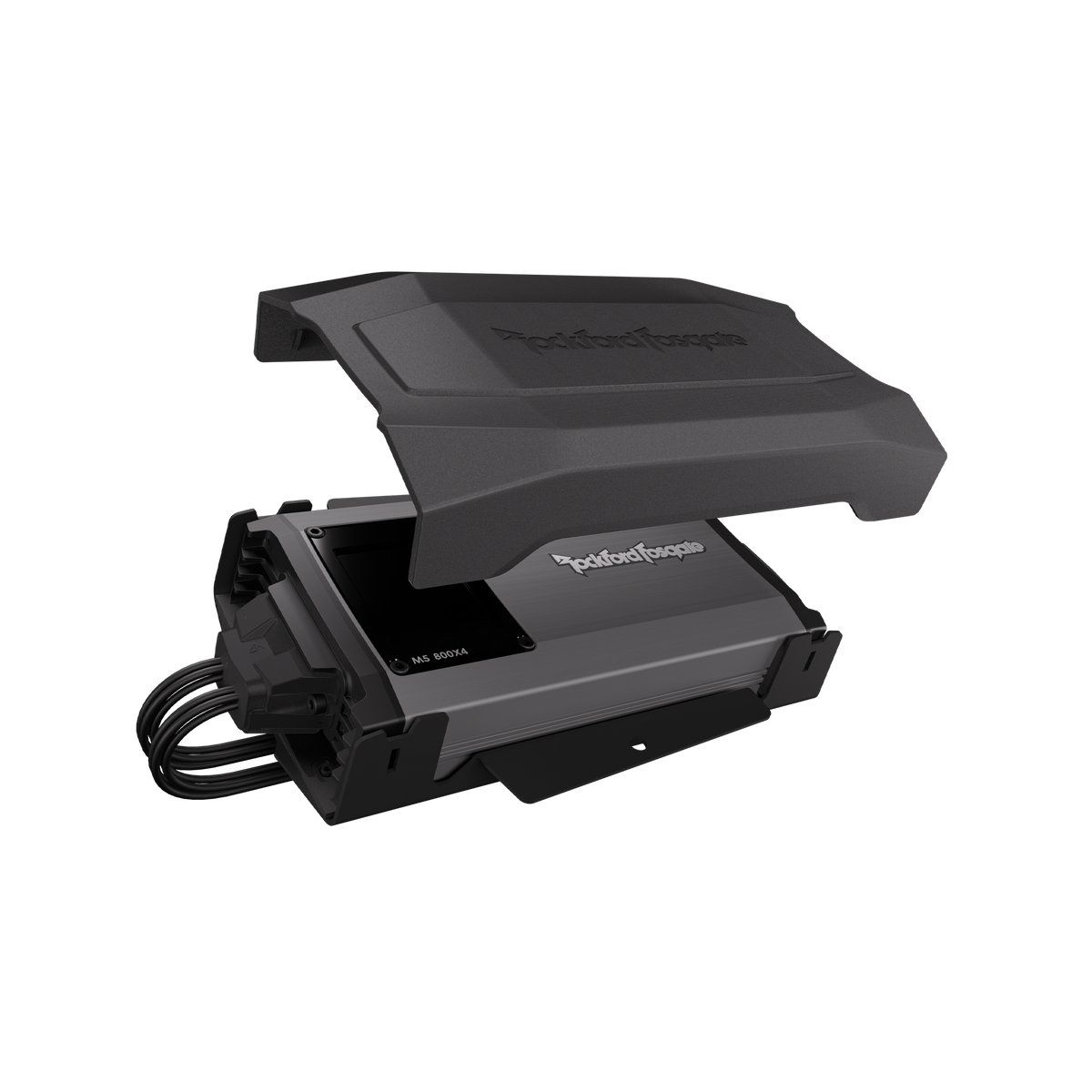

- Includes amp mounting bracket and cover
- Amplifier wiring kit for 1998+ Harley-Davidson Road King
- Designed for use with TMS69BL9813: 6x9” saddlebag kit for 1998-2013 H-D® hardshell bags
- Designed for use with TMS69BL14: 6x9” saddlebag kit for 2014+ H-D® hardshell bags
- Designed for use with M5-800X4 amplifier (sold separately)
- Apple & Android Bluetooth™ Compatible
- Plug and play wiring harnesses
- Cables use 100% pure crystal-oxygen free copper (PC-OFC)
- Full Spec Cable meets or exceeds AWG (American Wire Gauge) requirements
- Contains drilling templates and hardware for installation
- Includes lower fairing speaker expansion pigtail

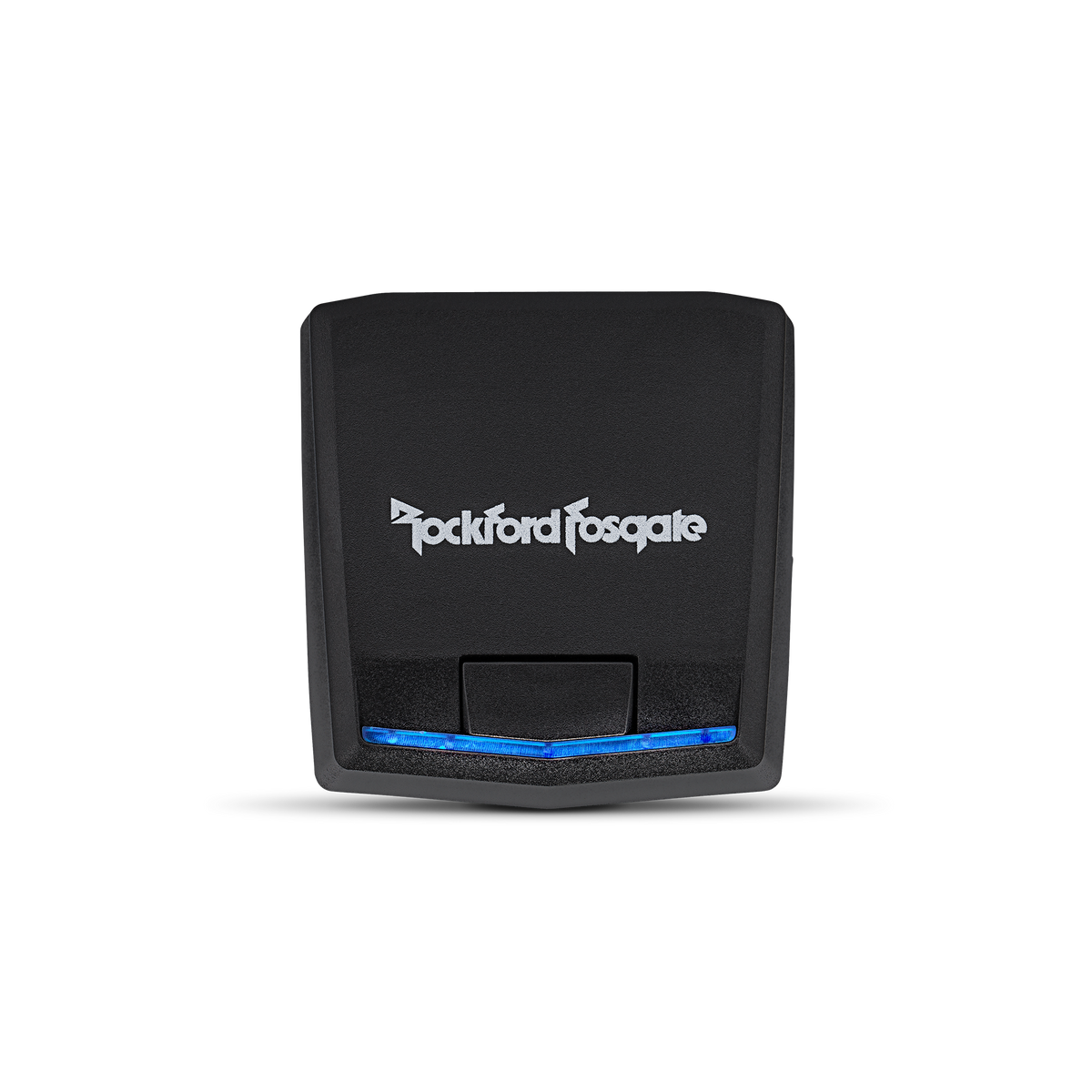

- Includes RFBTRCA Bluetooth® streaming receiver
- Plug-and-Play design for easy installation
Specifications
| Amplifier Compatibility |
M5-800X4 (sold separately)
|
|---|---|
| Bluetooth Receiver |
RFBTRCA (included)
|

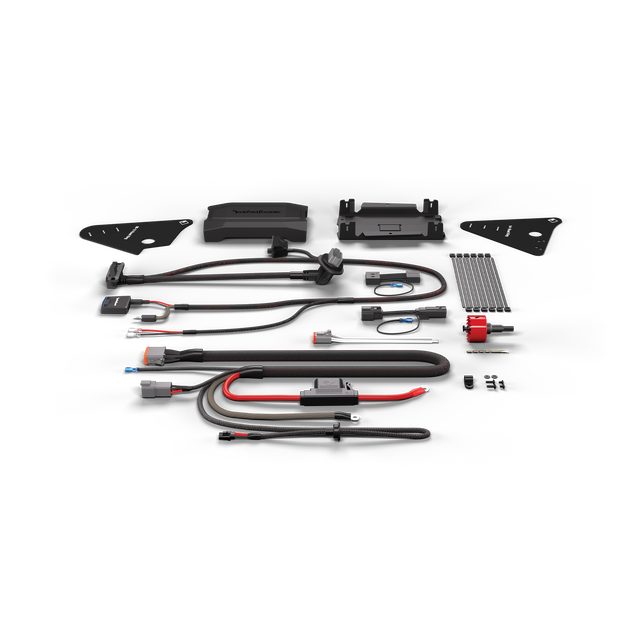

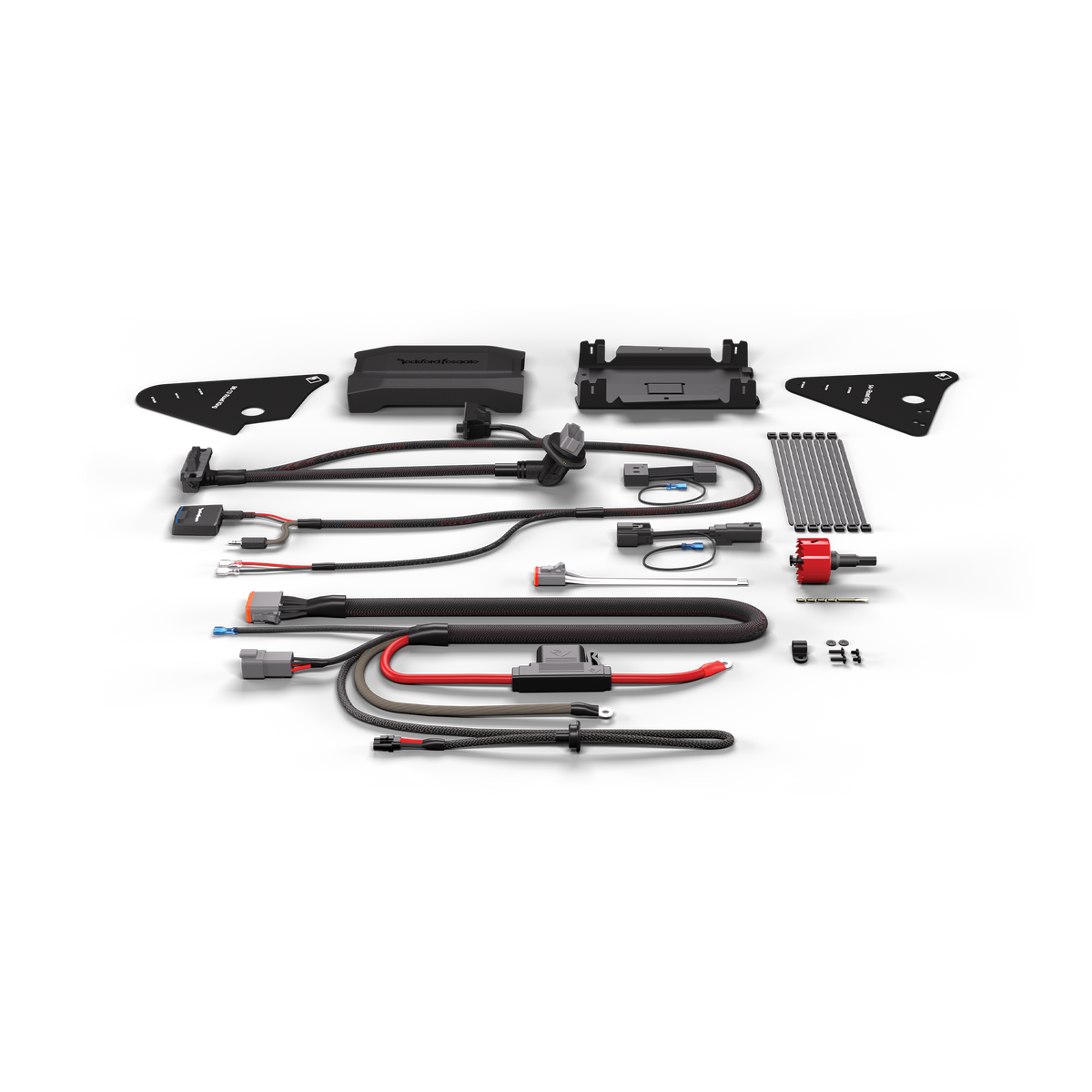

| Included In The Box |
(1) 1510-74542-01 Amp Mounting Plate
(1) 1510-74041-01 Amp Cover Top (1) 1415-73761-01 2014+ Drill Template ABS (1) 1415-73471-01 98-13 Drill Template ABS (1) 1560-72393-01 Power Wire Harness (1) 1560-76476-01 Main Wire Harness (1) 1560-72391-01 2014+ Brake Wire harness (1) 1560-72392-01 9813 Brake Wire harness (1) 1560-62039-01 Lower Expansion Pigtail (1) 1125-75397 Alcohol Wipe (1) 1610-76332-01 Adhesive Promoter (1) 1130-76319-01 AP PACK: — (1) 45mm Hole Saw — (1) Drill Bit Ø3.5mm x 70mm — (1) Cable Clamp — (2) Pan Head Phillips, M3.0x0.5, 12mm — (2) Pan Head Phillips, M3.0x0.5, 5mm — (2) M3 Flat Washer 3.2mm ID x 9mm OD — (12) Zip Ties |
| Dual Amp Installation Kit |
No
|
| Battery PWR/GND Gauge |
8 AWG
|
| Amplifier PWR/GND Gauge |
8 AWG
|
| Speaker Wire Gauge |
16 AWG
|
| Fuse Size |
60 Amp
|
| Fuse Type |
MAXI
|
| Shipping Weight |
4.2 Lbs. (1.9 Kg)
|
Compatibility
YES |
NO |
NOT AVAILABLE |
|---|
YES |
COMPATIBLE |
NO |
NO |
|---|
|
|
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FLHRSE | ✔ | — | — | — | — | — | — | — | — | — | — |
|
|
FLSTNSE | X | X | — | — | — | — | — | — | — | — | — |
|
|
FLHFB | — | — | — | — | — | — | — | — | — | ✔ | — |
|
|
FLHR | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | — | — |
|
|
FLHRC | X | X | X | X | X | X | — | — | — | — | — |
|
|
FLHRXS | — | — | — | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
|
CHASSIS | 1998 | 1999 | 2000 | 2001 | 2002 | 2003 | 2004 | 2005 | 2006 | 2007 | 2008 | 2009 | 2010 | 2011 | 2012 | 2013 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FLHRSE | — | — | — | — | ✔ | ✔ | — | — | — | ✔ | ✔ | — | — | — | — | ✔ |
|
|
FLHR | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ | ✔ |
|
|
FLHRANV | — | — | — | — | — | — | — | — | — | — | — | — | — | — | — | ✔ |
|
|
FLHRC | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X | X |
|
|
FLHRS | — | — | — | — | — | — | X | X | X | X | — | — | — | — | — | — |
|
|
CHASSIS | 2014 | 2015 | 2016 | 2017 | 2018 | 2019 | 2020 | 2021 | 2022 | 2023 | 2024 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
FLH | — | — | — | — | — | — | — | ✔ | — | ✔ | — |
|
|
FLHT | — | — | — | — | — | ✔ | ✔ | ✔ | ✔ | — | — |
|
|
FLTRX | — | X | X | X | X | X | X | X | X | X | XSKYRF2 |
|
|
FLTRXST | — | — | — | — | — | — | — | — | X | X | — |
|
|
FLTRXS | — | X | X | X | X | X | X | X | X | X | — |
|
|
FLTRXSANV | — | — | — | — | — | — | — | — | — | X | — |
|
|
FLHX | X | X | X | X | X | X | X | X | X | X | XSKYRF2 |
|
|
FLHXST | — | — | — | — | — | — | — | — | X | X | — |
|
|
FLHXANV | — | — | — | — | X | — | — | — | — | — | — |
|
|
FLHXS | X | X | X | X | X | X | X | X | X | X | — |
|
|
FLHXSANV | — | — | — | — | X | — | — | — | — | — | — |
|
|
FLHXSANV | — | — | — | — | — | — | — | — | — | X | — |
GRAY TEXT
indicates nomenclature used on some early models and later inherited.
1
Factory Radio from Harley-Davidson® must be flashed.
Read advisory for more information.
2
H-D® Power Lock for touring luggage not compatible with 6x9" bag-lid kit.
3
Saddlebags must be factory Harley-Davidson® ABS plastic to insure proper fitment with bag-lid and subwoofer kits.
Fiberglass saddlebags and bag-lids not compatible.
4
Stretched Saddlebags not optimized for kits with subwoofers. Contact technical support for suggested harness brace.
5
Tour-Pak® must be detached in order to install and remove subwoofer enclosures.
NR
No Radio equipped from factory.
RF1
RF Stage I: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and saddlebag amplifier.
RF2
RF Stage II: Not upgradable. Factory equipped with "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and saddlebag amplifier.
SKYRF1
Skyline RF Stage I: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 2-way speakers and fairing amplifier.
SKYRF2
Skyline RF Stage II: Not upgradable. Factory equipped with Skyline OS and "Harley-Davidson Audio Powered by Rockford Fosgate" 3-way speakers and fairing amplifier.
