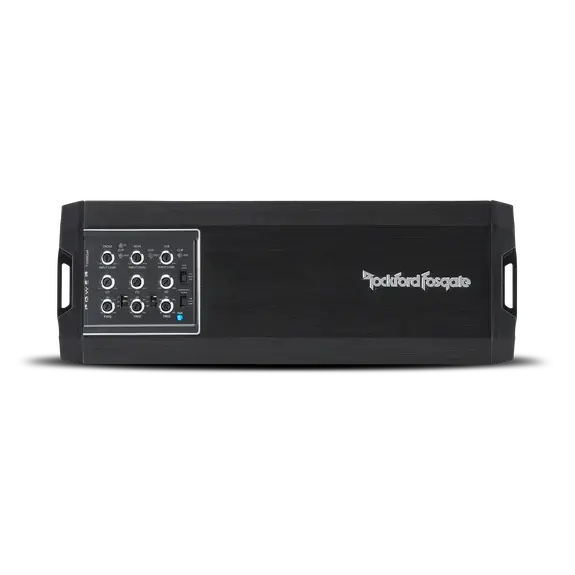

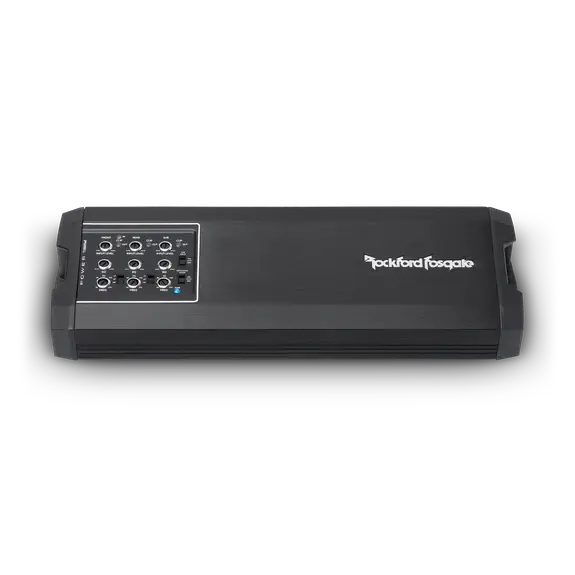

Rockford Fosgate Power Series T1000X5ad 5-Channel Amplifier
Key features
- Amplifier channels: 5
- Speaker-channel RMS at 4 ohms: 100 W per channel
- Speaker-channel RMS at 2 ohms: 100 W per channel
- Subwoofer-channel RMS at 4 ohms: 400 W
- Subwoofer-channel RMS at 2 ohms: 600 W
- Subwoofer-channel RMS at 1 ohm: 600 W
Rockford Fosgate Power Series T1000X5ad 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Power Series T1000X5ad 5-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a five-channel car audio system around the Rockford Fosgate Power Series T1000X5ad amplifier. Its four speaker channels and dedicated subwoofer channel let you power a front-and-rear speaker setup and a subwoofer from one amplifier, with onboard crossovers and tone controls for system shaping.
Key Features & Benefits
- Five-channel design: Four full-range channels and a dedicated sub channel support a multi-speaker system with subwoofer output.
- 2Ω and 4Ω operation: Choose between the stated power ratings for each load when planning your speaker and subwoofer setup.
- Onboard sound shaping: High-pass, low-pass, and sub crossovers plus Punch EQ provide adjustment without an additional processor.
- Setup indicators: Top-mounted controls and C.L.E.A.N. input/output clip LEDs help you make and monitor tuning adjustments.
- Signal integration: Differential inputs and high-level auto turn-on support integration with factory or aftermarket audio wiring.
- Thermal management: Dual fans, dual extruded heat sinks, and real-time thermal monitoring support operation under demanding loads.
Technical Specifications
| Specification | Details |
|---|---|
| Brand and series | Rockford Fosgate Power Series |
| Model | T1000X5ad |
| Product type | Element Ready 5-channel amplifier |
| Total power | 1000W total RMS |
| Rated output at 4Ω | 100W x4 + 400W x1 |
| Rated output at 2Ω | 100W x4 + 600W x1 |
| Amplifier topology | Class AD + Class BD |
| Constant Power technology | Up to 25% more output per channel than rated |
| Frequency response | 20Hz–20kHz |
| Input sensitivity | 150 mV to 12 V |
| THD+N | <1.0% across rated loads |
| Inputs and switch | Front/Rear/Sub 4-pin high/low inputs; 2CH/4CH switch |
| Input features | Differential inputs; high-level auto turn-on; remote out signal when using high-level inputs |
| Controls and processing | Top-mounted controls; C.L.E.A.N. input/output clip detection LEDs; high-pass, low-pass, and sub crossovers; Punch EQ boost circuit |
| Cooling and monitoring | Dual fans; dual extruded heat sinks; real-time thermal monitoring |
| Remote control readiness | PLC2 remote ready for Punch Level Control |
| Compliance and warranty | CE/CTA-2006 compliant; 2-year warranty |
Why Choose This Product?
The T1000X5ad combines four speaker channels with a separate subwoofer channel, reducing the need to split a multi-speaker system across several amplifiers. Its Class AD and Class BD topology is designed for efficient power delivery, while onboard processing gives you channel-shaping options at the amplifier.
Constant Power technology is specified to provide up to 25% more output per channel than rated. That added headroom is intended for musical transients and louder passages. The PLC2 remote-ready feature also gives you the option of adjusting Punch Level Control from a compatible remote.
Installation & Compatibility Notes
Plan the system around the amplifier’s 2Ω or 4Ω load ratings and match the correct rating to each speaker and subwoofer channel. The supplied ratings list 100W x4 + 400W x1 at 4Ω, and 100W x4 + 600W x1 at 2Ω.
Front, rear, and sub 4-pin high/low inputs, a 2CH/4CH switch, and high-level auto turn-on support different signal-integration approaches. Check your source-unit connections and intended speaker loads before installation. PLC2 Punch Level Control is supported as a remote option; do not assume it is included.
Frequently Asked Questions
How many channels does the T1000X5ad have?
It has five channels: four speaker channels and one dedicated subwoofer channel.
What power ratings are listed for 2Ω and 4Ω loads?
The listed ratings are 100W x4 + 400W x1 at 4Ω, and 100W x4 + 600W x1 at 2Ω. Match the load to the appropriate rating when planning your system.
Can I connect a factory audio source?
The amplifier has high/low inputs and differential inputs. High-level auto turn-on is also specified for integration with high-level sources.
Can I adjust the subwoofer level from the dash?
The amplifier is PLC2 remote ready for Punch Level Control. Confirm the remote-control requirements for your installation.
What sound adjustments are built in?
It includes high-pass, low-pass, and sub crossovers, plus a Punch EQ boost circuit.
What warranty is listed?
The supplied product details list a 2-year warranty.
