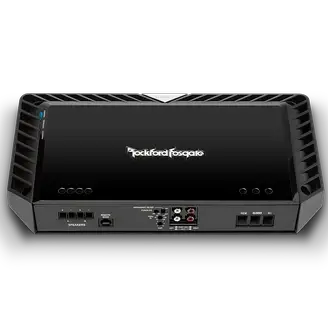

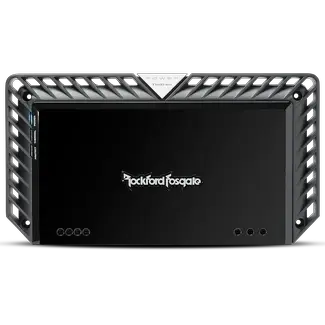

Rockford Fosgate Power Series T1500-1BDCP 1,500 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1000.0 W
- RMS output at 2 ohms: 1500 W
- RMS output at 1 ohm: 1500 W
Rockford Fosgate Power Series T1500-1BDCP 1,500 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Power Series T1500-1BDCP 1,500 Watt Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get dedicated subwoofer power with the Rockford Fosgate Power Series T1500-1BDCP monoblock amplifier. Its Constant Power configuration delivers 1,500 watts RMS at both 2 ohms and 1 ohm, with bass controls for shaping the signal to your system.
The single-channel Class BD design is built for subwoofer use. Its low-pass crossover, infrasonic filter, and bass EQ give you several ways to tailor bass output.
Key Features & Benefits
- Constant Power output: Rated output reaches 1,500 watts RMS at 2 ohms and 1 ohm.
- Bass shaping: Adjust the low-pass crossover from 35–250 Hz and bass EQ from 0 dB to +18 dB at 45 Hz.
- Infrasonic filter: The -3 dB filter at 28 Hz helps reduce subsonic rumble.
- RCA connections: A low-level input pair accepts signal from a head unit or processor, while the passthrough pair supports signal chaining.
- Flexible adjustment: An optional Remote Punch Bass EQ can adjust bass from the driver seat and overrides the built-in Punch Bass EQ.
Technical Specifications
| Specification | Value |
|---|---|
| Number of channels | 1-channel mono |
| Total power (sum of rated power) | 1500 Watts RMS total |
| Rated power (RMS continuous power) | 1000 Watts x 1 @ 4-Ohm; 1500 Watts x 1 @ 2-Ohm; 1500 Watts x 1 @ 1-Ohm |
| Dynamic power (PVC/PowerCube) | 1045 Watts x 1 @ 4-Ohm; 1549 Watts x 1 @ 2-Ohm; 1715 Watts x 1 @ 1-Ohm |
| Bridgeable | No |
| Frequency response | 20 Hz to 250 Hz ±0.5 dB |
| Input sensitivity | 150 mV to 4 V |
| Circuit topology | Class BD |
| Efficiency | 86.2% @ 4-Ohm; 74.6% @ 2-Ohm; 63.0% @ 1-Ohm |
| Total harmonic distortion (THD+N) | <1.0% at 4, 2, and 1 Ohm |
| Signal input | 1 RCA pair (low level) |
| Signal output | 1 RCA pair passthrough |
| Bass EQ | 0 dB to +18 dB at 45 Hz |
| Infrasonic filter | -3 dB @ 28 Hz, 12 dB/Octave |
| Low-pass crossover | 35–250 Hz, 24 dB/Octave Butterworth |
| Remote controls | Optional Remote Punch Bass EQ (overrides built-in Punch Bass EQ) |
| Power connections | 4 AWG power/ground connectors |
| Speaker output | Screw terminal barrier strip |
| Cooling | Convection heatsink |
| Operating voltage | 9–16 VDC |
| Recommended fuse | 200 A (fuse not included) |
| Average current draw | 100 A (Music) |
| Max current draw | 200 A (Sinewave) |
| Suggested alternator | 100 A |
| Dimensions (H x W x D) | 2.14 x 8.14 x 14.91 inches (5.42 x 20.68 x 37.86 cm) |
| Shipping weight | 14.35 Lbs (6.50 Kg) |
| CTA-2006 compliant | Yes |
| Warranty | 2-Year Warranty |
Why Choose This Product?
The T1500-1BDCP is designed for a dedicated subwoofer system that needs substantial output across common speaker impedances. Its crossover and bass controls let you shape the signal without adding another channel of amplification.
Class BD circuitry and convection heatsink cooling make this a practical option for bass-focused vehicle installations. Check the amplifier’s dimensions and electrical demands against your planned mounting location and vehicle system.
Installation & Compatibility Notes
Plan for 4 AWG power and ground connections, a recommended 200 A fuse, and an operating voltage of 9–16 VDC. The fuse is not included. The suggested alternator rating is 100 A; average current draw is 100 A (Music), and maximum current draw is 200 A (Sinewave).
Confirm that your subwoofer impedance, mounting space, and system connections suit the amplifier before installation. It has one low-level RCA input pair and a screw terminal barrier strip for speaker output. The optional Remote Punch Bass EQ is not identified as included.
Frequently Asked Questions
How much continuous power does the T1500-1BDCP provide?
It is rated at 1000 Watts x 1 @ 4-Ohm and 1500 Watts x 1 @ 2-Ohm or 1-Ohm. Match the load and power rating to your subwoofer system.
Can this amplifier be bridged?
No. It is a single-channel monoblock amplifier.
What connections does it use?

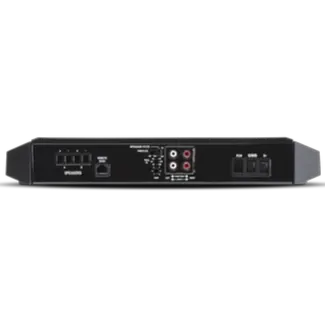

It has one low-level RCA input pair, one RCA passthrough pair, and a screw terminal barrier strip for speaker output.
What are its dimensions?
The amplifier measures 2.14 x 8.14 x 14.91 inches (5.42 x 20.68 x 37.86 cm). Compare these measurements with your available mounting space.
Is the Remote Punch Bass EQ included?
The Remote Punch Bass EQ is listed as optional. It overrides the built-in Punch Bass EQ.
