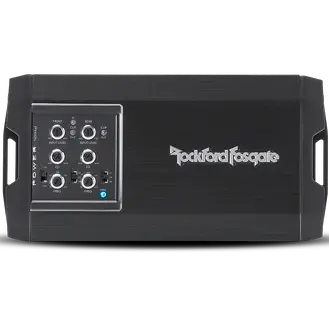

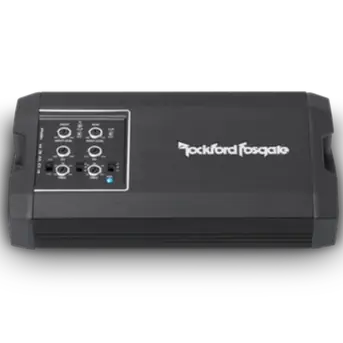

Rockford Fosgate Power Series T400x4ad 4-Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 100 W
- RMS per channel at 2 ohms: 100 W
- Frequency response: 20 Hz–20 kHz
- Input sensitivity: 150 mV–12 V
- Crossover: variable 50–250 Hz, 12 dB/octave
Rockford Fosgate Power Series T400x4ad 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Rockford Fosgate Power Series T400x4ad 4-Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Fit four amplifier channels into a tight installation with the Rockford Fosgate Power Series T400x4ad 4-channel amplifier. Its Class-AD design delivers 100 watts per channel at both 4 ohms and 2 ohms, with high- and low-level input options for flexible integration.
Key Features & Benefits
- Compact chassis: The 1.6 × 4.3 × 8.3-inch footprint helps you plan for installations with limited space.
- Flexible inputs: High-level inputs and upgraded RCA connectors support different signal connections.
- Auto turn-on support: Remote-out compatibility can simplify head-unit wiring.
- Clip and fault indicators: C.L.E.A.N. detection and indicator LEDs help you monitor operating conditions.
- Cooling design: Dual fans and extruded heatsinks help manage heat under load.
Technical Specifications
| Product type | 4-channel amplifier |
|---|---|
| Amplifier technology | Class-AD |
| Total power | 400 watts |
| Power output | 100W x 4 @ 4Ω / 100W x 4 @ 2Ω |
| Dynamic power (PVC/PowerCube®) | 128W x 4 @ 4Ω; 152W x 4 @ 2Ω; 290W x 2 @ 4Ω bridged |
| Frequency response | 20Hz–20kHz ±1dB |
| Input sensitivity | 150 mV to 12 V |
| THD | < 1% (4-Ω / 2-Ω) |
| Power and ground cable | 8 AWG |
| Inputs and connections | High-level inputs; upgraded RCA connectors; Remote-Out |
| Monitoring | C.L.E.A.N. input/output clip detection and indicator LEDs for clipping and fault conditions |
| Cooling | Dual-fan forced induction and extruded heatsinks |
| Compliance | CTA-2006 Compliant |
| Dimensions (H x W x D) | 1.6 × 4.3 × 8.3 in |
Why Choose This Product?
The T400x4ad gives you four discrete channels in one compact chassis for a front stage and rear fill. If your system calls for fewer channels, it also supports bridged operation, with the stated dynamic rating of 290W x 2 at 4 ohms.
Its constant-power design maintains similar stated output at 4-ohm and 2-ohm loads. That gives you more flexibility when selecting speakers for your system.
Installation & Compatibility Notes
Plan for the amplifier’s 1.6 × 4.3 × 8.3-inch dimensions and 8 AWG power and ground connections. The high-level inputs and RCA connections provide options for integrating the signal; remote-out supports auto turn-on compatibility.
Check your speaker impedance and intended channel arrangement before installation. The bridged dynamic rating is specified at 4 ohms.
Frequently Asked Questions
What power does the T400x4ad provide at 4 ohms and 2 ohms?
Its listed power output is 100W x 4 at 4 ohms and 100W x 4 at 2 ohms. Dynamic power ratings are listed separately in the specifications.
Can I bridge channels on this amplifier?
Yes. The listed dynamic power includes 290W x 2 at 4 ohms bridged.
What input connections does it support?
It has high-level inputs and upgraded RCA connectors. Remote-out supports auto turn-on compatibility.
How much space should I allow for the amplifier?
Its dimensions are 1.6 inches high, 4.3 inches wide and 8.3 inches deep.
