Ruthless Audio 4500.1 4,500 Watt Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1200.0 W
- RMS output at 2 ohms: 2350 W
- RMS output at 1 ohm: 4500 W
Ruthless Audio 4500.1 4,500 Watt Monoblock Amplifier - No is backordered and will ship as soon as it is back in stock.
Ruthless Audio 4500.1 4,500 Watt Monoblock Amplifier - No is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring substantial mono-channel power to a high-output car audio system with the Ruthless Audio 4500.1 monoblock amplifier. It delivers up to 4,500W RMS at 1Ω and is rated stable down to 0.5Ω, with electrical upgrades required for 0.5Ω operation.
Key Features & Benefits
- Three RMS power ratings: Choose the load that suits your system, with ratings listed at 1Ω, 2Ω, and 4Ω at 14.4V.
- Strappable design: Pair two 4500.1 amplifiers in a 1Ω strapped configuration for a dual-amplifier build.

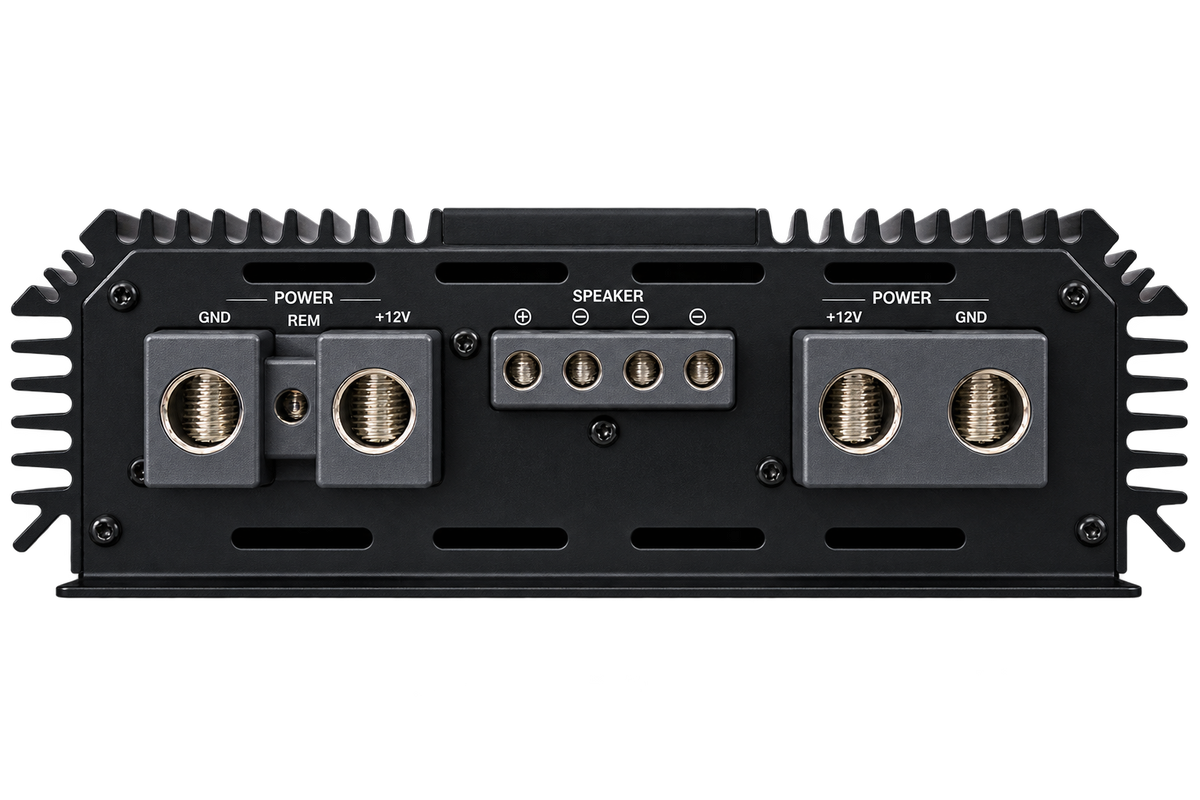

- 1/0 AWG power inputs: Full-size power and ground terminals support the amplifier’s high-current installation requirements.

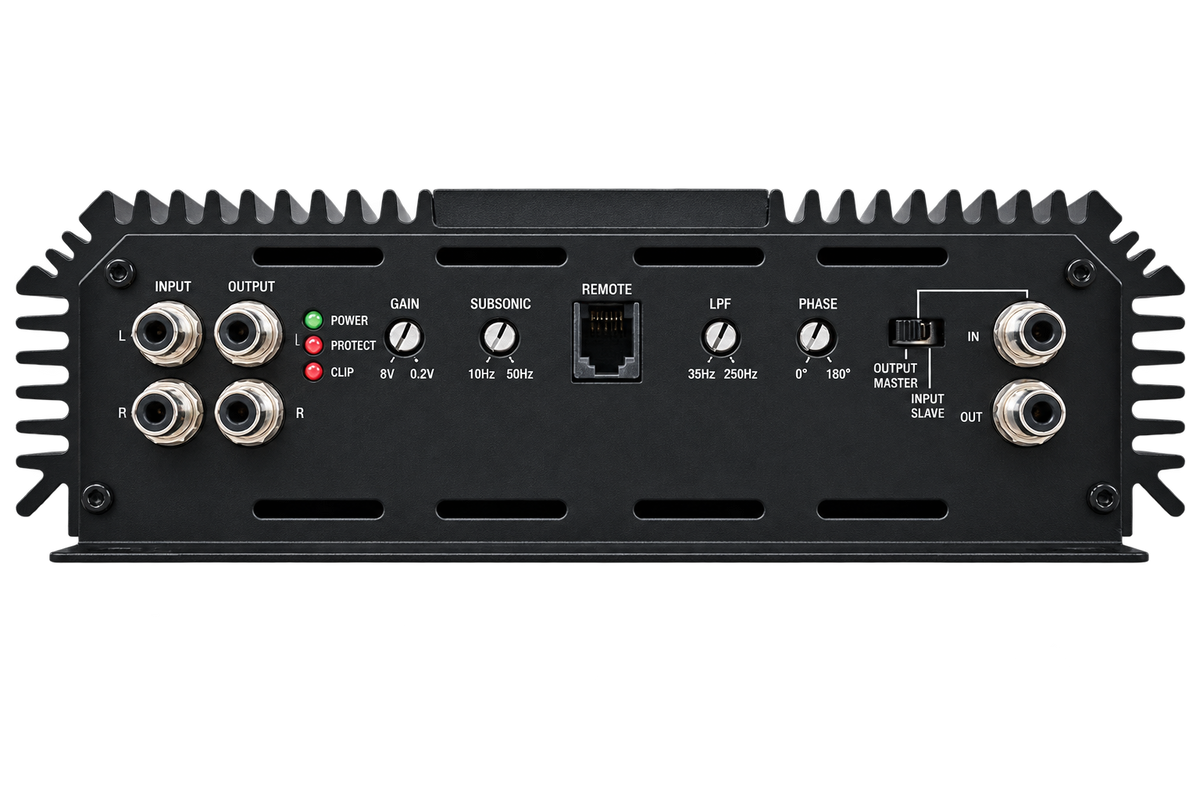

- Tiffany-style locking RCA inputs: The locking connections help keep RCA cables secured at the amplifier.
- Low-frequency controls: A 10Hz–250Hz frequency response and 0°–180° phase control support subwoofer integration.
- Compact height, substantial footprint: Check the listed dimensions to plan space for this 25-1/8-inch-long amplifier.
Technical Specifications
| Specification | Value |
|---|---|
| RMS Power @ 1Ω (14.4V) | 4,500W |
| RMS Power @ 2Ω (14.4V) | 2,350W |
| RMS Power @ 4Ω (14.4V) | 1,200W |
| Minimum Impedance | 0.5 Ohm Stable |
| Strappable | Yes (1 Ohm when strapped) |
| Channels | 1 (Monoblock) |
| Frequency Response | 10Hz – 250Hz |
| Phase Control | 0° – 180° |
| THD | < 0.01% @ 4Ω |
| Input Sensitivity | 0.2V – 6V |
| RCA Inputs | Tiffany-Style Locking RCA |
| Power Input Gauge | 1/0 AWG |
| Fuse Rating | 400A (200A per positive run) |
| Overall Length | 25-1/8" |
| Width | 9-1/16" |
| Height | 2.75" |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Why Choose This Product?
The 4500.1 offers distinct RMS ratings across 1Ω, 2Ω, and 4Ω loads, helping you compare amplifier output with your planned subwoofer load. Its strappable design also supports a two-amplifier configuration, with the pair operating at 1Ω when strapped.
For subwoofer pairing, the product details recommend high-power competition subwoofers rated for 2,000W RMS or more. They also describe dual 2Ω subwoofers wired in parallel for a 1Ω load, or dual 1Ω subs in parallel for a 0.5Ω load.
Installation & Compatibility Notes
This amplifier has a high current demand. The installation guidance recommends a high-output alternator rated at 200A or greater, a Big 3 wiring upgrade using 1/0 AWG cable, and sufficient AGM or lithium battery reserve. Use a dedicated 1/0 AWG power and ground run from the battery to the amplifier.
Running at 0.5Ω without the recommended electrical upgrades risks voltage sag and thermal shutdown, and may void 0.5Ω warranty coverage. Plan mounting space around the listed dimensions. The product details also recommend using a DSP or active crossover to set low-pass and subsonic filters before the amplifier input.
Frequently Asked Questions
How much power does the Ruthless Audio 4500.1 produce?
At 14.4V, its ratings are 4,500W RMS at 1Ω, 2,350W RMS at 2Ω, and 1,200W RMS at 4Ω.
Can the 4500.1 run at 0.5Ω?
It is rated stable at 0.5Ω. The installation guidance recommends a high-output alternator rated at 200A or greater, Big 3 wiring with 1/0 AWG cable, and sufficient battery reserve for operation at that load.
Can I strap two 4500.1 amplifiers?
Yes. The product is strappable, and the listed strapped impedance is 1Ω. The product details recommend fully upgrading the electrical system before strapping.
What should I check before choosing subwoofers?
Compare their RMS power rating and voice-coil configuration with your planned amplifier load. The product details recommend competition subwoofers rated for 2,000W RMS or more.
What warranty options are listed?
The specifications list a 1-year standard warranty and a 2-year extended option. The product details state that 0.5Ω warranty coverage requires proper electrical upgrades.
