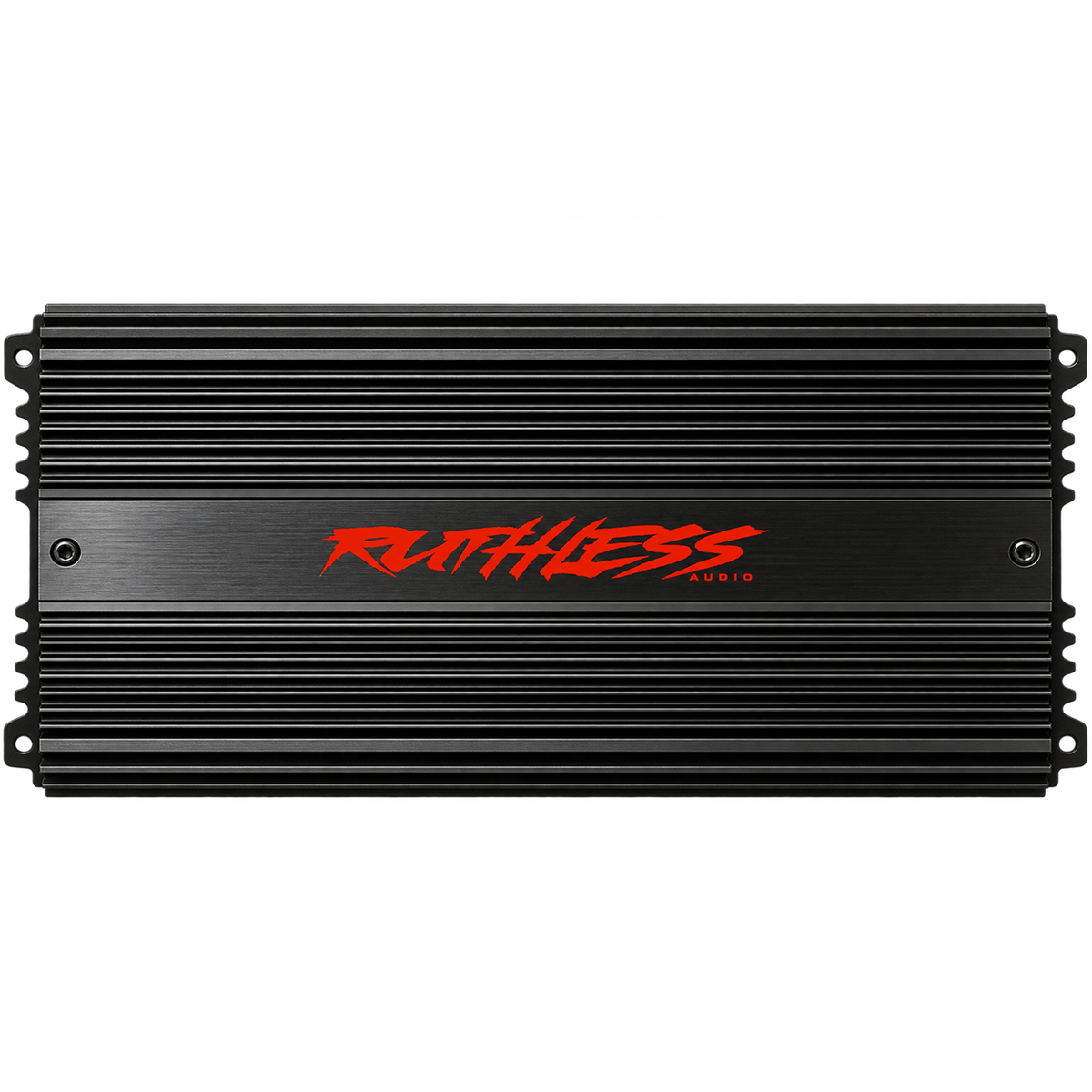

Ruthless Audio 5000.2 2 Channel Amplifier
Key features
- Amplifier channels: 2
- Amplifier class: Class D
- Minimum supported load: 1 ohm per channel
- Rated supply voltage: 14.4 V
- Maximum operating voltage: 17 V
- Dimensions: 19 × 9.25 × 2.875 inches
Ruthless Audio 5000.2 2 Channel Amplifier - No is backordered and will ship as soon as it is back in stock.
Ruthless Audio 5000.2 2 Channel Amplifier - No is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Ruthless Audio 5000.2 2 Channel Amplifier gives you a Class-D amplifier for stereo or subwoofer system builds. It is rated at 14.4V, operates up to 17V, and is specified as stable at 1Ω per channel.
Use it for a stereo front stage, subwoofer channels, or a bridged single-channel setup. Its flexible configurations make system planning especially important: match the load and connected speakers or subwoofer to the amplifier’s requirements.
Key Features & Benefits
- Two channels: Choose a stereo setup or plan a bridged configuration for a single-channel application.
- 1Ω stability per channel: The specified minimum impedance supports low-impedance loads within the amplifier’s stated limits.
- Class-D design: This amplifier class suits high-output car audio installations.
- 14.4V rated, 17V maximum: The stated voltage figures help you assess the amplifier alongside your vehicle’s electrical system.
- Installation dimensions: The full-size chassis measurements help you plan mounting space and airflow before installation.
- 1Ω impedance warranty: The specification lists warranty coverage at 1Ω operation.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Minimum Impedance | 1Ω Stable Per Channel |
| Impedance Warranty | 1Ω |
| Rated Voltage | 14.4V |
| Maximum Operating Voltage | 17V |
| Amplifier Class | Class-D |
| Length | 19" |
| Width | 9-1/4" (9.25") |
| Height | 2-7/8" (2.875") |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Why Choose This Product?
The 5000.2 gives you more than one way to plan a two-channel amplifier installation. You can use the channels for a stereo front stage, dedicate them to subwoofer loads, or bridge the amplifier for a single-channel configuration.
For front-stage use, the source recommends pairing it with component speakers rated for the amplifier’s output and using an upstream DSP for time alignment, EQ, and crossover control. For subwoofer use, match each channel’s final load to the stated impedance limits.
Installation & Compatibility Notes
Measure the mounting area before installation and allow room for airflow around the amplifier. The listed chassis dimensions are provided in the specification table.
The source recommends a 1/0 AWG Big 3 electrical upgrade, 1/0-gauge power and ground wiring, and appropriate inline fusing. Keep power and ground runs as short as possible to reduce resistance and voltage drop.
For installations at or near full output, the source recommends a high-output alternator rated at 200A or more and a secondary AGM or lithium battery to help maintain voltage above 13.5V under sustained load. Check the final speaker or subwoofer load before wiring. When bridged, the source specifies a minimum 2Ω load.
Frequently Asked Questions
What do the 14.4V and 17V ratings indicate?
The amplifier is rated at 14.4V and has a maximum operating voltage of 17V. Consider both figures when planning the electrical system for your installation.
Can I use the 5000.2 for a stereo front stage?
Yes. The source describes using it as a dedicated stereo amplifier and recommends component speakers rated for the amplifier’s output.
Can the amplifier be bridged for one subwoofer?
Yes. The source describes a bridged single-channel configuration and specifies a minimum 2Ω bridged load.
What electrical upgrades are recommended for high-output use?
The source recommends a 1/0 AWG Big 3 upgrade, 1/0-gauge power and ground wiring, and appropriate inline fusing. For use near full output, it also recommends a 200A-or-higher alternator and a secondary AGM or lithium battery.
