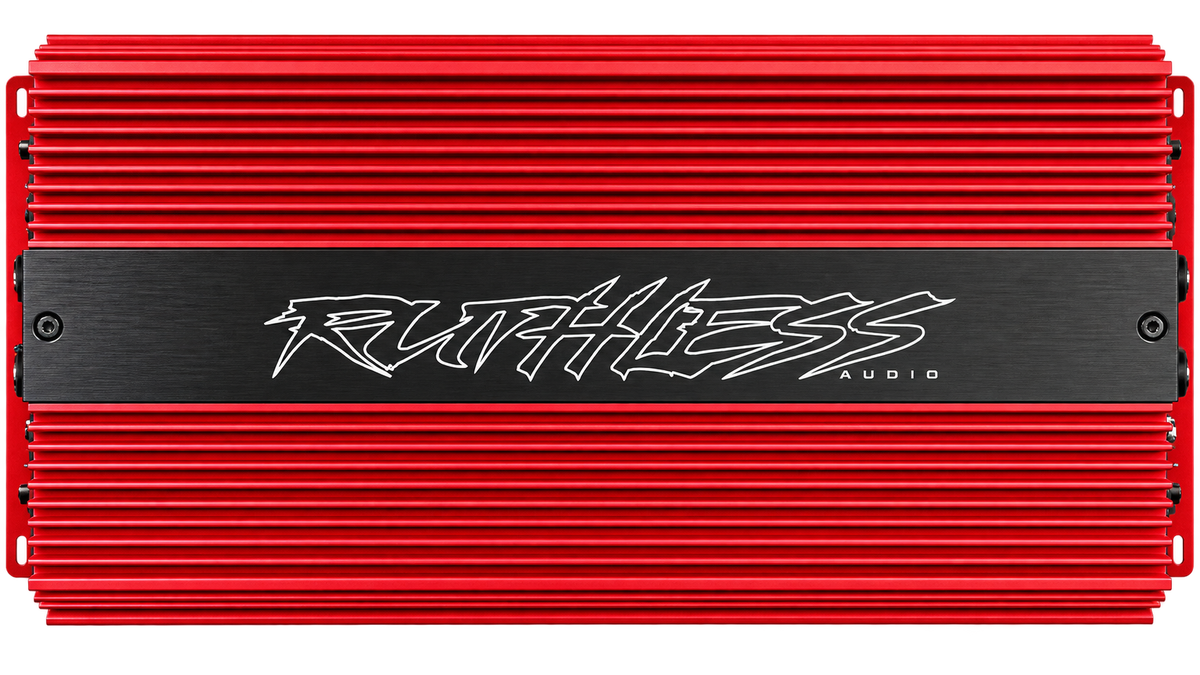

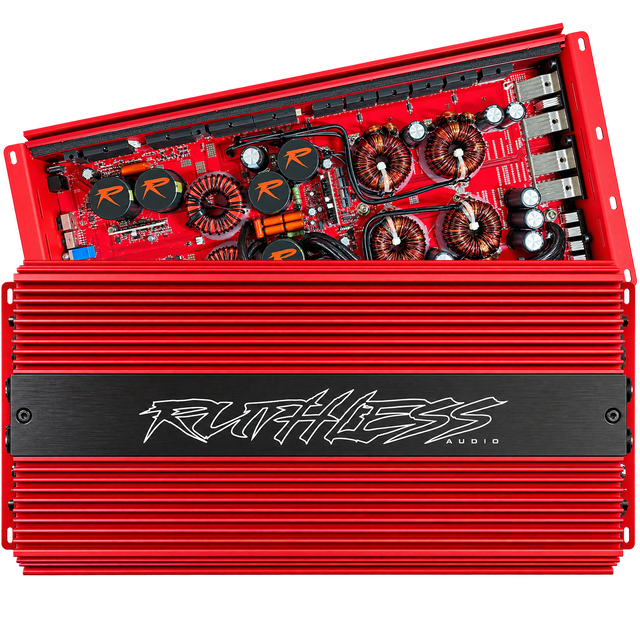

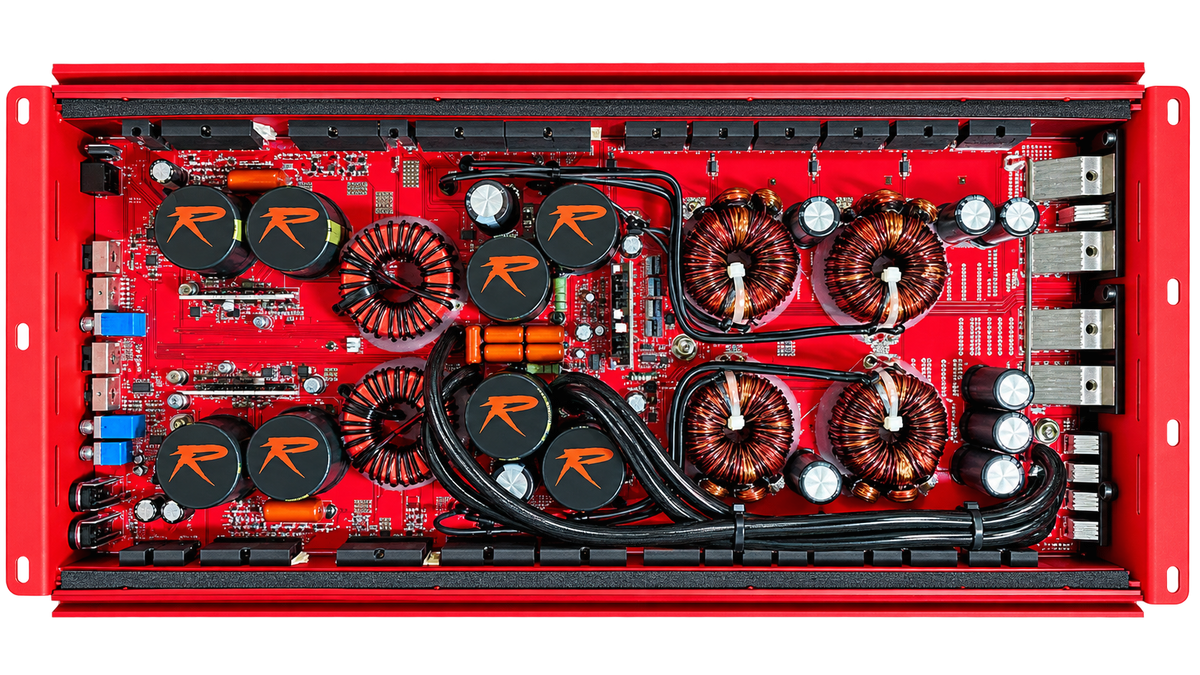

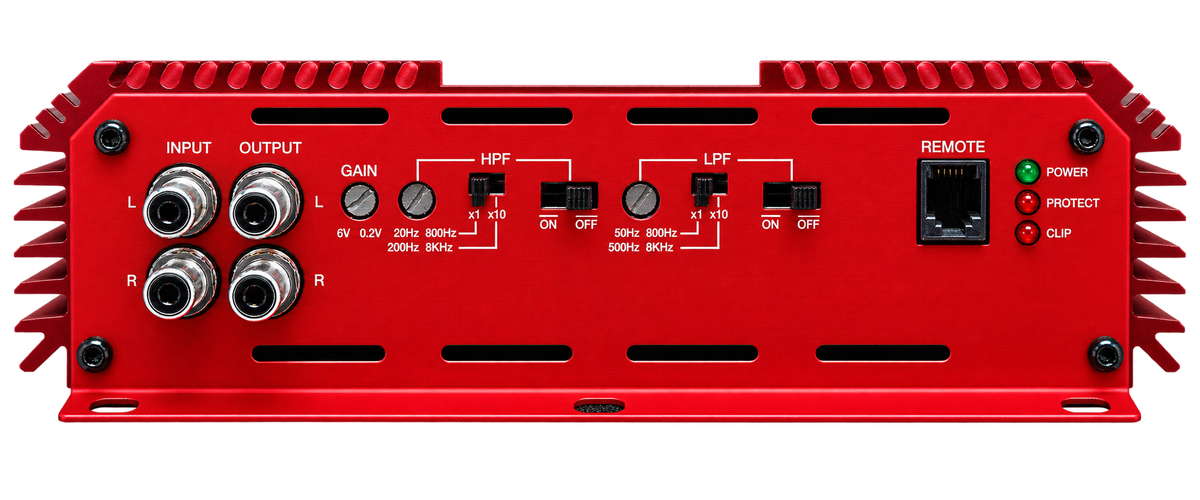

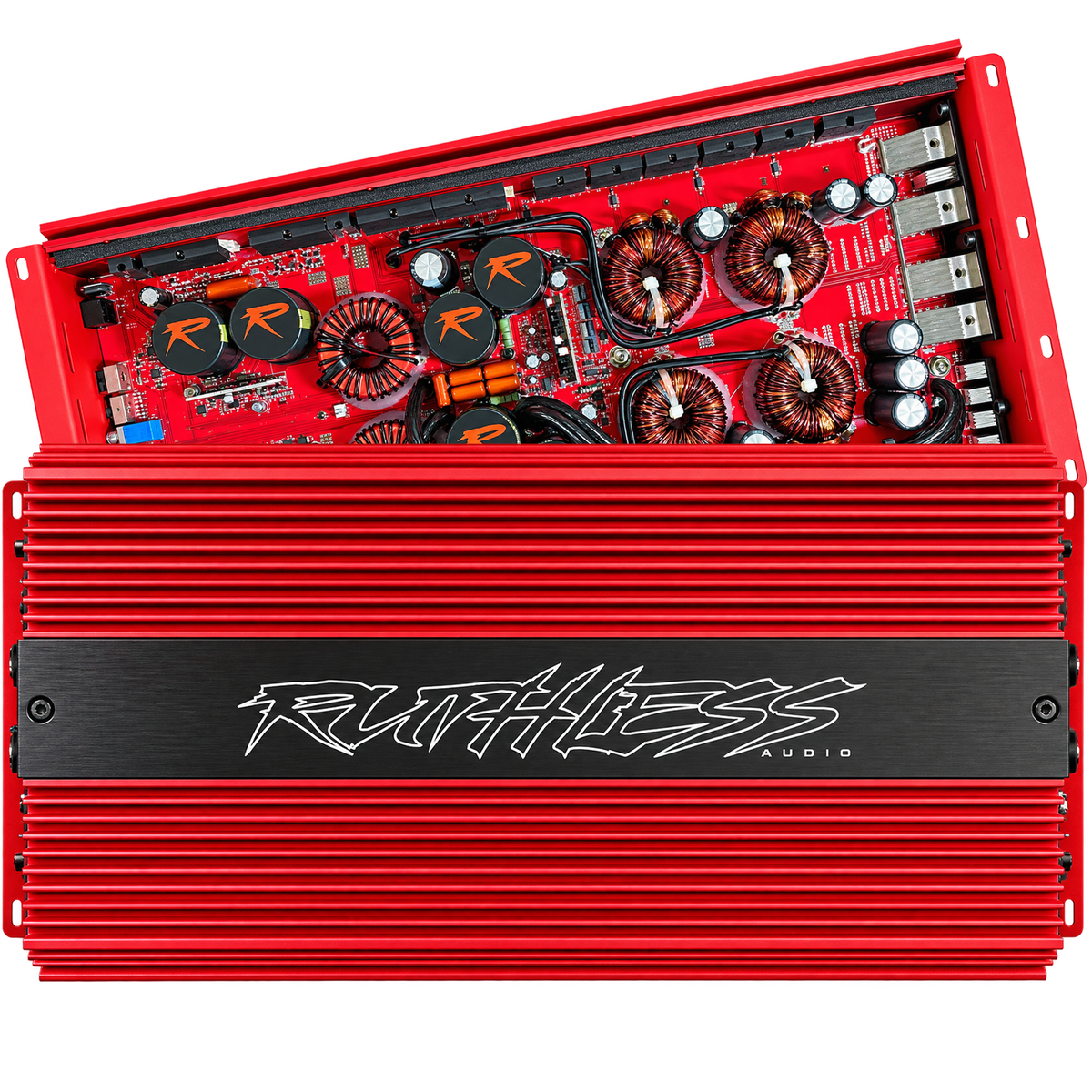

Ruthless Audio 5000.2 Red 2 Channel Amplifier
Key features
- Amplifier channels: 2
- Amplifier class: Class D
- Minimum supported load: 1 ohm per channel
- Rated supply voltage: 14.4 V
- Maximum operating voltage: 17 V
- Dimensions: 19 × 9.25 × 2.875 inches
Ruthless Audio 5000.2 Red 2 Channel Amplifier - No is backordered and will ship as soon as it is back in stock.
Ruthless Audio 5000.2 Red 2 Channel Amplifier - No is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a bold red finish and flexible two-channel operation to your car audio system with the Ruthless Audio 5000.2 Red 2 Channel Amplifier. Its Class-D design is 1Ω stable per channel, with a 14.4V rated voltage and operation up to 17V.
Use it for subwoofers, a stereo front stage, or a bridged single-channel setup. The red finish also stands out in a custom installation.
Key Features & Benefits
- Red finish: Gives your amplifier a distinct look in a custom build.
- Two-channel design: Supports stereo use or the configurations described below.
- 1Ω stability per channel: Accommodates low-impedance loads within the stated rating.
- Class-D circuitry: Combines an efficient design with the amplifier’s stated low-distortion signal performance.
- Up to 17V operation: Offers a higher maximum operating voltage for systems with upgraded electrical setups.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 2 |
| Finish | Red |
| Minimum Impedance | 1Ω Stable Per Channel |
| Impedance Warranty | 1Ω |
| Rated Voltage | 14.4V |
| Maximum Operating Voltage | 17V |
| Amplifier Class | Class-D |
| Length | 19" |
| Width | 9-1/4" (9.25") |
| Height | 2-7/8" (2.875") |
| Warranty | 1 Year Standard / 2 Year Extended Available |
Why Choose This Product?
The 5000.2 Red gives you multiple setup options in one two-channel amplifier. Use it for stereo playback, subwoofer applications, or a bridged configuration when your system design calls for one channel.
Its red finish adds a visual accent, while the Class-D design and 1Ω-per-channel stability suit builds planned around those specific features. Check the load and wiring configuration for your intended setup before installation.
Installation & Compatibility Notes
Measure the mounting area before installation. The amplifier is 19" long, 9-1/4" wide, and 2-7/8" tall; allow for suitable airflow clearance.

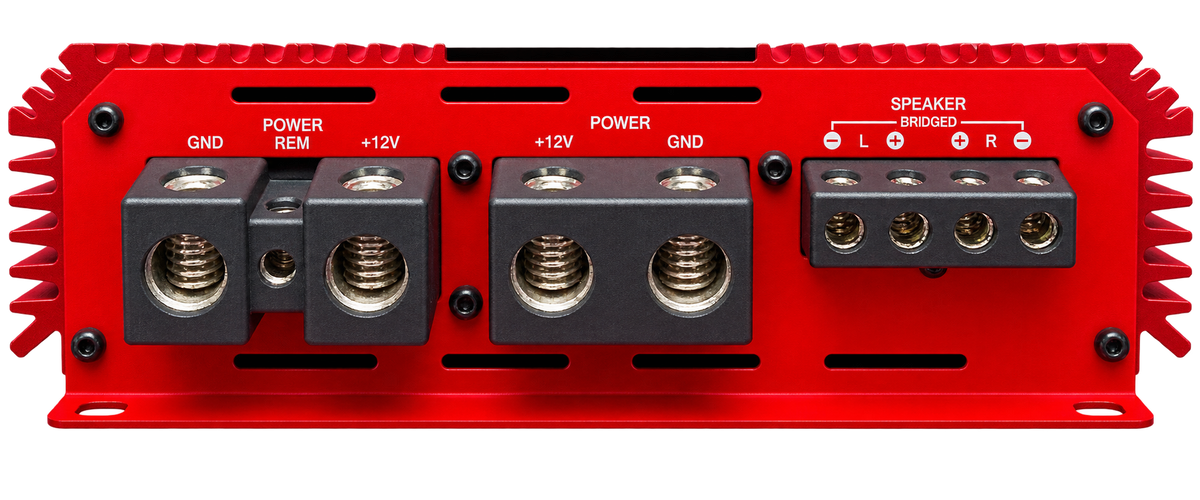

The product details recommend a dedicated 1/0-gauge power and ground run, appropriate inline fusing, and short power and ground runs. They also recommend a Big 3 upgrade in 1/0 AWG. For operation near full output, a 200A+ high-output alternator and a secondary AGM or lithium battery are strongly recommended to help maintain voltage above 13.5V under sustained load.
For bridged operation, the stated minimum load is 2Ω bridged. Match the connected speaker or subwoofer load to the amplifier’s requirements and your system configuration.
Frequently Asked Questions
Can I use the 5000.2 Red with subwoofers?
Yes. The product details describe subwoofer use and 1Ω stability per channel. Confirm the final load for your wiring configuration.
Can I bridge this two-channel amplifier?
Yes. It can be bridged for a single-channel setup, with a stated minimum bridged load of 2Ω.
What electrical upgrades are recommended?
A Big 3 upgrade in 1/0 AWG is the stated minimum recommendation. Near full output, a 200A+ high-output alternator and a secondary AGM or lithium battery are strongly recommended.
How much room should I allow for installation?
The amplifier measures 19" × 9-1/4" × 2-7/8". Plan for airflow clearance around the unit.
