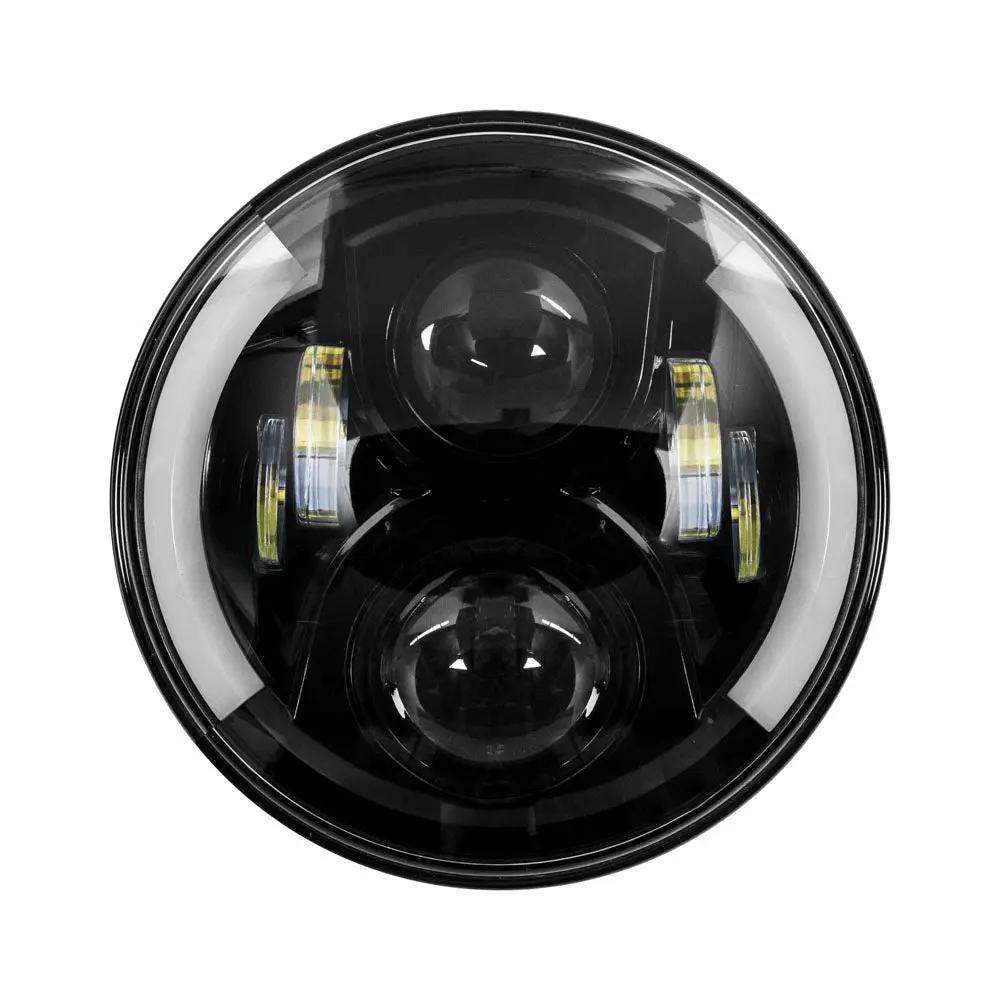

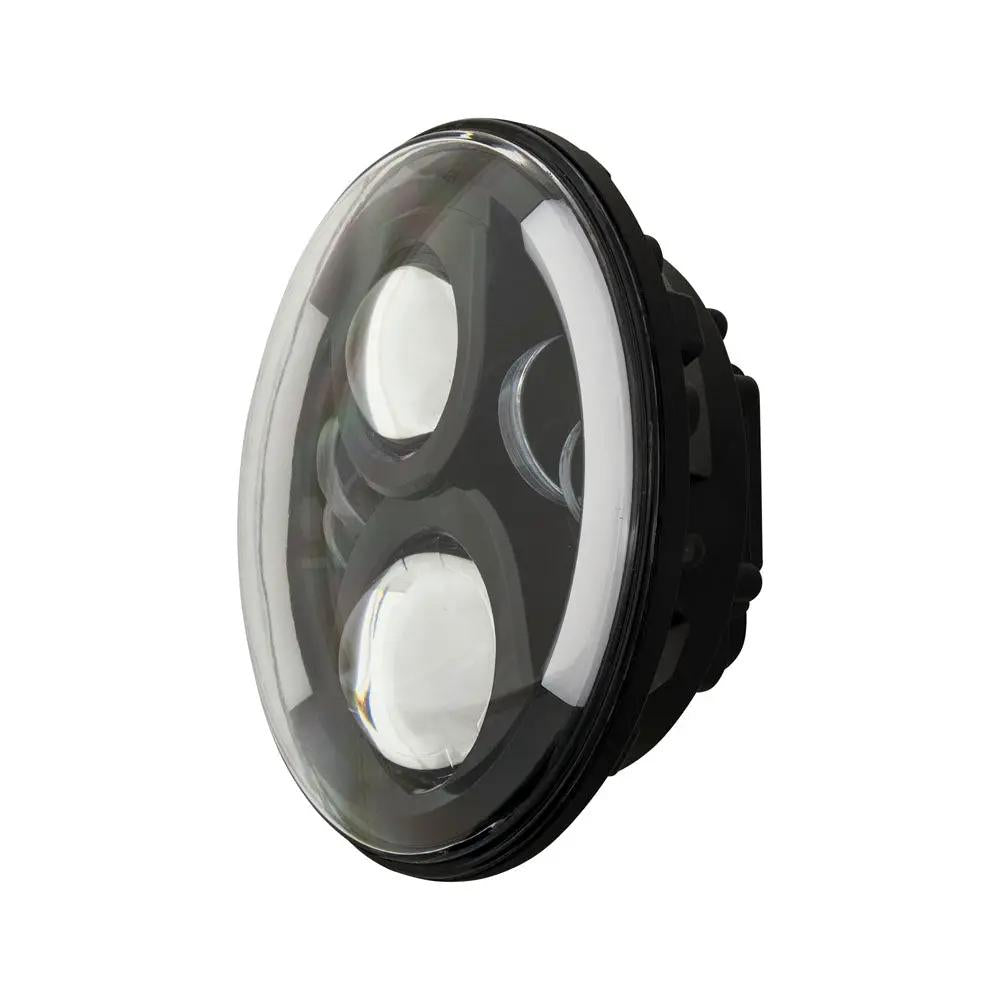

Saddle Tramp BC-703B 7-Inch LED Motorcycle Headlight with Partial Halo
Key features
- 7-inch round motorcycle headlight
- Black front face; partial white halo with amber turn-signal function
- Six 10-watt LEDs; 60 watts total
- Low beam: 2,000 lumens; 1.9A at 13.8V
- High beam: 3,000 lumens; 2.7A at 13.8V
- 6500K LED color temperature
Saddle Tramp BC-703B 7-Inch LED Motorcycle Headlight with Partial Halo is backordered and will ship as soon as it is back in stock.
Saddle Tramp BC-703B 7-Inch LED Motorcycle Headlight with Partial Halo is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Add a round LED headlight with a partial white halo and amber turn-signal function to your motorcycle. The Saddle Tramp BC-703B has a 7-inch black front face, an H4 connector, and high and low beams.
Key Features & Benefits
- 7-inch round design: Gives you a defined headlight size to compare with your motorcycle’s mounting requirements.
- High and low beams: The H4 connector supports both beam functions.
- Partial white halo: Adds a white halo element to the headlight assembly.
- Amber turn-signal function: Provides a turn-signal function, with separate left and right turn-signal wires.
- Die-cast aluminum housing: Helps protect the light assembly.
- Polycarbonate lens: Adds lens protection to the assembly.
Technical Specifications
| Model | BC-703B |
|---|---|
| Product type | 7-inch round LED motorcycle headlight with partial halo |
| Front face | Black |
| LEDs | Six 10-watt LEDs; 60 watts total |
| Low beam | 2,000 lumens, drawing 1.9A at 13.8V |
| High beam | 3,000 lumens, drawing 2.7A at 13.8V |
| LED color temperature | 6500K |
| Connector | H4; supports high and low beams |
| Halo | Partial white halo with amber turn-signal function |
| Housing | Die-cast aluminum |
| Lens | Polycarbonate |
Why Choose This Product?
The BC-703B combines a headlight, partial halo, and amber turn-signal function in one 7-inch round assembly. Its stated beam output and current draw give you specific figures to consider when planning the electrical setup.
Installation & Compatibility Notes
The halo requires a switched 12V source. Connect the left and right turn-signal wires separately. Before purchase, compare the 7-inch size, mounting arrangement, and H4 connection with your motorcycle’s requirements.
Frequently Asked Questions
What are the low- and high-beam ratings?
The low beam is rated at 2,000 lumens and draws 1.9A at 13.8V. The high beam is rated at 3,000 lumens and draws 2.7A at 13.8V.
What connector does the BC-703B use?
It uses an H4 connector that supports high and low beams. Check that your motorcycle’s headlight connection is compatible.
How should the halo and turn-signal wires be connected?
The halo requires a switched 12V source. Connect the left and right turn-signal wires separately.
Will this headlight fit my motorcycle?
Compare the 7-inch size, mounting requirements, and H4 compatibility with your motorcycle before choosing this headlight.
Explore More
Shop the Saddle Tramp BC-703B at 12 Volt Outlet. Want to learn more about Saddle Tramp? Explore our Saddle Tramp brand profile.
