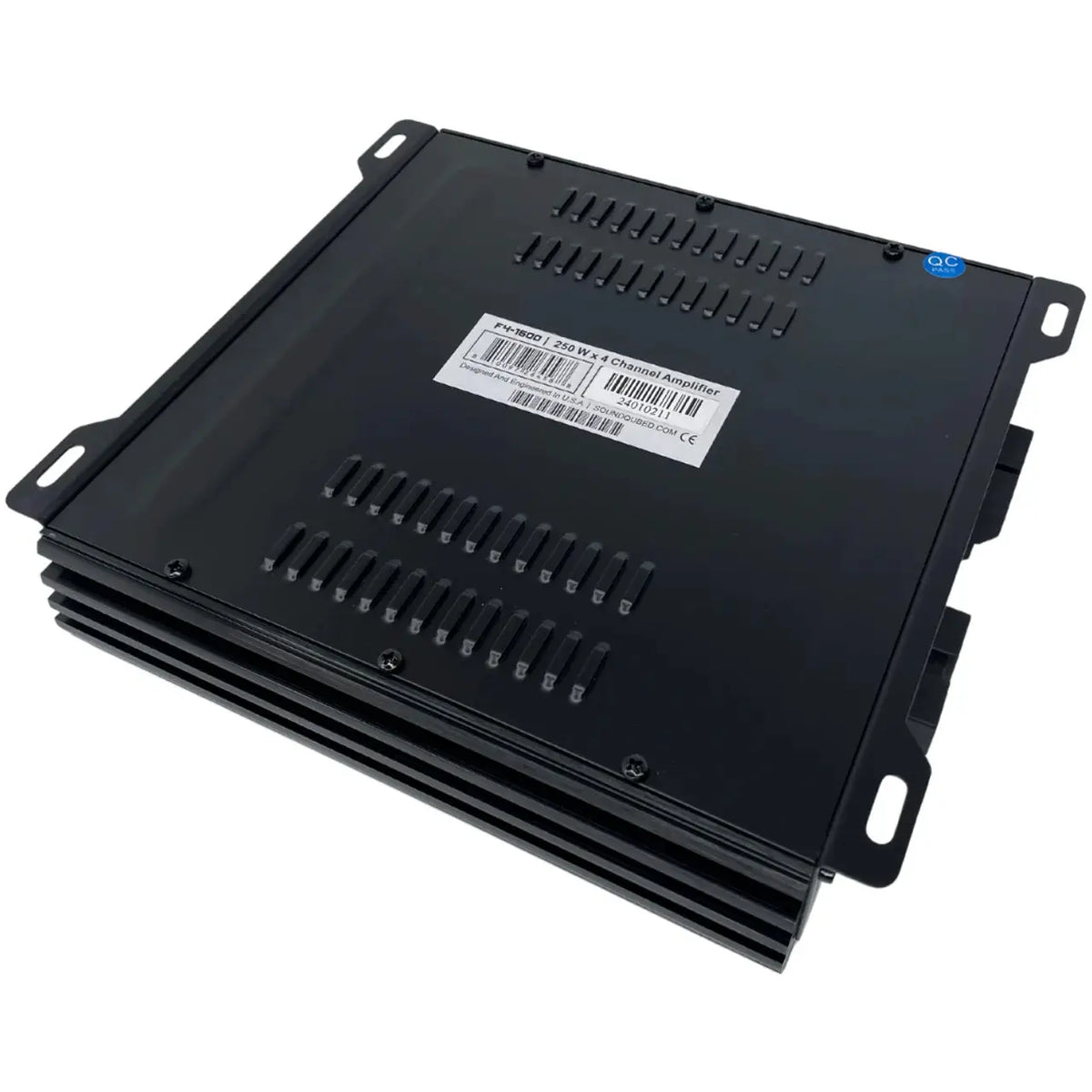

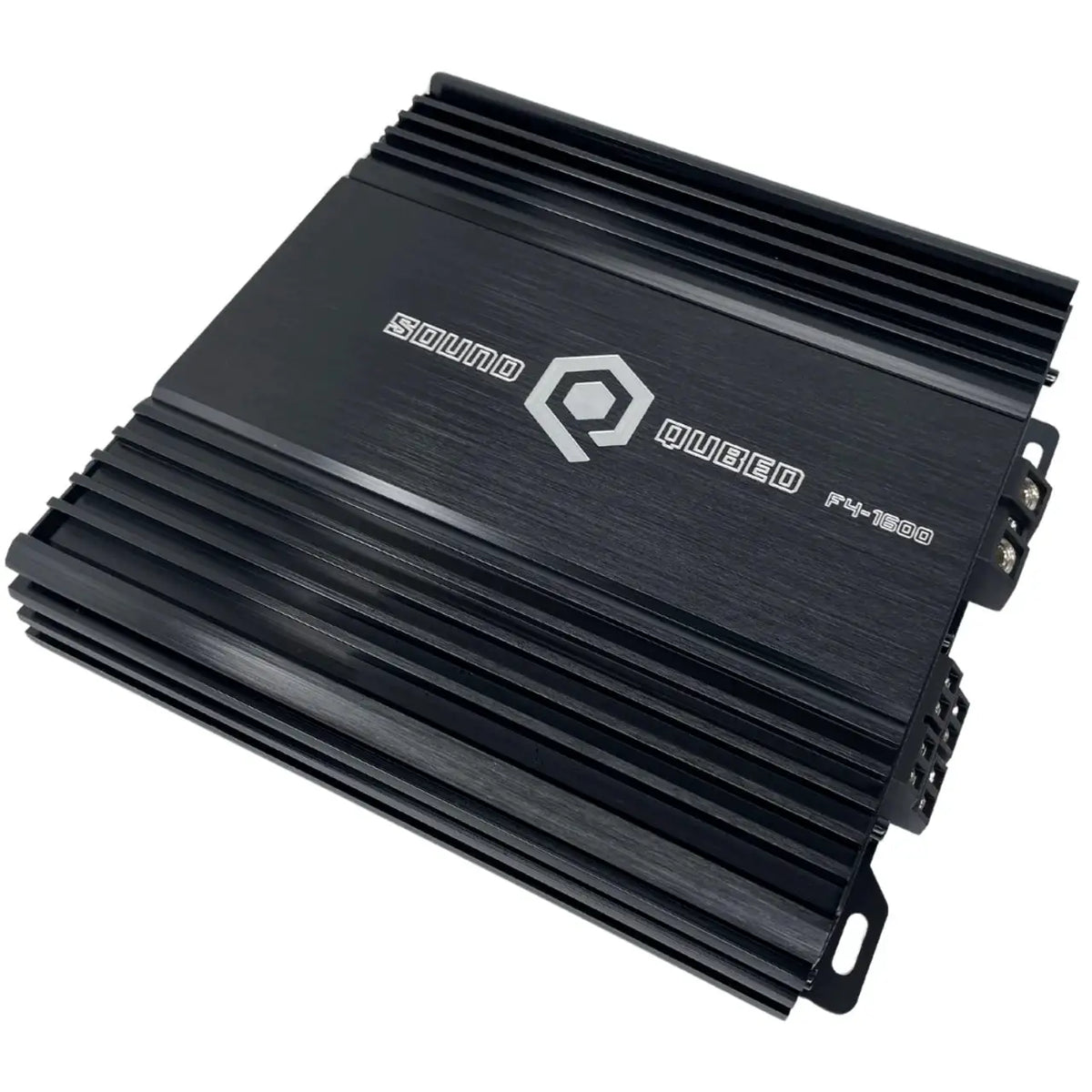

SoundQubed 1600 Watts F4-1600 Full Bridge 4 Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 250 W
- RMS per channel at 2 ohms: 400 W
- Overall dimensions (L × W × H): 9.13 × 8.46 × 2.28 in
- Frequency response: 10 Hz–20 kHz
- Low-level input range: 400 mV–6 V
SoundQubed 1600 Watts F4-1600 Full Bridge 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
SoundQubed 1600 Watts F4-1600 Full Bridge 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a four-channel car audio system with flexible crossover control in a compact chassis. The SoundQubed F4-1600 is a full-bridge digital amplifier rated at 250W x 4 at 4Ω, with selectable filtering and a crossover frequency multiplier of up to 10x.
Use all four channels for speakers, or bridge channels 3/4 for a mid-bass driver or subwoofer. Its compact dimensions make it easier to plan into installations where amplifier space matters.
Key Features & Benefits
- Flexible power: Choose 250W x 4 at 4Ω, 400W x 4 at 2Ω, or 800W x 2 bridged at 4Ω for different system layouts.

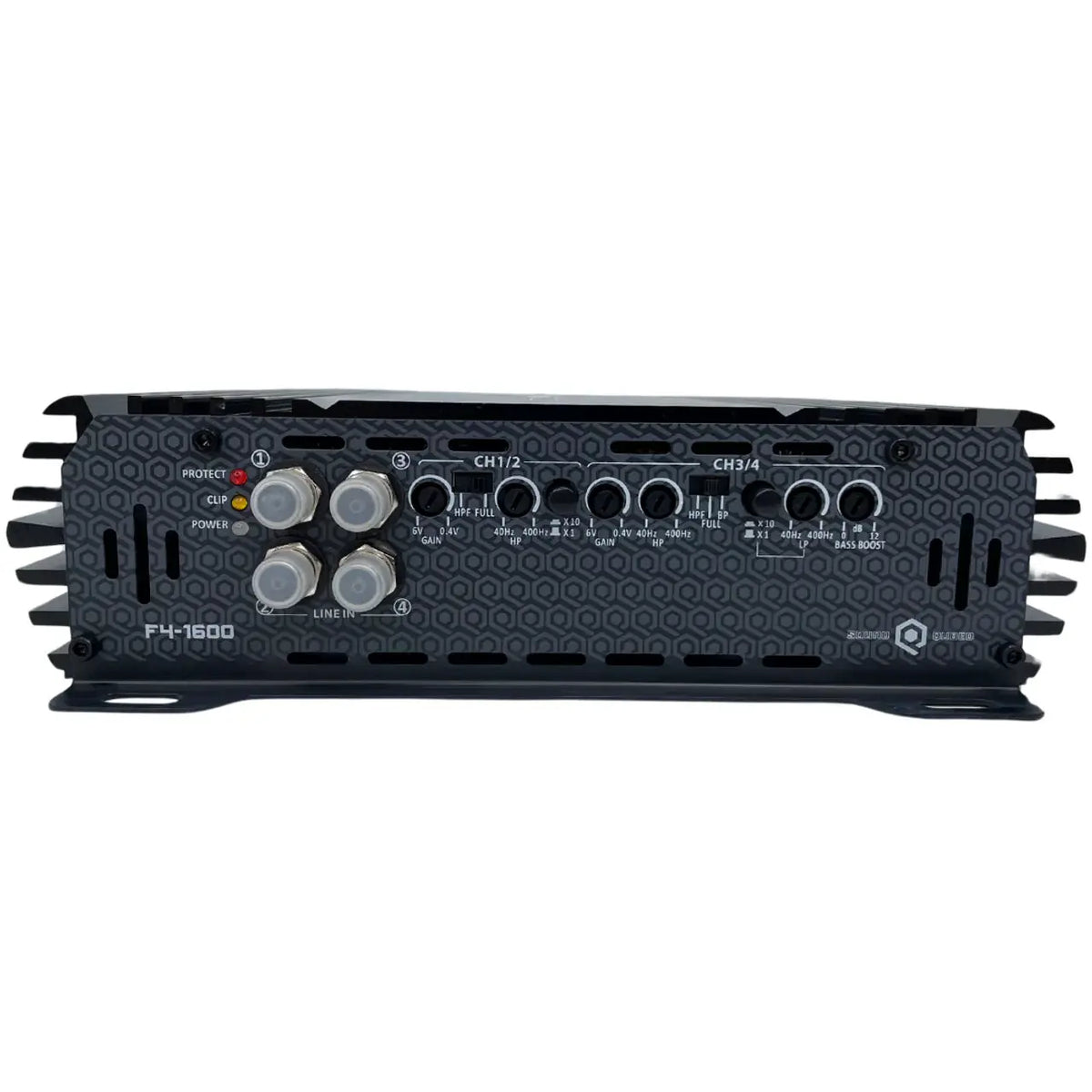

- Channel-specific crossovers: Select HPF or FULL on channels 1/2, and HPF, FULL, or BPF on channels 3/4.
- Adjustable bass boost: Set 0–12 dB of boost at 45 Hz for supported bass applications.
- Compact chassis: The amplifier measures 9.13" x 8.46" x 2.28" for installation planning.
- Cooling and protection: A cooling fan, enlarged heatsink, and listed protection circuits support operation under demanding conditions.
- Signal performance: The 95 dB signal-to-noise ratio, 84% efficiency at 4 ohm, and damping factor of 92 describe key aspects of its audio and electrical performance.
Technical Specifications
| Specification | F4-1600 |
|---|---|
| RMS Power @ 4 Ohm — 4-Channel | 250W x 4 |
| RMS Power @ 2 Ohm — 4-Channel | 400W x 4 |
| RMS Power @ 4 Ohm — Bridged (2-Channel) | 800W x 2 |
| Frequency Response | 10 Hz – 20 kHz |
| Signal to Noise Ratio | 95 dB |
| Efficiency @ 4 Ohm | 84% |
| Damping Factor | 92 |
| Input Impedance | 20K Ohms |
| THD | 0.50% |
| Low Level Input Range | 400mV – 4V |
| Selectable X-Over (CH 1/2) | HPF / FULL |
| X-Over Filter Range (CH 1/2) | 40 Hz – 400 Hz |
| Selectable X-Over (CH 3/4) | HPF / FULL / BPF |
| X-Over Filter Range (CH 3/4) | HPF: 40–400 Hz / LPF: 40–400 Hz |
| Bass Boost Range | 0 – 12 dB |
| Bass Boost Frequency | 45 Hz |
| X-Over Frequency Multiplier | Yes (up to 10x) |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance (Stereo) | 2 Ohm |
| Minimum Impedance (Bridged) | 4 Ohm |
| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 4GA |
| Fuse Size (Recommended) | 360A |
| Remote Level Control | No |
| Voltmeter | No |
| Cooling Fan | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| High Efficiency Digital Circuit Design | Yes |
| Tiffany Style RCA | Yes |
| Quality Control (Audio Precision) | Yes |
| Overall Length | 9.13" / 232 mm |
| Overall Width | 8.46" / 215 mm |
| Overall Height | 2.28" / 58 mm |
| Heatsink Length | 7.95" / 202 mm |
Why Choose This Product?
The F4-1600 gives you several channel and crossover options in one four-channel amplifier. Channels 1/2 offer HPF or FULL settings, while channels 3/4 add BPF selection for more flexible system planning.
The source describes the 10x crossover frequency multiplier as extending crossover control and eliminating the need for a separate DSP in most front-stage builds. Its full-bridge digital design, enlarged heatsink, and cooling fan are also listed features for installations using the amplifier at high output.
Installation & Compatibility Notes

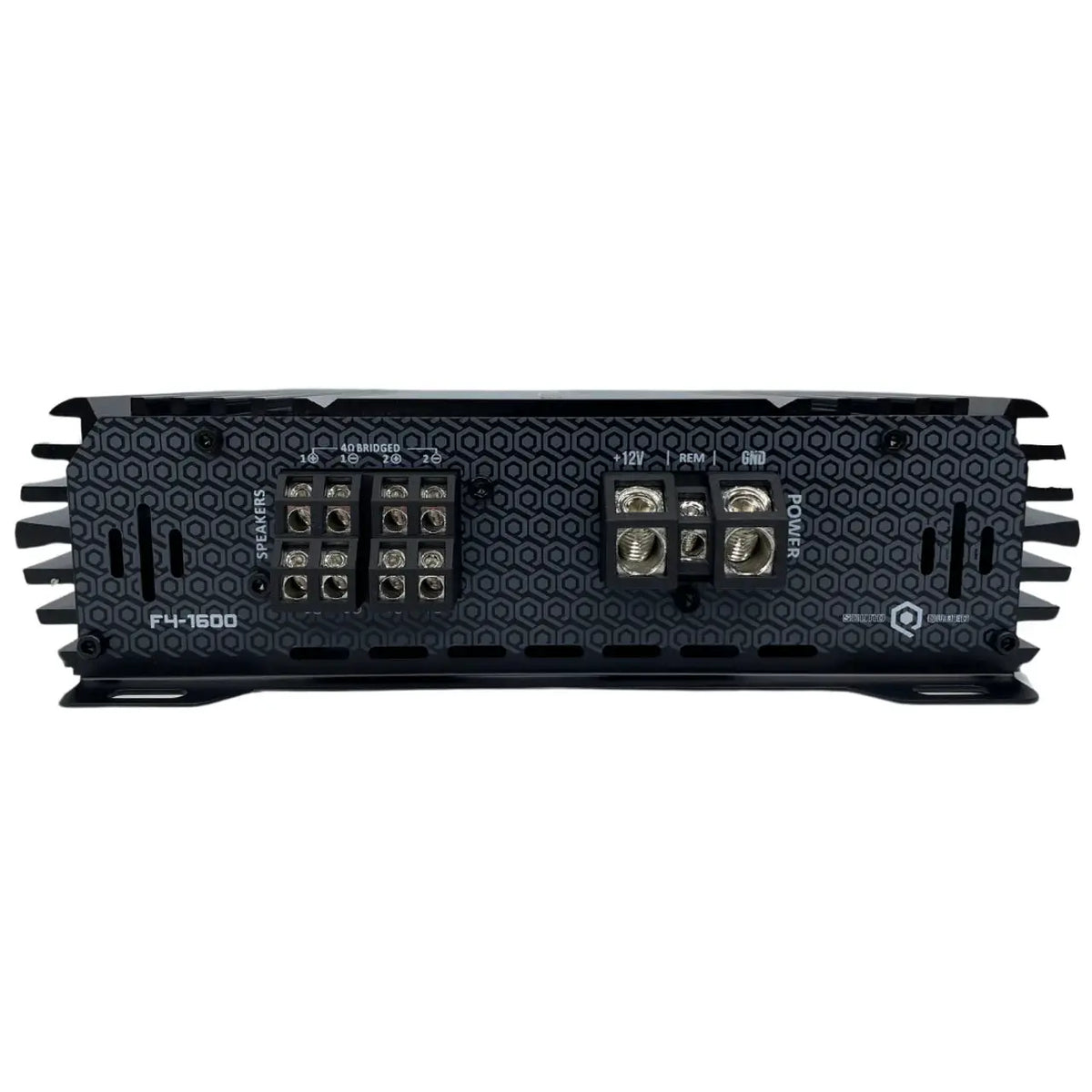

The amplifier is stable at 2Ω in stereo mode and 4Ω in bridged mode. Do not bridge it into a load below 4Ω. The listed power input terminal size is 4GA, and the recommended fuse size is 360A.
The product details call for proper 4-gauge power and ground wiring, describe compatibility with most upgraded electrical systems, and recommend a high-output alternator for sustained high-power use at full output. Check your system’s electrical capacity and planned speaker loads before installation.
For a front-stage and mid-bass or subwoofer layout, the source recommends using channels 1/2 for front speakers and bridging channels 3/4 for the low-frequency driver. It also names the SoundQubed S1-850.1 and S1-1250 as monoblock options for a system with dedicated sub bass.
Frequently Asked Questions
Can the F4-1600 power a complete car audio system?
The product details describe using channels 1/2 for front speakers and bridged channels 3/4 for a mid-bass driver or subwoofer. For dedicated sub bass, they recommend pairing it with a SoundQubed S1-850.1 or S1-1250 monoblock.
What does the 10x crossover frequency multiplier do?
It extends the crossover frequency range by up to 10x, allowing finer control over crossover points. The product details identify 3-way component setups as one use for that control.
What is the minimum load for bridged operation?
The minimum impedance in bridged mode is 4 Ohm. Stereo operation has a listed minimum impedance of 2 Ohm.
What electrical setup does the amplifier call for?
The listed requirements are a 360A recommended fuse and 4-gauge power and ground wiring. A high-output alternator is recommended for sustained full-output use.
Is a temperature and voltage display included?
The product details describe an optional temperature/voltage readout on the bass knob. The specifications list Remote Level Control as No and Voltmeter as No.
