SoundQubed BG1-750 750 Watt Bagger Series Amp (Ultra Compact)

Product Overview

Add dedicated subwoofer power without giving up much installation space with the SoundQubed BG1-750 monoblock amplifier. Part of the 2024 BG-Series, this compact bagger amplifier measures 9.84" x 3.8" x 1.7" and delivers up to 750W RMS at 1 ohm. Low-level RCA and automatic high-level inputs let you connect it to aftermarket or factory audio systems.

Key Features & Benefits

• Power across three loads: Choose from 750W RMS at 1 ohm, 600W at 2 ohms, or 425W at 4 ohms to suit your subwoofer setup.
• Compact chassis: Its small footprint gives you more placement options in space-constrained builds.

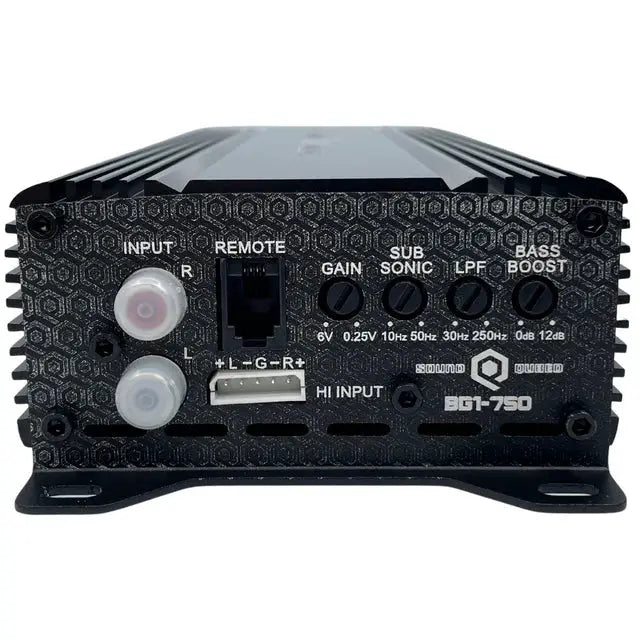

• Subwoofer controls: The fixed 30–250 Hz low-pass filter, 10–50 Hz infrasonic filter, and 0–12 dB bass boost at 45 Hz provide adjustment for your system.
• Two input types: Low-level RCA input accepts 250mV–6V, while automatic high-level input connects to factory speaker outputs.

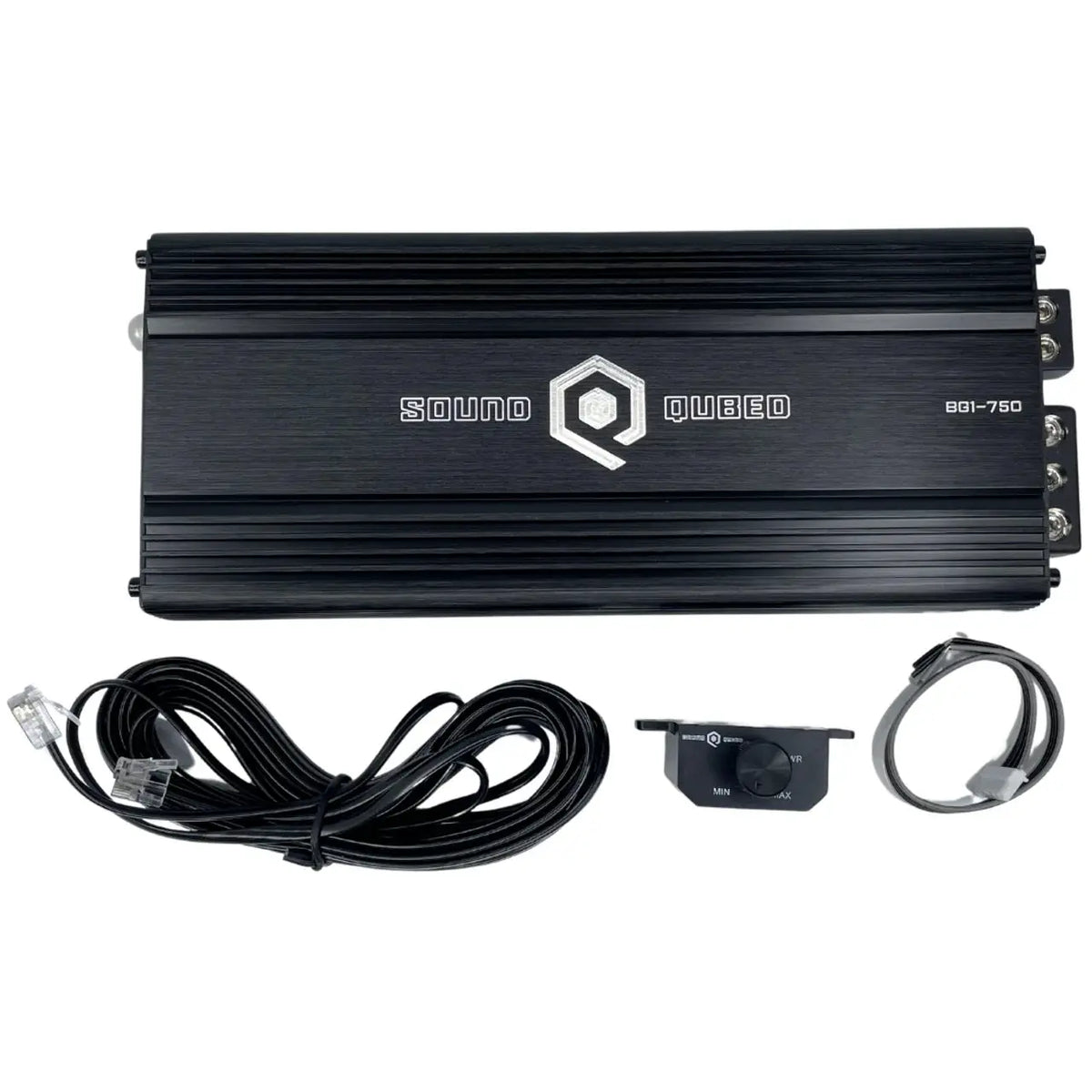

• Remote level control included: Adjust the bass level from the driver’s seat.
• Protection and coating: Thermal, overload, short-circuit, and voltage input protection circuits work alongside anti-corrosion PCB coating.

Technical Specifications

Why Choose This Product?

The BG1-750 is designed for dedicated subwoofer duty where amplifier space is limited. Its compact dimensions suit installations in motorcycles, baggers, side-by-sides, boats, and golf carts, subject to available space and installation requirements.

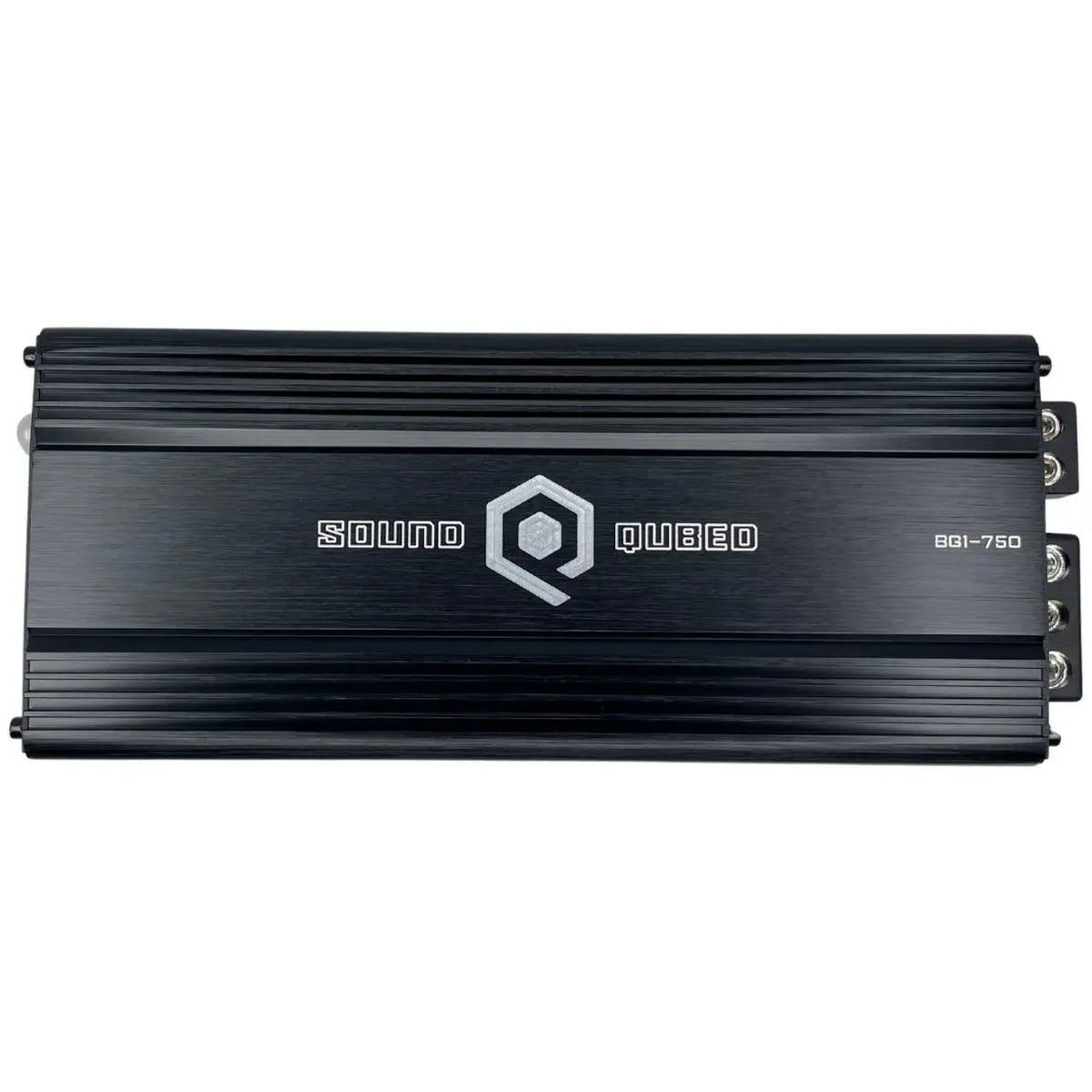

The black case has machined logos and lasered end caps. Audio Precision instruments are used to verify each amplifier during factory quality control.

Installation & Compatibility Notes

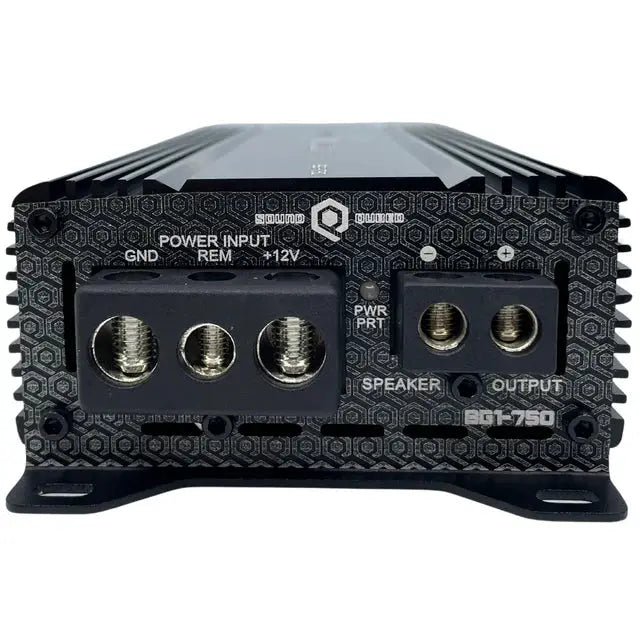

The BG1-750 uses a 4GA power input and a 40A fuse. It is compatible with 12V electrical systems, including those standard on motorcycles, boats, and powersports vehicles. Check the installation location and electrical requirements for your specific vehicle before fitting the amplifier.

For a bagger subwoofer installation, the product guidance recommends setting the low-pass filter between 80–100 Hz and engaging the infrasonic filter below the subwoofer’s tuning frequency. The amplifier’s automatic high-level input is described as a connection option for factory Harley-Davidson and other OEM audio systems.

The anti-corrosion PCB coating is intended for outdoor, marine, and motorcycle environments, but the amplifier is not fully waterproof. Protect it from direct water exposure and install it in a location with reasonable weather protection.

Frequently Asked Questions

What subwoofer rating pairs with the BG1-750?

The product guidance recommends a compact subwoofer rated between 400–750W RMS at 1–2 ohms. Match the subwoofer’s impedance to the amplifier’s supported load and power rating.

Can I connect the BG1-750 to a factory Harley-Davidson radio?

Yes. Its automatic high-level input connects to factory radio speaker outputs without requiring an aftermarket head unit.

How much room should I allow for the amplifier?

The overall dimensions are 9.84" long, 3.8" wide, and 1.7" high. Check the available mounting space and allow for the installation requirements of your setup.

Can I use the BG1-750 in a marine or outdoor installation?

It has anti-corrosion PCB coating for outdoor, marine, and motorcycle environments. It is not fully waterproof, so protect it from direct water exposure.

What does the remote level control do, and is it included?

A remote level control is included to adjust the bass level from the driver’s seat.
