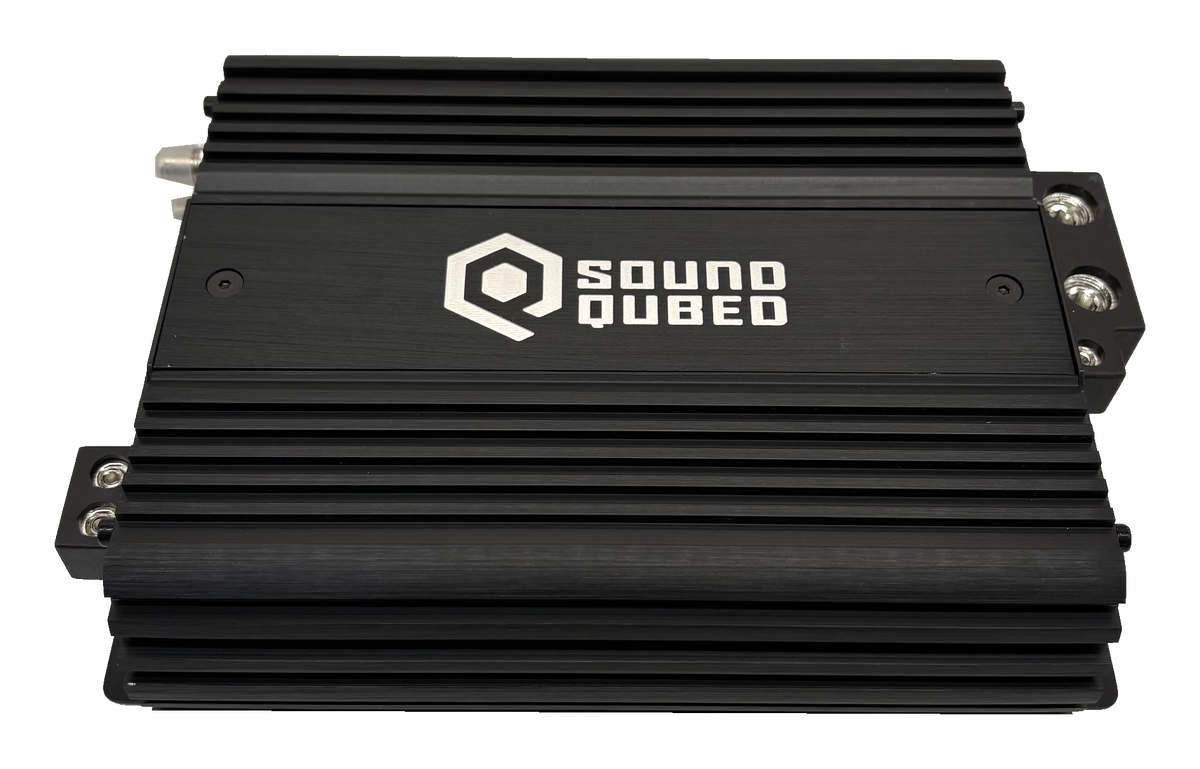

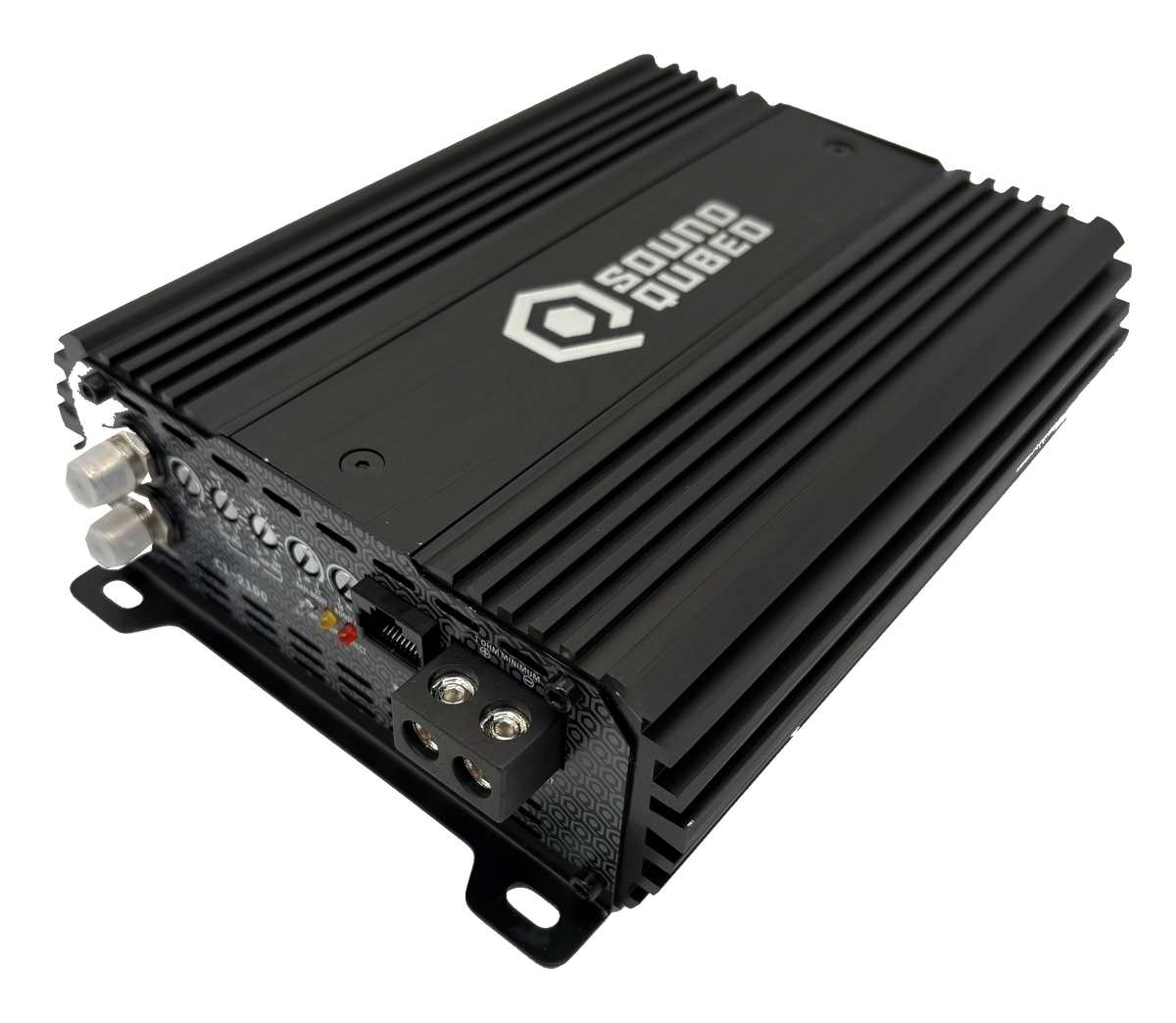

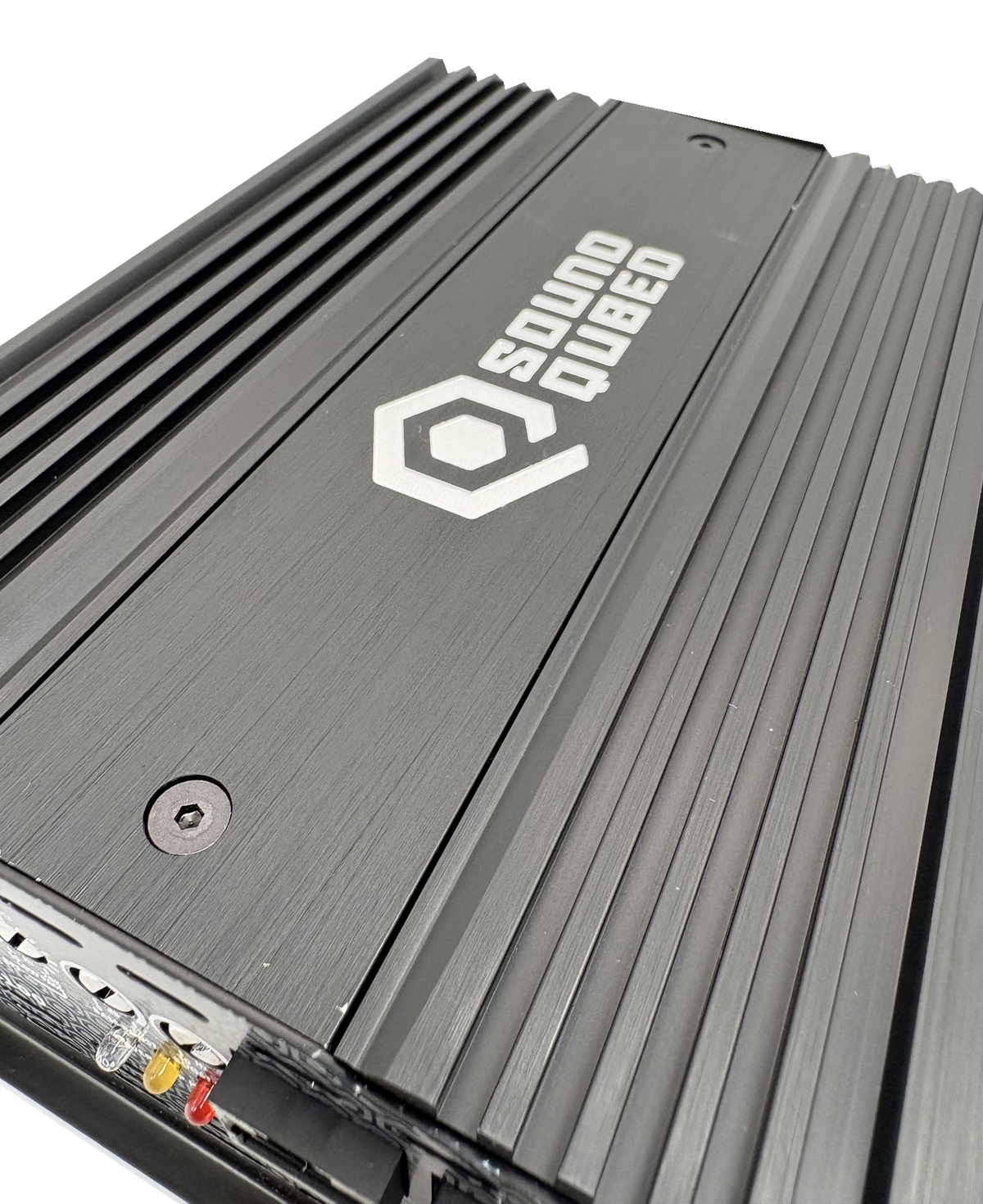

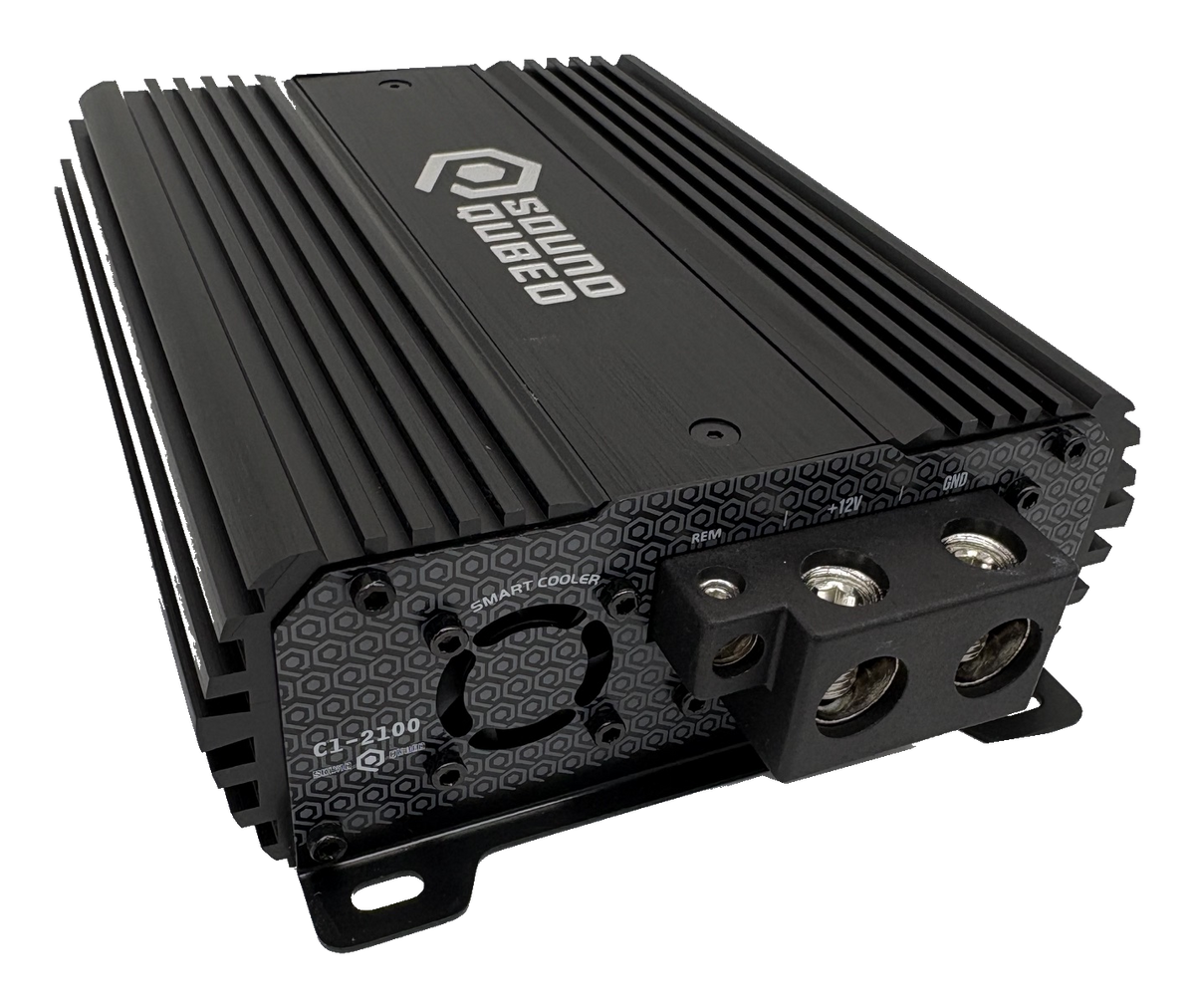

SoundQubed C1-2100 2100W Class D Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 600.0 W
- RMS output at 2 ohms: 1200 W
- RMS output at 1 ohm: 2100 W
- Overall dimensions: 7.91 x 5.91 x 2.17 inches
- Amplifier design: Full-range monoblock
SoundQubed C1-2100 2100W Class D Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
SoundQubed C1-2100 2100W Class D Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Get up to 2,100 watts RMS at 1 ohm for a car or motorcycle audio system with the SoundQubed C1-2100 Class D monoblock amplifier. Its single-channel design includes adjustable high-pass and low-pass filters, so you can tune the output to the connected speakers.
Key Features & Benefits
- Single-channel output: The monoblock layout is designed for a properly matched car or motorcycle audio system.
- Adjustable band-pass crossover: Set the high-pass and low-pass ranges to suit the connected speakers.
- Adjustable bass boost: Choose from 0–12dB of boost across the 30–80Hz range.
- Cooling and remote support: Fan cooling and remote level-control support are listed for the amplifier; the optional remote with voltmeter is sold separately.
- Status indicators and protection: Power, protect, and clip indicators provide a quick status check, while built-in protection covers several listed fault conditions.
Technical Specifications
| Channels | 1 |
|---|---|
| RMS power at 4 ohms | 600W |
| RMS power at 2 ohms | 1200W |
| RMS power at 1 ohm | 2100W |
| Minimum impedance | 1 ohm |
| Frequency response | 20Hz–20kHz |
| Signal-to-noise ratio | 95dB |
| Low-level input range | 400mV–6V |
| THD | 0.10% |
| Power input terminals | 0 AWG |
| Recommended fuse | 180A |
| Overall dimensions (L x W x H) | 7.91 x 5.91 x 2.17 inches |
| High-pass range | 10Hz–2kHz |
| Low-pass range | 50Hz–20kHz |
| Bass boost | 0–12dB at 30–80Hz |
| Built-in protection | Thermal overload, overload, DC output, short circuits, input voltage and clipping |
Why Choose This Product?
The C1-2100 combines substantial RMS output with adjustable crossover ranges in a compact amplifier measuring 7.91 x 5.91 x 2.17 inches. Its power ratings at 4, 2, and 1 ohm help you compare the amplifier with your system’s speaker impedance before choosing a setup.
Power, protect, and clip indicators give you a quick visual status check. Built-in protection addresses thermal overload, overload, DC output, short circuits, input voltage, and clipping.
Installation & Compatibility Notes
Check mounting space, speaker impedance, and electrical supply before ordering. The amplifier’s minimum impedance is 1 ohm; allow clearance for wiring and ventilation during installation.
The power input terminals are listed for 0 AWG, and the recommended fuse is 180A. Motorcycle collection placement does not indicate a waterproof rating; use a protected mounting location.
Frequently Asked Questions
How much power does the SoundQubed C1-2100 produce?
Its listed output is 600W RMS at 4 ohms, 1200W RMS at 2 ohms, and 2100W RMS at 1 ohm.
What is the minimum speaker impedance?
The listed minimum impedance is 1 ohm. Match the connected system to the amplifier’s impedance requirements.
Can I adjust the crossover and bass boost?
Yes. The high-pass range is 10Hz–2kHz, the low-pass range is 50Hz–20kHz, and bass boost adjusts from 0–12dB at 30–80Hz.
Is the remote with a voltmeter included?
The optional remote with a voltmeter is sold separately. Remote level-control support is listed for the amplifier.
Can I mount this amplifier on a motorcycle?
It is described for use with a properly matched car or motorcycle audio system. Use a protected mounting location; no waterproof rating is stated.
