SoundQubed Q1-10000 18v Q-Series Monoblock Amplifier

Product Overview

Bring serious subwoofer power to a high-output system with the SoundQubed Q1-10000 Q-Series monoblock amplifier. It delivers 10,000W RMS at 1 ohm and 14.4V, with a listed output of 15,000W RMS at 1 ohm and 18V. Built for high-output daily drivers and SPL competition builds, it requires a substantially upgraded electrical system.

Key Features & Benefits

• High-power output: Multiple power ratings let you match the amplifier to your system’s load and supply voltage.

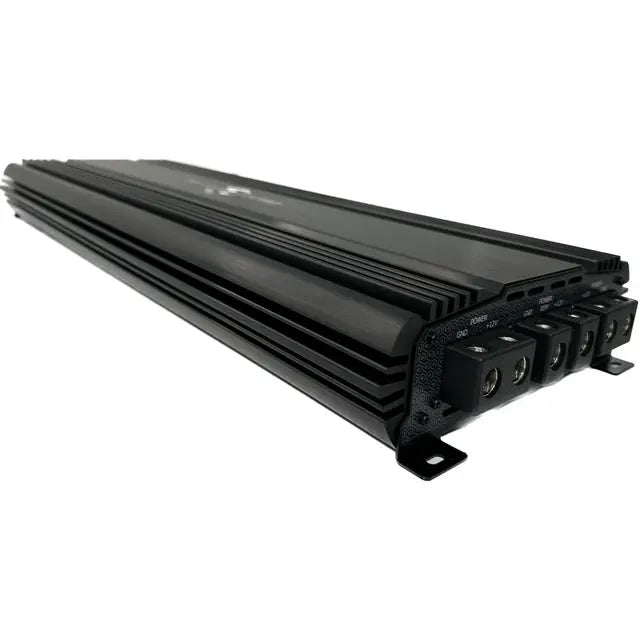

• Three 1/0GA power and ground inputs: Multiple connection points support the specified high-current installation.

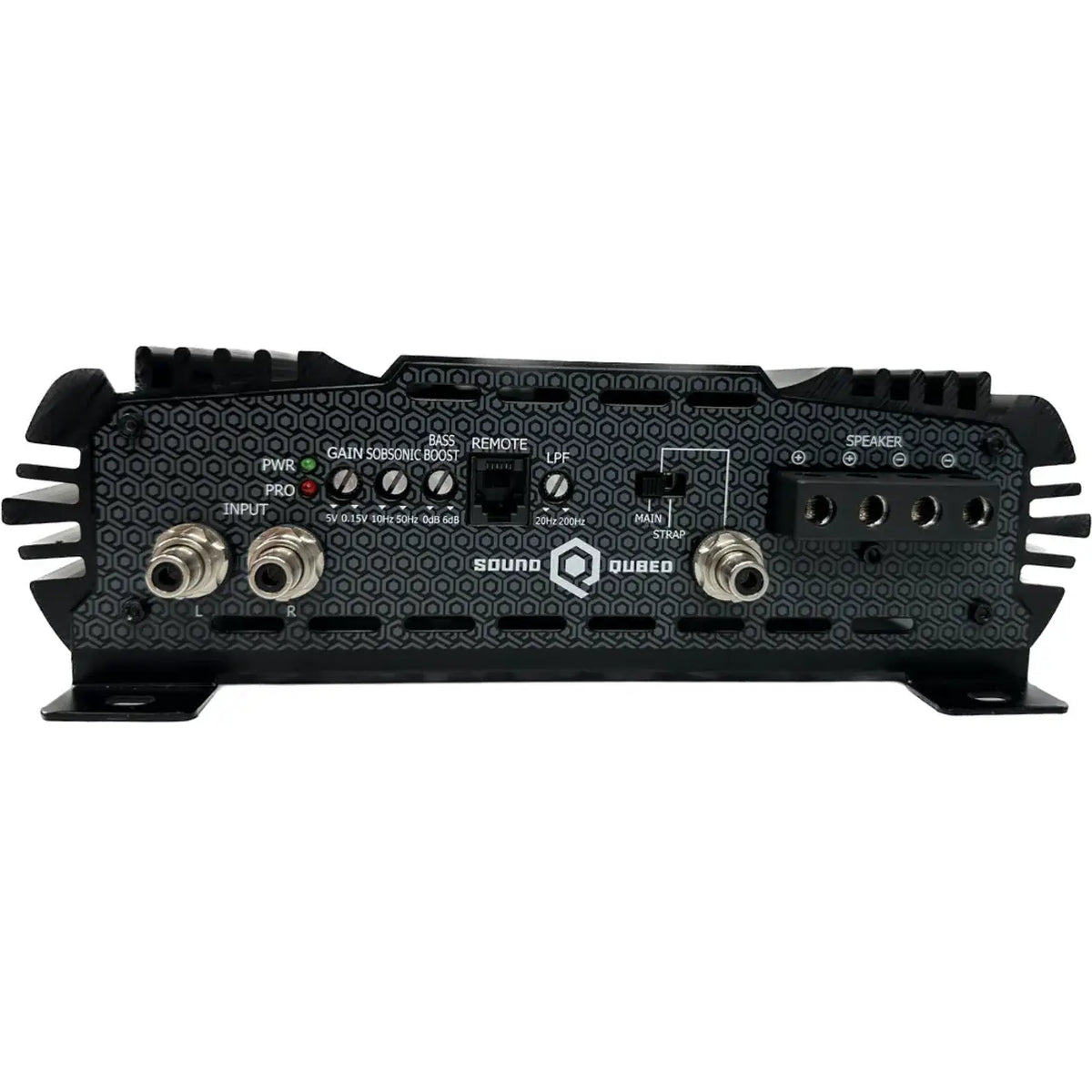

• Adjustable filtering: The variable low-pass and infrasonic filters provide tuning controls for a subwoofer setup.
• Strappable design: Link two Q1-10000 amplifiers in a master/slave configuration for a combined system rated at 20,000+ watts in the source description.
• Remote level control: The included remote level control has a metal case for in-car level adjustment.
• Protection features: Thermal, overload, DC output, short circuit, voltage input, and clipping protection are listed.

Technical Specifications

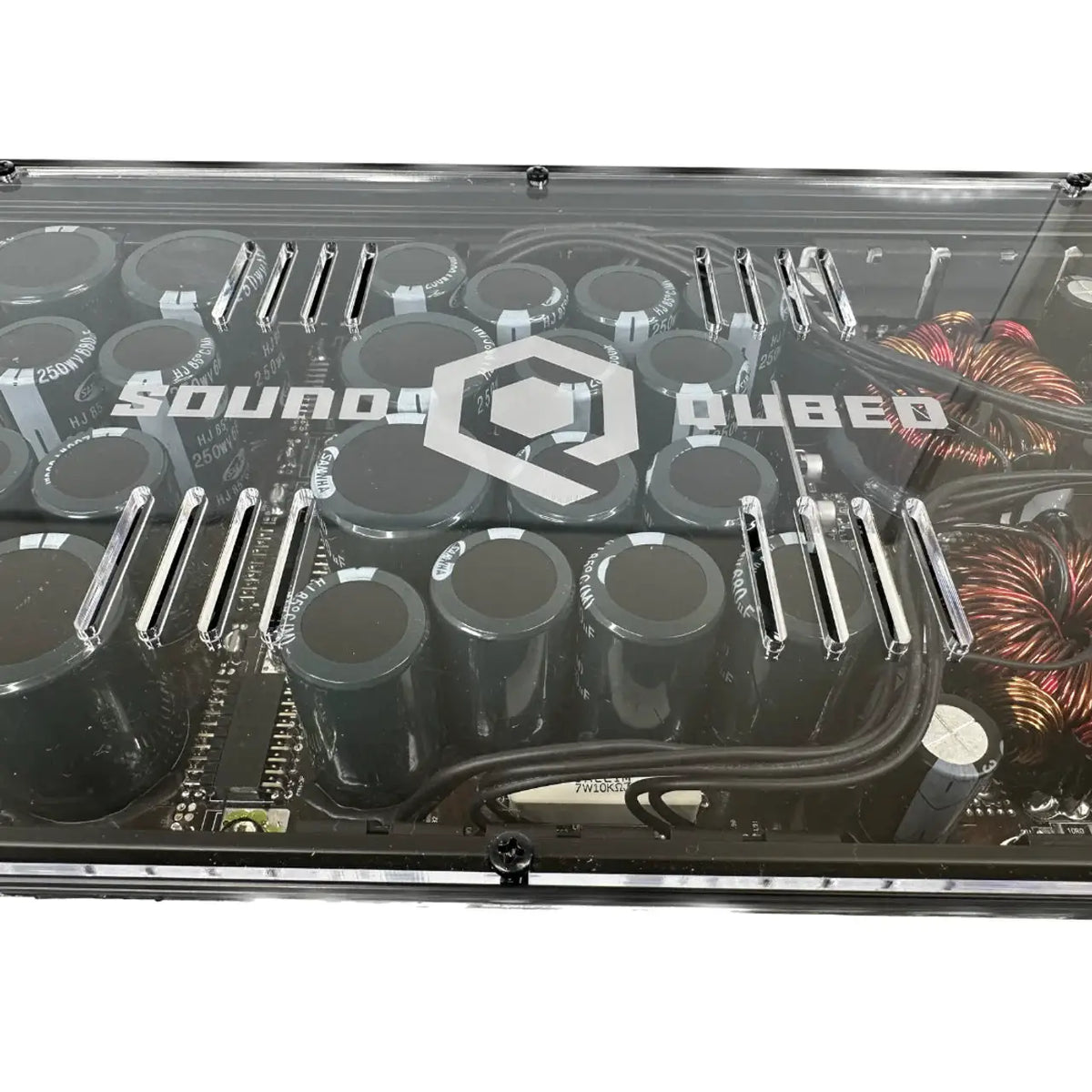

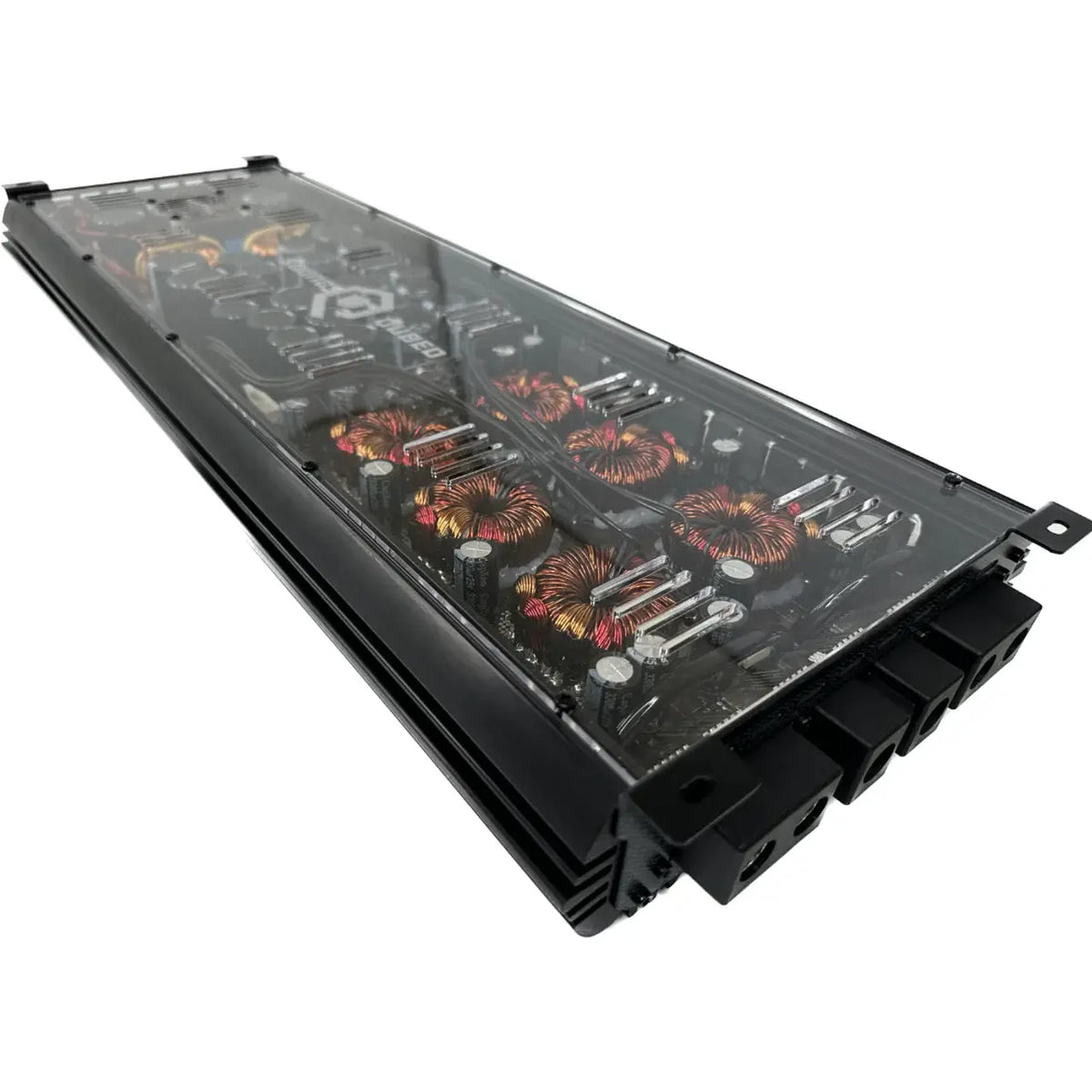

The chassis is described as having machined end caps and a factory 1/4" plexi backing. Other listed construction details include a heavy-duty printed circuit board, surface-mount component technology, and Tiffany-style RCA inputs.

Why Choose This Product?

The Q1-10000 is designed for a system built around high-power subwoofers and a 1 ohm final load. The source recommends subwoofers in the 2,000–10,000W RMS range and names SoundQubed HDX and HDS series models as potential pairings. Its adjustable filters and bass boost offer tuning controls for shaping the subwoofer signal to the build.

Installation & Compatibility Notes

This amplifier requires a properly upgraded electrical system; the source warns that insufficient electrical support can cause poor performance, voltage sag, and potential damage. Its minimum recommendations are a 350+ amp high-output alternator, an upgraded under-hood battery, a 1,000Ah AGM or 140Ah lithium reserve, multiple 0-gauge power and ground runs, a Big Three upgrade, and a dash-mounted voltmeter. Do not rely on the factory gauge or attempt to run it on a stock electrical system.

For most ported SPL builds, the source suggests setting the low-pass filter between 50–80 Hz and using the infrasonic filter to protect drivers below their tuning frequency. Confirm the subwoofer load, vehicle electrical capacity, and installation requirements with an experienced installer before purchase.

Frequently Asked Questions

What power does the Q1-10000 deliver?

Its listed RMS ratings are 3,500W at 4 ohms and 14.4V, 6,600W at 2 ohms and 14.4V, and 10,000W at 1 ohm and 14.4V. At 1 ohm, the listed ratings are 12,000W at 16V and 15,000W at 18V.

What subwoofers are recommended for this amplifier?

The source recommends high-power subwoofers rated at 2,000W RMS or more and identifies SoundQubed HDX3.2, HDX4.2, and HDS3.3 as example pairings. It recommends wiring the system to a 1 ohm final load at the amplifier for maximum power delivery.

Can I strap two Q1-10000 amplifiers together?

Yes. The amplifier is strappable in a master/slave configuration. The source describes a combined 20,000+ watt system and calls for an electrical system capable of supporting both amplifiers.

Is this amplifier suitable for a stock vehicle electrical system?

No. The source states that it should not be run on a stock electrical system and recommends consulting a professional installer or SoundQubed dealer before purchase.
