SoundQubed Q1-4500v2 Q Series Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 1950.0 W
- RMS output at 2 ohms: 2950 W
- RMS output at 1 ohm: 4670 W
SoundQubed Q1-4500v2 Q Series Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
SoundQubed Q1-4500v2 Q Series Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

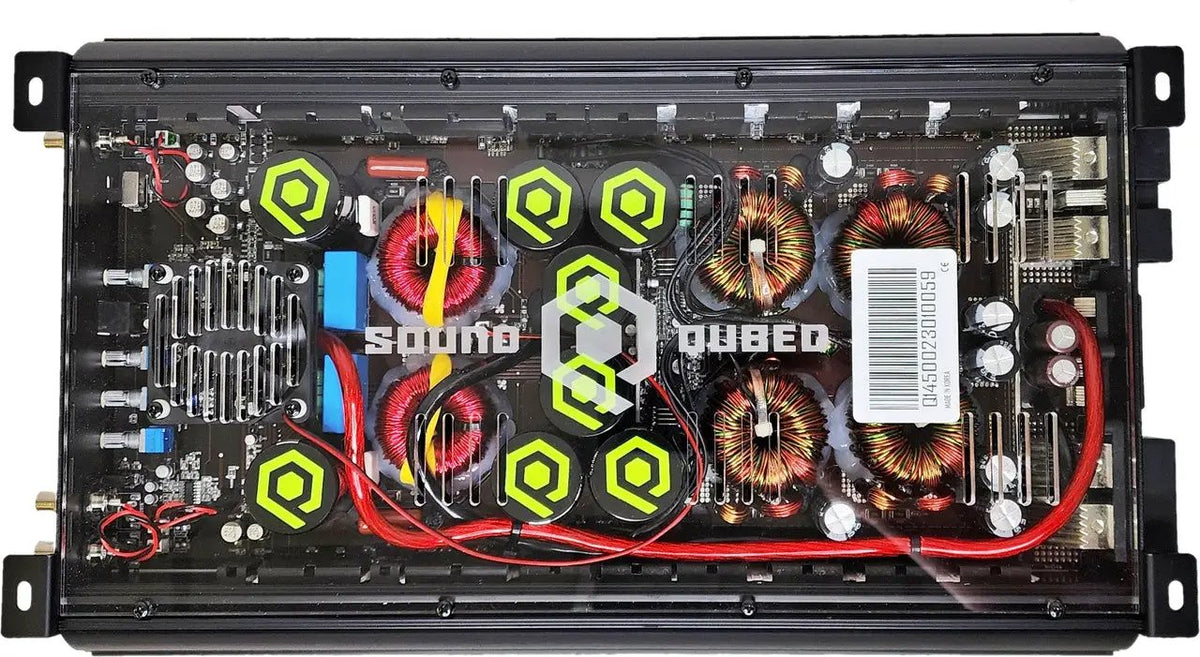

The SoundQubed Q1-4500v2 is a Class D monoblock amplifier for high-power subwoofer systems. It delivers 4,670W RMS at 1 ohm and 14.4V, with output reaching 7,140W RMS at 1 ohm and 18V. Its 9V–18V working range supports systems built around different electrical setups.
Key Features & Benefits
- High power output: Multiple RMS ratings let you match the amplifier’s output to your electrical system and final load.
- Class D design: The high-efficiency design helps limit heat while delivering power to your subwoofers.

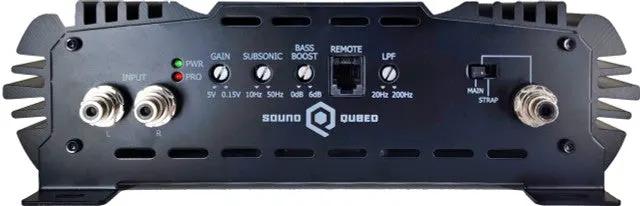

- Adjustable filters: Variable low-pass and subsonic filters give you control over crossover and below-tuning playback.
- Adjustable bass boost: The 0–6 dB range lets you tune bass boost to your system.
- Signal specifications: A signal-to-noise ratio greater than 94 dB and damping factor greater than 310 are specified for the amplifier.

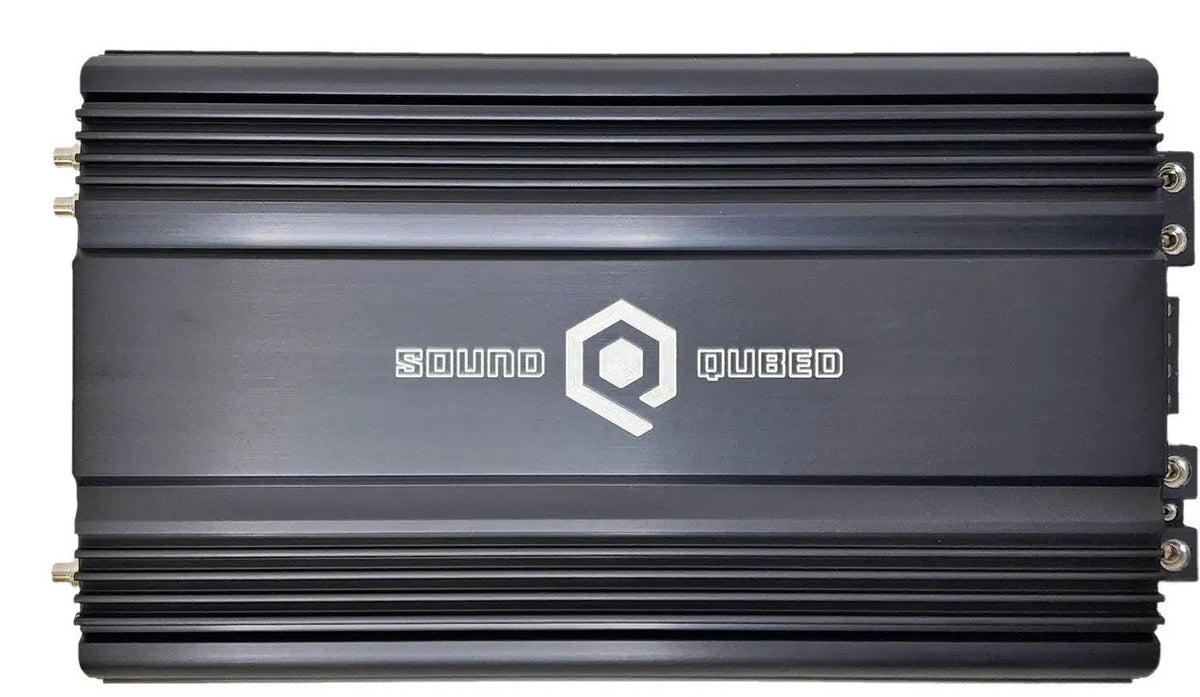

- Compact chassis: The 15.35" x 9.5" x 2.5" dimensions help you plan space for this high-output amplifier.
Technical Specifications
| Specification | Q1-4500v2 |
|---|---|
| Amplifier Class | Class D |
| Channels | 1 |
| Working Voltage | 9V – 18V |
| Maximum Amperage | 800A |
| RMS Power @ 4 Ohm (14.4V) | 1,950W |
| RMS Power @ 2 Ohm (14.4V) | 2,950W |
| RMS Power @ 1 Ohm (14.4V) | 4,670W |
| RMS Power @ 1 Ohm (16V) | 5,640W |
| RMS Power @ 1 Ohm (18V) | 7,140W |
| Frequency Response | 13 Hz – 204 Hz |
| Signal to Noise Ratio | >94 dB |
| Damping Factor | >310 |
| Input Sensitivity | 0.15V – 5V |
| Subsonic Filter | 10 Hz – 50 Hz |
| Low-Pass Filter | 20 Hz – 200 Hz |
| Bass Boost | 0 – 6 dB |
| Overall Length | 15.35" / 390 mm |
| Overall Width | 9.5" / 241 mm |
| Overall Height | 2.5" / 65 mm |
Why Choose This Product?
The Q1-4500v2 combines a Korean-built board with a wide working-voltage range and multiple power ratings. Its adjustable filters support system tuning, while the compact chassis gives you concrete dimensions to consider when planning an installation.
The amplifier is designed for high-power subwoofers in the 1,500–4,500W RMS range. SoundQubed’s HDX and HDS series are identified as pairing options when wired to a 1Ω final load.
Installation & Compatibility Notes

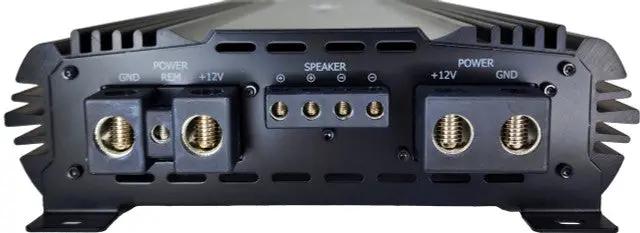

Rated-power operation requires a properly upgraded electrical system. The stated requirements are a high-output alternator, an upgraded under-hood battery, and 0-gauge power and ground wiring. Reaching the full 7,140W rating at 18V requires a high-voltage electrical system with lithium or AGM reserve batteries.
For most ported SPL builds, the source recommends setting the low-pass filter between 50–80 Hz and using the subsonic filter below the enclosure tuning frequency. A dash-mounted voltmeter is strongly recommended. Consult a SoundQubed dealer or professional installer before purchasing.
Frequently Asked Questions
What power does the Q1-4500v2 deliver at 1 ohm?
It is rated at 4,670W RMS at 14.4V, 5,640W RMS at 16V, and 7,140W RMS at 18V.
What subwoofers can I pair with this amplifier?
The source recommends subwoofers rated at 1,500W RMS or more, including the SoundQubed HDX3.2, HDX4.2, and HDS3.3 series. Multiple subwoofers can be wired for a 1Ω final load.
What electrical upgrades are required?
For rated power, plan for a high-output alternator, an upgraded under-hood battery, and 0-gauge power and ground wiring. Full 18V output requires a high-voltage system with lithium or AGM reserve batteries.
How can I tune the filters for a ported SPL setup?
The source recommends a 50–80 Hz low-pass setting for most ported SPL builds. Set the subsonic filter below the enclosure’s tuning frequency.
Can I use it for daily listening?
The source describes the Q1-4500v2 as designed for daily use as well as SPL builds, with the proper electrical system.
