SoundQubed Q1-6000v2 Q-Series Monoblock Amplifier
Key features
- Amplifier channels: 1
- RMS output at 4 ohms: 2100.0 W
- RMS output at 2 ohms: 3600 W
- RMS output at 1 ohm: 6000 W
SoundQubed Q1-6000v2 Q-Series Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
SoundQubed Q1-6000v2 Q-Series Monoblock Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power a high-output subwoofer system with the SoundQubed Q1-6000v2 Q-Series monoblock amplifier. It delivers 6,000W RMS at 1 ohm and 14.4V, with support for electrical systems up to 16V.
Its compact chassis, integrated cooling fan, and strappable design suit builds focused on serious bass, including high-output daily systems and SPL setups.
Key Features & Benefits
- 6,000W RMS at 1 ohm: Provides the rated output listed for demanding subwoofer systems.
- Integrated cooling fan: Adds built-in cooling for sustained, high-power use.
- Up to 16V capability: Supports use with high-voltage electrical systems.

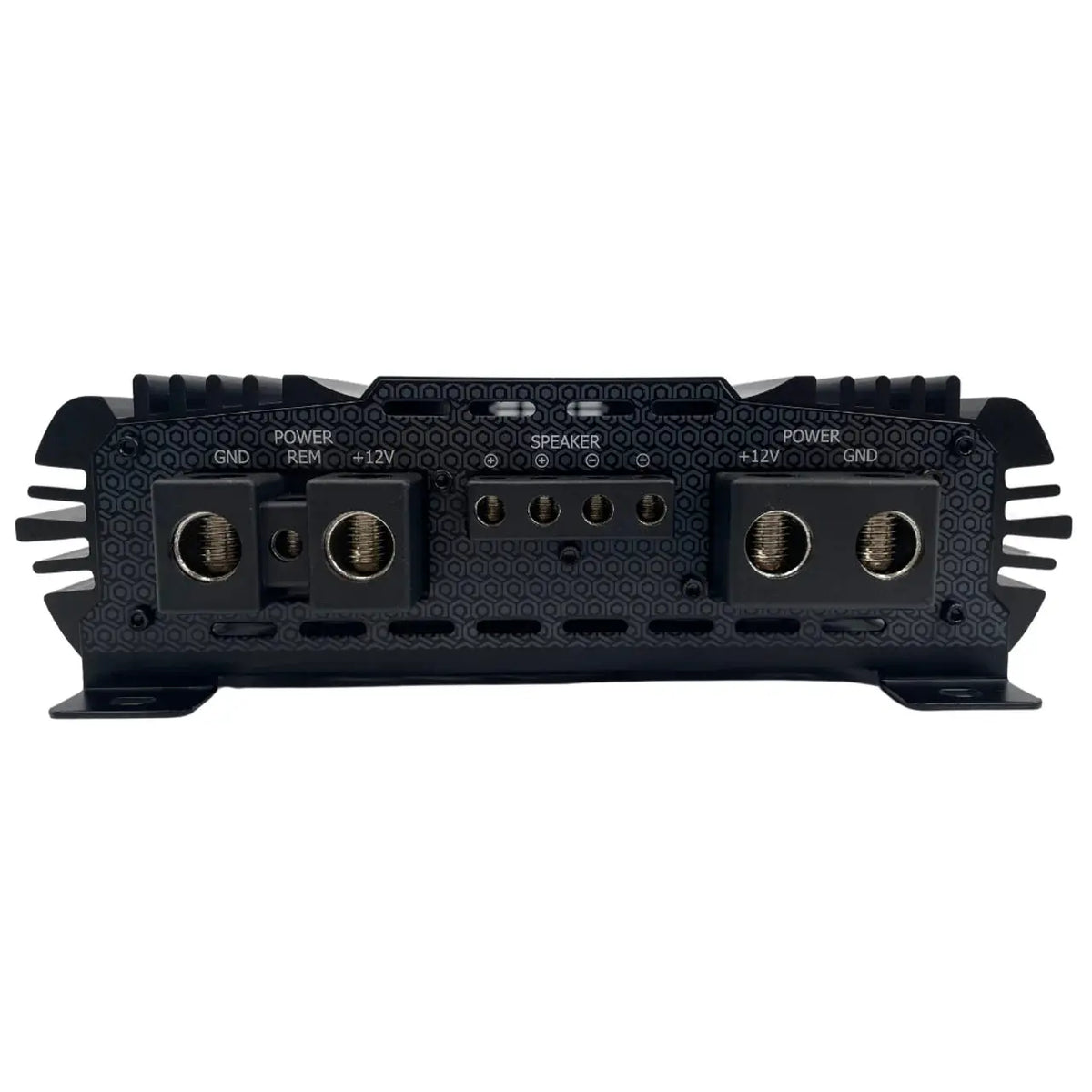

- Dual power and ground inputs: The 2 x 1/0GA terminals accommodate multiple power and ground runs.
- Strappable operation: Link two Q1-6000v2 amplifiers for a combined 12,000W system at 2 ohm.
- Compact dimensions: The 19.25" x 9.5" x 2.675" chassis helps manage installation space.
Technical Specifications
| Specification | Value |
|---|---|
| Channels | 1 |
| Test Voltage | 14.4V |
| RMS Power @ 4 Ohm (1% THD) | 2,100W |
| RMS Power @ 2 Ohm (1% THD) | 3,600W |
| RMS Power @ 1 Ohm (1% THD) | 6,000W |
| Signal to Noise Ratio | >100 dB |
| Input Voltage Sensitivity | 0.2V – 8V |
| Minimum Impedance | 1 Ohm |
| Voltage Capability | Up to 16V |
| Power Input Terminal Size | 2 x 1/0GA |
| Speaker Wire Gauge (Out) | 8 AWG |
| Cooling Fan | Yes (Integrated) |
| Strappable | Yes |
| Overall Length | 19.25" |
| Overall Width | 9.5" |
| Overall Height | 2.675" |
Why Choose This Product?

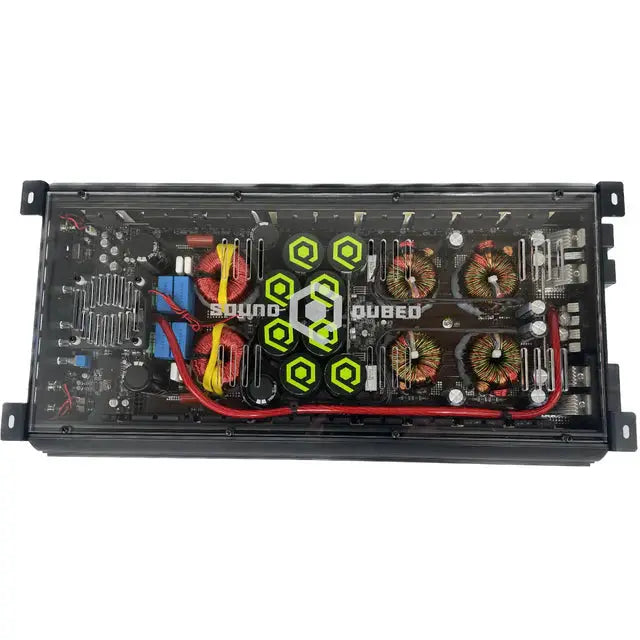

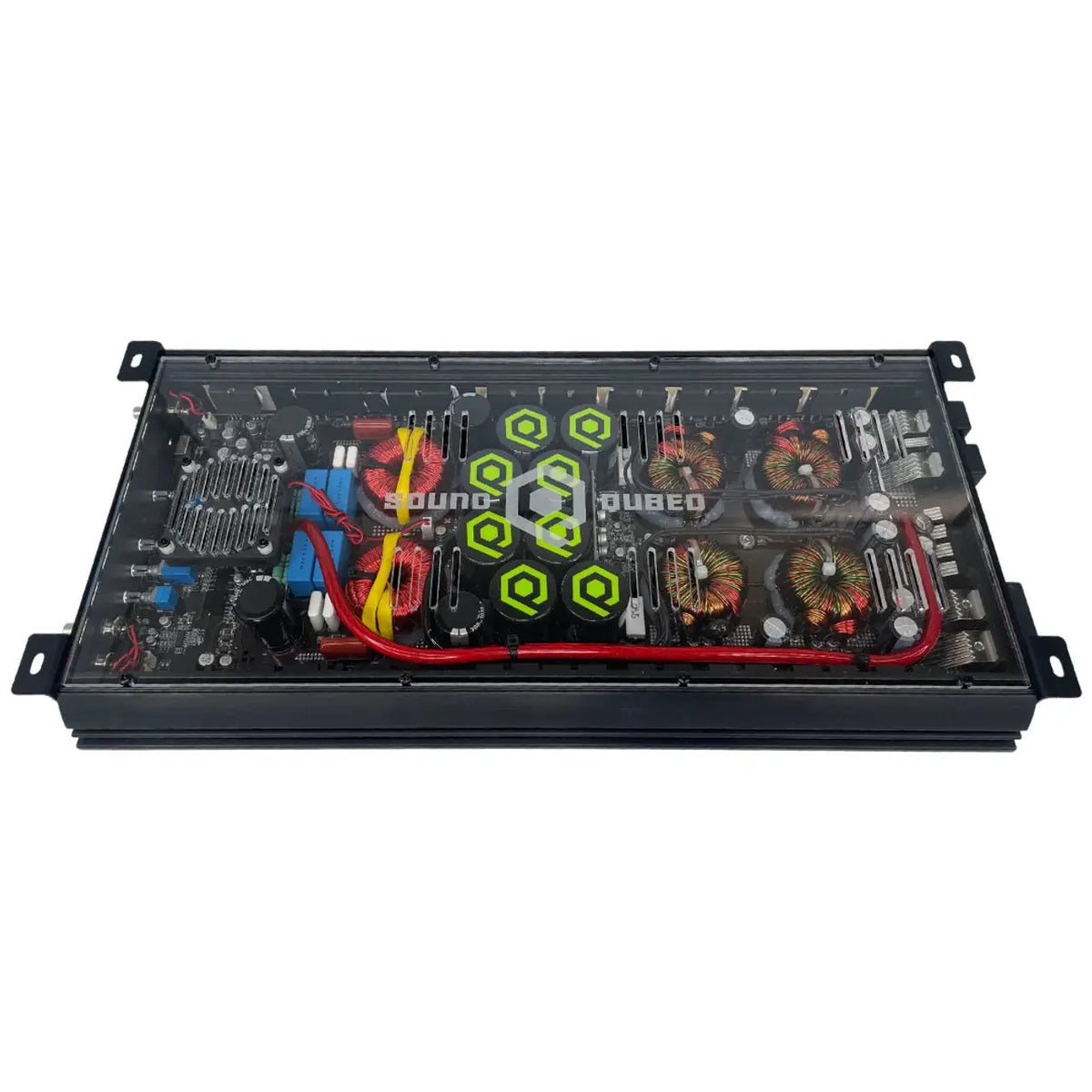

The Q1-6000v2 combines high rated output with a Korean Half-Bridge board and a reduced form factor. The product description states it delivers 20% more power than the Q1-4500.1, while the integrated fan supports sustained high-power use.

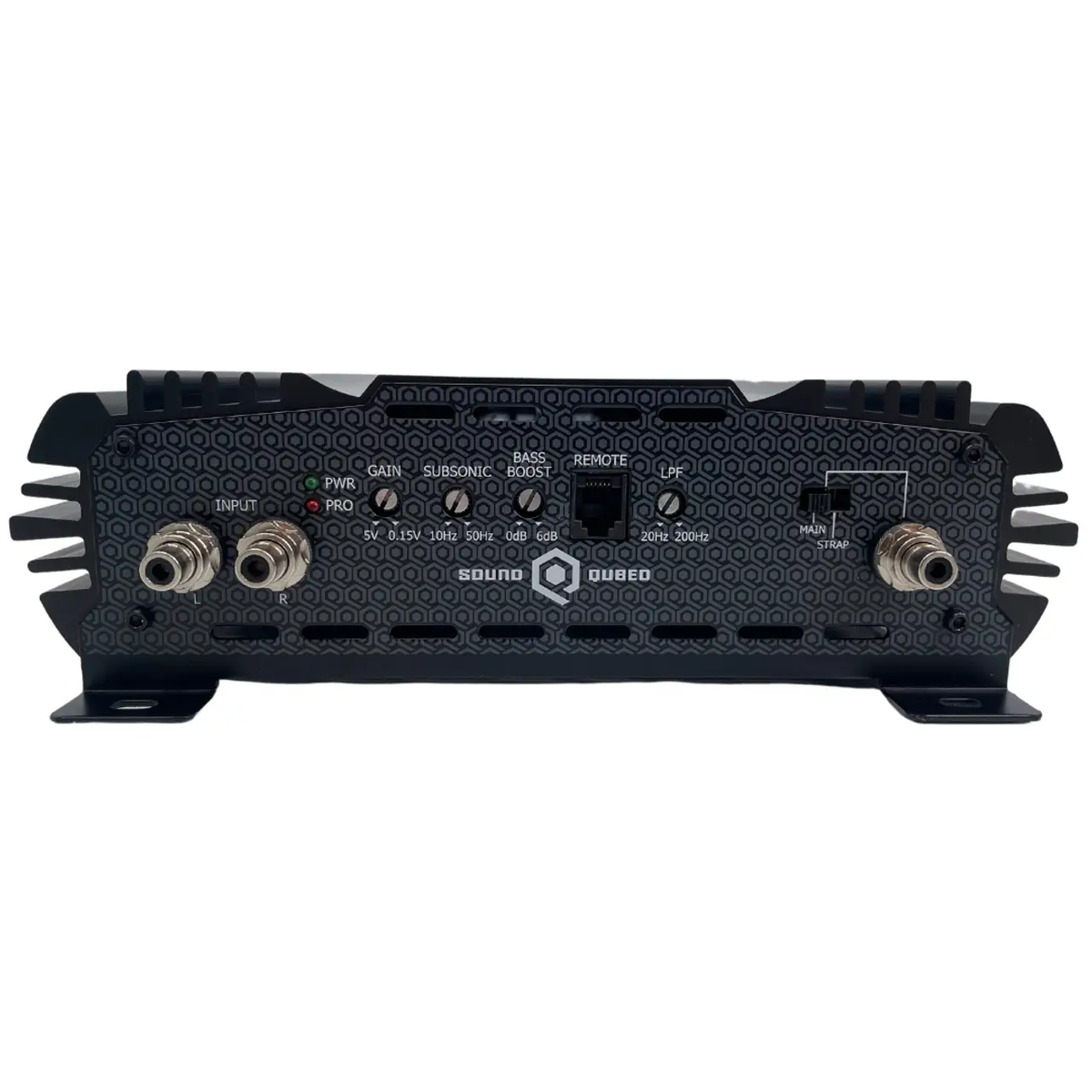

A variable low-pass filter lets you set the crossover point between 50–80 Hz for most ported SPL builds. Its signal-to-noise ratio is >100 dB.
Installation & Compatibility Notes
This amplifier requires a properly upgraded electrical system. The stated minimum recommendations are a 250+ amp high-output alternator, an upgraded under-hood battery, a 500Ah AGM or 80Ah lithium reserve, a Big Three wiring upgrade, and multiple 0-gauge power and ground runs. Do not rely on the factory gauge; use a dash-mounted voltmeter.
For subwoofer pairing, the product description recommends high-power subwoofers in the 1,500–6,000W RMS range and a 1Ω final load. SoundQubed HDX and HDS series are listed as pairing options. Consult a SoundQubed dealer or professional installer before purchasing.
Frequently Asked Questions
What subwoofers can I pair with the Q1-6000v2?
The stated pairing range is 1,500–6,000W RMS. Listed options include SoundQubed HDX3.2, HDX4.2, and HDS3.3 models. The product description recommends wiring for a 1Ω final load at the amplifier.
Can I strap two Q1-6000v2 amplifiers together?
Yes. The strappable design links two units for a combined 12,000W system at 2 ohm. The electrical system must support both amplifiers.
What electrical upgrades does this amplifier require?
The stated minimums are a 250+ amp high-output alternator, upgraded under-hood battery, 500Ah AGM or 80Ah lithium reserve, Big Three wiring upgrade, and multiple 0-gauge power and ground runs.
What are the amplifier’s dimensions and minimum impedance?
It measures 19.25" long, 9.5" wide, and 2.675" high. Its listed minimum impedance is 1 Ohm.
