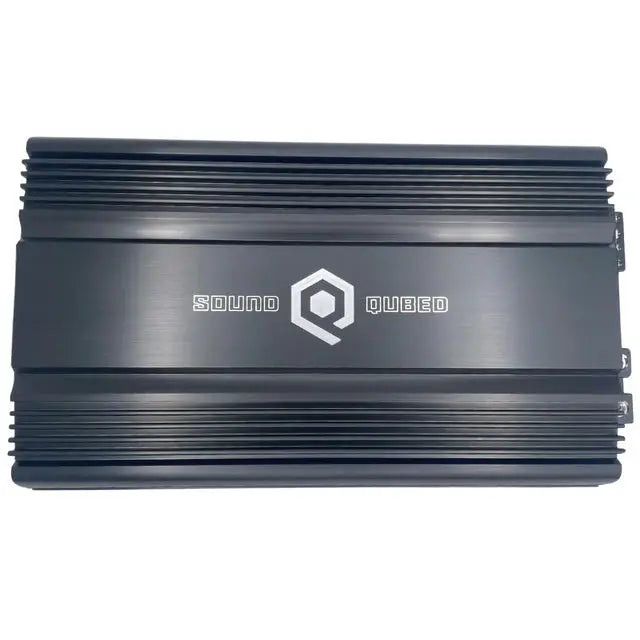

SoundQubed Q4-3200 16v Q Series 4 Channel Amplifier
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 440 W
- RMS per channel at 2 ohms: 848 W
- Overall dimensions (L × W × H): 417 × 241 × 73 mm
- Frequency response: 10 Hz–20 kHz
- Low-level input range: 0.2–8 V
SoundQubed Q4-3200 16v Q Series 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
SoundQubed Q4-3200 16v Q Series 4 Channel Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Power a high-output car audio system with the SoundQubed Q4-3200 16v Q Series 4-channel amplifier. It delivers 520W x 4 at 4Ω, with selectable 2-channel or 4-channel input mode and bandpassable crossovers for shaping each channel’s signal.

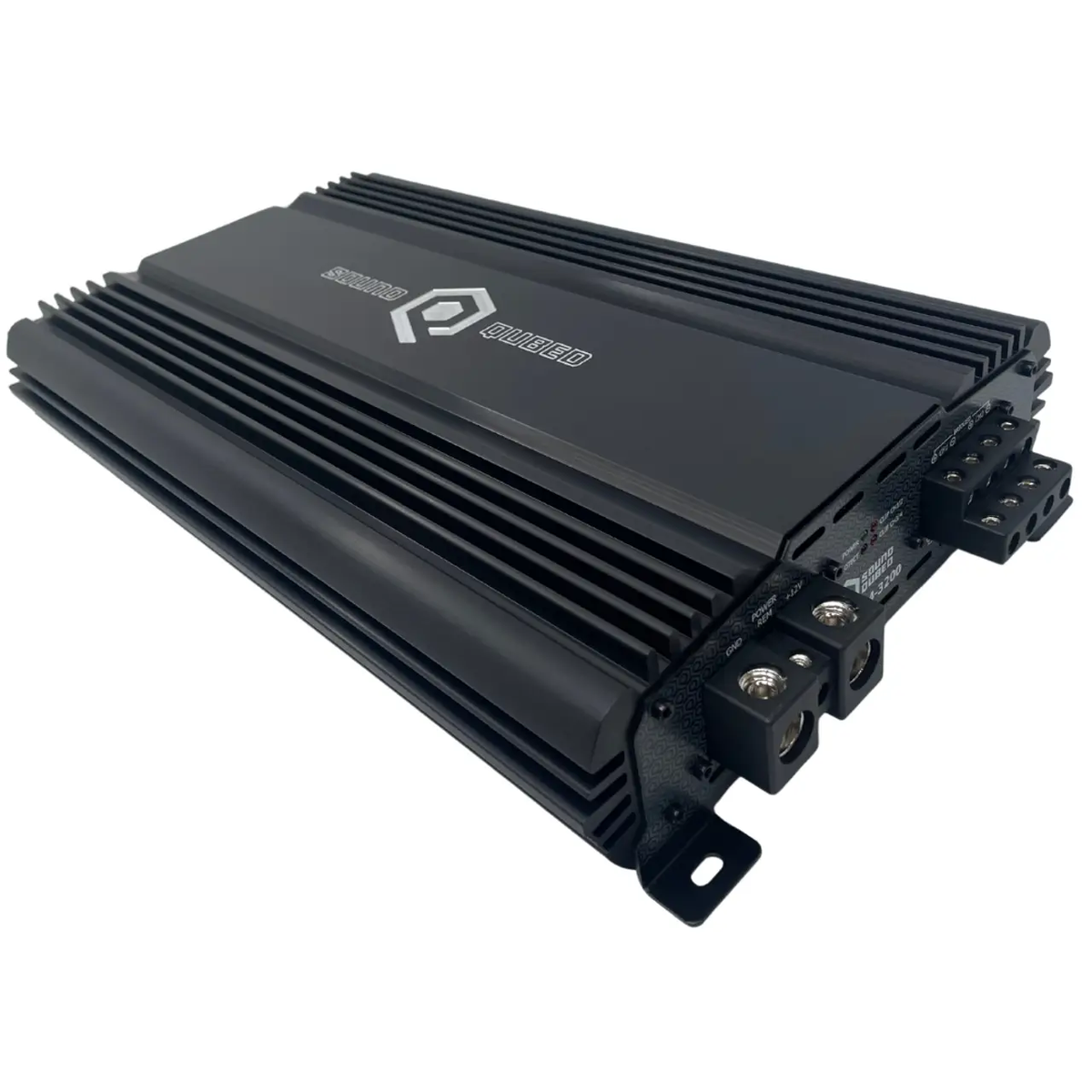

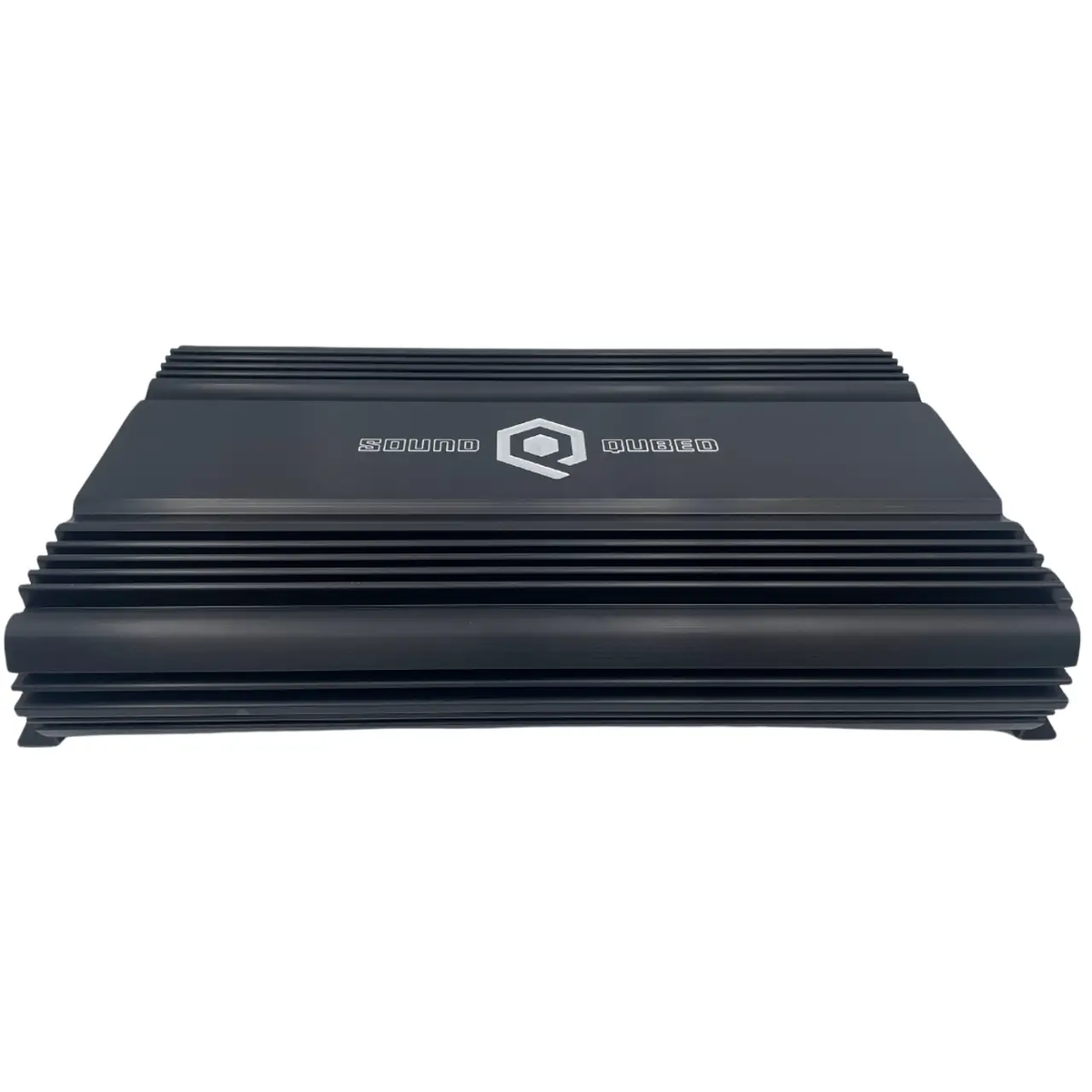

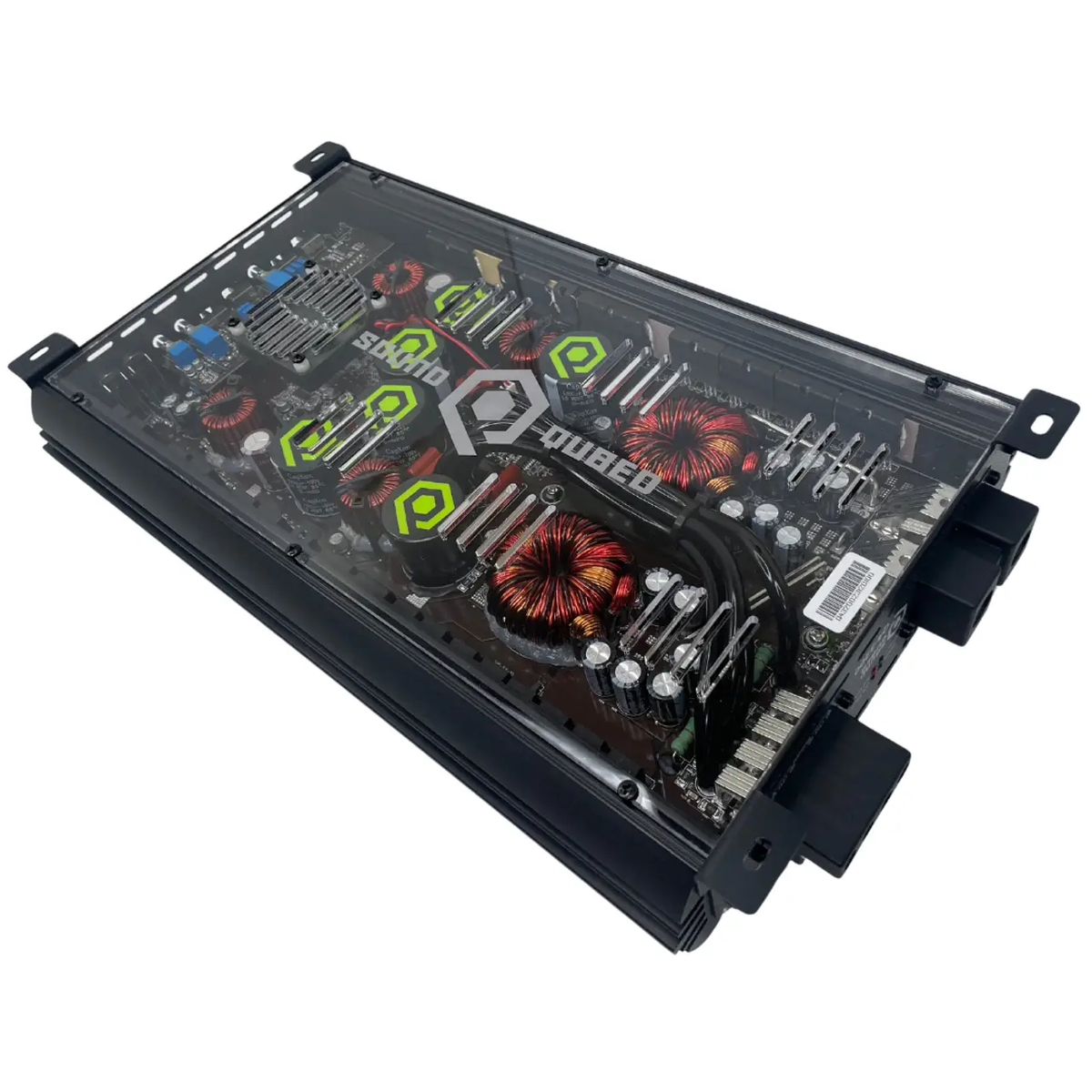

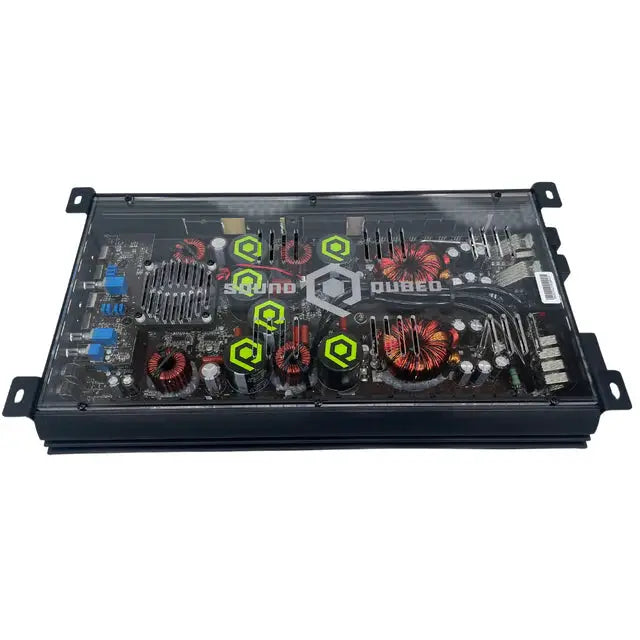

This Korean-built Q-Series flagship combines high-speed digital design with Class A/B-like processing. Its plexi backing, oversized heatsink, and Tiffany-style RCA inputs give the amplifier a distinctive finish.
Key Features & Benefits
- High output: Choose between four-channel power or bridged operation for a front-stage and subwoofer setup.

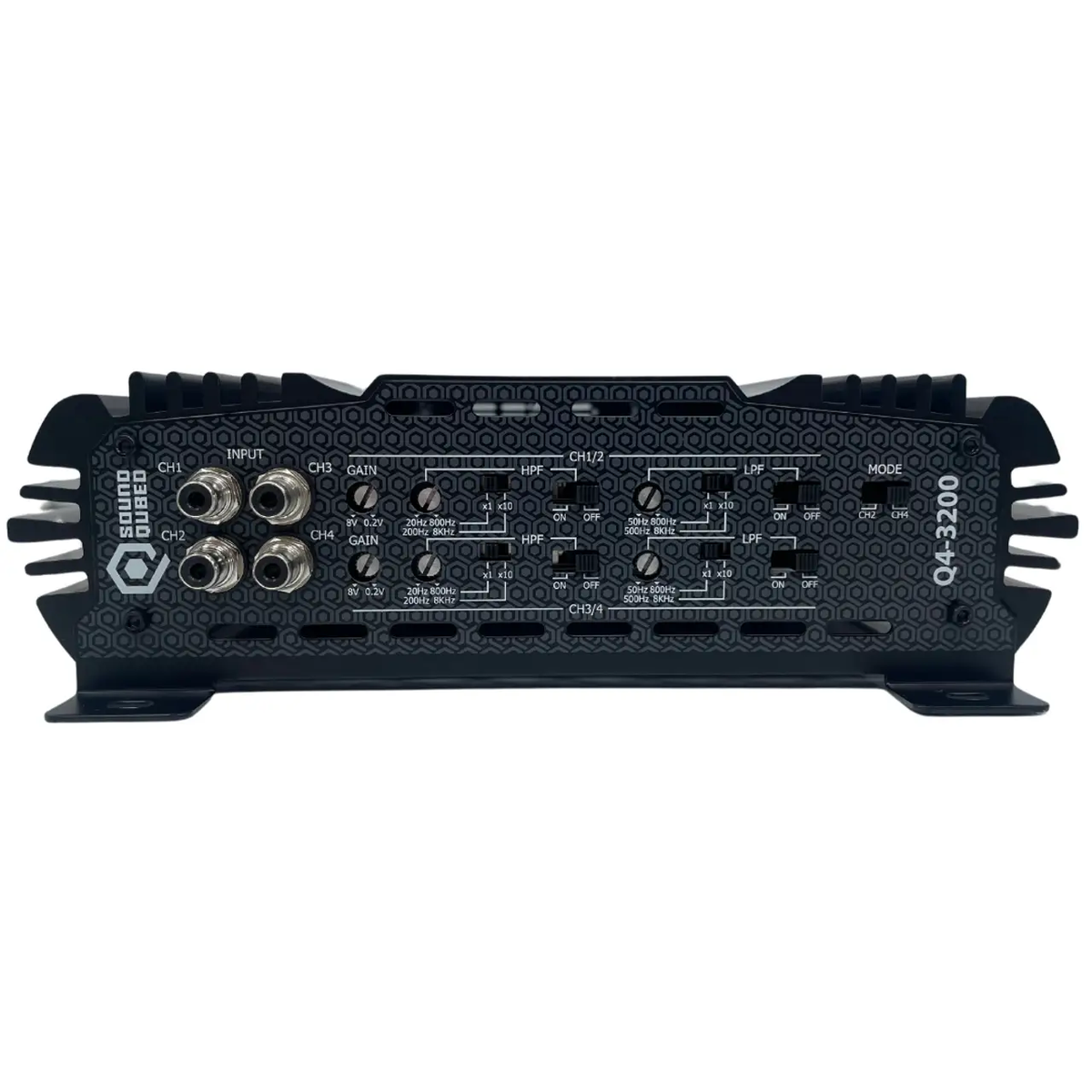

- Bandpassable crossovers: Set HPF and LPF points across the stated ranges, with an X1–X10 multiplier for additional crossover control.
- Flexible input mode: Select 2-channel or 4-channel input to suit your signal routing.
- Signal control: A damping factor of 145 and 95 dB signal-to-noise ratio are specified for the amplifier.
- Heavy-duty construction: Surface-mount components and a heavy-duty PCB are part of its design.
- Protection circuits: Thermal, overload, DC output, short circuit, voltage input, and clipping protection are listed.
Technical Specifications
| Specification | Q4-3200 |
|---|---|
| RMS Power @ 4 Ohm — 4-Channel | 520W x 4 |
| RMS Power @ 2 Ohm — 4-Channel | 800W x 4 |
| RMS Power @ 4 Ohm — Bridged (2-Channel) | 1,600W x 2 |
| Frequency Response | 10 Hz – 20 kHz |
| Signal to Noise Ratio | 95 dB |
| Efficiency @ 4 Ohm | 87% |
| Damping Factor | 145 |
| Input Impedance | 22K Ohms |
| THD | 1% |
| Low Level Input Range | 0.2V – 8V |
| Selectable X-Over | Band-Pass (X1–X10) |
| HPF Range | 20 Hz – 8 kHz |
| LPF Range | 50 Hz – 8 kHz |
| Amplifier Class | Digital |
| Amplifier Type | Stereo Full-Range |
| Number of Channels | 4 |
| Minimum Impedance (Stereo) | 2 Ohm |
| Minimum Impedance (Bridged) | 4 Ohm |

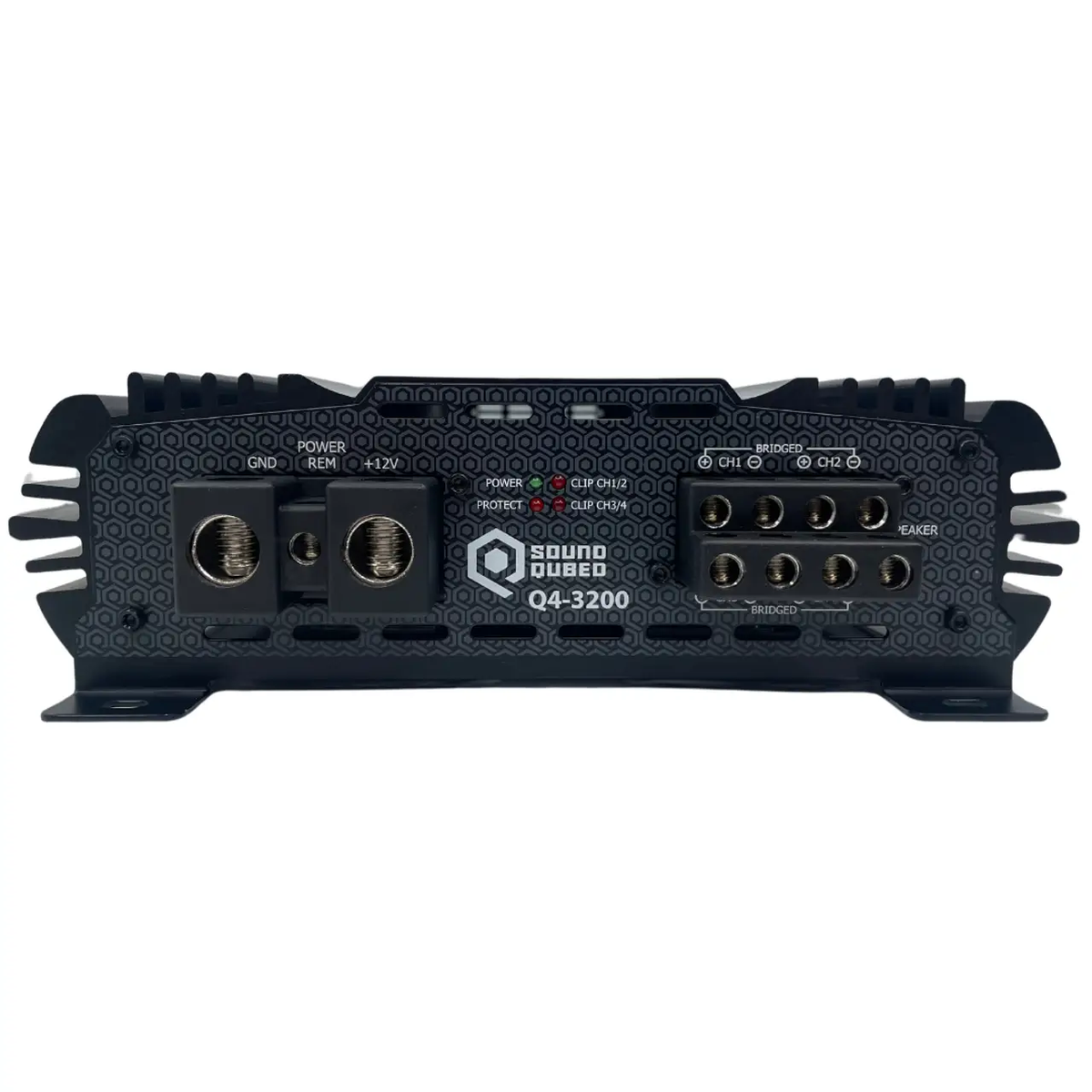

| LED Indicator | Power / Protect / Clip |
| Power Input Terminal Size | 0GA |
| Fuse Size (Recommended) | 300A |
| Input Mode Selectable | Yes (2Ch / 4Ch) |
| X-Over Frequency Multiplier | Yes |
| Thermal Protection | Yes |
| Over-Load Protection | Yes |
| DC Output Protection | Yes |
| Short Circuit Output Protection | Yes |
| Voltage Input Protection | Yes |
| Clipping Protection | Yes |
| Tiffany Style RCA | Yes |
| High Efficiency Digital Circuit Design | Yes |
| Heavy Duty Printed Circuit Board | Yes |
| Surface Mount Component Technology | Yes |
| Quality Control (Audio Precision) | Yes |
| Overall Length | 16.4" / 417 mm |
| Overall Width | 9.4" / 241 mm |
| Overall Height | 2.8" / 73 mm |
| Heatsink Length | 15" / 380 mm |
Why Choose This Product?
The Q4-3200 offers multiple ways to allocate its four channels. You can run all four channels in stereo, or use channels 1 and 2 for front speakers and bridge channels 3 and 4 for a subwoofer. Its adjustable crossovers provide signal-shaping control within the amplifier, which can remove the need for a separate DSP in many builds.
For a high-output front stage, the source recommends using high-power component speakers with appropriate RMS ratings. The amplifier’s stated output makes matching speakers and system components an important part of planning.
Installation & Compatibility Notes
- Power wiring: 0GA power and ground wiring is required, with a recommended 300A fuse.
- Electrical system: A high-output alternator and upgraded battery are strongly recommended for sustained high-power use. A dash-mounted voltmeter is advised for monitoring system voltage under load.
- Impedance: Minimum impedance is 2 Ohm in stereo and 4 Ohm bridged. Do not bridge into a load below 4Ω; the source warns this can damage the amplifier.
- Mounting space: Allow for the listed overall dimensions of 16.4" / 417 mm long, 9.4" / 241 mm wide, and 2.8" / 73 mm high.
Frequently Asked Questions
Do I need a separate DSP with the Q4-3200?
Not necessarily. Its bandpassable crossovers and X1–X10 frequency multiplier provide crossover control built into the amplifier, which can eliminate the need for a separate DSP in most builds.
What is the minimum impedance for bridged operation?
The minimum bridged impedance is 4 Ohm. The amplifier is also specified for a 2 Ohm minimum impedance in stereo mode.
What power wiring does this amplifier require?
The Q4-3200 requires 0GA power and ground wiring, with a recommended 300A fuse. A high-output alternator and upgraded battery are strongly recommended for sustained high-power use.
Can I use a 2-channel signal source?
Yes. The input mode is selectable between 2Ch and 4Ch, allowing the amplifier to match either signal-routing option.
How does the Q4-3200 differ from the Q4-150ABv2?
The supplied product details list the Q4-3200 at 520W x 4 at 4Ω, compared with 150W x 4 at 4Ω for the Q4-150ABv2. They also distinguish the Q4-3200 by its 0GA power inputs, Korean-built construction, bandpassable crossovers with frequency multiplier, and selectable 2Ch/4Ch input mode.
