Steve Meade Designs | SKU:
SMD-200.4AB
Steve Meade Designs SMD-200.4AB 4-Channel Class AB Amplifier
Regular price
$449.95
Unit price
Shipping calculated at checkout.
Key features
- Amplifier channels: 4
- RMS per channel at 4 ohms: 125 W
- RMS per channel at 2 ohms: 150 W
- Amplifier class: AB
- RMS rating condition: Certified, all channels driven, 1 kHz at 14.4 V
- Power terminal size: 4 AWG
Steve Meade Designs SMD-200.4AB 4-Channel Class AB Amplifier is backordered and will ship as soon as it is back in stock.
Steve Meade Designs | SKU:
SMD-200.4AB
Regular price
$449.95
Unit price
Shipping calculated at checkout.
Steve Meade Designs SMD-200.4AB 4-Channel Class AB Amplifier is backordered and will ship as soon as it is back in stock.
Description
Description

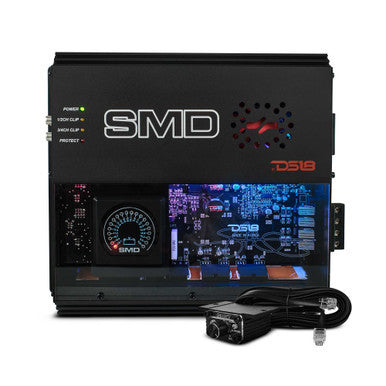

The SMD-200.4AB pairs four Class AB full-range channels with an integrated SMD VM-1 voltmeter. Developed with DS18, its acrylic window, adjustable RGB lighting and twin fans suit an amplifier installation that is designed to be seen.
Power and installation
- Certified RMS, all channels driven at 1 kHz and 14.4 V: 125W x 4 at 4 ohms; 150W x 4 at 2 ohms; 300W x 2 bridged at 4 ohms.
- Manufacturer dynamic music ratings: 150W x 4 at 4 ohms; 200W x 4 at 2 ohms; 400W x 2 bridged at 4 ohms.
- Minimum load: 2 ohms stereo or 4 ohms bridged.

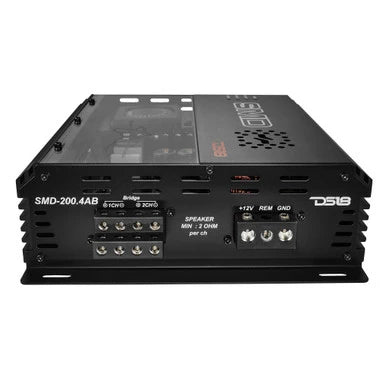

- 4 AWG power terminals; recommended external fuse 120A, not included.
- Overall dimensions (L x W x H): 282 x 232 x 76 mm.
Features and controls

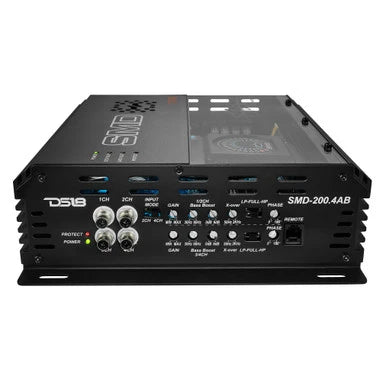

Tiffany RCA inputs, power/protection/clip indicators and a metal-case remote level control with clip indication. An IR remote controls the lighting. Selectable high-pass, full-range and low-pass filtering.
