Stinger HORIZON10 RB10F15009X Ford F-150 Plug-and-Play Radio Kit

Product Overview

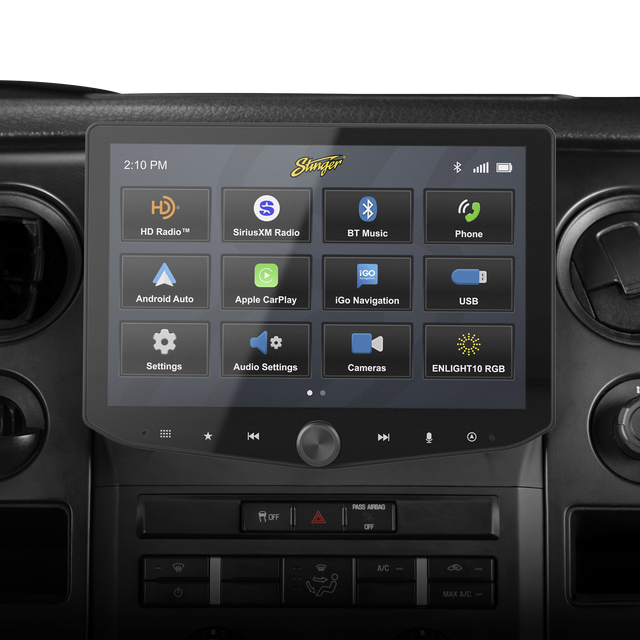

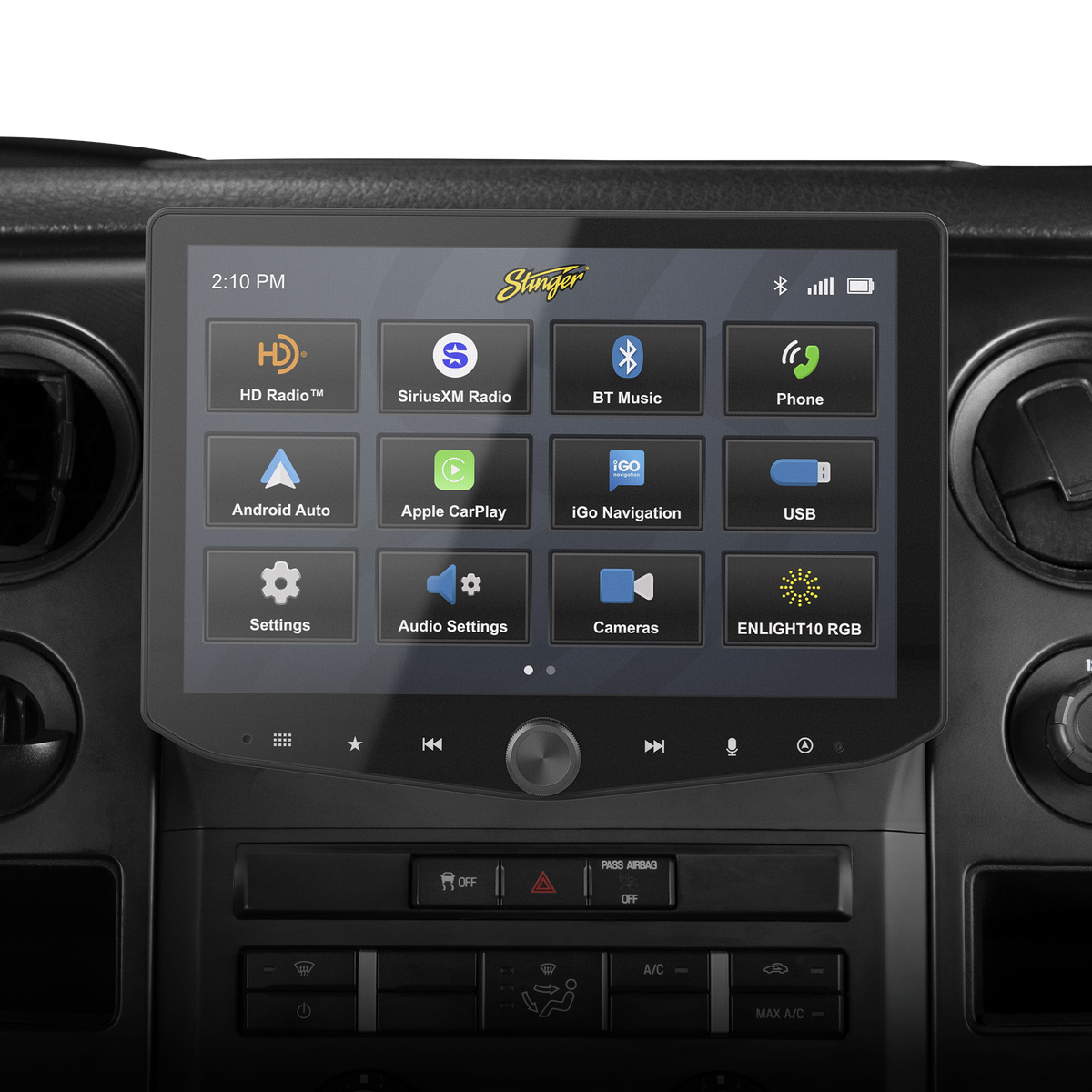

The Stinger HORIZON10 RB10F15009X gives compatible Ford F-150 vehicles a 10.1-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.

Key Features & Benefits

• Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

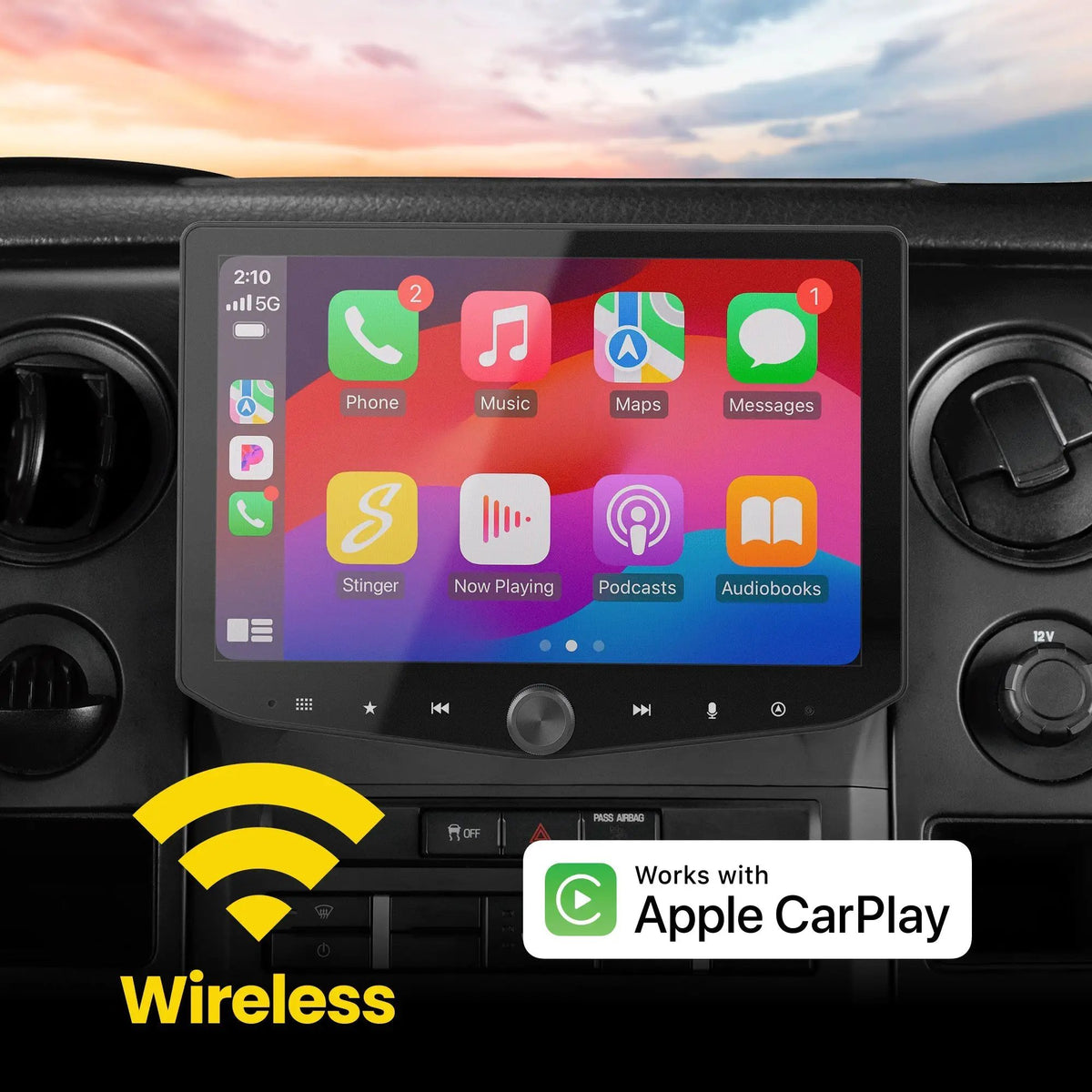

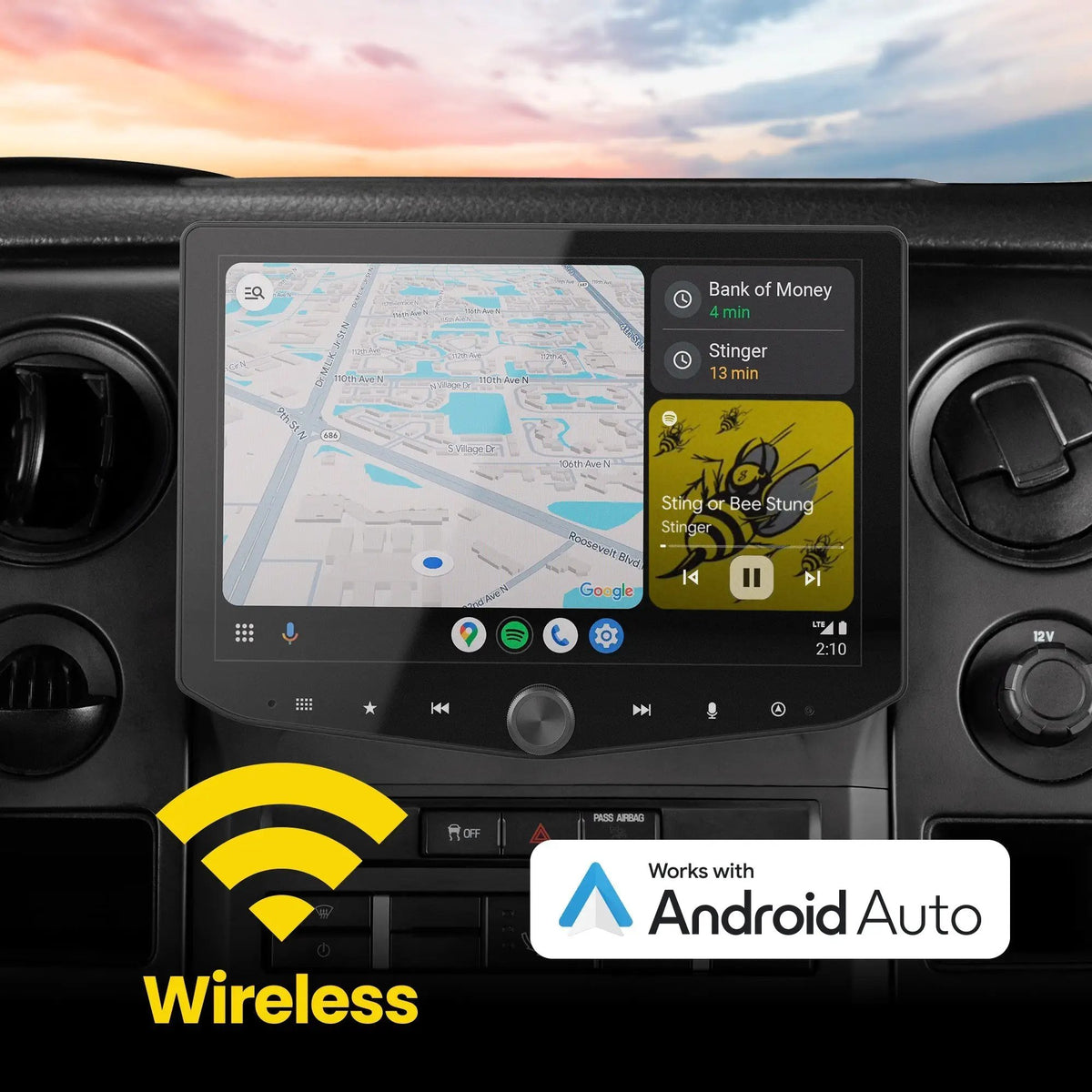

• Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
• 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.

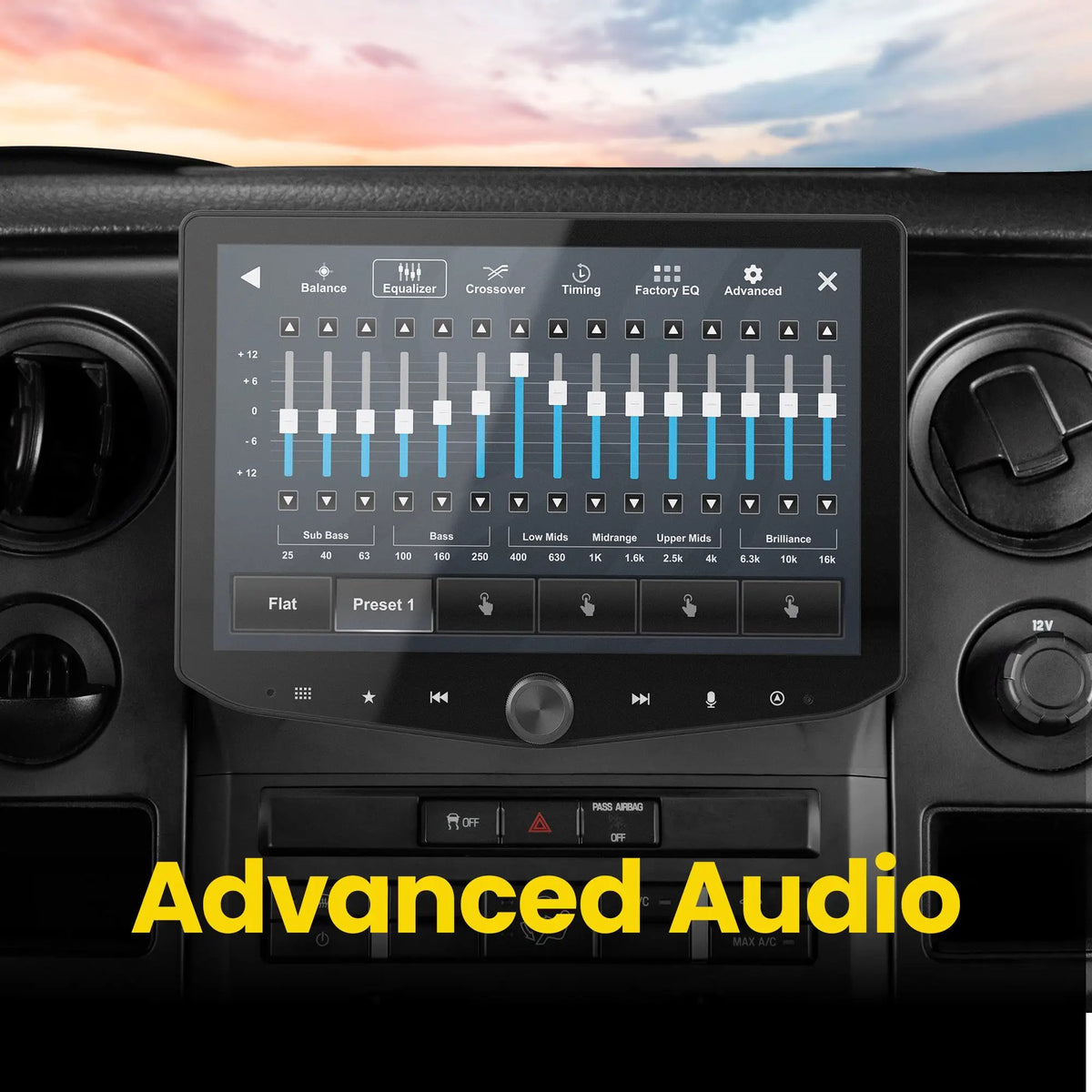

• Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
• Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.

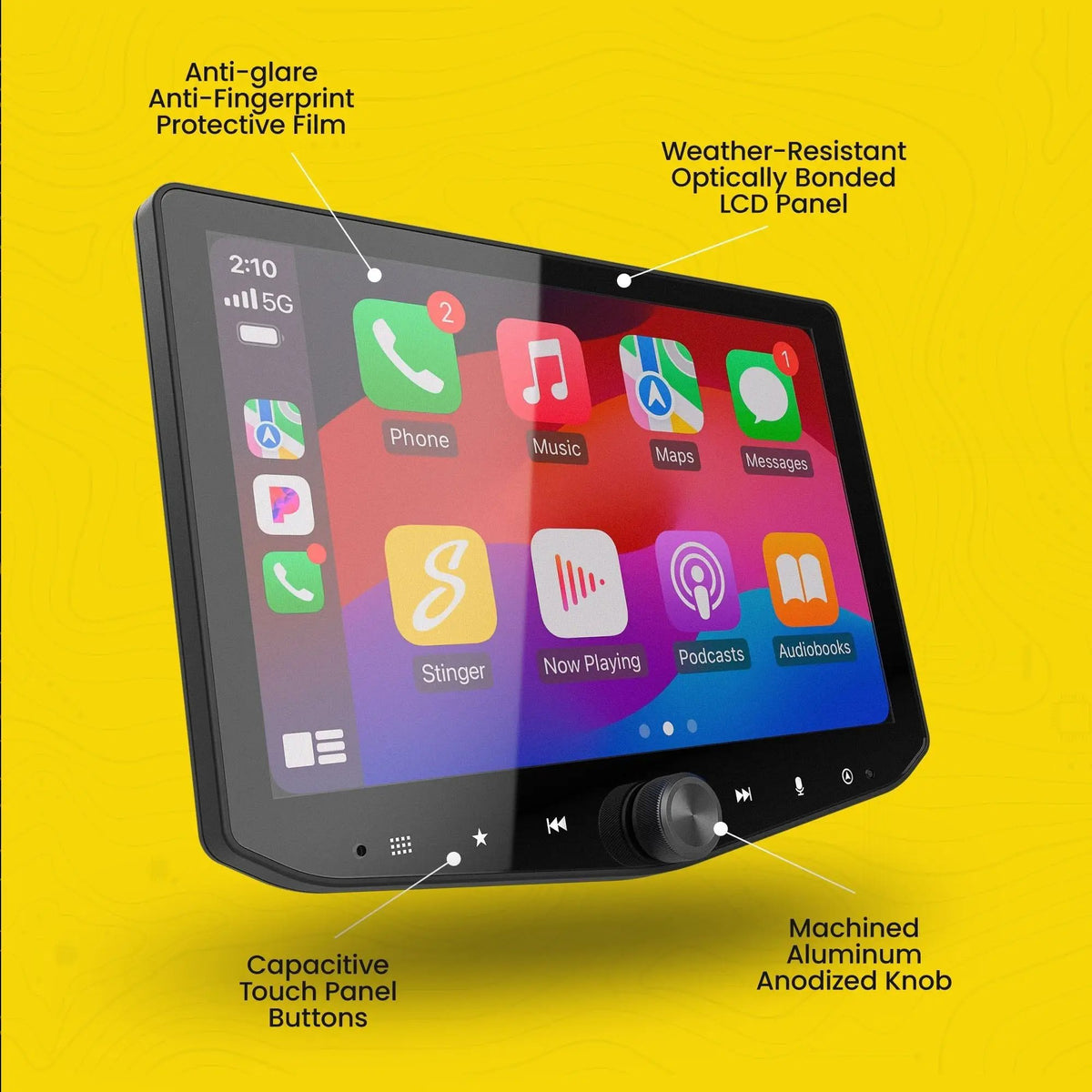

• Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.

Technical Specifications

Why Choose This Product?

Choose this HORIZON10 kit when you want a larger connected display and the matching installation components for your Ford F-150. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.

Installation & Compatibility Notes

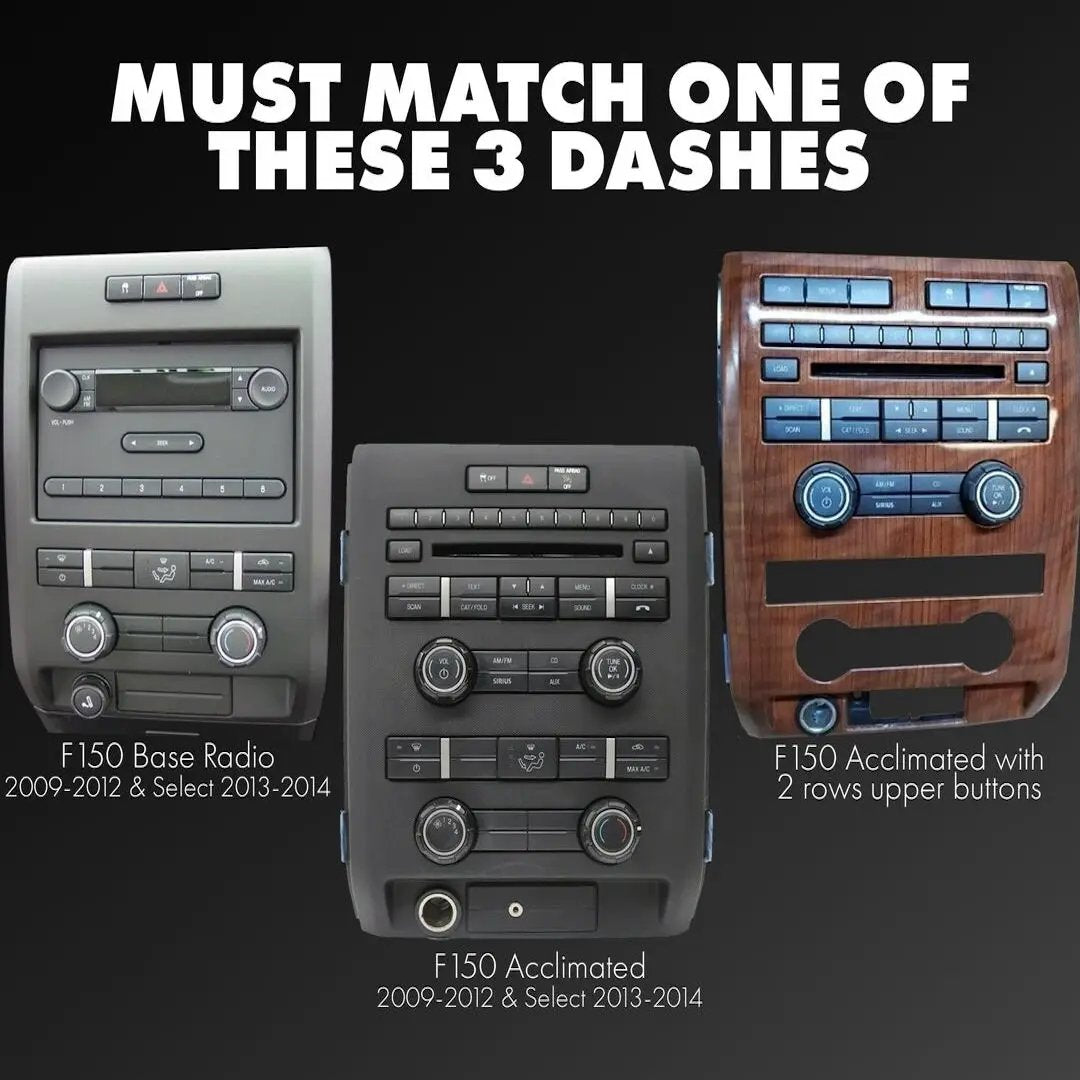

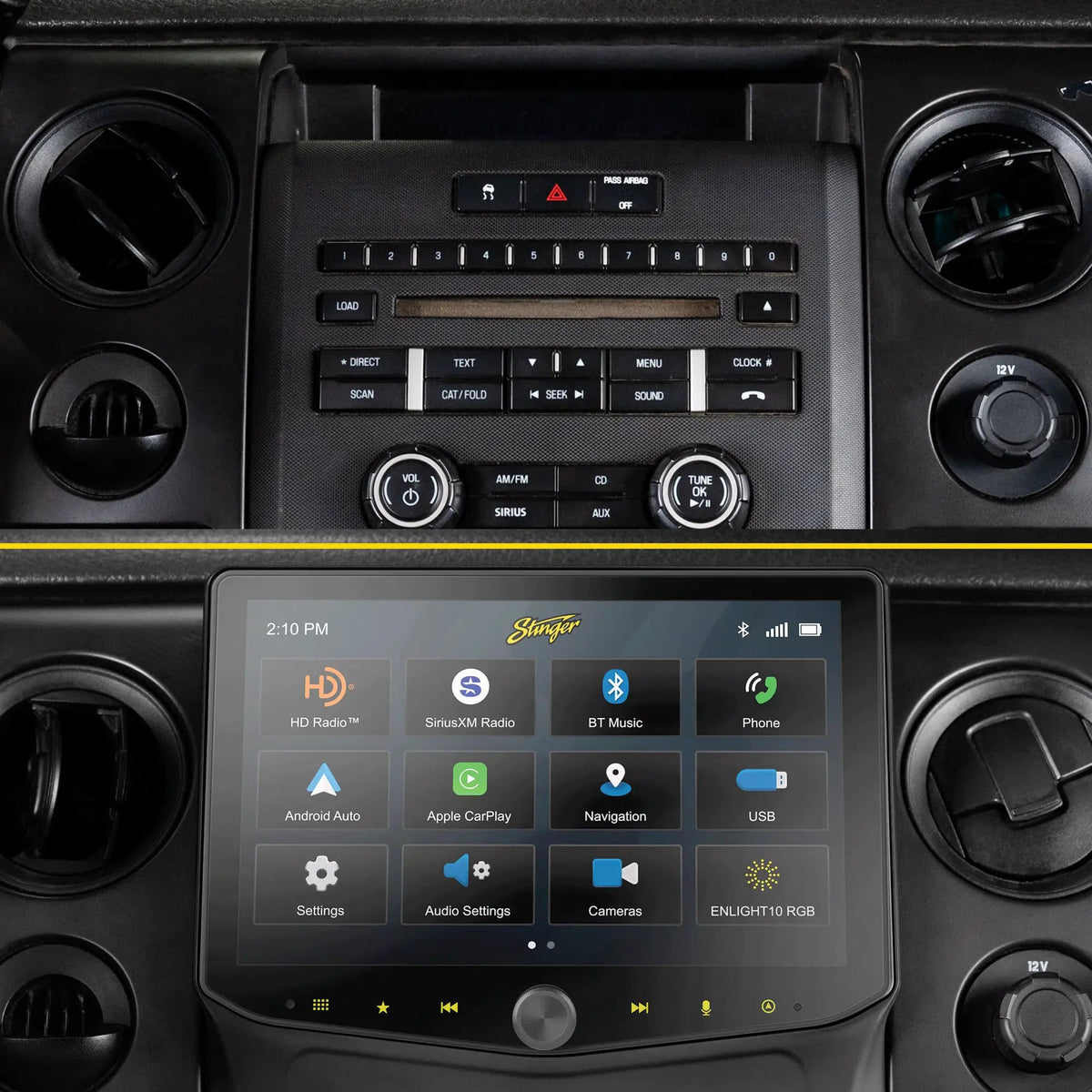

Select 2009–2014 Ford F-150 with compatible center-stack radio. Must match one of the three manufacturer dash photos. Photo labels: Base Radio 2009–2012 and select 2013–2014; Acclimated 2009–2012 and select 2013–2014; Acclimated with two rows of upper buttons. Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. Ford SYNC not retained. Current linked install PDF also says rear-seat entertainment not retained. Factory amplified systems supported but fader unavailable. Original-radio settings adjustment disabled; set preferences before removal. SiriusXM needs separately sold SXV300 tuner. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.

Frequently Asked Questions

Which vehicles does the RB10F15009X fit?

Select 2009–2014 Ford F-150 with compatible center-stack radio. Must match one of the three manufacturer dash photos. Photo labels: Base Radio 2009–2012 and select 2013–2014; Acclimated 2009–2012 and select 2013–2014; Acclimated with two rows of upper buttons.

Does it support wireless Apple CarPlay and Android Auto?

Yes. Wired phone integration is also supported through the USB-C connection.

Are navigation maps and satellite radio included?

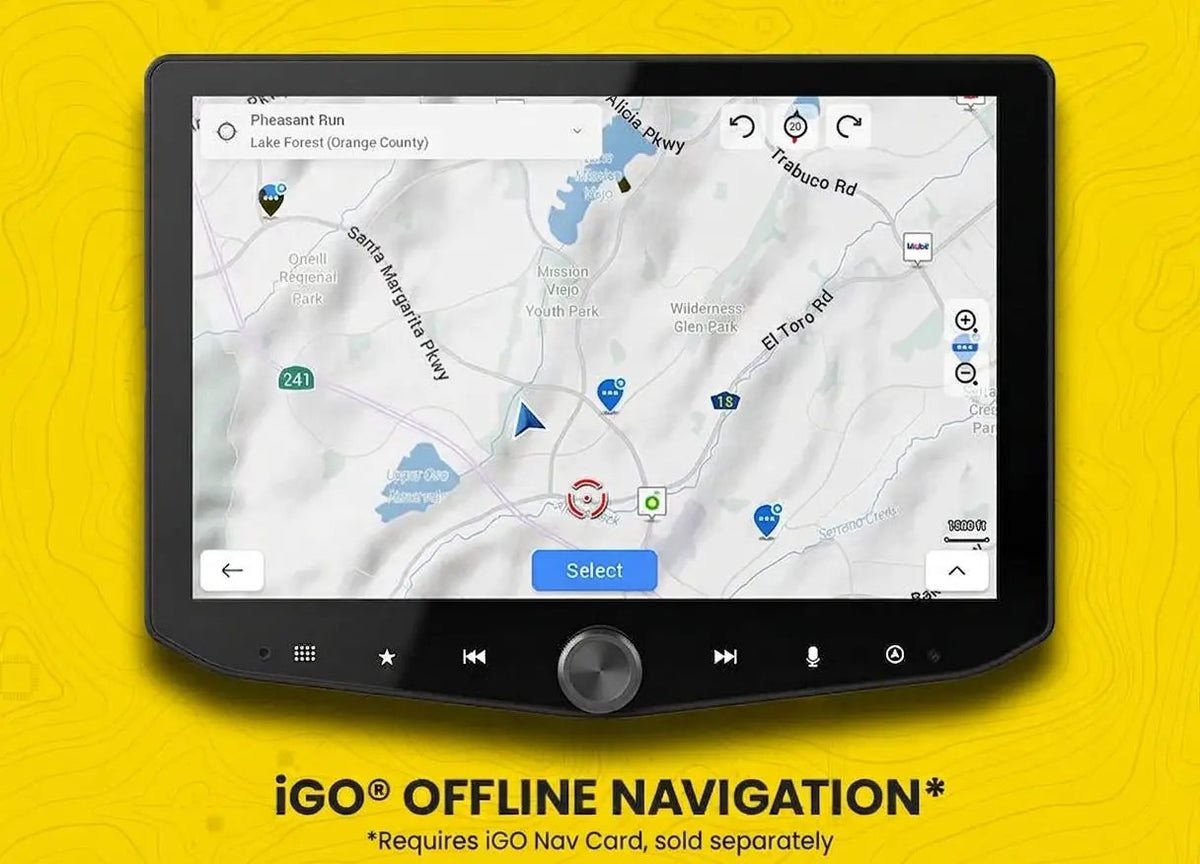

Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.

What is included in this radio kit?

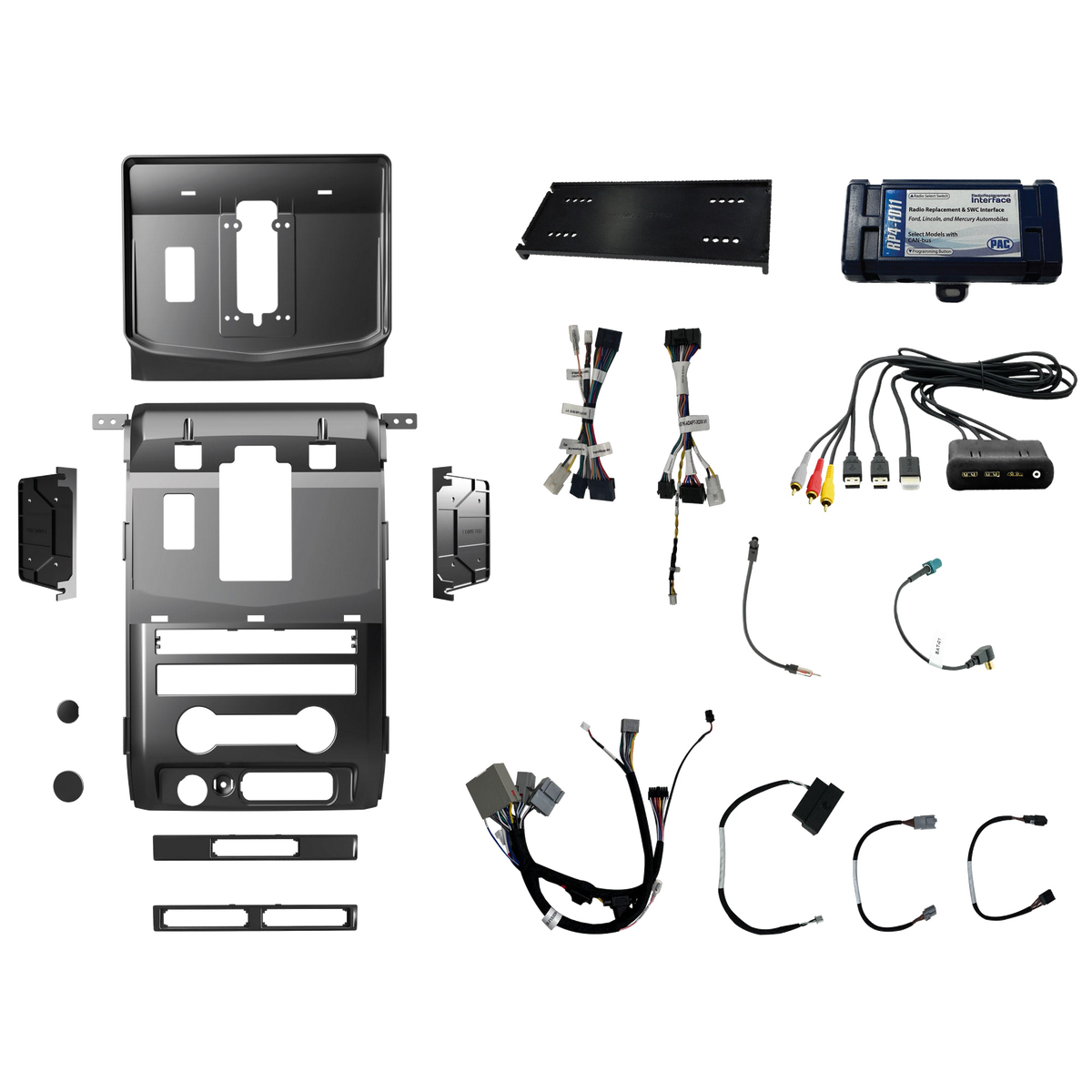

HORIZON10 iX210 10.1-inch display/radio; SR-F15009HX vehicle mounting panels/brackets; RP4-FD11 interface and plug-and-play harnesses; Media hub, BAA20 AM/FM adapter, SAT-01 satellite adapter, USB connections and hardware.
