Stinger HORIZON10 RB10RAM13X RAM Truck Plug-and-Play Radio Kit
Key features
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

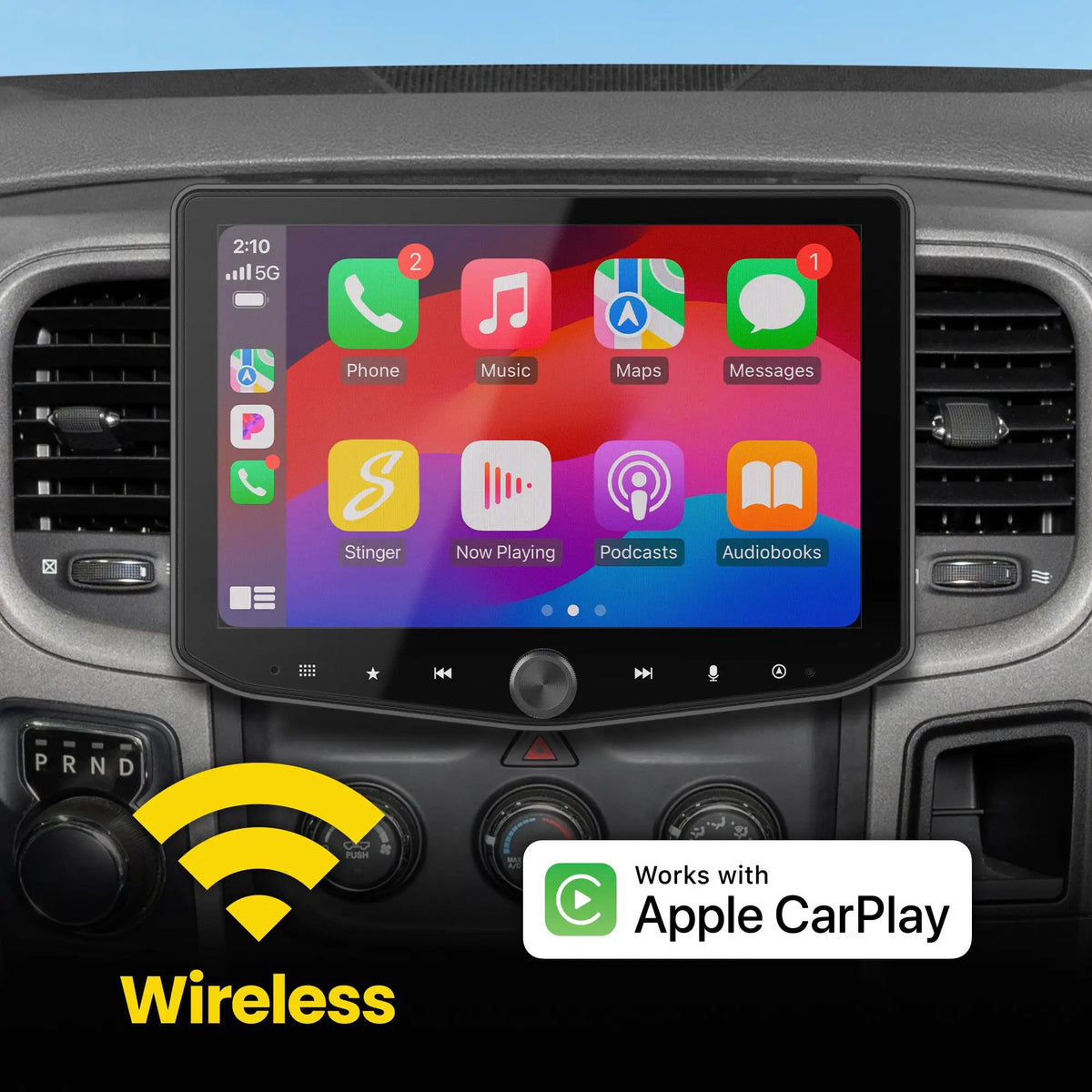

- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.

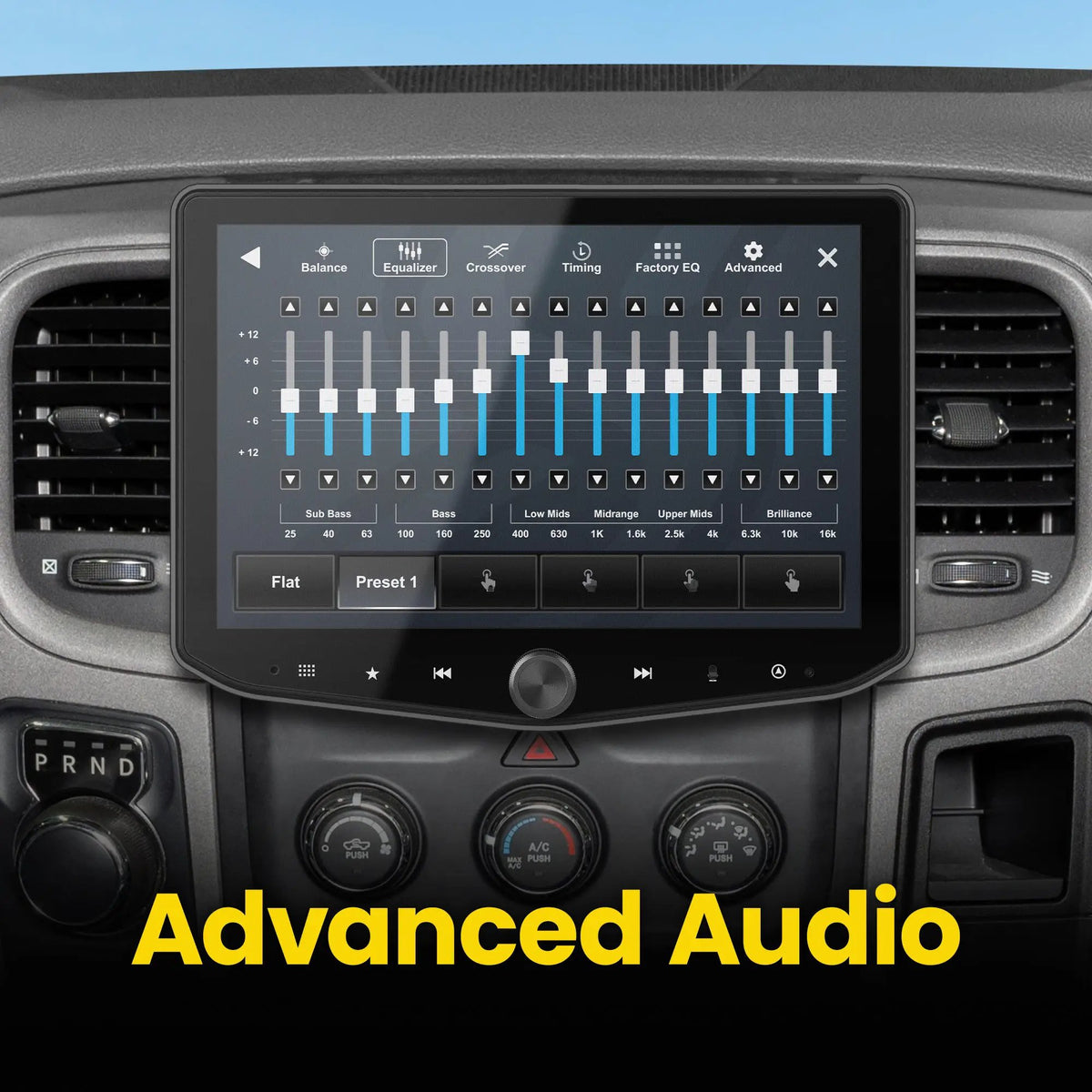

- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.

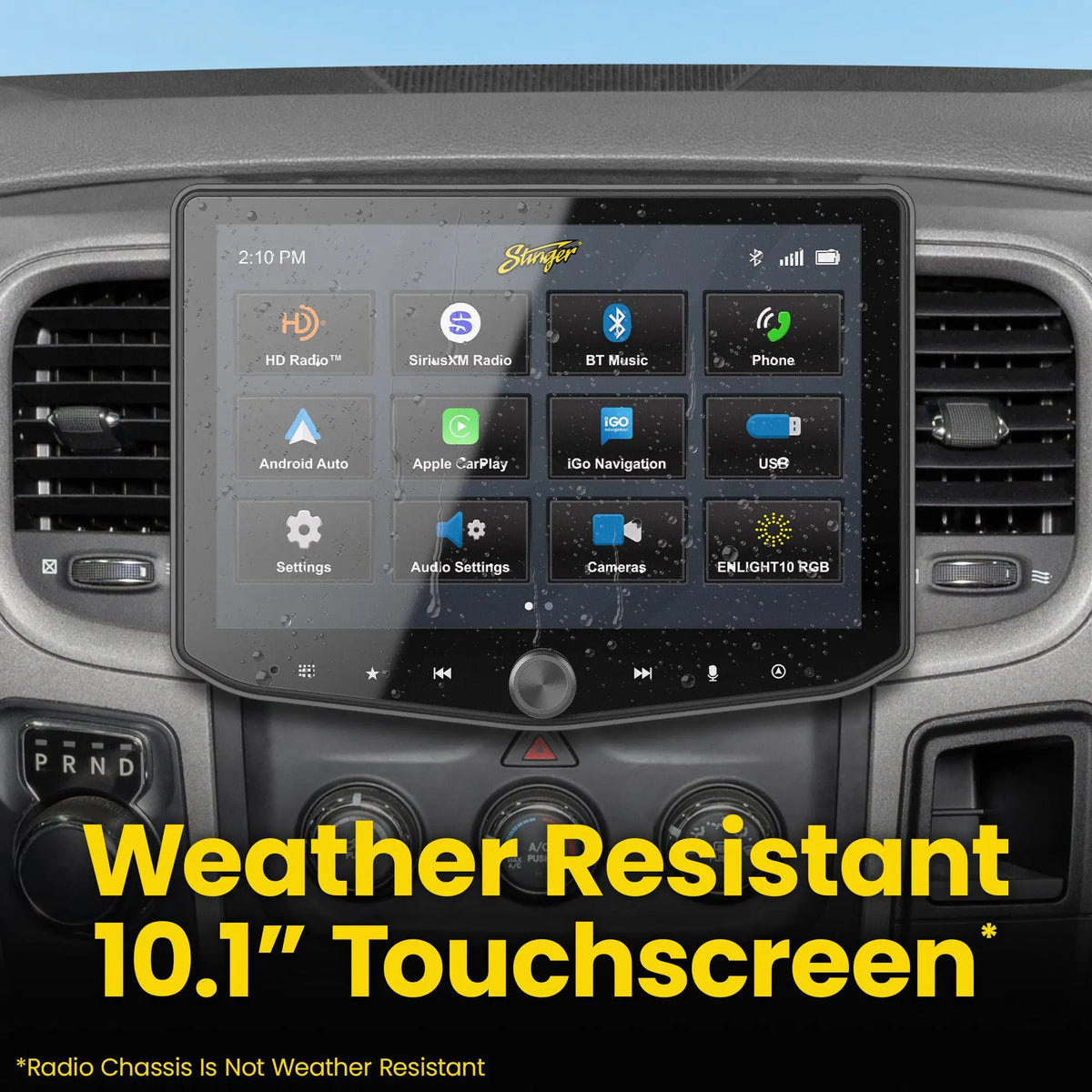

- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Stinger HORIZON10 RB10RAM13X RAM Truck Plug-and-Play Radio Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

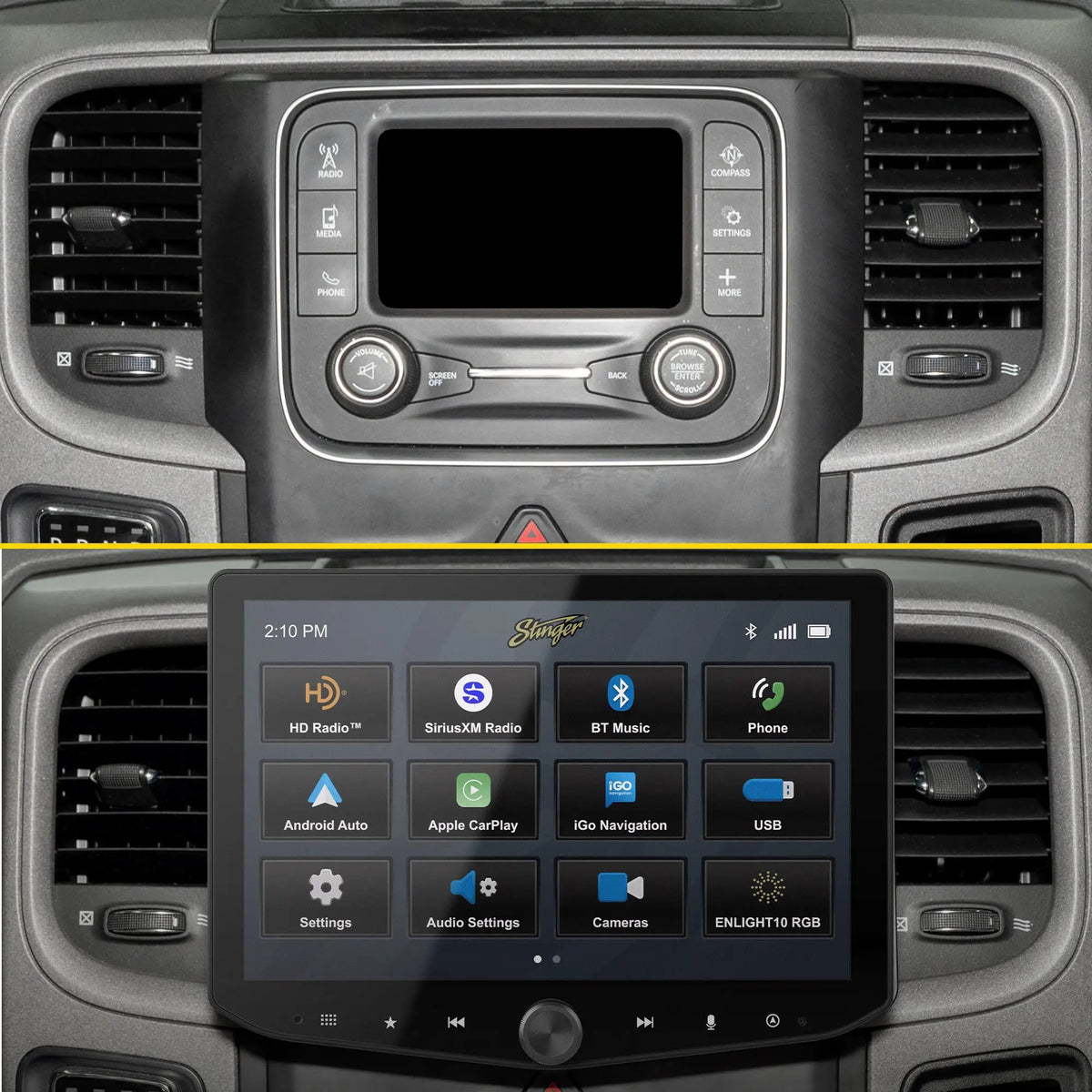

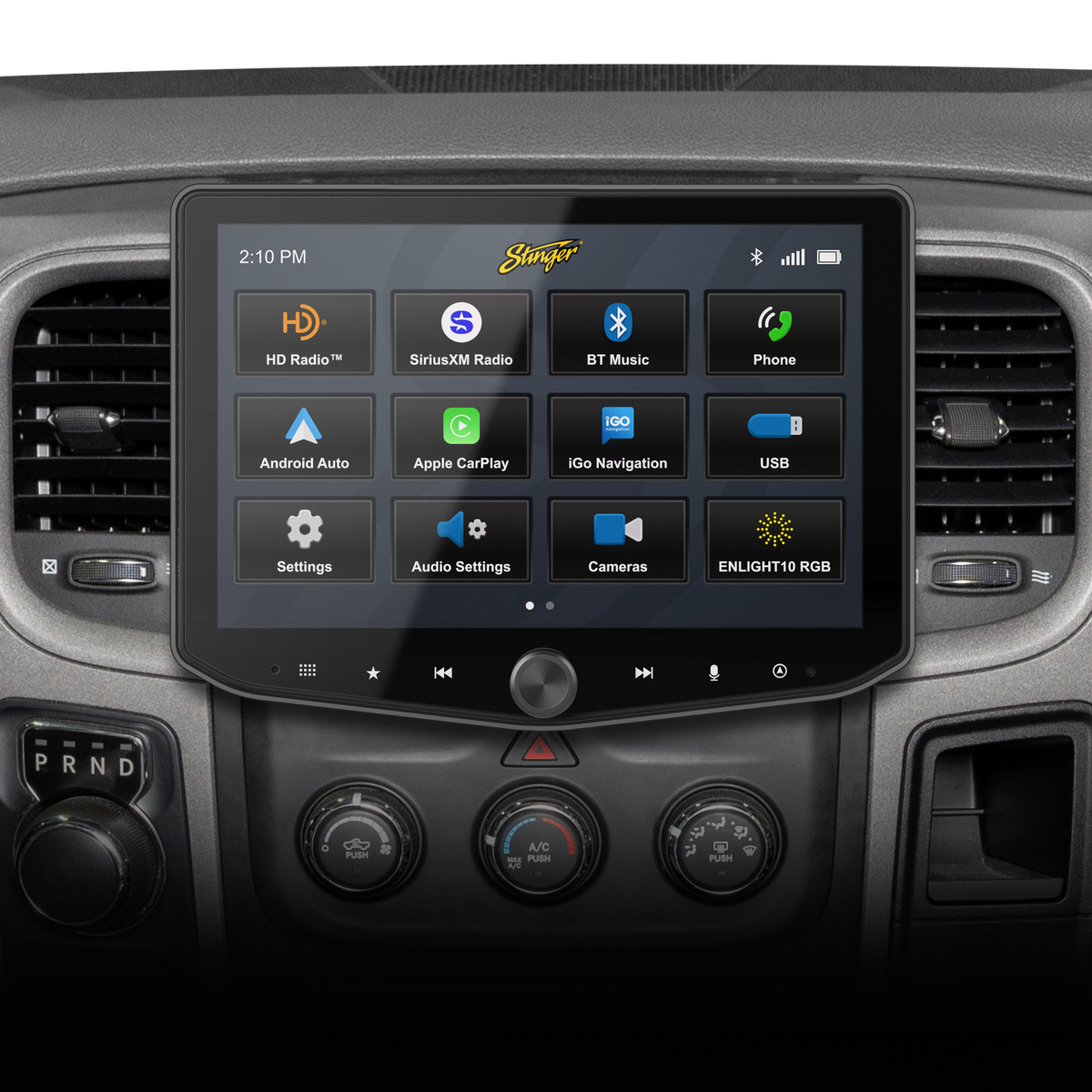

The Stinger HORIZON10 RB10RAM13X gives compatible RAM Truck vehicles a 10.1-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.
Key Features & Benefits
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.

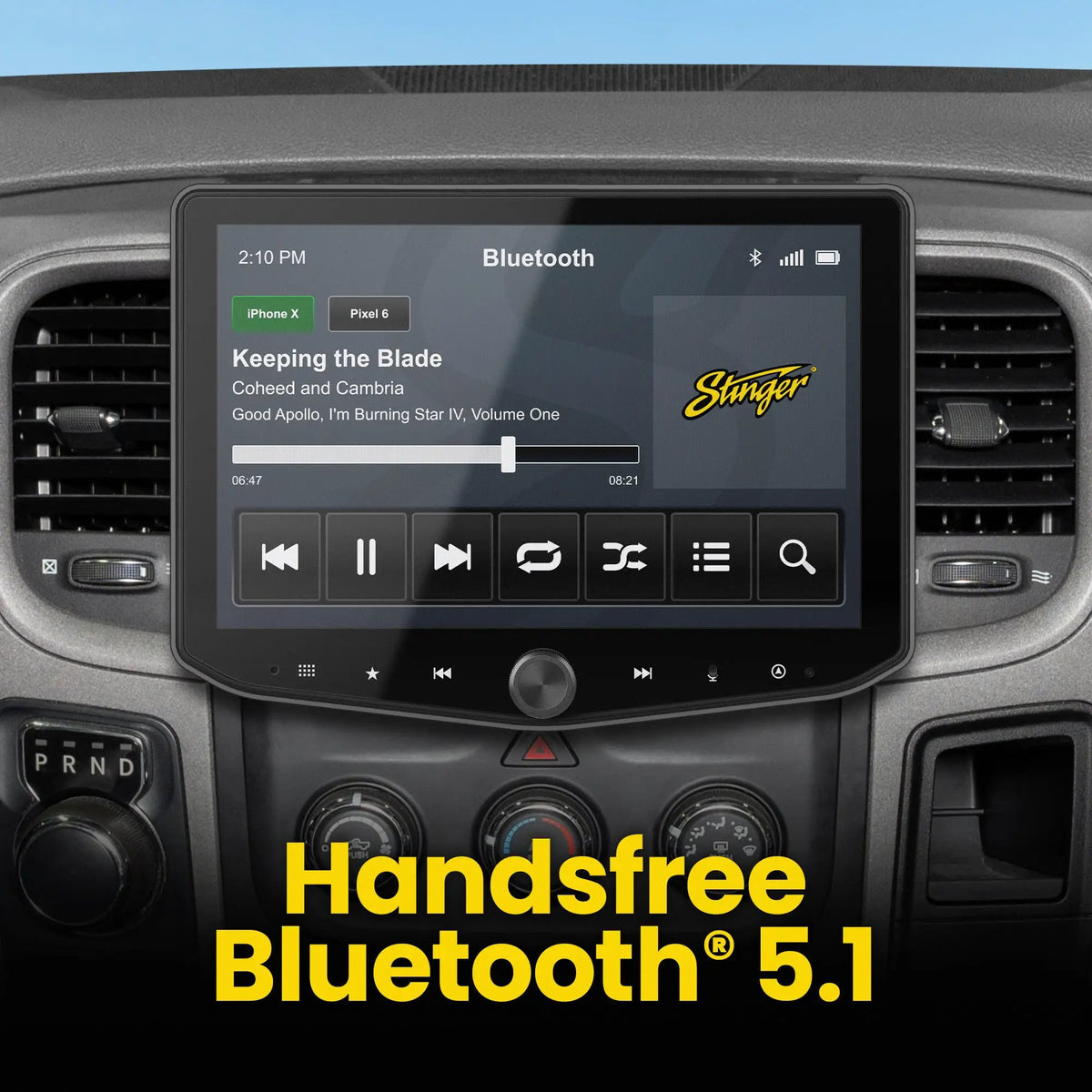

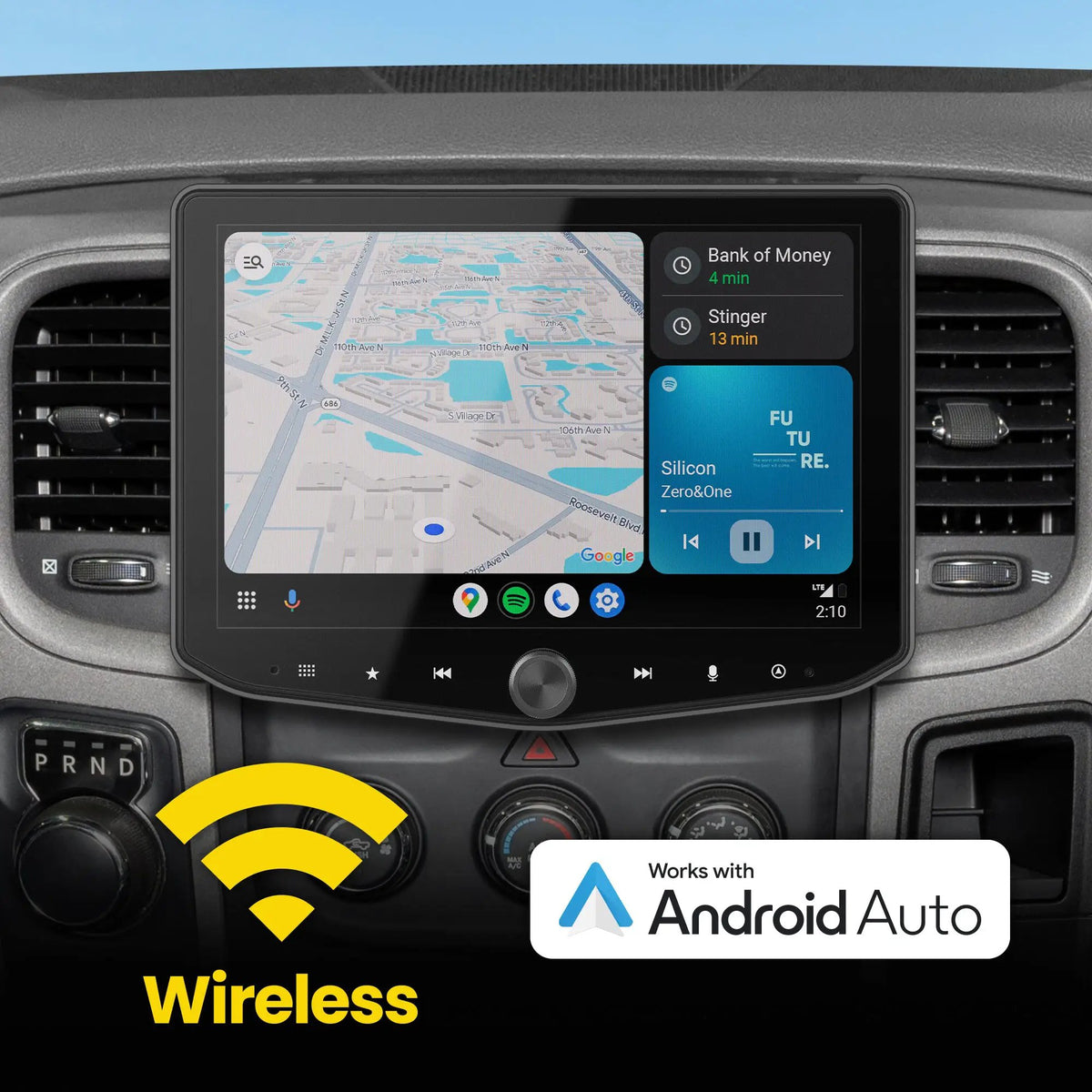

- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 10.1-inch touchscreen: The 1280 × 800 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Technical Specifications
| Brand | Stinger |
|---|---|
| Model / SKU | RB10RAM13X |
| Series | HORIZON10 |
| Product type | Vehicle-specific plug-and-play radio kit |
| Display diagonal | 10.1 inches |
| Display resolution | 1280 × 800 |
| Mounting style | Flush mount |
| Phone integration | Wireless Apple CarPlay and Android Auto; wired connection through USB-C |
| Audio adjustment | 15-band equalizer |
| Display protection | IP65 display; radio chassis is not IP rated |
| Included components | HORIZON10 iX210 10.1-inch radio/display, SRK-RAM13HX mounting kit/brackets and factory-screen mounting plates.; CH4A-SRK interface, PAC-Link, main/CAN/data harnesses, media-hub replacement.; RPA-SPK speaker, two RPA-VA1 video modules, BAA22 AM/FM and SAT-01 satellite adapters.. |
Why Choose This Product?
Choose this HORIZON10 kit when you want a larger connected display and the matching installation components for your RAM Truck. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.
Installation & Compatibility Notes
2013–2018 RAM trucks; 2019–2024 RAM 1500 Classic. Factory-amplified integration documented; do not confuse Classic with new-body RAM. Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. Manual-transmission vehicles are not compatible. On-screen HVAC is available only where the factory radio displayed it. Does not retain Uconnect remote access, SOS/Assist, vehicle location, Wi-Fi, SiriusXM Guardian, factory speed-sensitive volume, cluster phone/navigation pop-ups or clock; compass loss applies to factory 7/8.4-inch systems. SiriusXM requires separately sold SXV300 tuner. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.
Frequently Asked Questions
Which vehicles does the RB10RAM13X fit?
2013–2018 RAM trucks; 2019–2024 RAM 1500 Classic. Factory-amplified integration documented; do not confuse Classic with new-body RAM.
Does it support wireless Apple CarPlay and Android Auto?
Yes. Wired phone integration is also supported through the USB-C connection.
Are navigation maps and satellite radio included?
Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.
What is included in this radio kit?
HORIZON10 iX210 10.1-inch radio/display, SRK-RAM13HX mounting kit/brackets and factory-screen mounting plates.; CH4A-SRK interface, PAC-Link, main/CAN/data harnesses, media-hub replacement.; RPA-SPK speaker, two RPA-VA1 video modules, BAA22 AM/FM and SAT-01 satellite adapters..
