Stinger HORIZON12 SRX-GM19128 Chevrolet Silverado/GMC Sierra Plug-and-Play Radio Kit
Key features
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.
- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.

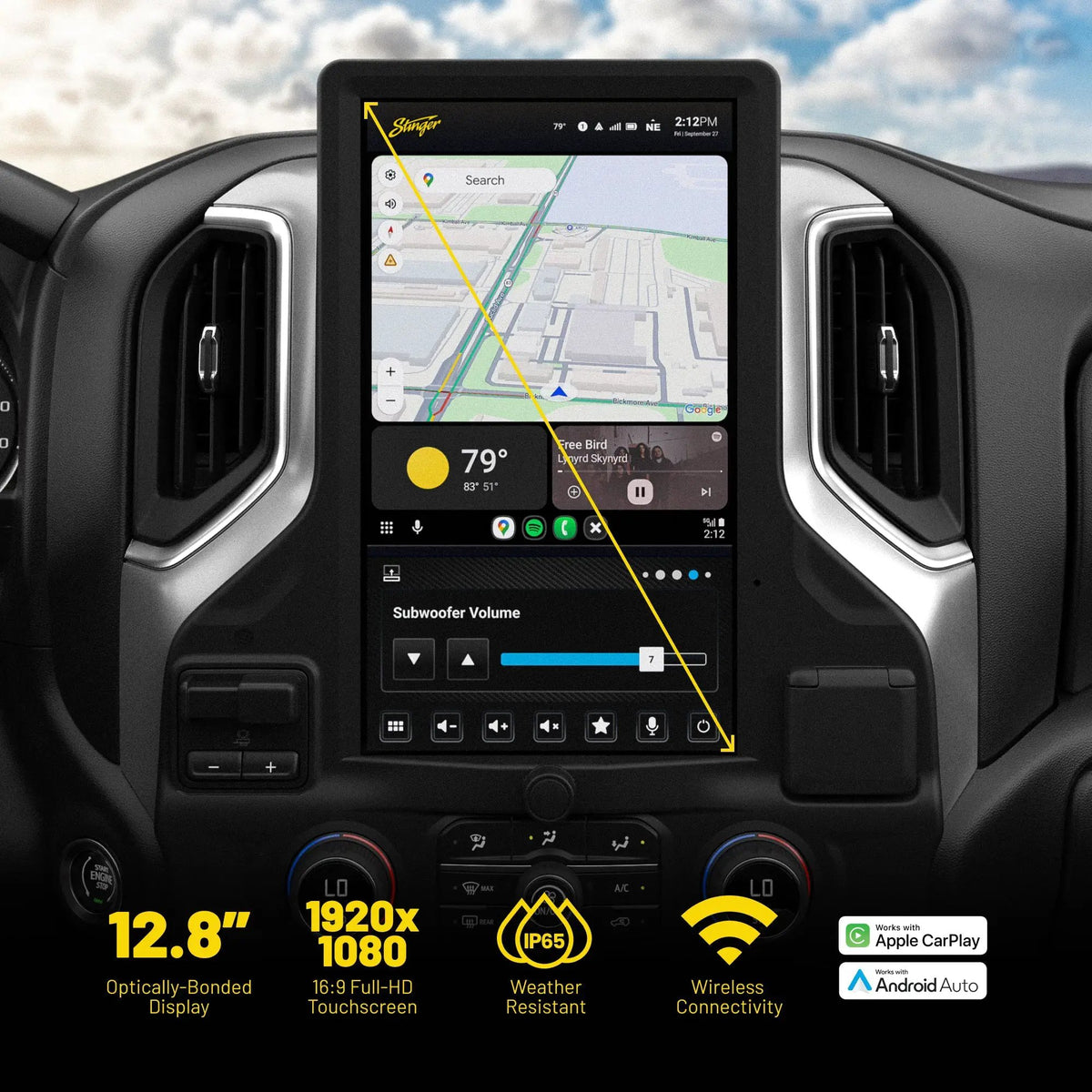

- 12.8-inch touchscreen: The 1920 × 1080 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.

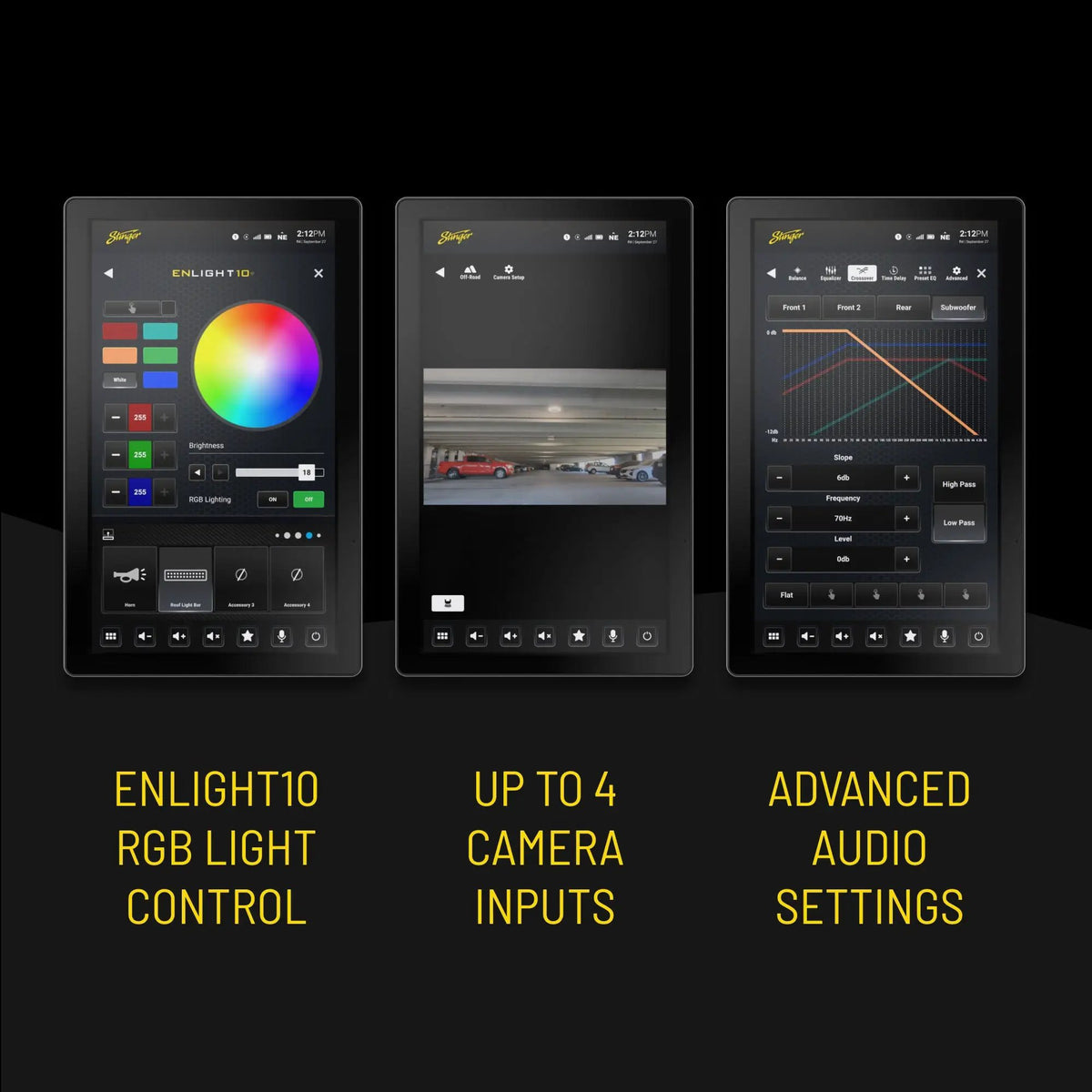

- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Stinger HORIZON12 SRX-GM19128 Chevrolet Silverado/GMC Sierra Plug-and-Play Radio Kit is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

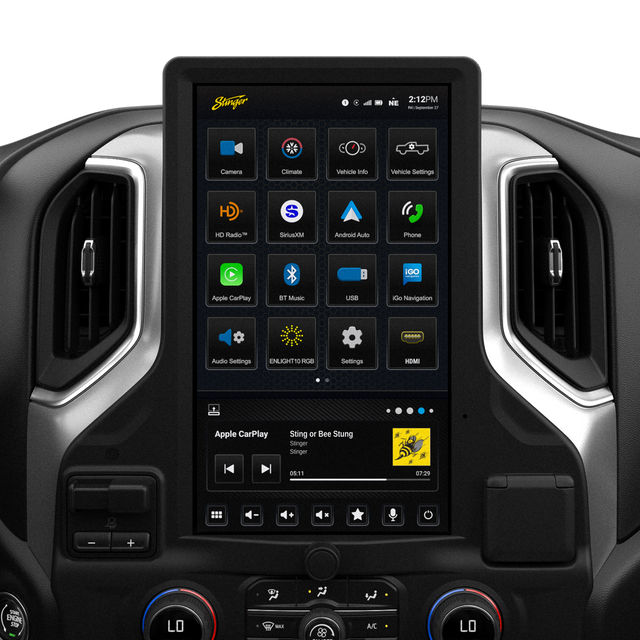

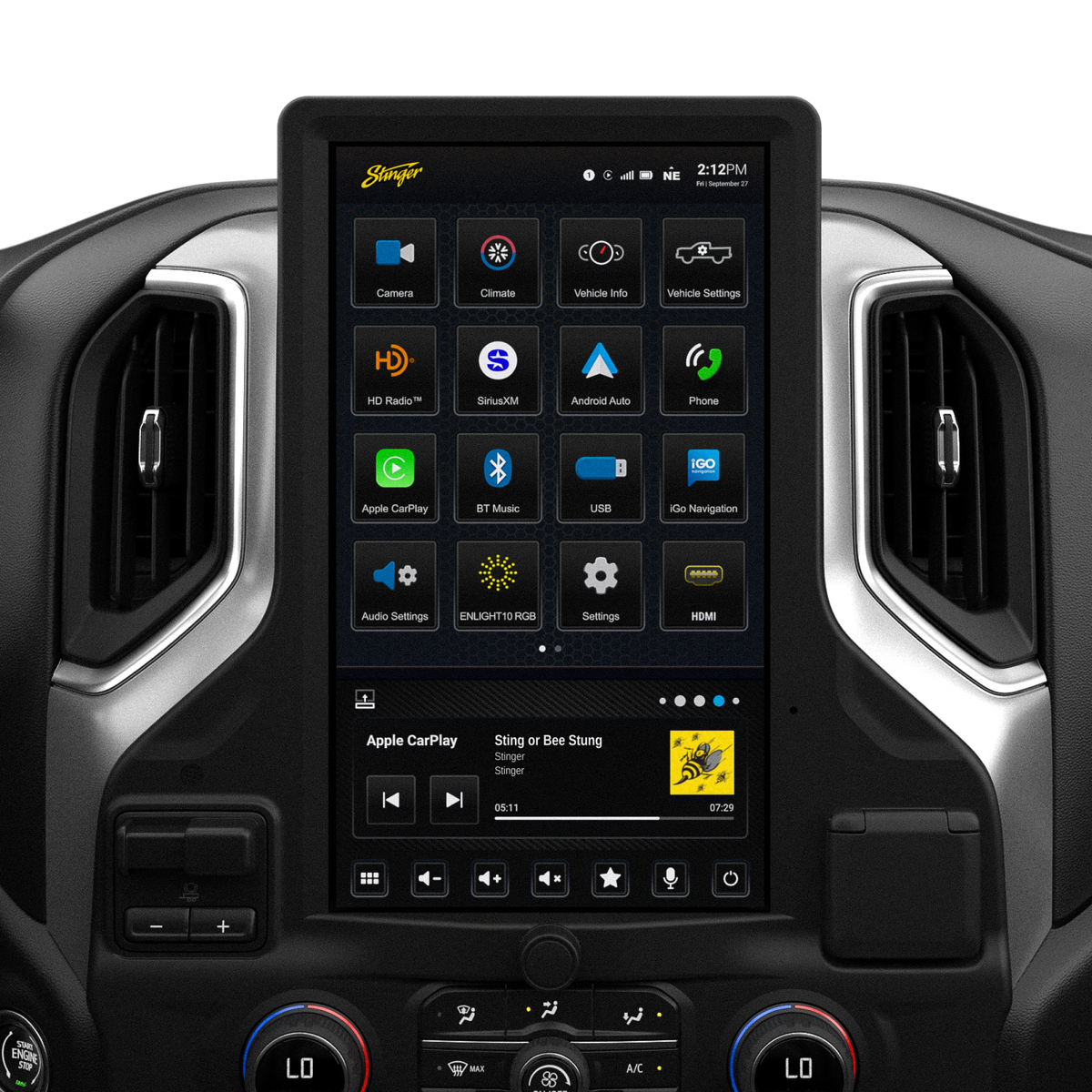

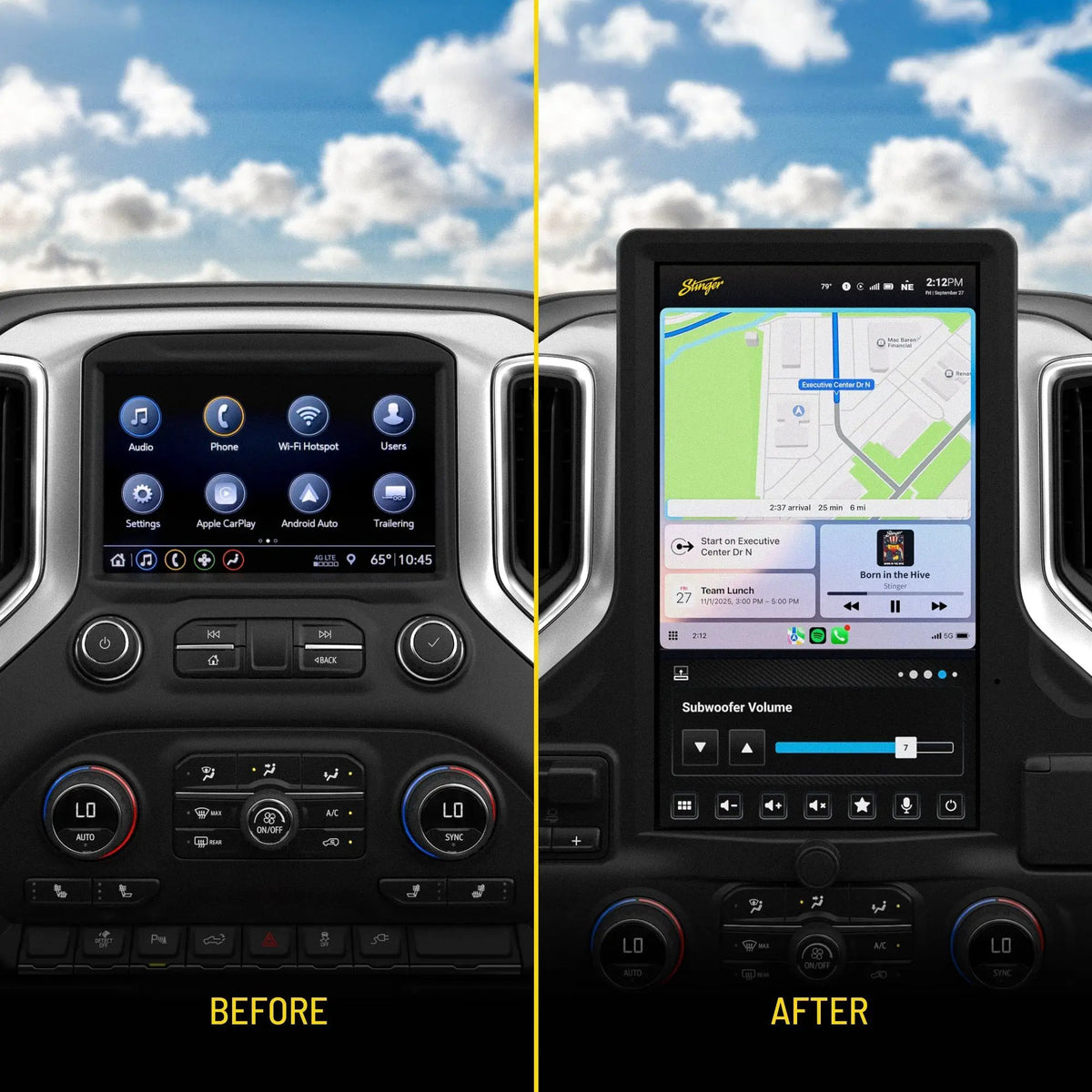

The Stinger HORIZON12 SRX-GM19128 gives compatible Chevrolet Silverado/GMC Sierra vehicles a 12.8-inch touchscreen with wireless Apple CarPlay and Android Auto. This vehicle-specific radio kit combines the receiver with dash integration parts and an interface, rather than leaving you to assemble a universal-radio installation from separate components.
Key Features & Benefits
- Vehicle-specific kit: The supplied dash kit and interface are selected for the applications listed below. Match the exact vehicle and factory equipment before ordering.
- Smartphone connectivity: Use wireless Apple CarPlay or Android Auto, or connect a compatible phone through USB-C for wired operation.
- 12.8-inch touchscreen: The 1920 × 1080 display provides room for navigation, media and compatible vehicle functions.
- Audio adjustment: A 15-band equalizer lets you adjust the system response rather than relying only on bass and treble controls.
- Expandable connections: HDMI, USB and camera inputs allow supported accessories to be integrated. Cameras and optional accessories are not included unless specifically listed.
- Weather-resistant display: The display is rated IP65. That rating does not apply to the radio chassis.
Technical Specifications
| Brand | Stinger |
|---|---|
| Model / SKU | SRX-GM19128 |
| Series | HORIZON12 |
| Product type | Vehicle-specific plug-and-play radio kit |
| Display diagonal | 12.8 inches |
| Display resolution | 1920 × 1080 |
| Mounting style | Flush mount |
| Phone integration | Wireless Apple CarPlay and Android Auto; wired connection through USB-C |
| Audio adjustment | 15-band equalizer |
| Display protection | IP65 display; radio chassis is not IP rated |
| Included components | HORIZON12 iX212 12.8-inch display, radio chassis, GPS antenna and external microphone; Vehicle-specific display plastics with volume knob; mounting hardware; SRK-GM19X-HAR harness; GM6B-SRK interface; PAC-Link module/cable; RPA-SPK chime speaker; RPA-VA1 video adapter; BAA22 AM/FM adapter; SAT-01 satellite adapter; SSUSB6 dual USB extension; iX212 camera, data and AV harnesses. |
Why Choose This Product?

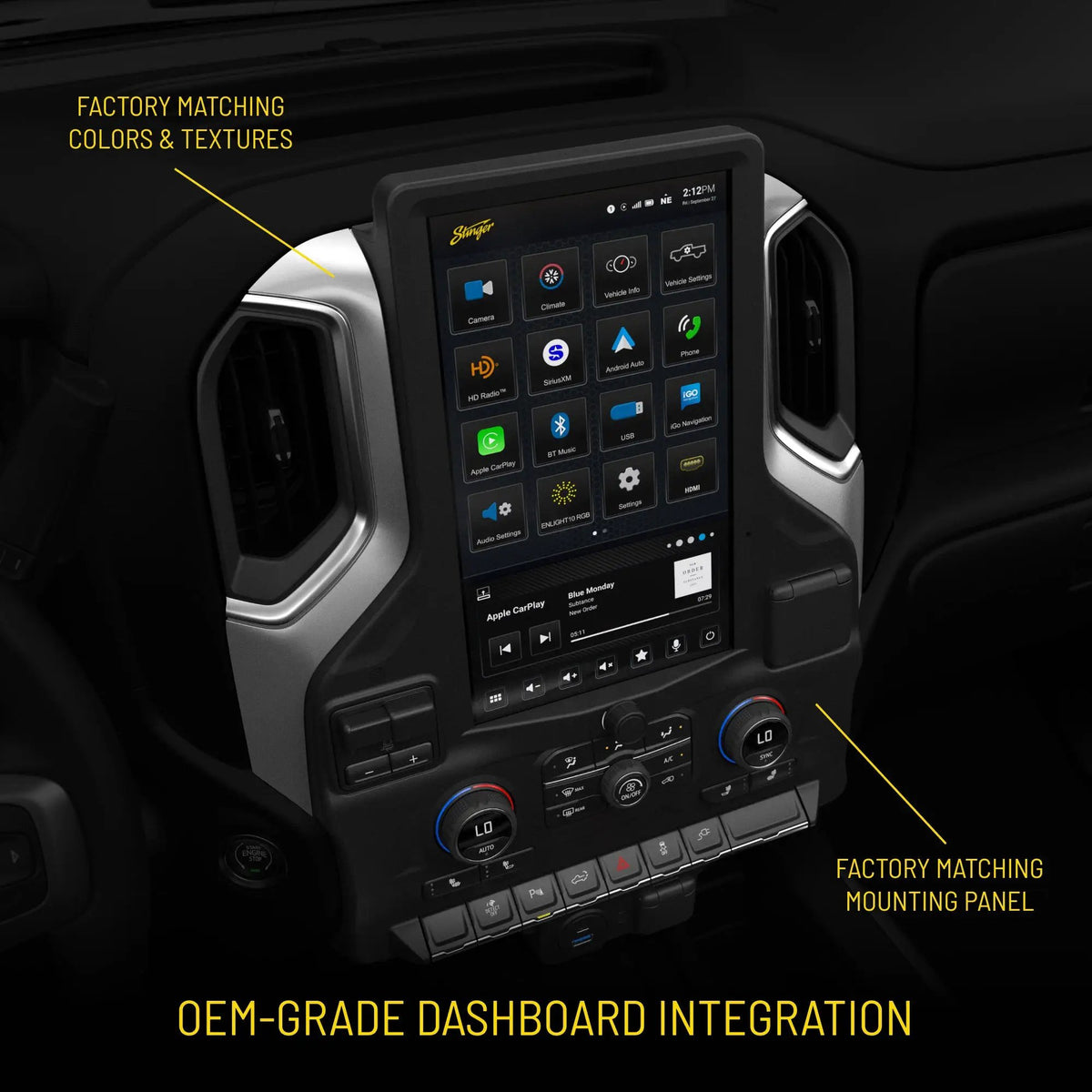

Choose this HORIZON12 kit when you want a larger connected display and the matching installation components for your Chevrolet Silverado/GMC Sierra. The flush-mount layout and vehicle-specific interface make the exact kit selection important: compare the fitment notes, not screen size alone.
Installation & Compatibility Notes
2019–2021 Chevrolet Silverado 1500 and GMC Sierra 1500 2020–2023 Chevrolet Silverado HD and GMC Sierra HD 2022 Chevrolet Silverado LTD and GMC Sierra Limited Plug-and-play describes the supplied vehicle connections, not universal compatibility or a guarantee that every factory function is retained. Dashboard disassembly, installation and setup are still required. RPO radio code IOR only; verify by scanning driver-side door-jamb QR code. Not compatible with Bose-equipped vehicles. Does not retain factory satellite tuner, OnStar, Wi-Fi, cluster time, Valet Mode, or Teen Driver. SiriusXM SXV300 tuner sold separately. Optional iGO offline navigation requires a separately sold navigation card. Use the supplied external microphone rather than assuming the factory microphone can be reused.
Frequently Asked Questions
Which vehicles does the SRX-GM19128 fit?
2019–2021 Chevrolet Silverado 1500 and GMC Sierra 1500 2020–2023 Chevrolet Silverado HD and GMC Sierra HD 2022 Chevrolet Silverado LTD and GMC Sierra Limited
Does it support wireless Apple CarPlay and Android Auto?
Yes. Wired phone integration is also supported through the USB-C connection.
Are navigation maps and satellite radio included?
Optional iGO navigation requires a separately sold card. SiriusXM requires a compatible tuner and subscription, sold separately.
What is included in this radio kit?
HORIZON12 iX212 12.8-inch display, radio chassis, GPS antenna and external microphone; Vehicle-specific display plastics with volume knob; mounting hardware; SRK-GM19X-HAR harness; GM6B-SRK interface; PAC-Link module/cable; RPA-SPK chime speaker; RPA-VA1 video adapter; BAA22 AM/FM adapter; SAT-01 satellite adapter; SSUSB6 dual USB extension; iX212 camera, data and AV harnesses.
