T-Spec V8-AK1 1/0 AWG OFC Amplifier Wiring Kit with RCA
Key features
- 1/0 AWG oxygen-free copper power and ground wiring.
- V8 noise-rejecting twisted RCA cable.
- ANL fuse holder with a 200A fuse.
- Nickel-plated ring-terminal hardware and spade terminals.
T-Spec V8-AK1 1/0 AWG OFC Amplifier Wiring Kit with RCA is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Bring the main wiring components together for your amplifier installation with the T-Spec V8-AK1. This V8 Series kit includes 1/0 AWG OFC power and ground cable, a remote turn-on lead, a V8 twisted-pair RCA cable and an ANL fuse holder with a 200A fuse. It is a coordinated starting point for a custom mobile-audio build.
T-Spec's up-to-3,800-watt specification is a manufacturer system rating, not guaranteed amplifier output or a substitute for cable and fuse sizing.
Why Choose the T-Spec V8-AK1?
Choose this kit when your installation calls for 1/0 AWG primary wiring and its supplied cable lengths suit the vehicle. Power, ground, remote and RCA connections are covered in one package, with terminal hardware and wire ties included. Check the actual amplifier requirements and planned route before choosing the kit.
Key Features
- 1/0 AWG oxygen-free copper power and ground wiring.
- V8 noise-rejecting twisted RCA cable.
- ANL fuse holder with a 200A fuse.
- Nickel-plated ring-terminal hardware and spade terminals.
Specifications
| Brand / series | T-Spec / V8 |
|---|---|
| Model | V8-AK1 |
| Power / ground size | 1/0 AWG OFC |
| Power / ground lengths | 17 feet / 3 feet |
| Remote wire | 17 feet; 18 AWG OFC; blue |
| RCA cable | 17 feet; V8 noise-rejecting twisted cable |
| Fuse holder / included fuse | ANL / 200A |
| Manufacturer system rating | Up to 3,800W; verify installation requirements |
| Manufacturer-listed warranty | 1 year |
Installation & System Planning
Check current demand, cable length, voltage drop and terminal compatibility. Measure the power route and confirm a suitable ground location within 3 feet. Disconnect power, protect metal pass-throughs and secure cables clear of heat and moving parts.
Install fuse protection near the battery and verify the included fuse suits the circuit. Follow amplifier and vehicle instructions; additional vehicle-specific hardware may be needed.

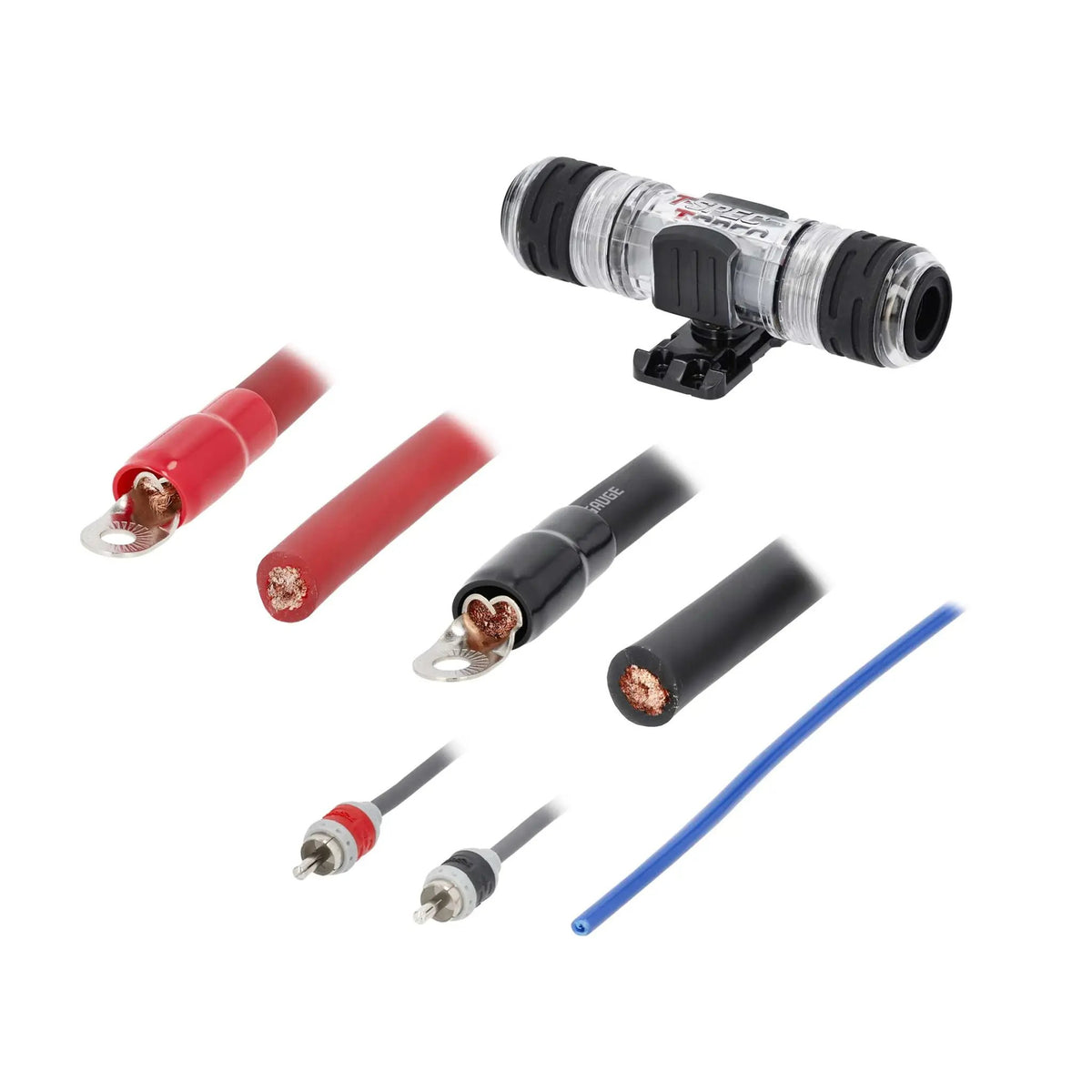

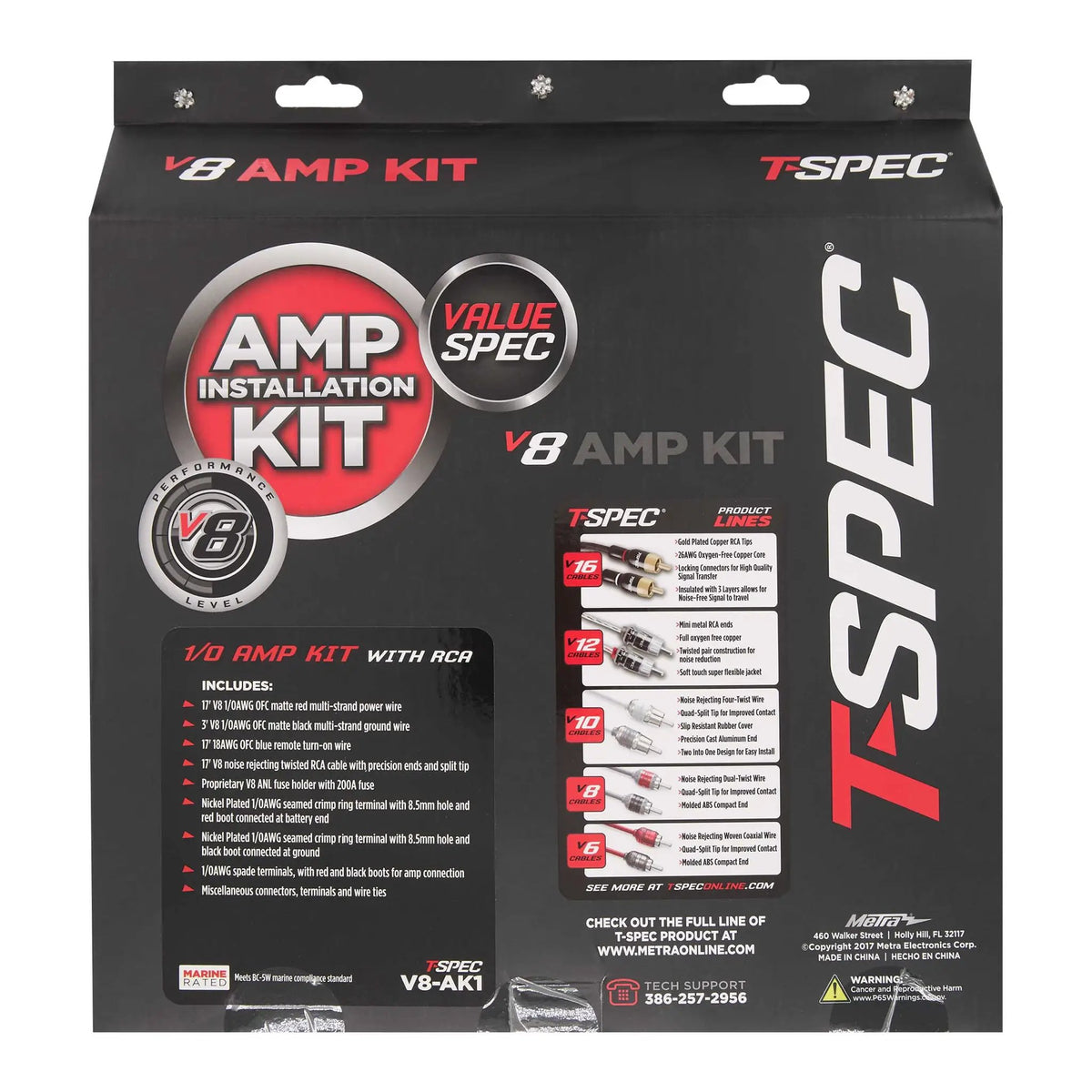

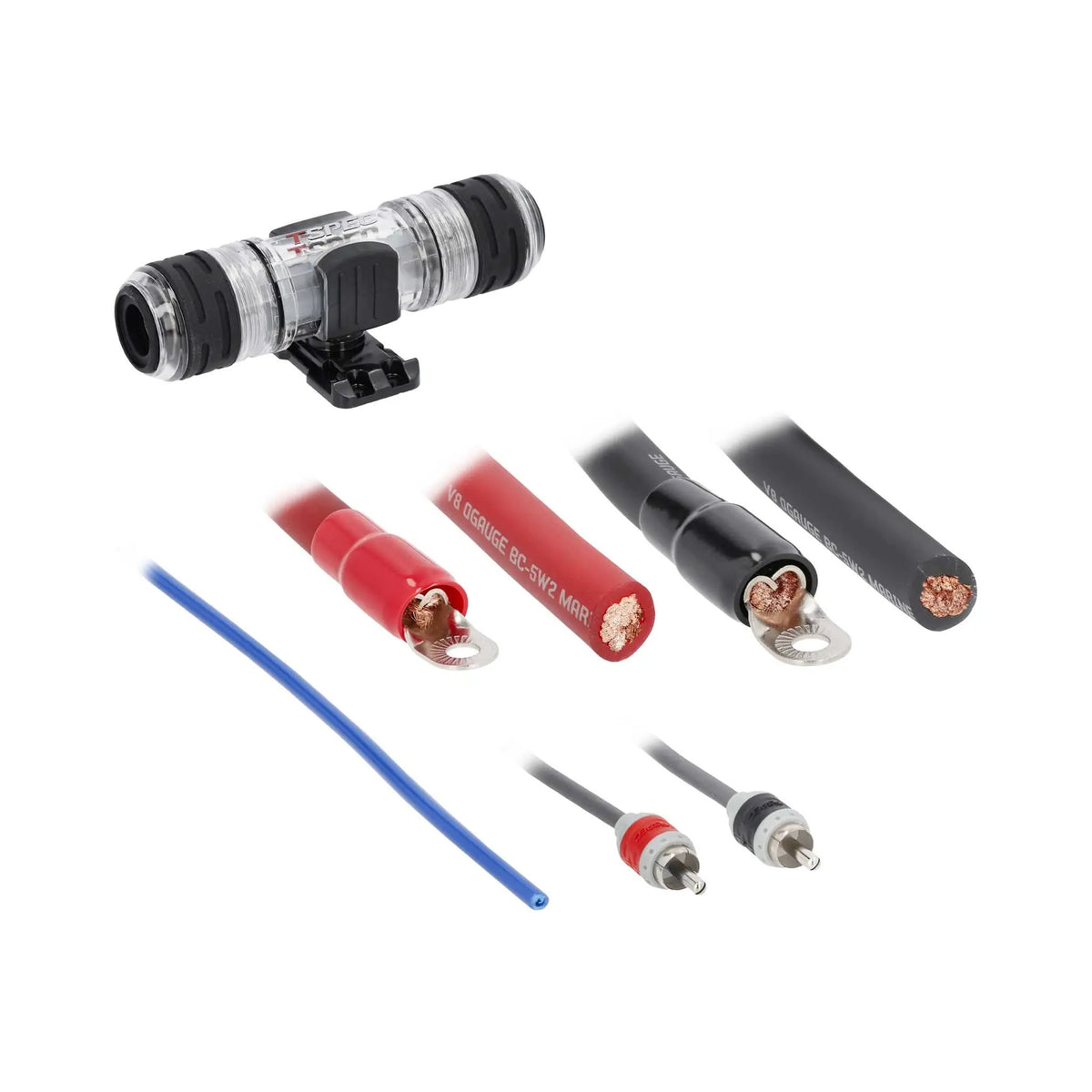

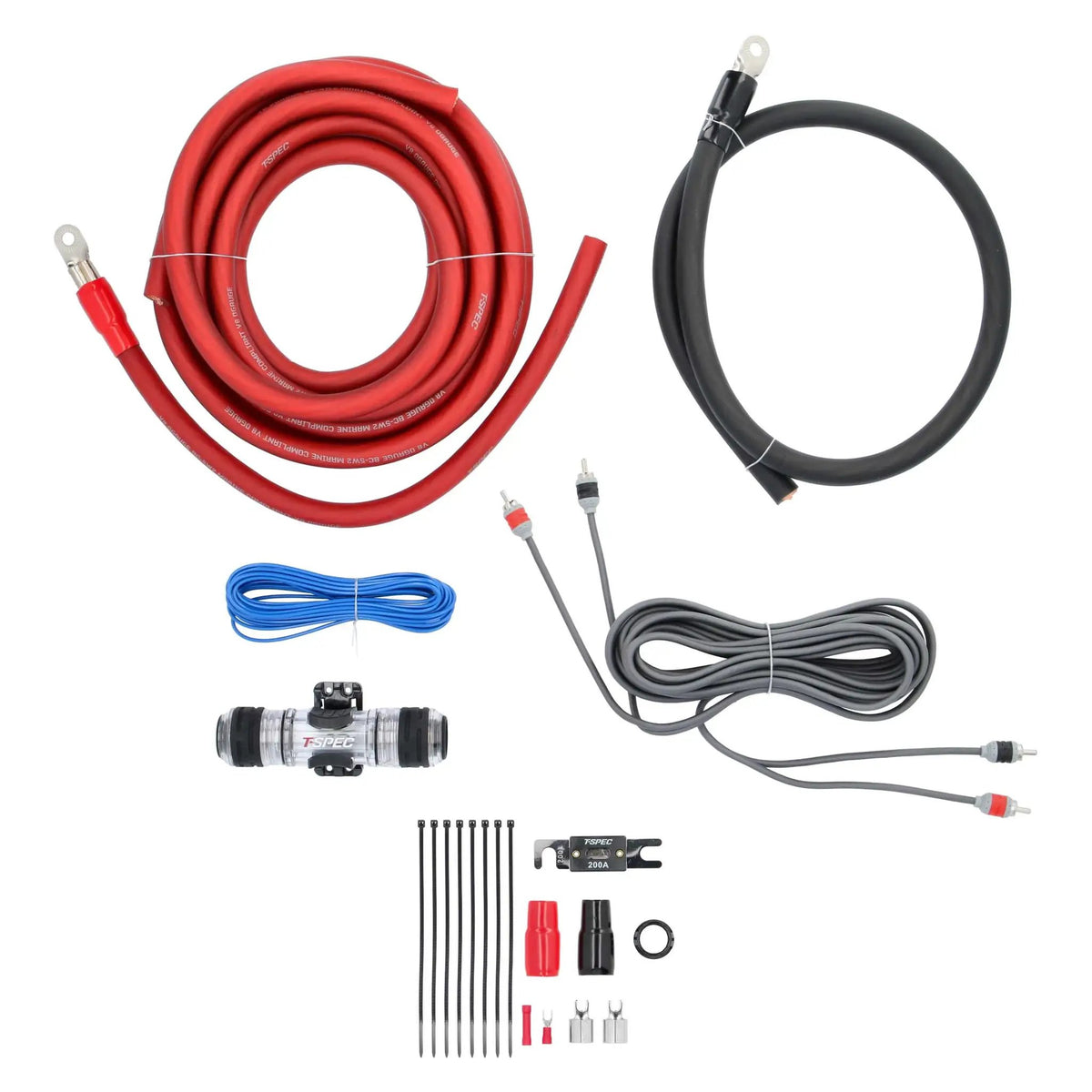

What's Included
- 17-foot V8GT 1/0 AWG OFC red power wire.
- 3-foot V8GT 1/0 AWG OFC black ground wire.
- 17-foot 18 AWG OFC blue remote turn-on wire.
- 17-foot V8 noise-rejecting twisted RCA cable with molded ends and split-tip connectors.

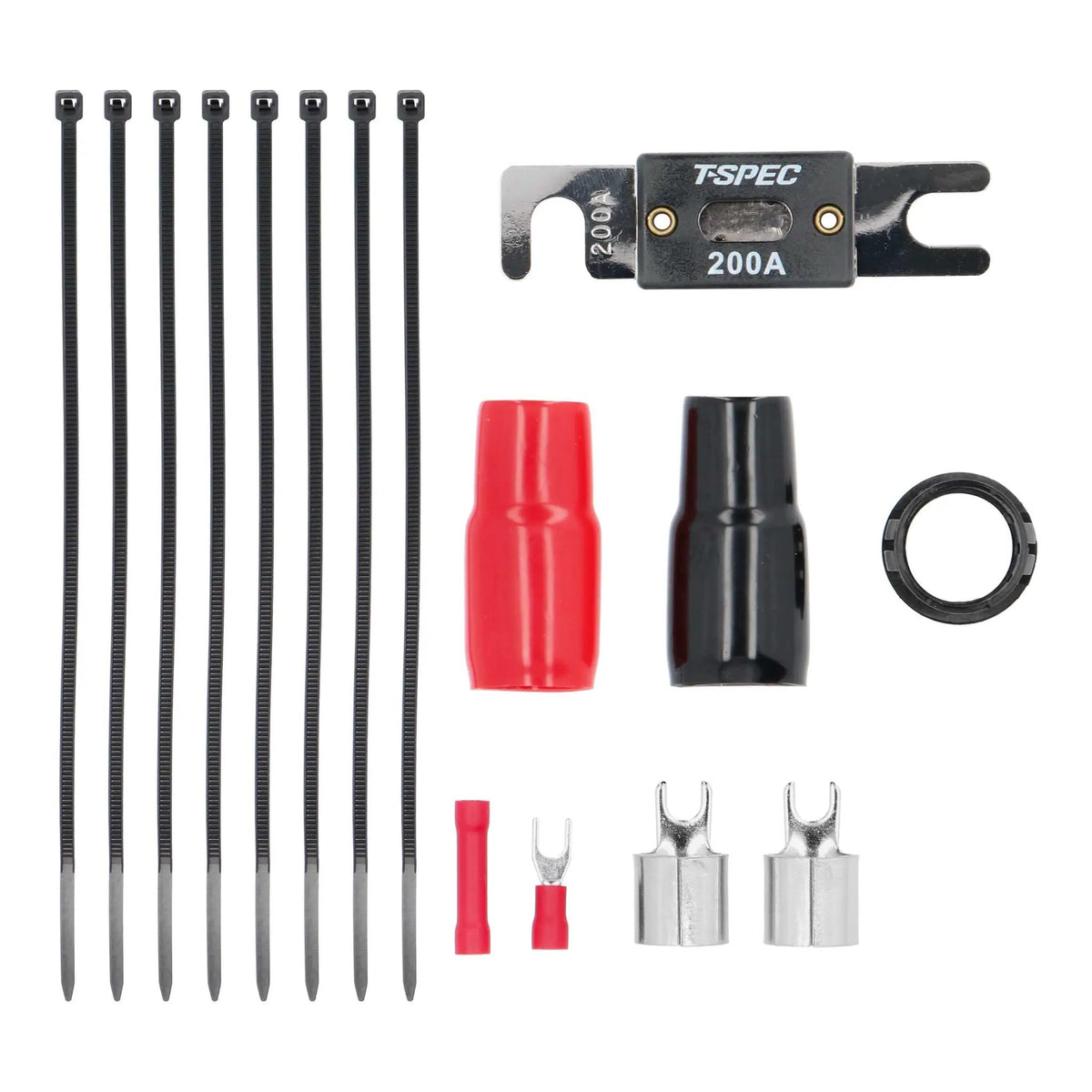

- ANL fuse holder and 200A fuse.
- Nickel-plated 1/0 AWG seamed crimp ring-terminal hardware with protective boots.
- 1/0 AWG spade terminals with protective boots.
- Miscellaneous connectors, terminals and wire ties.
Frequently Asked Questions
What size are the main power and ground cables?
Both are 1/0 AWG OFC. The separate remote turn-on lead is 18 AWG.
Does the kit include an RCA cable?
Yes. A 17-foot V8 noise-rejecting twisted RCA cable is included.
Which fuse comes with this kit?
It includes a 200A fuse and a ANL holder. Verify suitability for your specific circuit.
Does the 3,800W rating guarantee compatibility?
No. It is manufacturer system positioning; actual current demand, wire length and amplifier requirements determine suitability.
Is speaker wire included?
Speaker wire is not listed in the manufacturer's contents. Plan it separately if your installation requires it.
Will this fit every vehicle?
No universal fit is promised. Confirm cable reach, ground location, terminal fit and any vehicle-specific installation needs.
