T-Spec V8-AK8 8 AWG OFC Amplifier Wiring Kit with RCA
Key features
- 8 AWG oxygen-free copper power and ground wiring.
- V8 noise-rejecting twisted RCA cable.
- MINI ANL fuse holder with a 40A fuse.
- Nickel-plated ring-terminal hardware and spade terminals.
T-Spec V8-AK8 8 AWG OFC Amplifier Wiring Kit with RCA is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Start a suitable amplifier installation with the T-Spec V8-AK8, an 8 AWG OFC wiring kit with RCA cable. The package combines red power wire, black ground wire, blue remote turn-on wire, signal cable and a MINI ANL fuse holder with a 40A fuse. Connection terminals and wire ties round out the supplied installation hardware.
T-Spec's up-to-600-watt specification is a manufacturer system rating, not guaranteed amplifier output or a substitute for cable and fuse sizing.
Why Choose the T-Spec V8-AK8?
Choose this kit for a system whose current requirements, routing length and amplifier terminals are compatible with the supplied 8 AWG primary cable. Its packaged power, ground and signal wiring simplifies planning a single-amplifier layout. Measure first, particularly the ground route, because a kit's fixed lengths still need to fit the vehicle.
Key Features
- 8 AWG oxygen-free copper power and ground wiring.
- V8 noise-rejecting twisted RCA cable.
- MINI ANL fuse holder with a 40A fuse.
- Nickel-plated ring-terminal hardware and spade terminals.
Specifications
| Brand / series | T-Spec / V8 |
|---|---|
| Model | V8-AK8 |
| Power / ground size | 8 AWG OFC |
| Power / ground lengths | 17 feet / 3 feet |
| Remote wire | 17 feet; 18 AWG OFC; blue |
| RCA cable | 17 feet; V8 noise-rejecting twisted cable |
| Fuse holder / included fuse | MINI ANL / 40A |
| Manufacturer system rating | Up to 600W; verify installation requirements |
Installation & System Planning
Check current demand, cable length, voltage drop and terminal compatibility. Measure the power route and confirm a suitable ground location within 3 feet. Disconnect power, protect metal pass-throughs and secure cables clear of heat and moving parts.
Install fuse protection near the battery and verify the included fuse suits the circuit. Follow amplifier and vehicle instructions; additional vehicle-specific hardware may be needed.

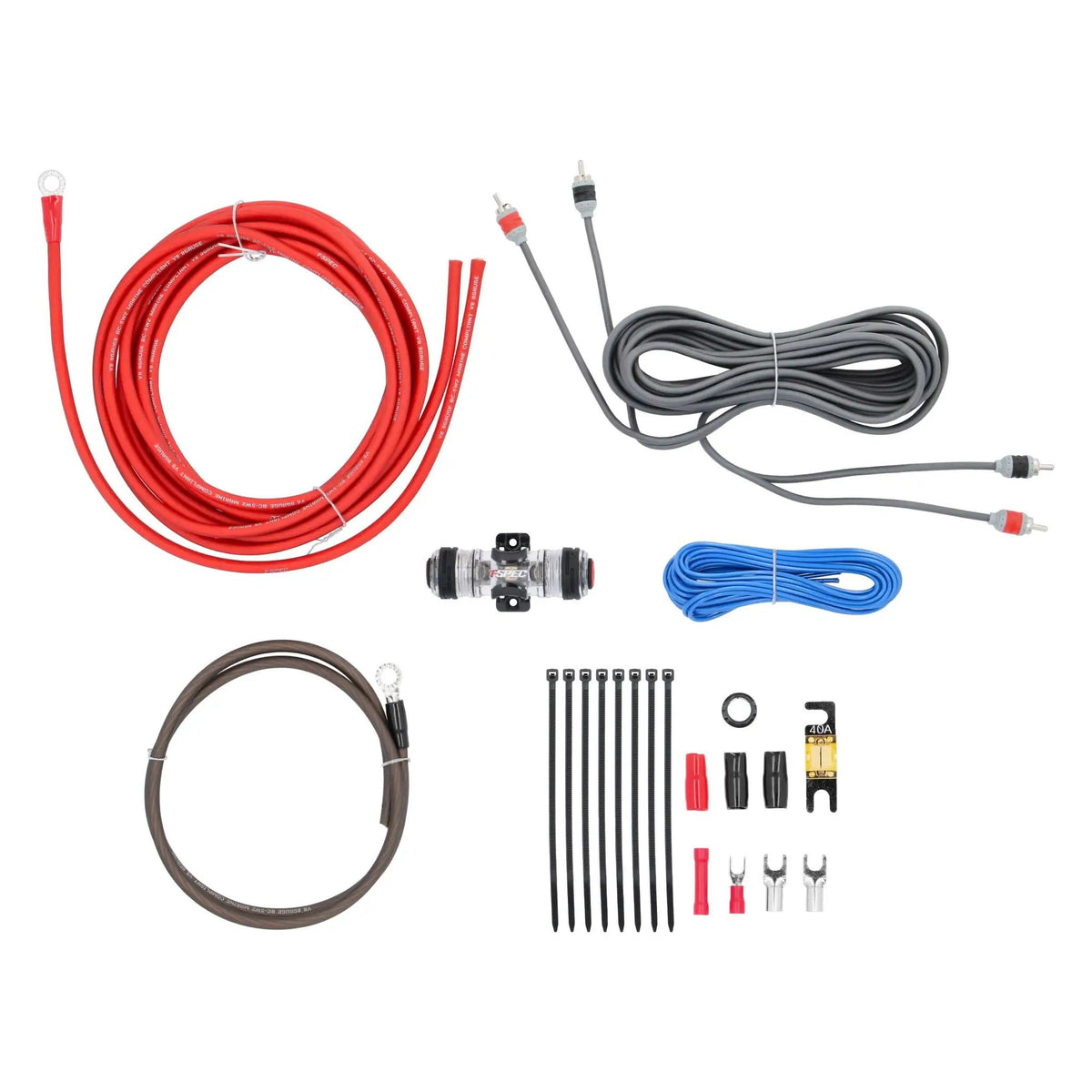

What's Included

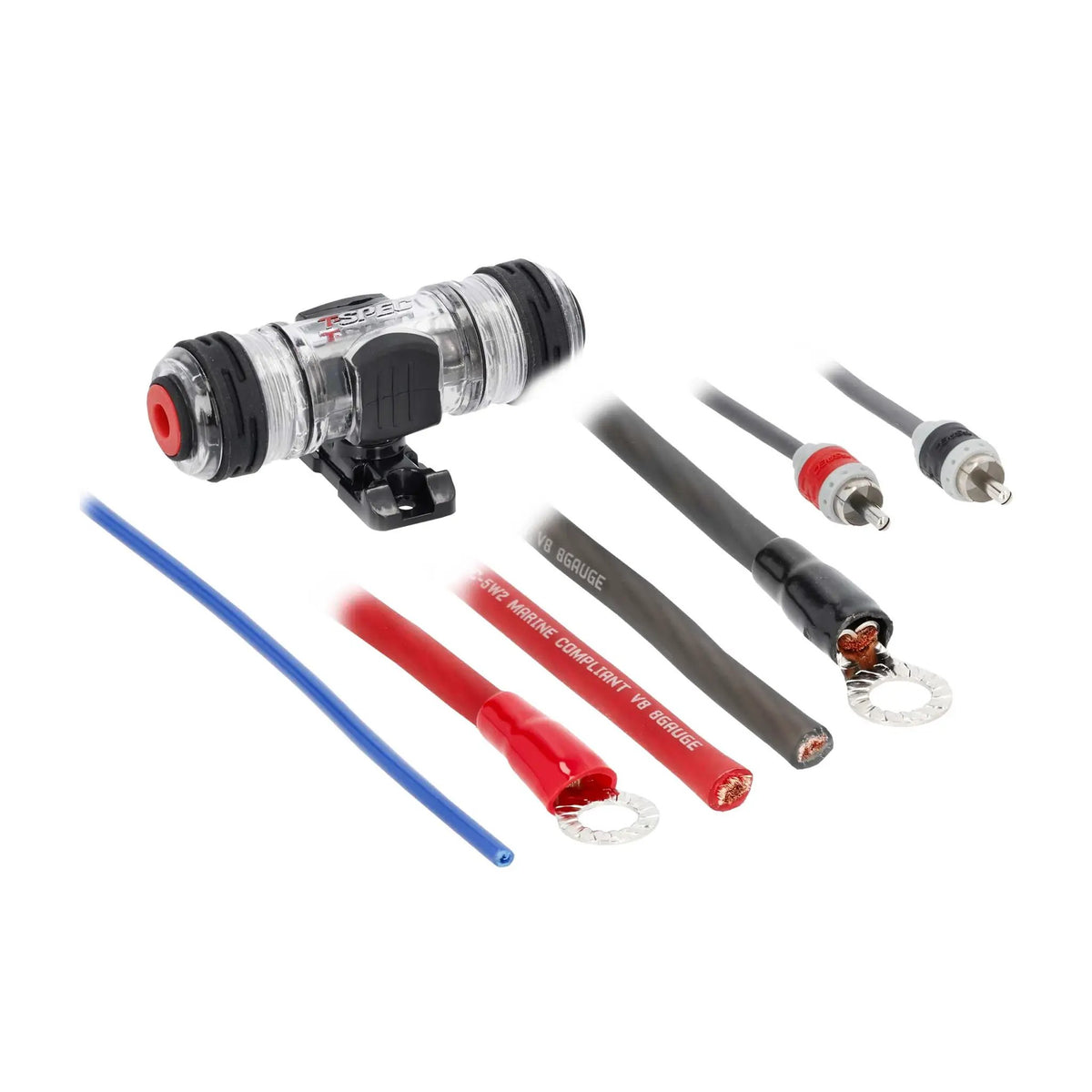

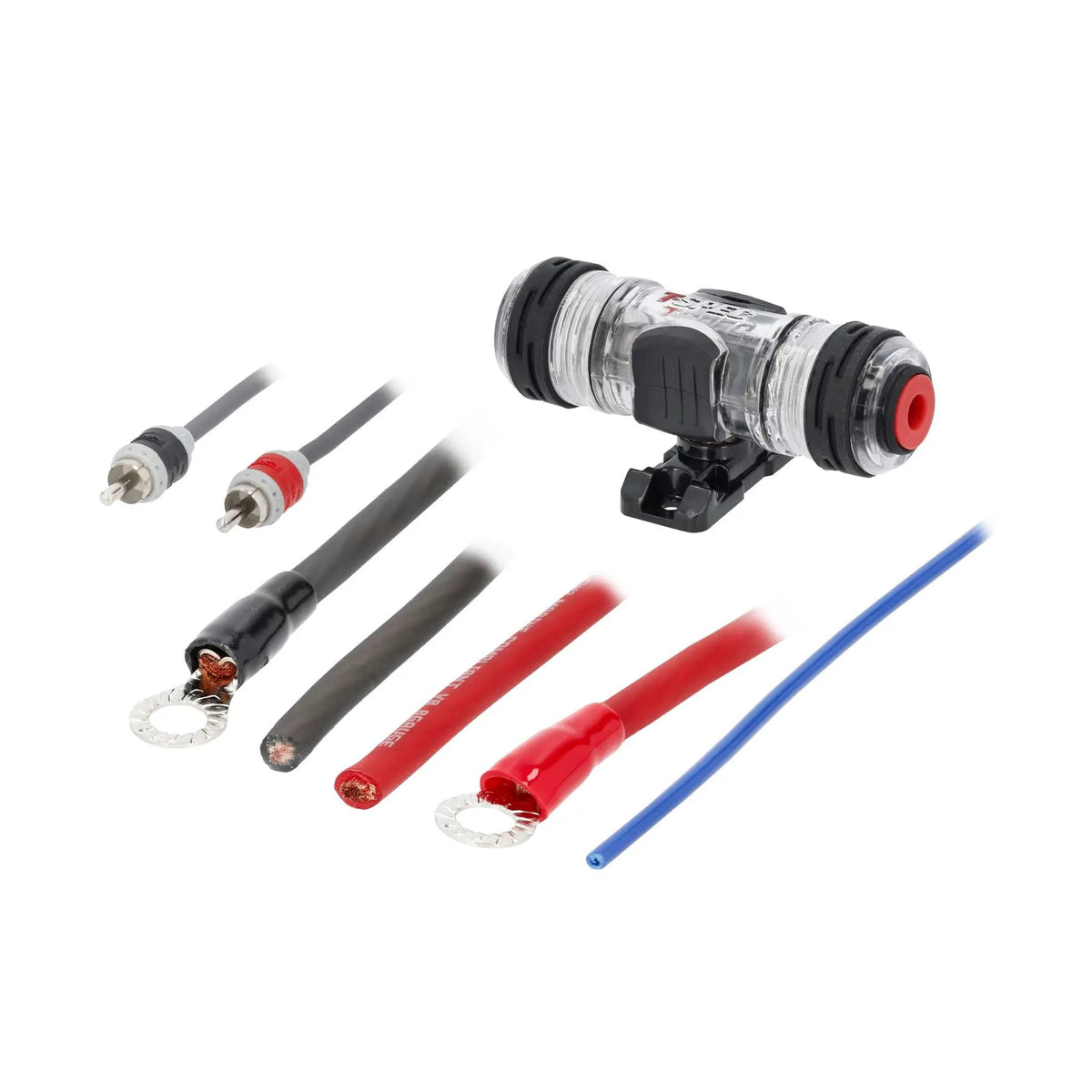

- 17-foot V8GT 8 AWG OFC red power wire.
- 3-foot V8GT 8 AWG OFC black ground wire.
- 17-foot 18 AWG OFC blue remote turn-on wire.
- 17-foot V8 noise-rejecting twisted RCA cable with molded ends and split-tip connectors.

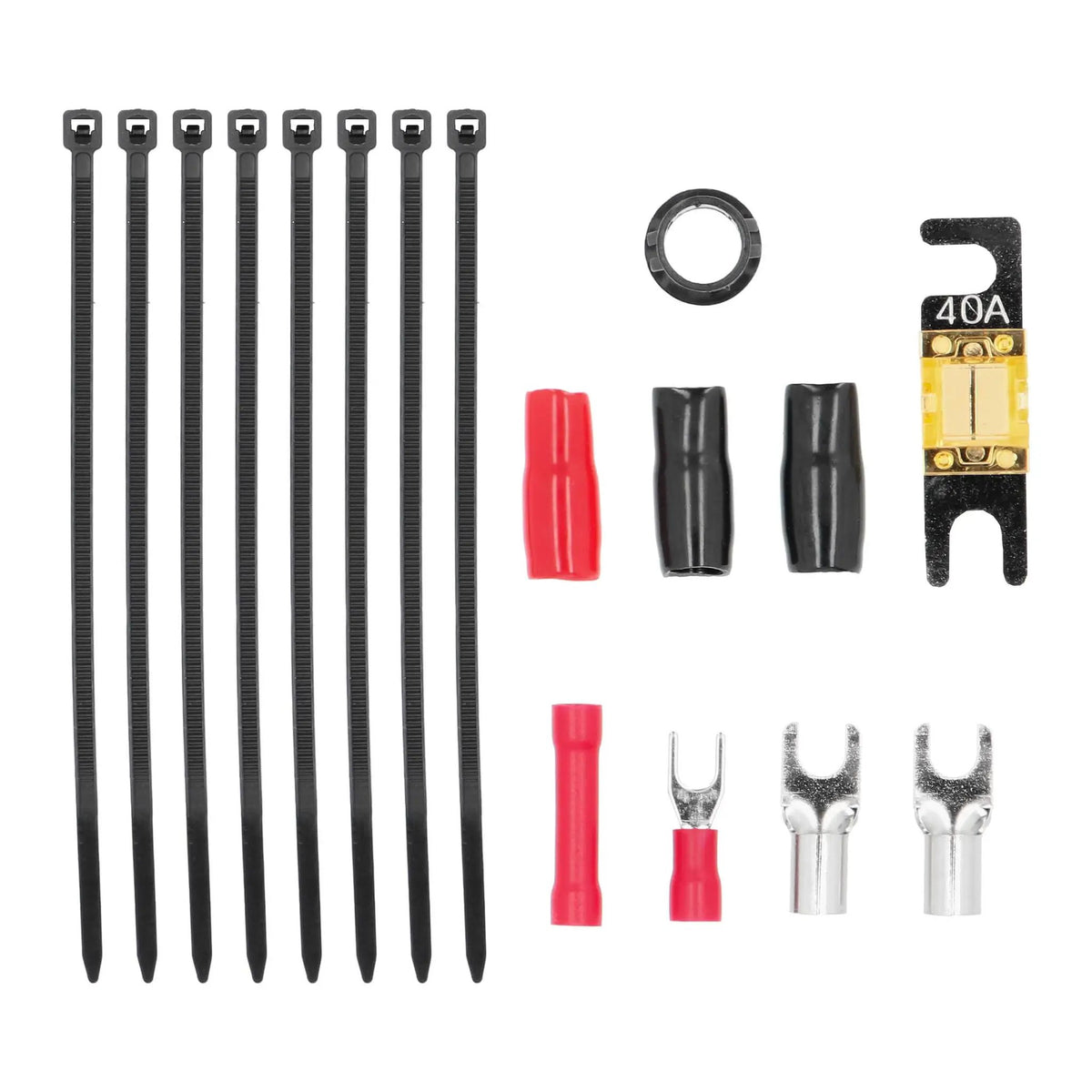

- MINI ANL fuse holder and 40A fuse.
- Nickel-plated 8 AWG seamed crimp ring-terminal hardware with an 8.5 mm hole and silver/black boots.
- 8 AWG spade terminals with protective boots.
- Miscellaneous connectors, terminals and wire ties.
Frequently Asked Questions
What size are the main power and ground cables?
Both are 8 AWG OFC. The separate remote turn-on lead is 18 AWG.
Does the kit include an RCA cable?
Yes. A 17-foot V8 noise-rejecting twisted RCA cable is included.
Which fuse comes with this kit?
It includes a 40A fuse and a MINI ANL holder. Verify suitability for your specific circuit.
Does the 600W rating guarantee compatibility?
No. It is manufacturer system positioning; actual current demand, wire length and amplifier requirements determine suitability.
Is speaker wire included?
Speaker wire is not listed in the manufacturer's contents. Plan it separately if your installation requires it.
Will this fit every vehicle?
No universal fit is promised. Confirm cable reach, ground location, terminal fit and any vehicle-specific installation needs.
