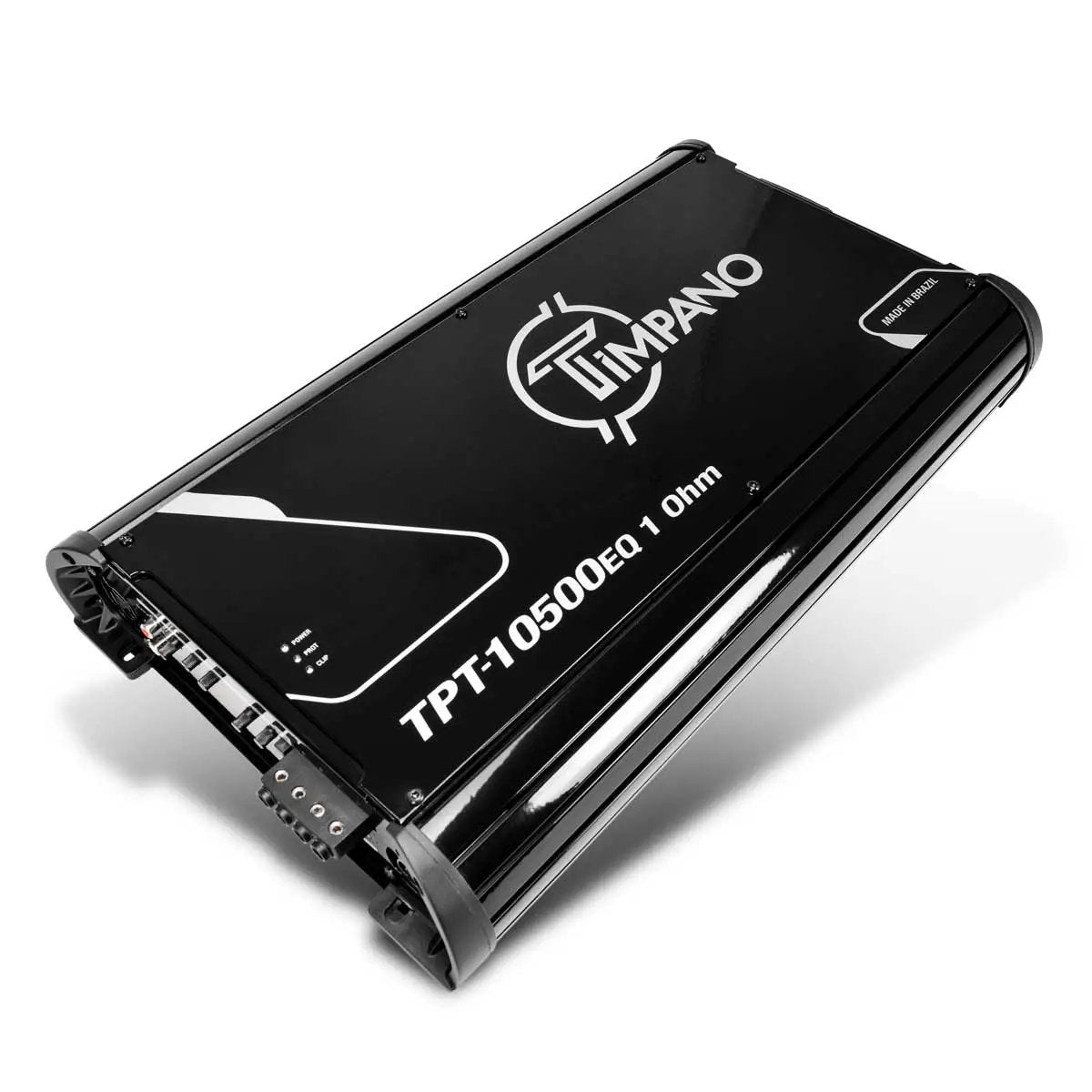

Timpano TPT-10500EQ 1 Ohm Full-Range Monoblock Amplifier
Key features
- 1-ohm minimum load: Match your speaker load to the amplifier’s rating before building your system.
- High RMS output: Published ratings reach 11,600 W × 1 at 1 ohm and 14.4 V.
- Three equalization controls: Adjust bass, midbass, and midhigh tones for your system.
- Variable crossover filters: Set the high-pass and low-pass ranges to suit connected speakers.
- Input level adjustment: Match the amplifier’s input level to the incoming signal source.
Timpano TPT-10500EQ 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-10500EQ 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

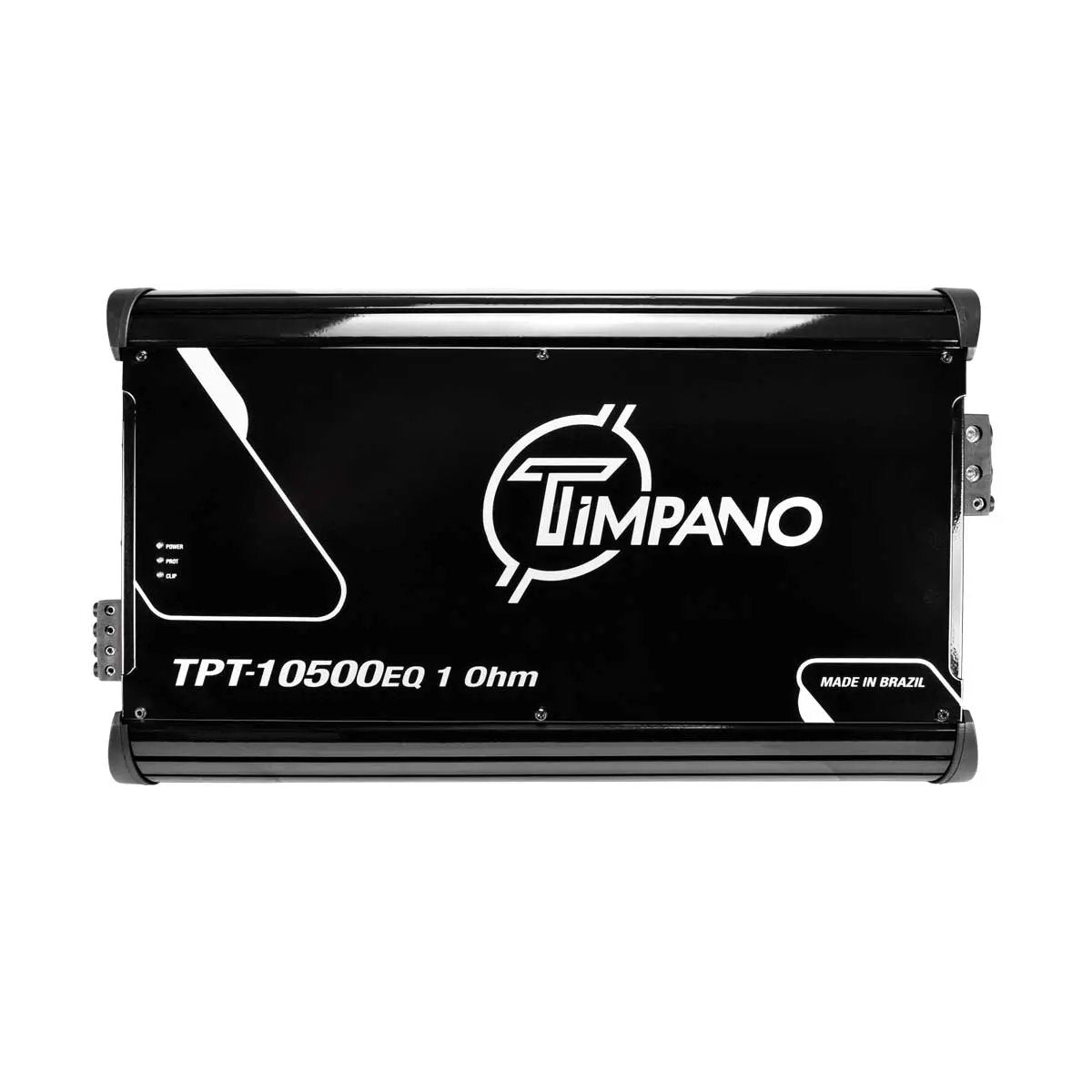

The Timpano TPT-10500EQ 1 Ohm full-range monoblock amplifier gives you one channel with substantial RMS output and onboard equalization. Its variable crossover filters and separate bass, midbass, and midhigh controls let you tune a compatible car audio system to your setup.
Key Features & Benefits
- 1-ohm minimum load: Match your speaker load to the amplifier’s rating before building your system.
- High RMS output: Published ratings reach 11,600 W × 1 at 1 ohm and 14.4 V.
- Three equalization controls: Adjust bass, midbass, and midhigh tones for your system.

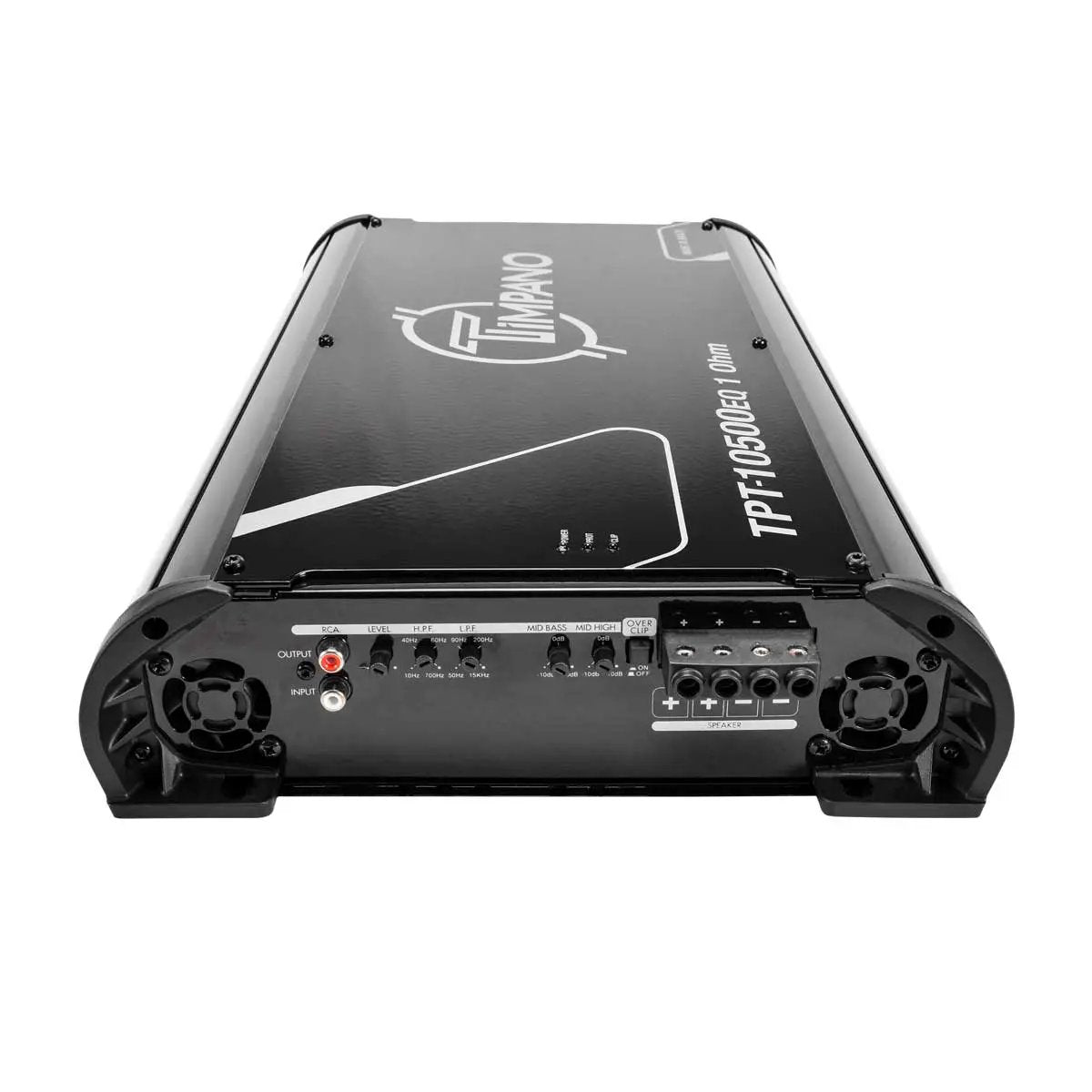

- Variable crossover filters: Set the high-pass and low-pass ranges to suit connected speakers.
- Input level adjustment: Match the amplifier’s input level to the incoming signal source.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |
| RMS power at 14.4 V | 11,600 W × 1 at 1 ohm; 7,300 W × 1 at 2 ohms; 4,800 W × 1 at 4 ohms |
| RMS power at 12.6 V | 10,500 W × 1 at 1 ohm; 6,400 W × 1 at 2 ohms; 3,900 W × 1 at 4 ohms |
| Supply voltage | 9.5–15 V |
| Frequency response | 10 Hz–15 kHz |
| High-pass filter | 10–700 Hz |
| Low-pass filter | 50 Hz–15 kHz |
| Equalization | Bass, midbass and midhigh controls |
| Signal-to-noise ratio | >90 dB |
| Input sensitivity | 0.2 V |
| Input impedance | 25 kilohms |
| Dimensions (manufacturer L × W × H) | 11.57 × 20 × 3 inches |
| Weight | 16.50 lb |
Why Choose This Product?
This full-range monoblock combines specified output ratings at three load impedances with onboard tone and crossover adjustments. You can compare the ratings at 12.6 V and 14.4 V against your system’s planned load and supply conditions.
The 10 Hz–15 kHz frequency response supports system planning across a broad range, while the separate equalization controls give you additional ways to shape the sound.
Installation & Compatibility Notes
This 1-ohm version requires a speaker load of at least 1 ohm. Check the final load and the amplifier’s rated output at that impedance before installation.

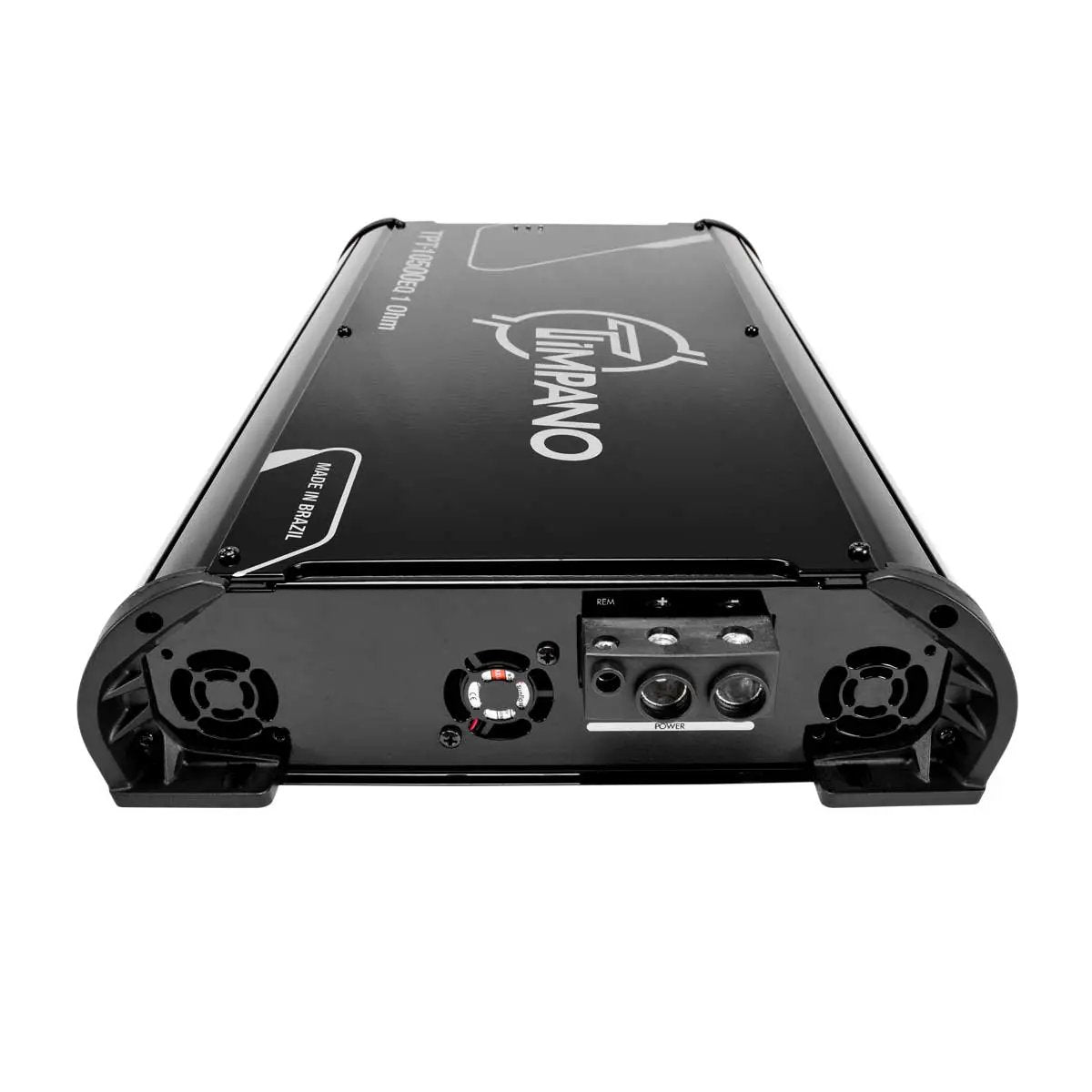

Plan power wiring, protection, ventilation, and the vehicle’s charging system around the amplifier’s electrical demands. Follow the manufacturer’s installation instructions and use a qualified installer. Allow for the 11.57 × 20 × 3 inch dimensions and 16.50 lb weight when planning placement.
Frequently Asked Questions
How do the RMS power ratings vary by load and voltage?
At 14.4 V, ratings are 11,600 W × 1 at 1 ohm, 7,300 W × 1 at 2 ohms, and 4,800 W × 1 at 4 ohms. At 12.6 V, they are 10,500 W × 1 at 1 ohm, 6,400 W × 1 at 2 ohms, and 3,900 W × 1 at 4 ohms.
Can I connect a speaker load below 1 ohm?
No. The listed minimum speaker load is 1 ohm, so match your system to a load at or above that rating.
What crossover ranges can I adjust?
The high-pass filter ranges from 10–700 Hz, and the low-pass filter ranges from 50 Hz–15 kHz.
What should I plan for before installation?
Check the speaker load, available mounting space, and your vehicle’s charging system. Plan wiring, protection, and ventilation for the amplifier’s electrical demands, and follow the manufacturer’s instructions.
