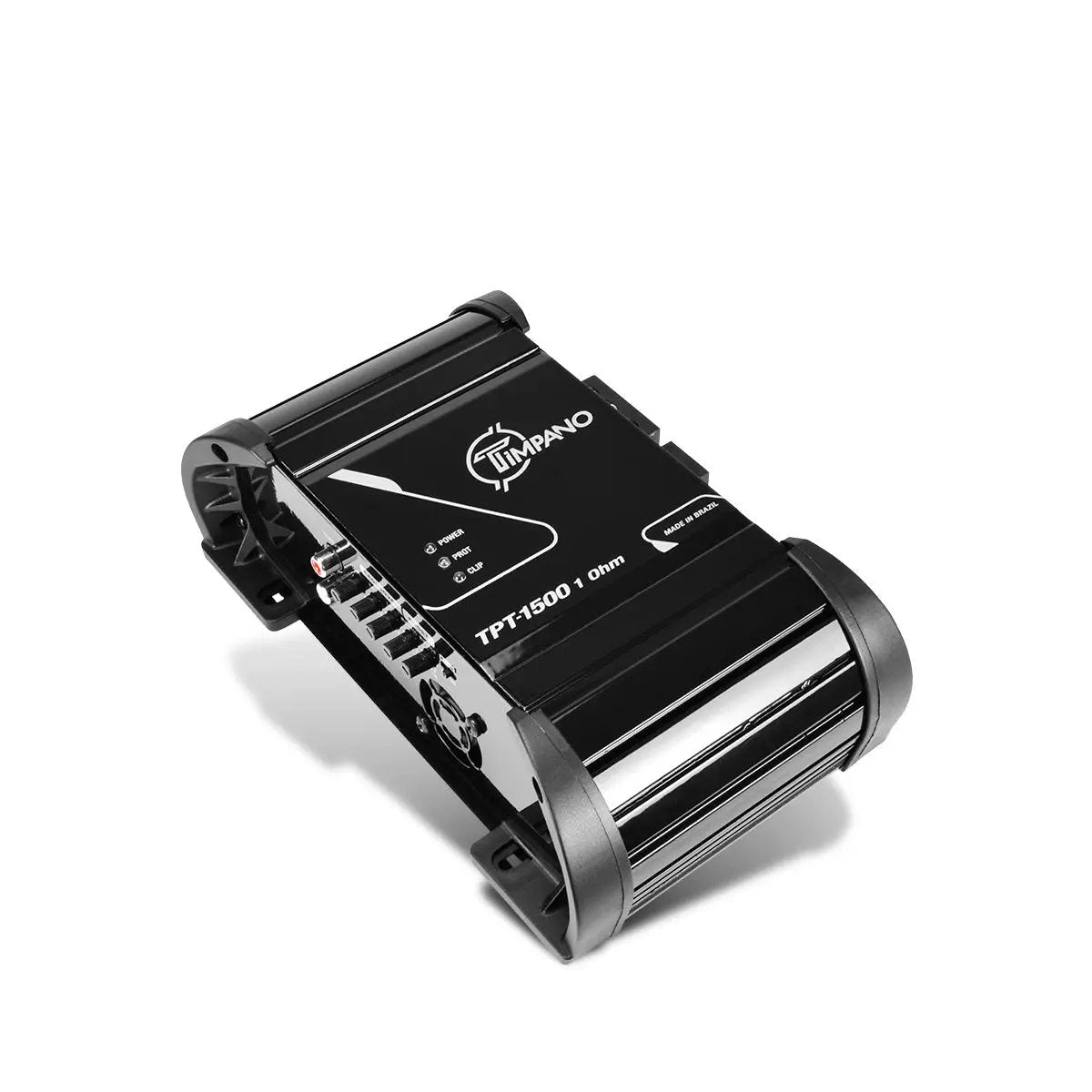

Timpano TPT-1500 1 Ohm Full-Range Monoblock Amplifier
Key features
- Compact footprint: The amplifier measures 9.36 × 5.53 inches, helping with placement in space-conscious installations.
- Full-range response: Its 10 Hz–15 kHz frequency response supports a range of compatible audio applications.
- Adjustable filters: Variable high-pass and low-pass filters help tailor the output to the selected speakers.
- Protection features: Electronic protection monitors overheating and short-circuit conditions.
Timpano TPT-1500 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-1500 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a space-conscious car audio system with the Timpano TPT-1500 1 Ohm full-range monoblock amplifier. Its Class D design, adjustable crossover filters, and single-channel output support compatible speaker or subwoofer applications.
Key Features & Benefits
- Compact footprint: The amplifier measures 9.36 × 5.53 inches, helping with placement in space-conscious installations.
- Full-range response: Its 10 Hz–15 kHz frequency response supports a range of compatible audio applications.

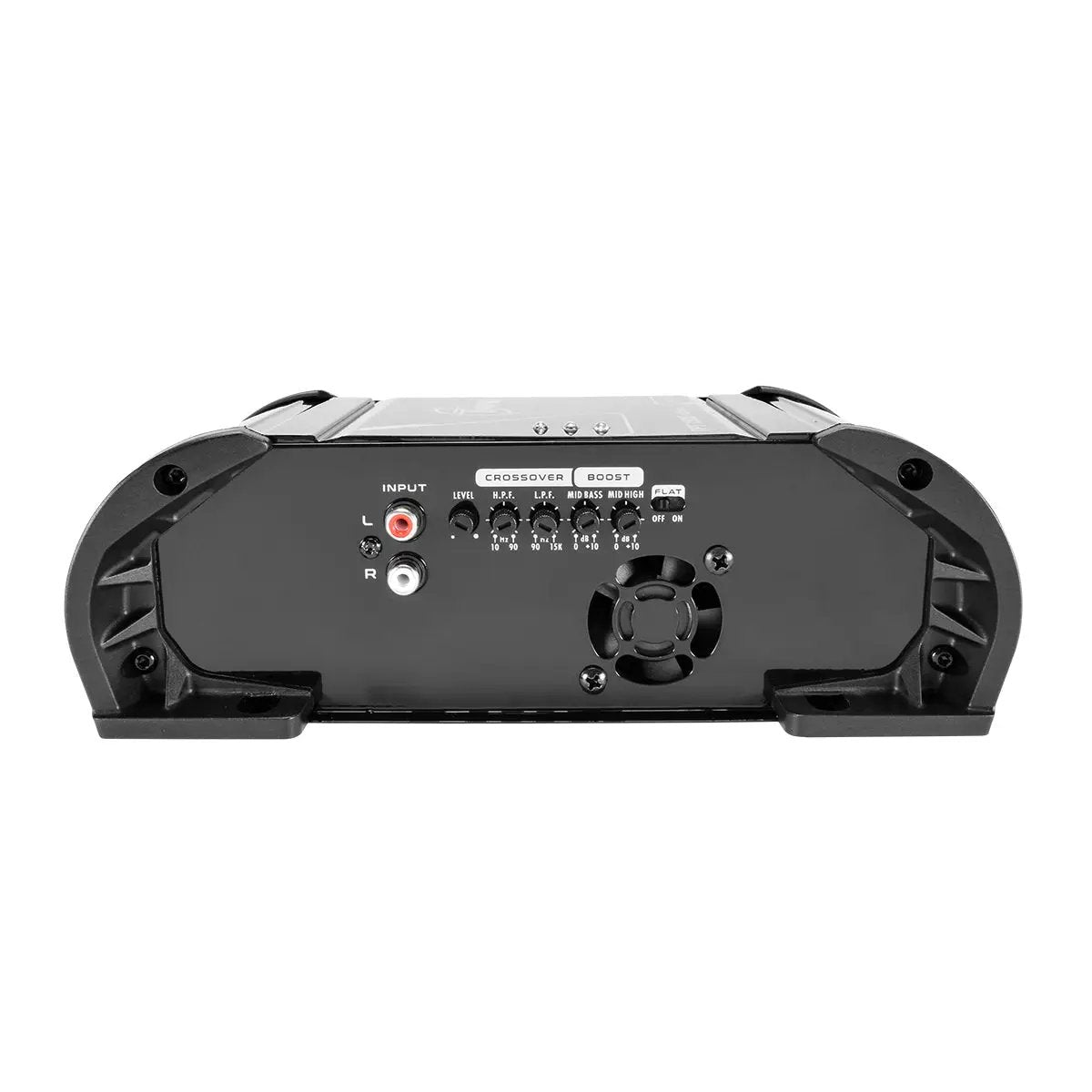

- Adjustable filters: Variable high-pass and low-pass filters help tailor the output to the selected speakers.
- Protection features: Electronic protection monitors overheating and short-circuit conditions.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |

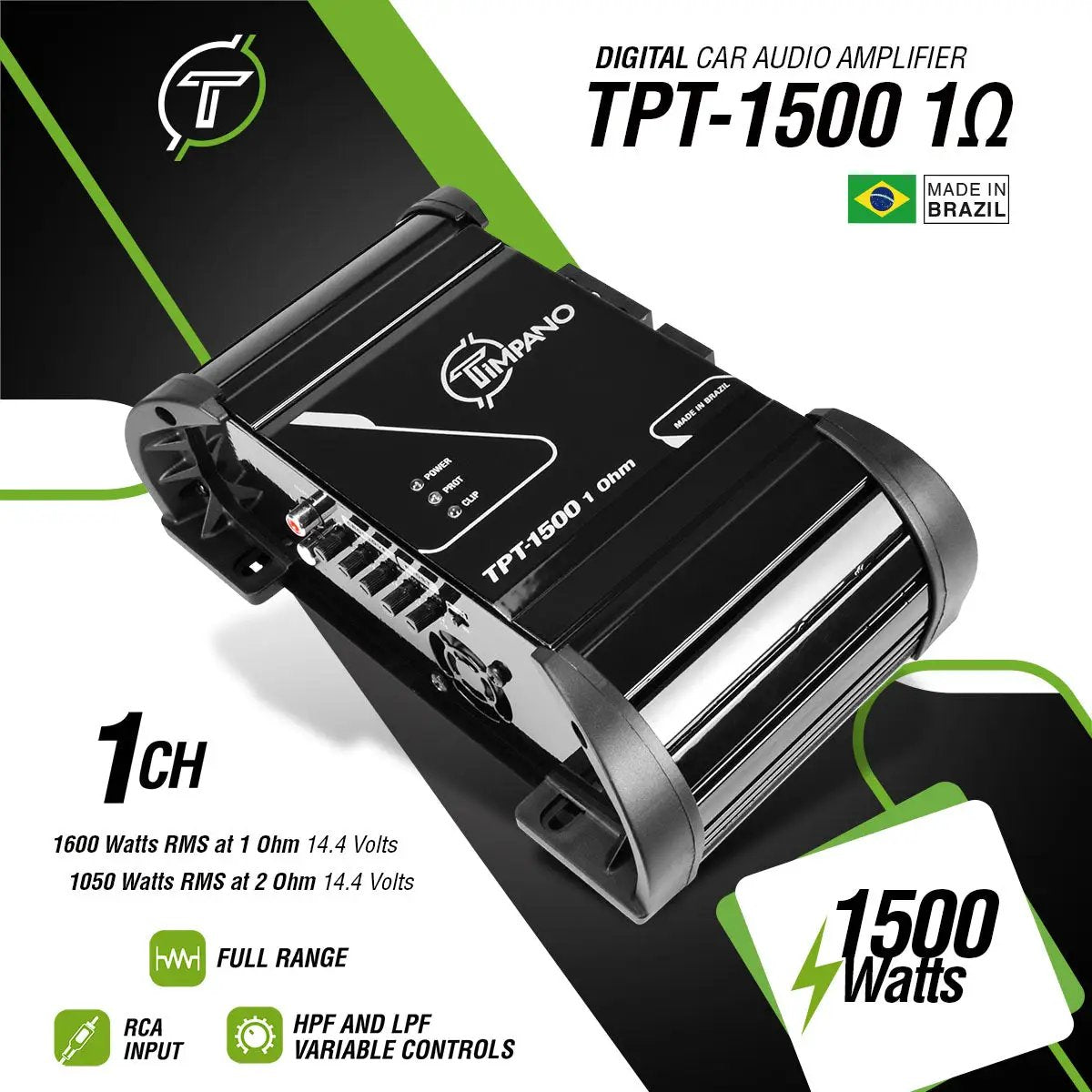

| RMS power at 14.4 V | 1,600 W × 1 at 1 ohm; 1,050 W × 1 at 2 ohms |
| RMS power at 12.6 V | 1,250 W × 1 at 1 ohm; 750 W × 1 at 2 ohms |
| Supply voltage | 9–15 V |
| Frequency response | 10 Hz–15 kHz |
| High-pass filter | 10–90 Hz |
| Low-pass filter | 90 Hz–15 kHz |
| Signal-to-noise ratio | >90 dB |

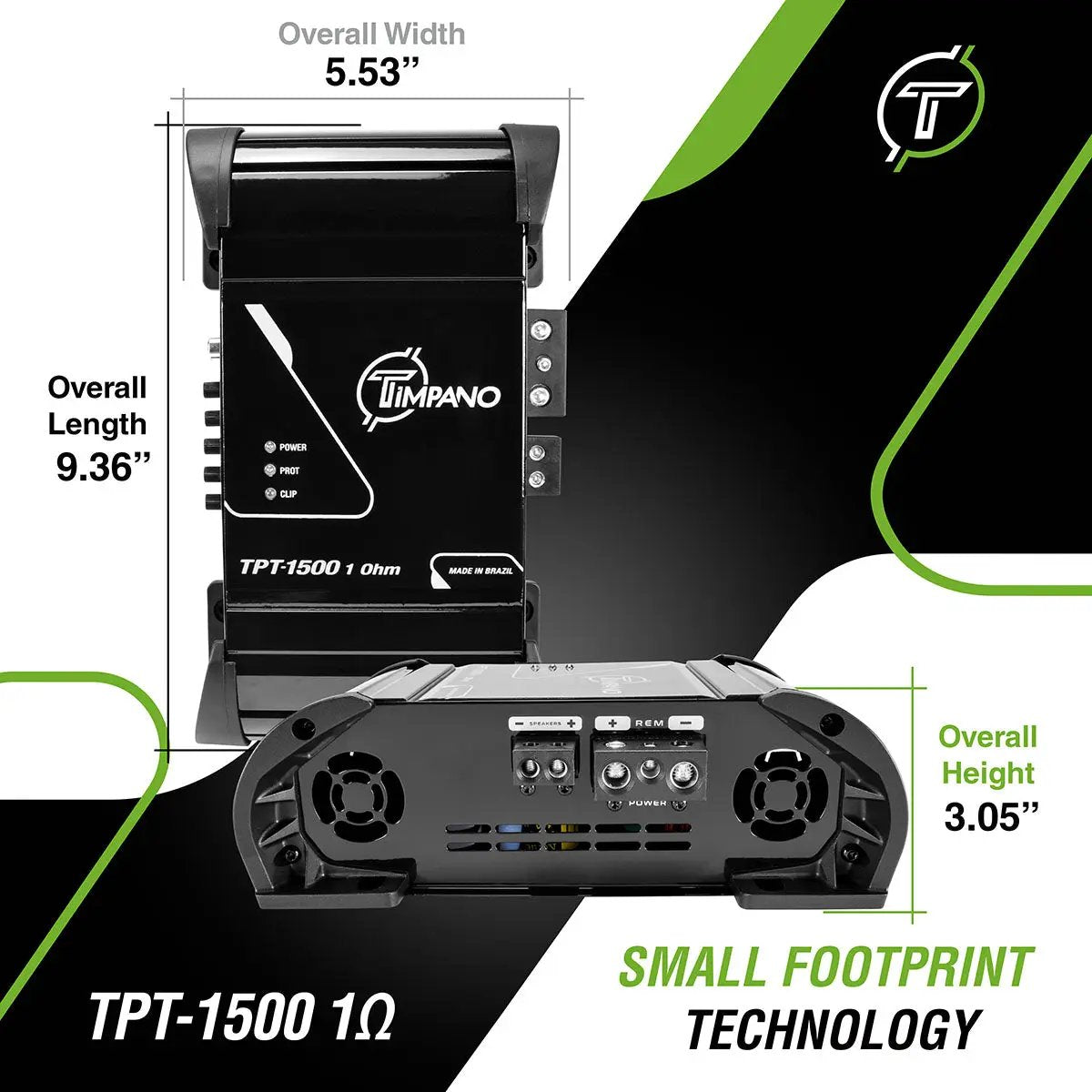

| Dimensions (manufacturer L × W × H) | 9.36 × 5.53 × 3.05 inches |
| Weight | 3.62 lb |
Why Choose This Product?
The TPT-1500 combines a compact footprint with adjustable filtering, giving you useful system-matching options in a single-channel amplifier. Its power ratings specify both supply voltage and speaker load, so you can compare output figures against your planned setup.
Installation & Compatibility Notes
Match the speaker wiring to the amplifier’s 1-ohm minimum rated load. Size the vehicle’s electrical system for the intended installation, and follow the manufacturer’s instructions for power wiring, fusing, ventilation, and setup.
Allow for the full 9.36 × 5.53 × 3.05-inch dimensions when planning placement. Output ratings vary with supply voltage and load impedance.
Frequently Asked Questions
What RMS power does the TPT-1500 produce?
At 14.4 V, it is rated at 1,600 W × 1 at 1 ohm and 1,050 W × 1 at 2 ohms. At 12.6 V, the ratings are 1,250 W × 1 at 1 ohm and 750 W × 1 at 2 ohms.
What is the minimum speaker load?
The minimum rated speaker load is 1 ohm. Match your speaker wiring to this limit.
Can I use it with speakers or a subwoofer?
Its full-range design and adjustable high-pass and low-pass filters support compatible speaker or subwoofer applications. Match the load and filter settings to your system.
What should I plan for during installation?
Check the amplifier’s dimensions and plan the vehicle electrical system for the intended installation. Follow the manufacturer’s instructions for wiring, fusing, ventilation, and setup.
