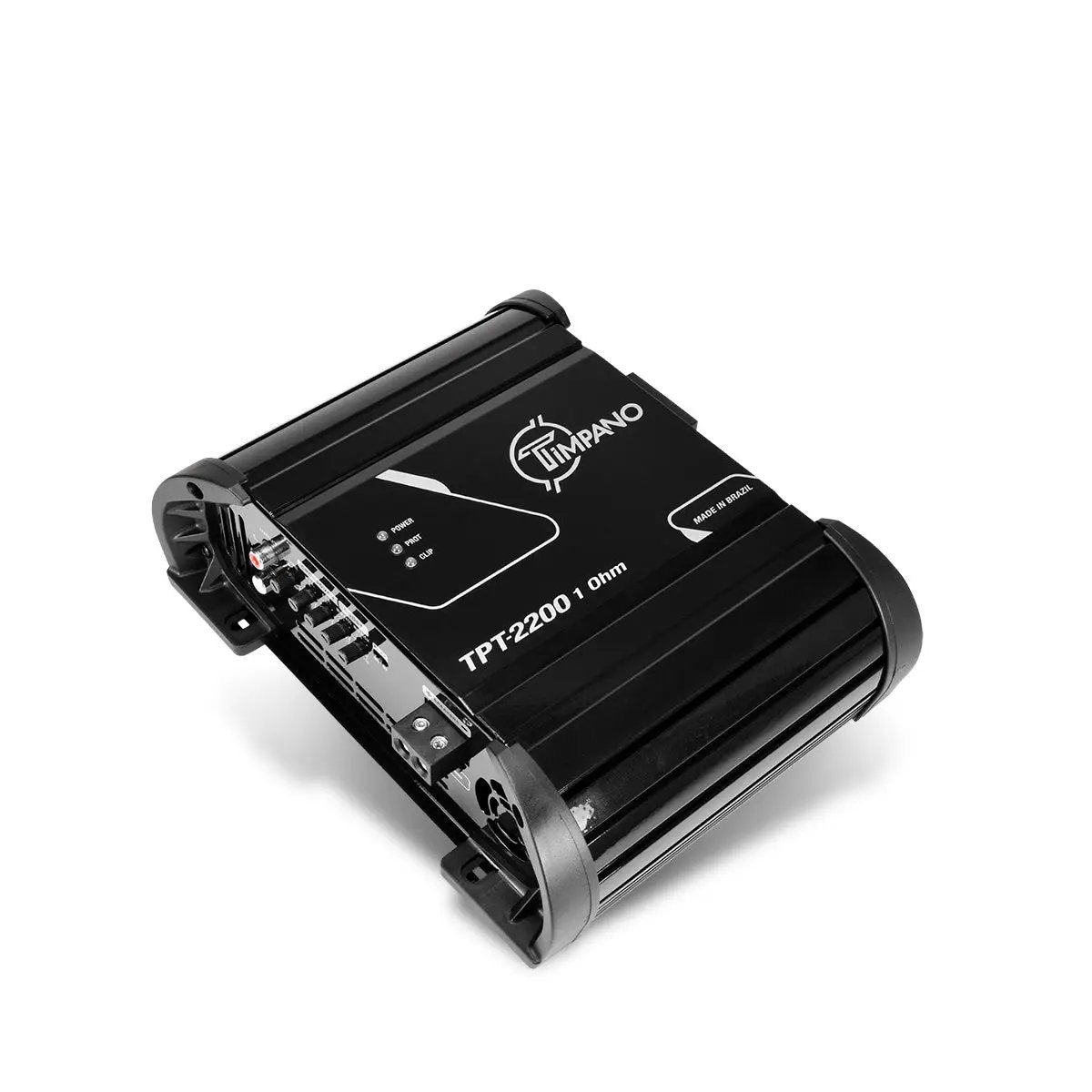

Timpano TPT-2200 1 Ohm Full-Range Monoblock Amplifier
Key features
- Full-range output: Use the single-channel amplifier with a suitable speaker or subwoofer setup.
- Variable crossover controls: Adjust the high-pass and low-pass filters to suit the connected speakers.
- Two rated loads: Compare the listed RMS output at 1 ohm and 2 ohms.
- Protection features: Thermal and short-circuit protection are included in the design.
- Heavy-duty terminals: Speaker and power terminals support secure connections during installation.
Timpano TPT-2200 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-2200 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Timpano TPT-2200 1 Ohm full-range monoblock amplifier gives your car audio system one powerful channel for suitable speakers or subwoofers. Its Class D design, adjustable high-pass and low-pass filters, and 10 Hz–22 kHz frequency response support more than bass-only use.
Key Features & Benefits
- Full-range output: Use the single-channel amplifier with a suitable speaker or subwoofer setup.

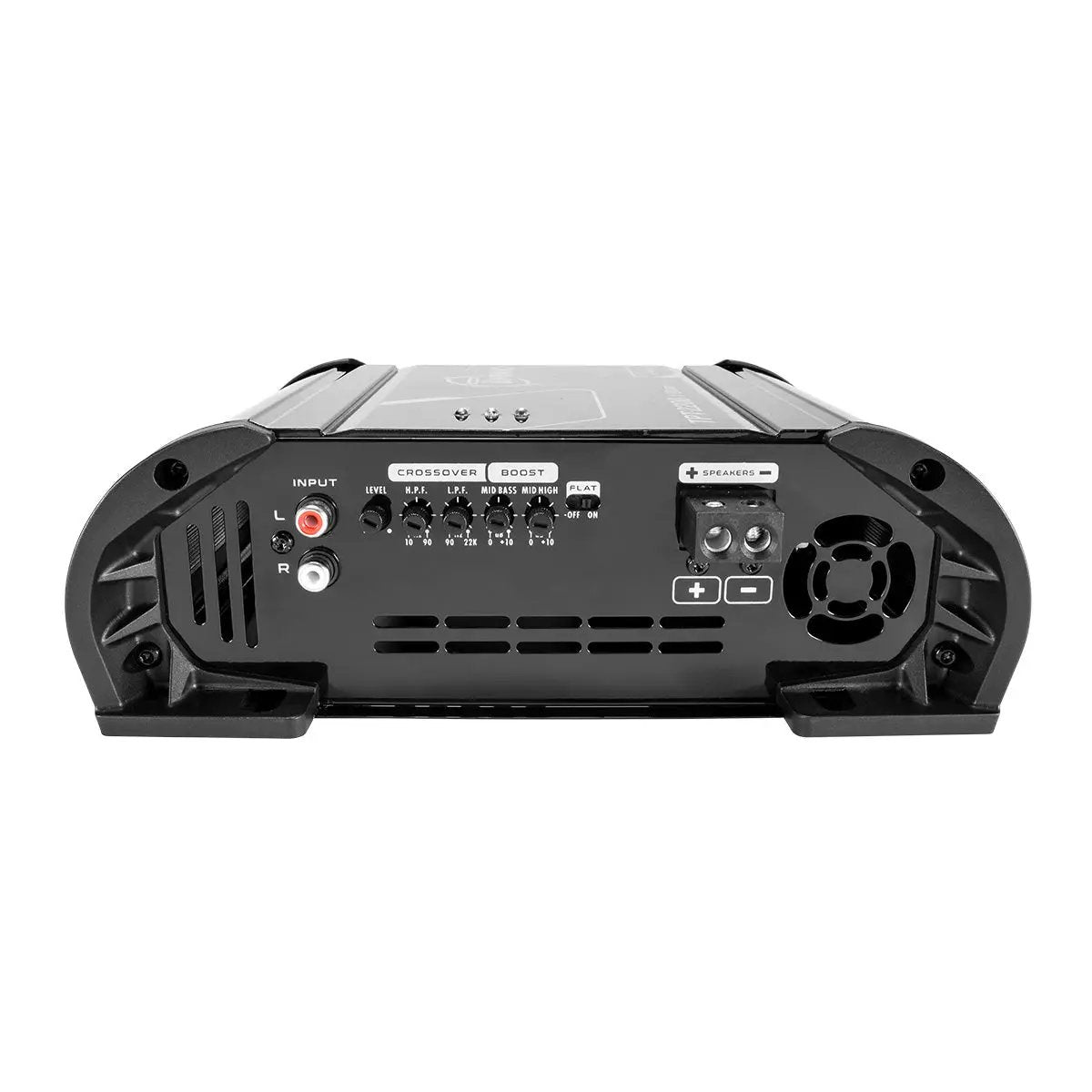

- Variable crossover controls: Adjust the high-pass and low-pass filters to suit the connected speakers.
- Two rated loads: Compare the listed RMS output at 1 ohm and 2 ohms.
- Protection features: Thermal and short-circuit protection are included in the design.

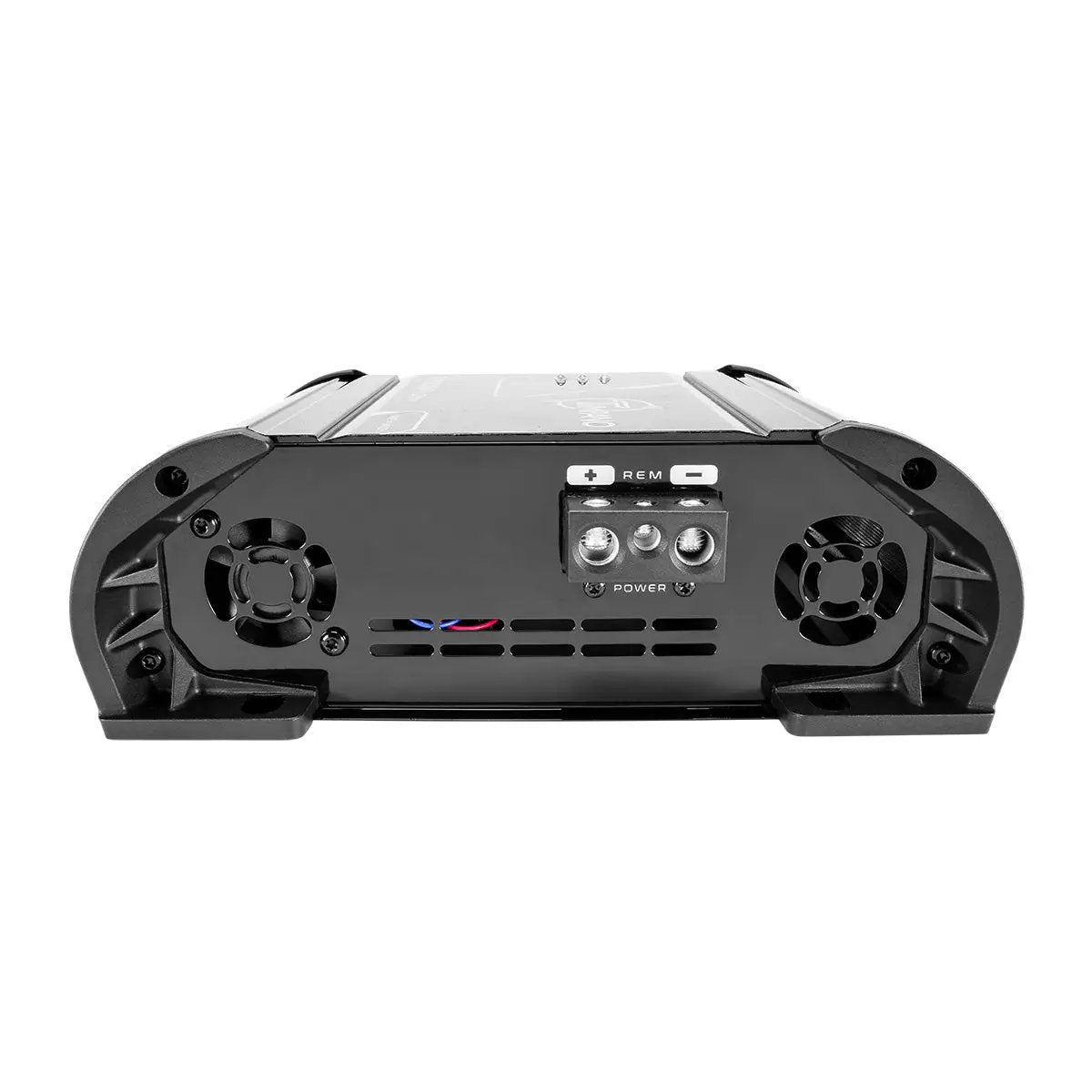

- Heavy-duty terminals: Speaker and power terminals support secure connections during installation.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |
| RMS power at 14.4 V | 2,600 W × 1 at 1 ohm; 1,720 W × 1 at 2 ohms |
| RMS power at 12.6 V | 2,015 W × 1 at 1 ohm; 1,330 W × 1 at 2 ohms |
| Supply voltage | 9–16 V |
| Frequency response | 10 Hz–22 kHz |
| High-pass filter | 10–90 Hz |
| Low-pass filter | 90 Hz–22 kHz |
| Signal-to-noise ratio | >90 dB |

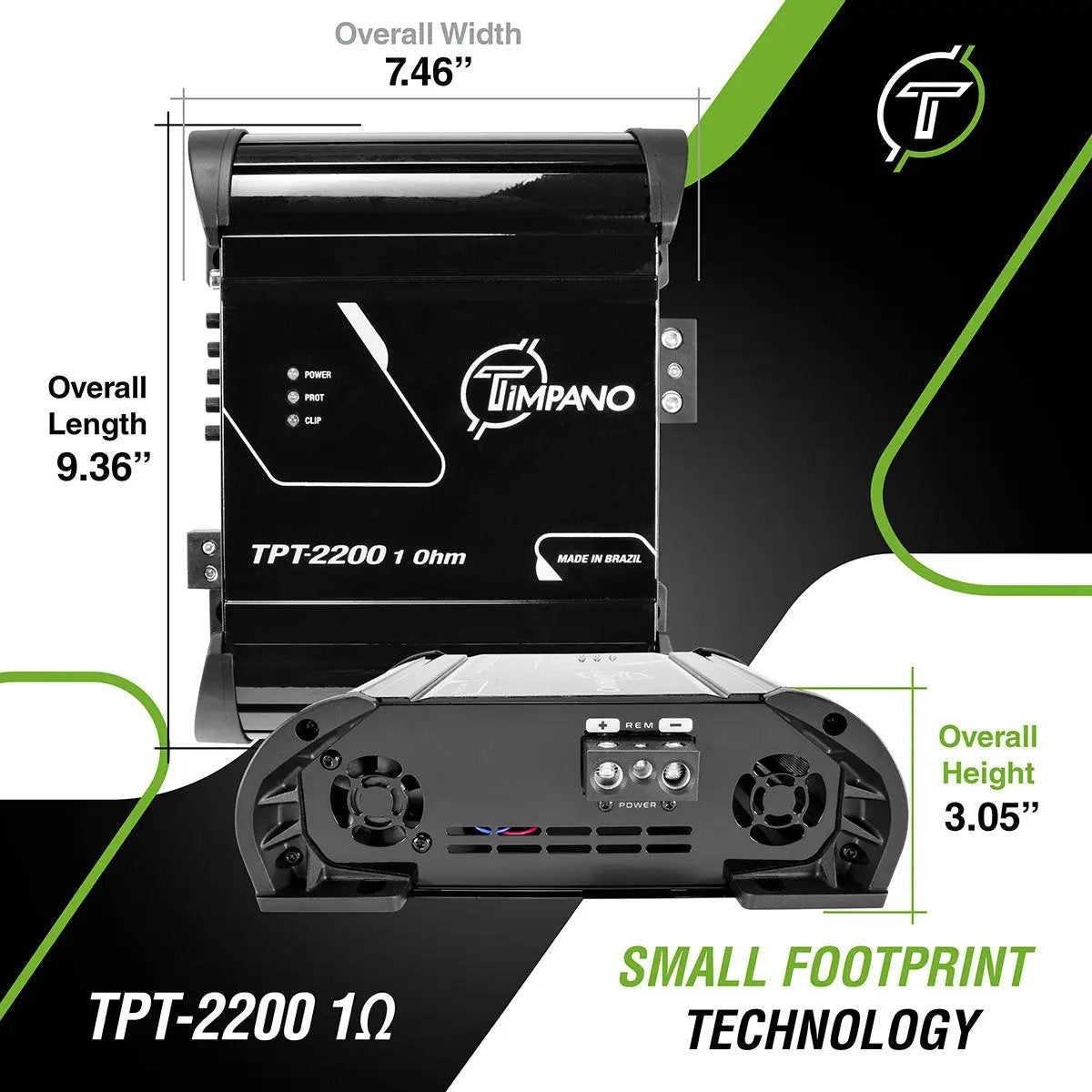

| Dimensions (manufacturer L × W × H) | 9.36 × 7.46 × 3.05 inches |
| Weight | 4.65 lb |
Why Choose This Product?
The TPT-2200 combines a single-channel design with full-range response and adjustable crossover controls. That gives you control over how the amplifier is matched to your system, rather than restricting it to bass-only use.
Its power ratings are listed at two supply voltages and two speaker loads. Use the figures that match your planned electrical conditions and speaker impedance when comparing output.
Installation & Compatibility Notes
Use a speaker load of at least 1 ohm. Match the speaker wiring to the amplifier’s minimum rated impedance, and size the vehicle’s electrical system for the intended installation.
Allow space for the 9.36 × 7.46 × 3.05-inch amplifier and follow the manufacturer’s instructions for power wiring, fusing, ventilation, and setup.
Frequently Asked Questions
What is the minimum speaker impedance for the TPT-2200?
The minimum speaker load is 1 ohm. Match the speaker wiring to this rating or a higher impedance.
How much RMS power does it produce?
At 14.4 V, the ratings are 2,600 W × 1 at 1 ohm and 1,720 W × 1 at 2 ohms. At 12.6 V, they are 2,015 W × 1 at 1 ohm and 1,330 W × 1 at 2 ohms.
Can this amplifier be used with speakers, not just subwoofers?
It is a full-range amplifier, and its stated frequency response is 10 Hz–22 kHz. Match it to suitable speakers and use the crossover controls for your system.
What are the crossover adjustment ranges?
The high-pass filter adjusts from 10–90 Hz. The low-pass filter adjusts from 90 Hz–22 kHz.
What should I check before installing it?
Confirm speaker impedance, available mounting space, and that the vehicle’s electrical system suits the planned installation. Follow the manufacturer’s instructions for wiring, fusing, ventilation, and setup.
