Timpano TPT-8000 1 Ohm Full-Range Monoblock Amplifier
Key features
- Full-range response: The 10 Hz–12 kHz range supports compatible subwoofers, speakers, or drivers with suitable crossover settings.

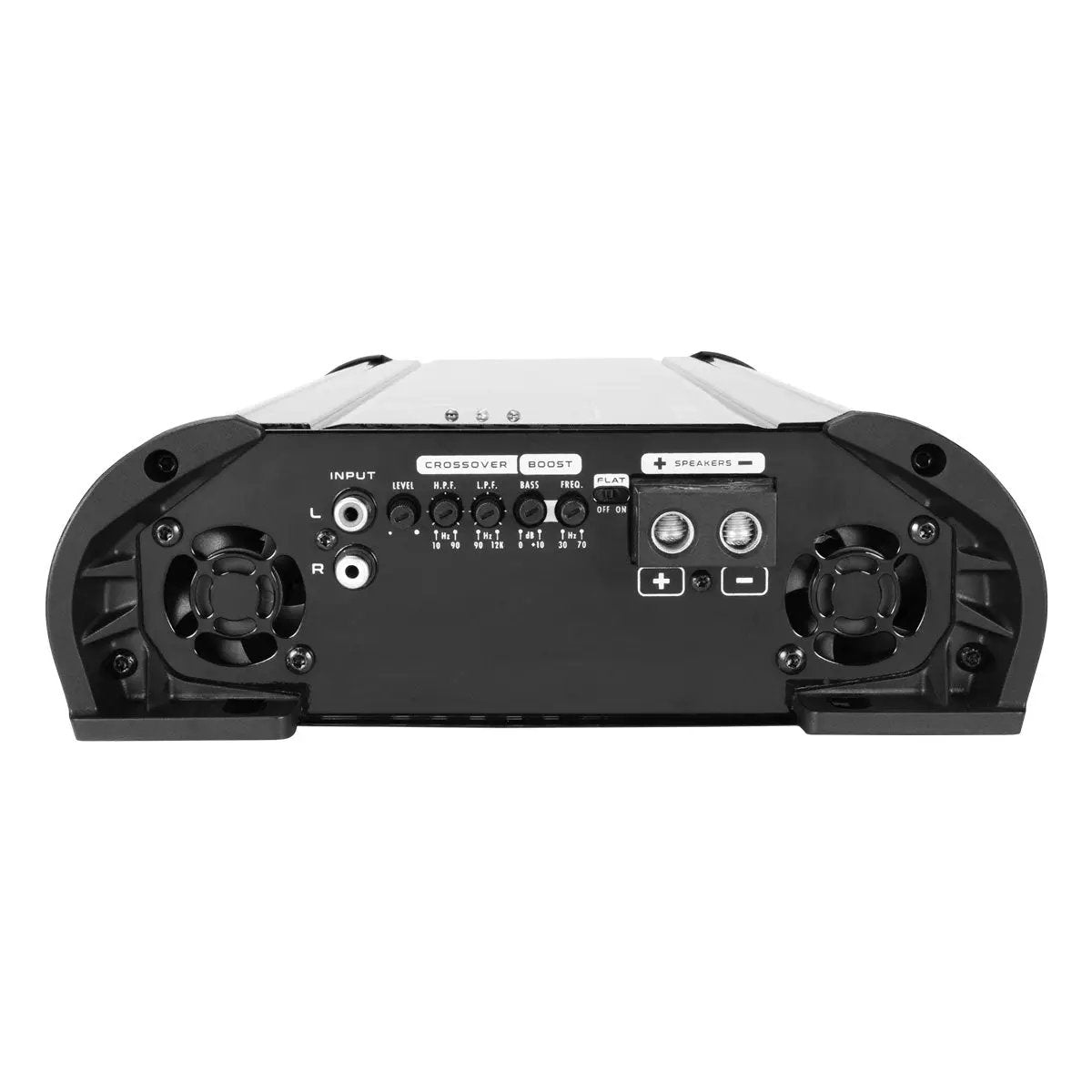

- Adjustable filters: Variable high-pass and low-pass controls help you tune the signal for your system.
- Bass boost: Adjust boost from 0 to +10 dB and select a center frequency from 30–70 Hz.
- Flat switch: Bypass the crossover and boost controls when integrating external signal processing.

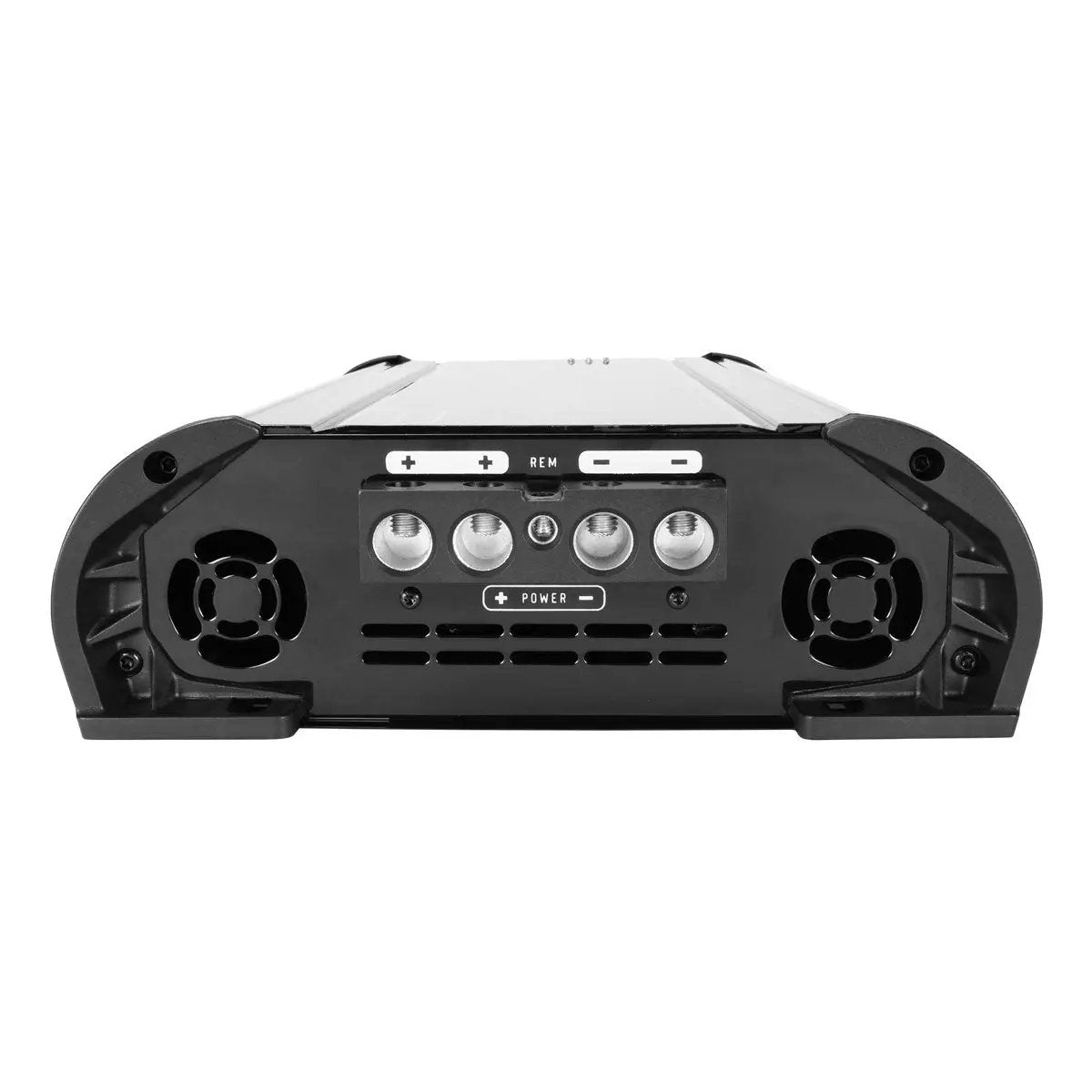

- Installation connections: Dual 0-gauge power inputs and 4-gauge speaker outputs support the specified connections.
Timpano TPT-8000 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-8000 1 Ohm Full-Range Monoblock Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
Build a high-output car audio system around the Timpano TPT-8000 1 Ohm full-range monoblock amplifier. This single-channel Class D amplifier offers an 8,000-watt RMS rating at 12.6 volts into 1 ohm, plus adjustable filters and a flat switch for system tuning.
Key Features & Benefits
- Full-range response: The 10 Hz–12 kHz range supports compatible subwoofers, speakers, or drivers with suitable crossover settings.
- Adjustable filters: Variable high-pass and low-pass controls help you tune the signal for your system.
- Bass boost: Adjust boost from 0 to +10 dB and select a center frequency from 30–70 Hz.
- Flat switch: Bypass the crossover and boost controls when integrating external signal processing.
- Installation connections: Dual 0-gauge power inputs and 4-gauge speaker outputs support the specified connections.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |

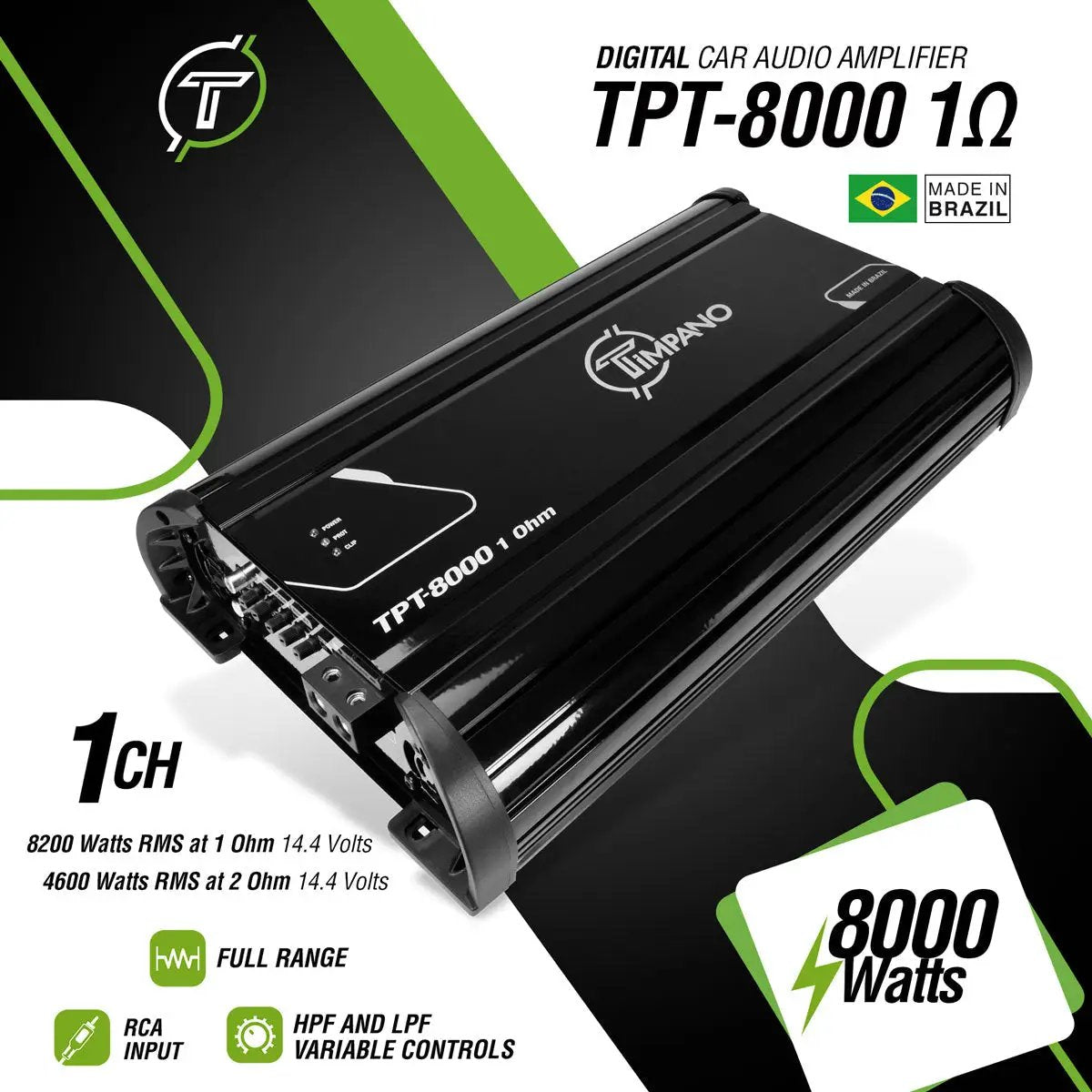

| RMS power at 14.4 V | 8,200 W × 1 at 1 ohm; 4,600 W × 1 at 2 ohms |
| RMS power at 12.6 V | 8,000 W × 1 at 1 ohm; 4,400 W × 1 at 2 ohms |
| Supply voltage | 9–16 V |
| Frequency response | 10 Hz–12 kHz |
| High-pass filter | 10–90 Hz |
| Low-pass filter | 90 Hz–12 kHz |
| Bass boost | 0 to +10 dB; adjustable 30–70 Hz |
| Signal-to-noise ratio | >90 dB |
| Power inputs | Dual 0-gauge |
| Speaker outputs | 4-gauge |

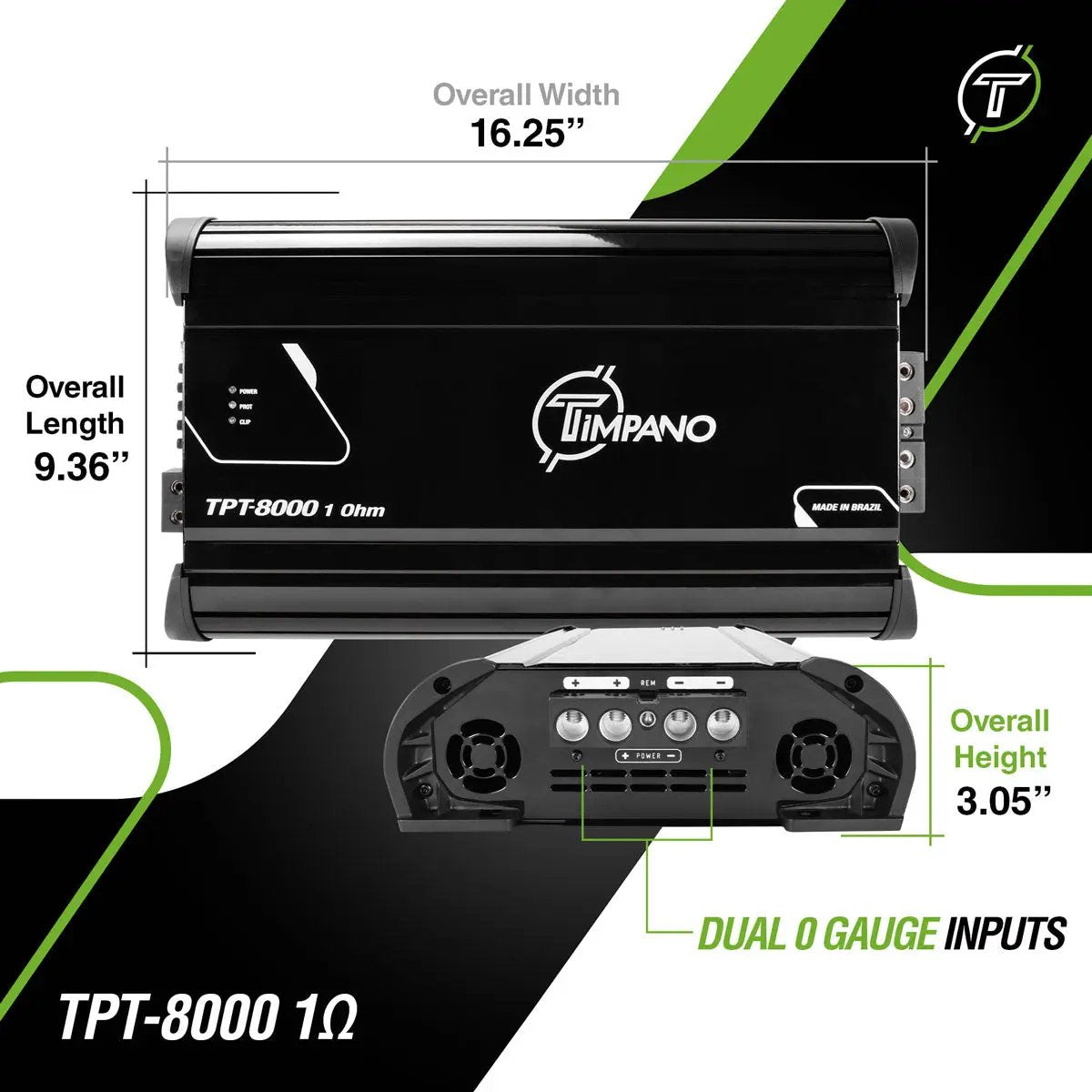

| Dimensions (manufacturer L × W × H) | 9.36 × 16.25 × 3.05 inches |
| Weight | 12.10 lb |
Why Choose This Product?
The TPT-8000 combines high RMS output with full-range response and installer-adjustable tuning. Use its crossover controls to shape the signal, or select flat mode when your system uses external signal processing.
Thermal and short-circuit protection are listed system features. The amplifier’s dimensions and connection sizes also give you concrete details for planning its installation.
Installation & Compatibility Notes
This 1-ohm version requires a speaker load of at least 1 ohm. Match the connected load to the amplifier’s minimum rating and use the RMS power figures with their specified supply voltage and impedance.
Plan power wiring, protection, ventilation, and the vehicle’s charging system around the amplifier’s electrical demands. Follow the manufacturer’s installation instructions and use a qualified installer.
Frequently Asked Questions
What is the minimum speaker load for the TPT-8000 1 Ohm?
The minimum speaker load is 1 ohm. Make sure the connected load does not fall below that rating.
How do the RMS power ratings vary by voltage and impedance?
Ratings are listed for both 12.6 V and 14.4 V, at 1 ohm and 2 ohms. See the Technical Specifications table for each rating.
Can this amplifier be used with speakers or drivers, not just subwoofers?
Its full-range response supports compatible subwoofers, speakers, or drivers when used with suitable crossover settings.
What should you plan for during installation?
Account for the amplifier’s power demands, wiring, protection, ventilation, and the vehicle’s charging system. The manufacturer’s instructions recommend using a qualified installer.
