Timpano TPT-8000 2 Ohm Full-Range Monoblock Amplifier
Key features
- Full-range response: The 10 Hz–12 kHz frequency range supports a variety of connected audio components.

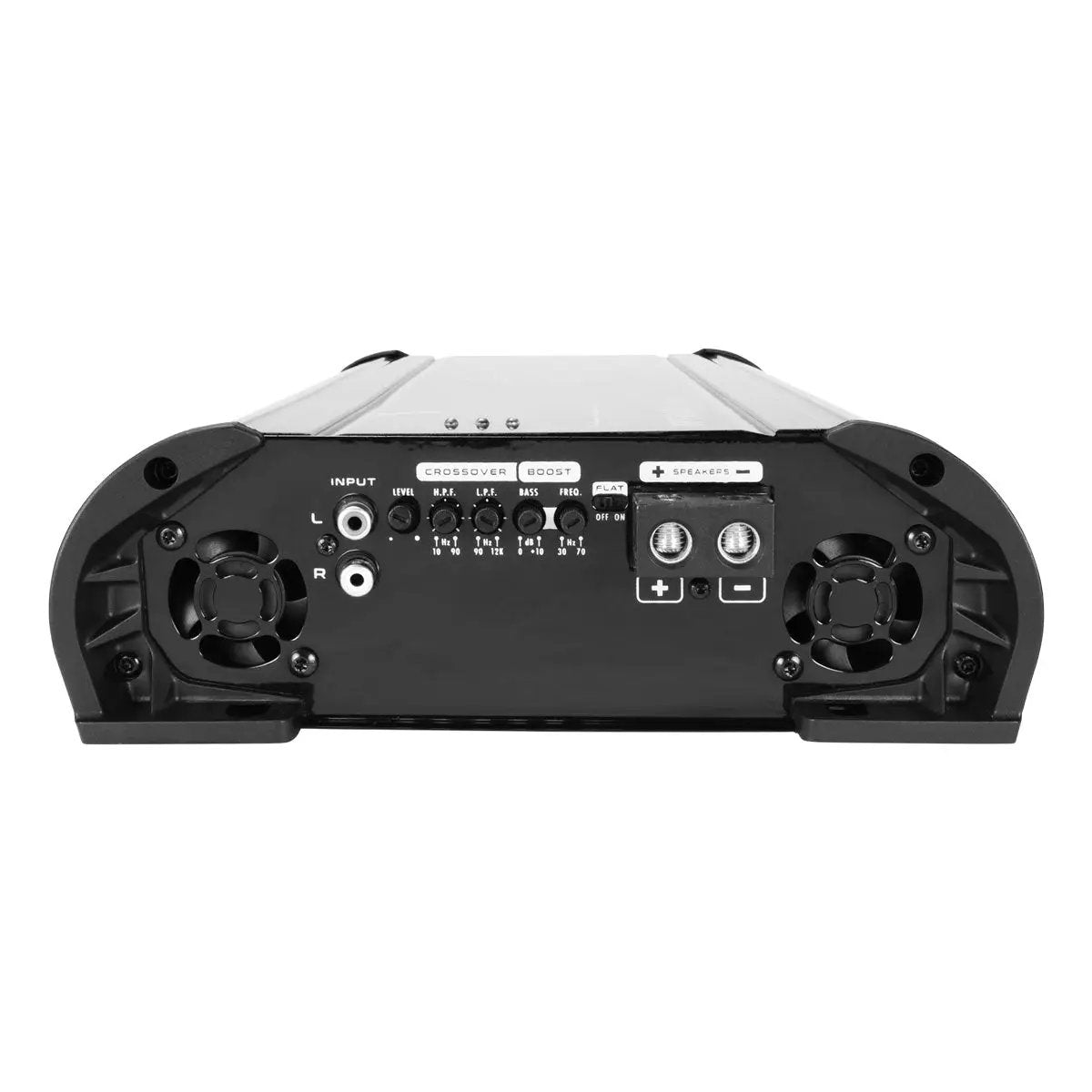

- Adjustable crossovers: High-pass and low-pass filters let you set operating ranges for connected speakers.
- Bass adjustment: Variable bass boost provides 0 to +10 dB of adjustment across 30–70 Hz.
- Flat switch: Bypass the amplifier’s crossover and boost settings when using external processing.

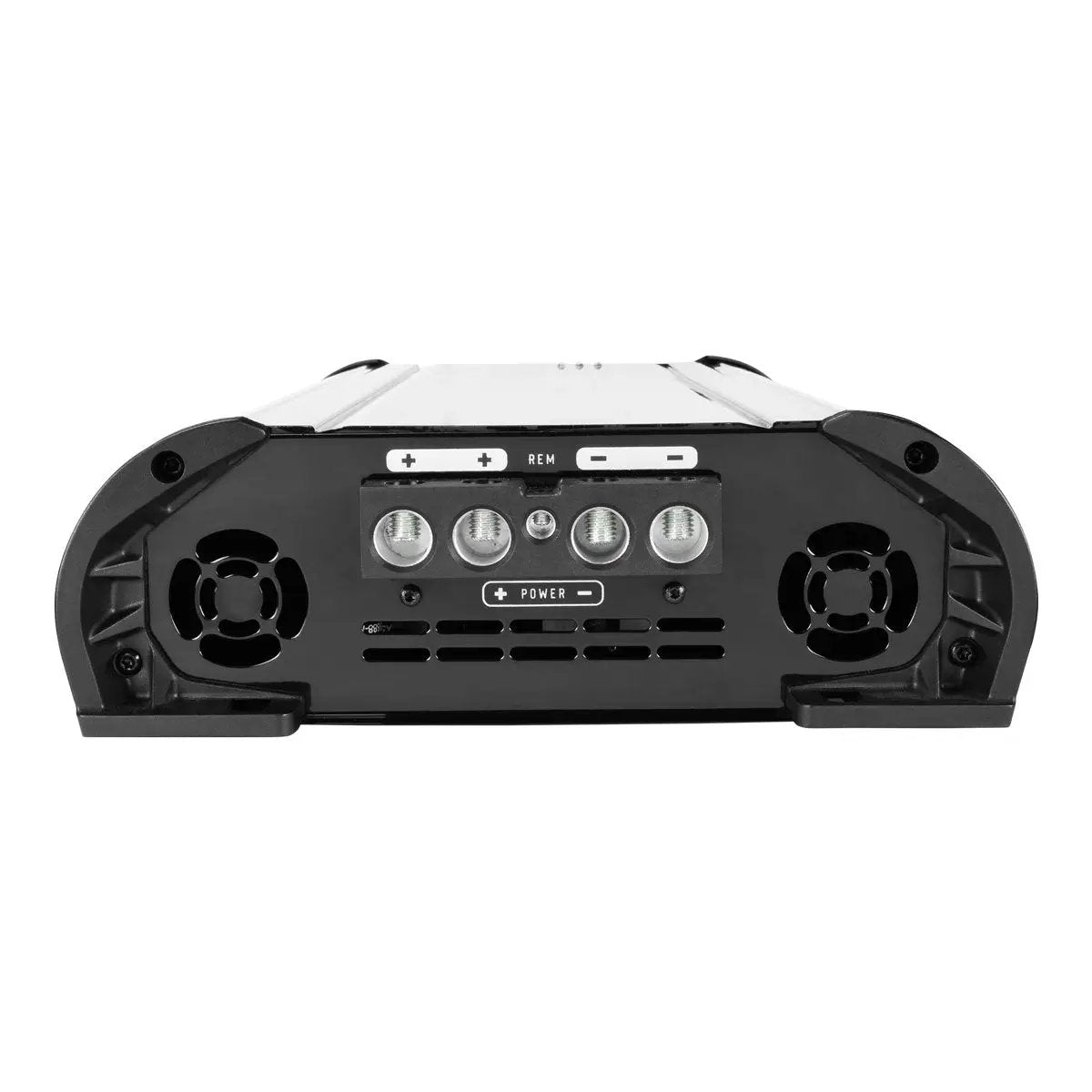

- High-current connections: Dual 0-gauge power inputs and 4-gauge speaker outputs support system integration.
- Protection features: Thermal and short-circuit protection are built in.
Timpano TPT-8000 2 Ohm Full-Range Monoblock Amplifier - 2 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-8000 2 Ohm Full-Range Monoblock Amplifier - 2 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

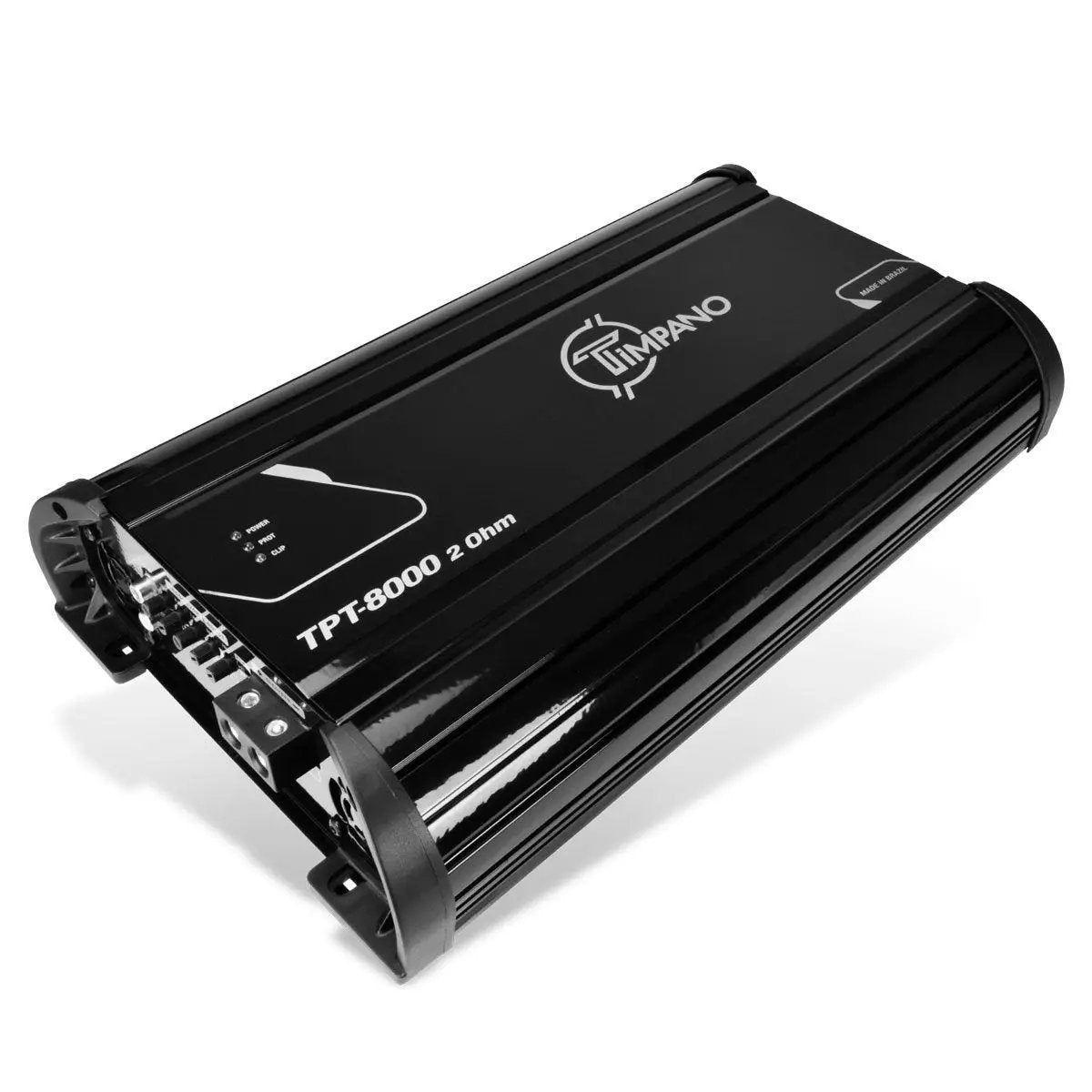

Build a high-output, single-channel car audio system with the Timpano TPT-8000 2 Ohm full-range monoblock amplifier. Its Class D design delivers up to 8,200 watts RMS at 14.4 volts into 2 ohms, with adjustable filtering for supported speaker, driver, or subwoofer applications.
Key Features & Benefits
- Full-range response: The 10 Hz–12 kHz frequency range supports a variety of connected audio components.
- Adjustable crossovers: High-pass and low-pass filters let you set operating ranges for connected speakers.
- Bass adjustment: Variable bass boost provides 0 to +10 dB of adjustment across 30–70 Hz.
- Flat switch: Bypass the amplifier’s crossover and boost settings when using external processing.
- High-current connections: Dual 0-gauge power inputs and 4-gauge speaker outputs support system integration.
- Protection features: Thermal and short-circuit protection are built in.
Technical Specifications
| Amplifier type | Class D full-range monoblock |
|---|---|
| Channels | 1 |
| Minimum speaker load | 2 ohms |
| RMS power at 14.4 V | 8,200 W × 1 at 2 ohms; 4,400 W × 1 at 4 ohms |
| RMS power at 12.6 V | 8,000 W × 1 at 2 ohms; 4,200 W × 1 at 4 ohms |
| Supply voltage | 9–16 V |
| Frequency response | 10 Hz–12 kHz |
| High-pass filter | 10–90 Hz |
| Low-pass filter | 90 Hz–12 kHz |
| Bass boost | 0 to +10 dB; adjustable 30–70 Hz |
| Signal-to-noise ratio | >90 dB |
| Power inputs | Dual 0-gauge |
| Speaker outputs | 4-gauge |

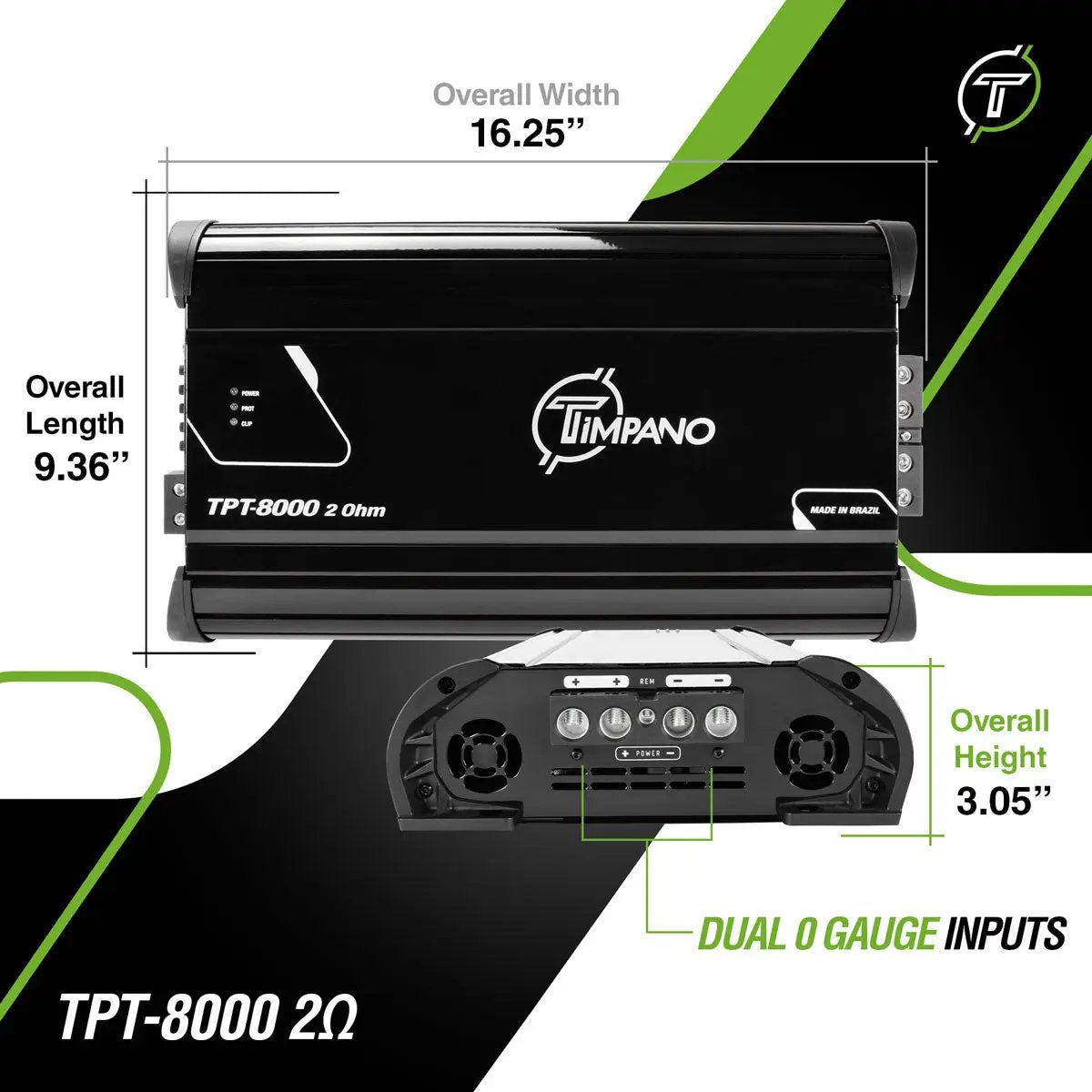

| Dimensions (manufacturer L × W × H) | 9.36 × 16.25 × 3.05 inches |
| Weight | 12.50 lb |
Why Choose This Product?
This TPT-8000 is specifically the 2-ohm version, with rated output also listed for a 4-ohm load. Its adjustable filters and bass boost give you ways to shape the signal, while the Flat switch lets external processing handle those adjustments instead.
Power ratings depend on both supply voltage and speaker impedance. Compare the ratings at your system’s operating voltage and final load when planning your setup.
Installation & Compatibility Notes
Keep the final speaker load at or above the amplifier’s 2-ohm minimum. This is the 2-ohm model, not the 1-ohm version, so check the completed speaker wiring before connecting it.
Plan power wiring, protection, ventilation, and the vehicle’s charging system around the amplifier’s electrical demands. Follow the manufacturer’s installation instructions and use a qualified installer.
Frequently Asked Questions
How much power does the TPT-8000 produce?
It is rated at 8,200 watts RMS × 1 at 2 ohms and 4,400 watts RMS × 1 at 4 ohms with a 14.4 V supply. At 12.6 V, the ratings are 8,000 watts RMS × 1 at 2 ohms and 4,200 watts RMS × 1 at 4 ohms.
Can I connect a speaker load below 2 ohms?
No. The minimum speaker load for this model is 2 ohms. Ensure the final wired load meets that minimum.
Can I use the amplifier with external audio processing?
Yes. The Flat switch bypasses the internal crossover and boost settings when you are using external processing.
What should I check before installation?
Check the final speaker impedance, available installation space, power wiring, protection, ventilation, and vehicle charging system. The amplifier measures 9.36 × 16.25 × 3.05 inches.
