Timpano TPT-BASS5000 1 Ohm Monoblock Bass Amplifier
Key features
- Dedicated bass response: Its frequency response and filtering are designed for bass and sub-bass system integration.

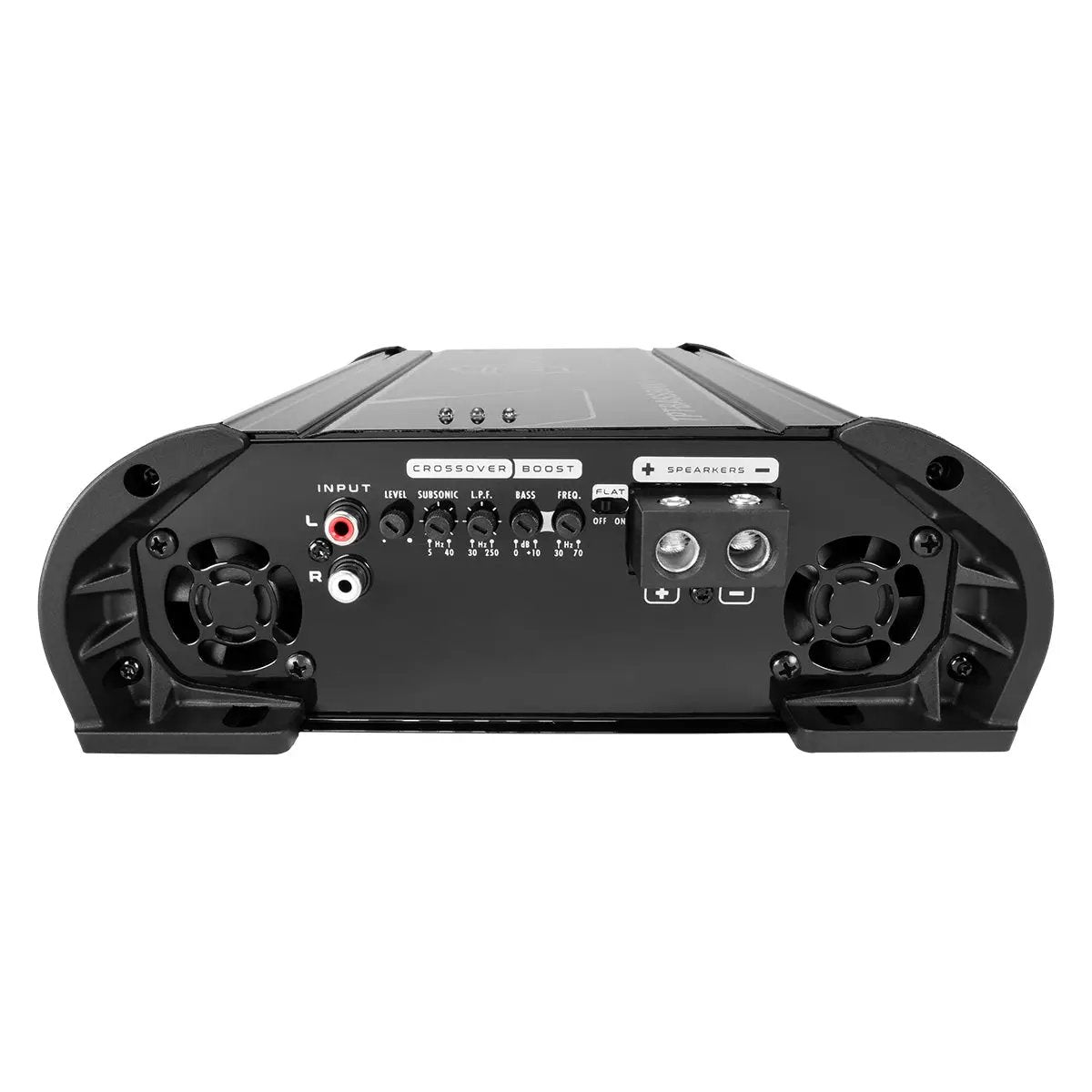

- Adjustable filters: Variable subsonic and low-pass filters help you tune the amplifier to the enclosure and subwoofer system.
- Adjustable bass boost: Set the boost level and frequency to shape low-frequency output.
- Visible status indicators: Power, clipping and protection indicators show the amplifier’s operating status.

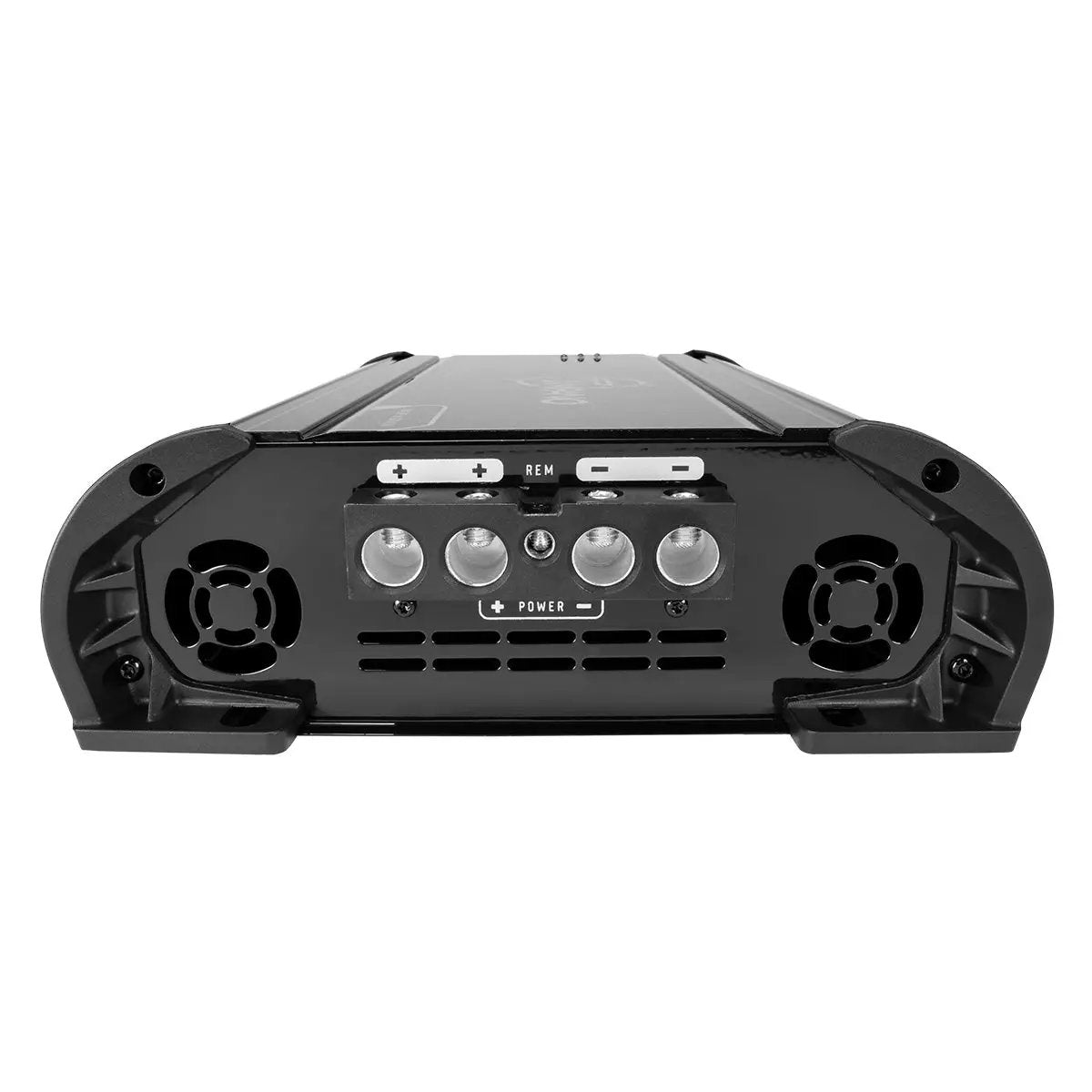

- Installation support: Cooling fans, heavy-duty terminals and four-way protection circuitry support high-output installations.
Timpano TPT-BASS5000 1 Ohm Monoblock Bass Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Timpano TPT-BASS5000 1 Ohm Monoblock Bass Amplifier - 1 Ohm is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview
The Timpano TPT-BASS5000 1 Ohm monoblock bass amplifier gives a compatible subwoofer system dedicated low-frequency power and adjustable filtering. It is a single-channel Class D amplifier rated at 5,200 W RMS at 1 ohm and 14.4 V.
Key Features & Benefits
- Dedicated bass response: Its frequency response and filtering are designed for bass and sub-bass system integration.
- Adjustable filters: Variable subsonic and low-pass filters help you tune the amplifier to the enclosure and subwoofer system.
- Adjustable bass boost: Set the boost level and frequency to shape low-frequency output.
- Visible status indicators: Power, clipping and protection indicators show the amplifier’s operating status.
- Installation support: Cooling fans, heavy-duty terminals and four-way protection circuitry support high-output installations.
Technical Specifications
| Amplifier type | Class D monoblock bass amplifier |
|---|---|
| Channels | 1 |
| Minimum speaker load | 1 ohm |

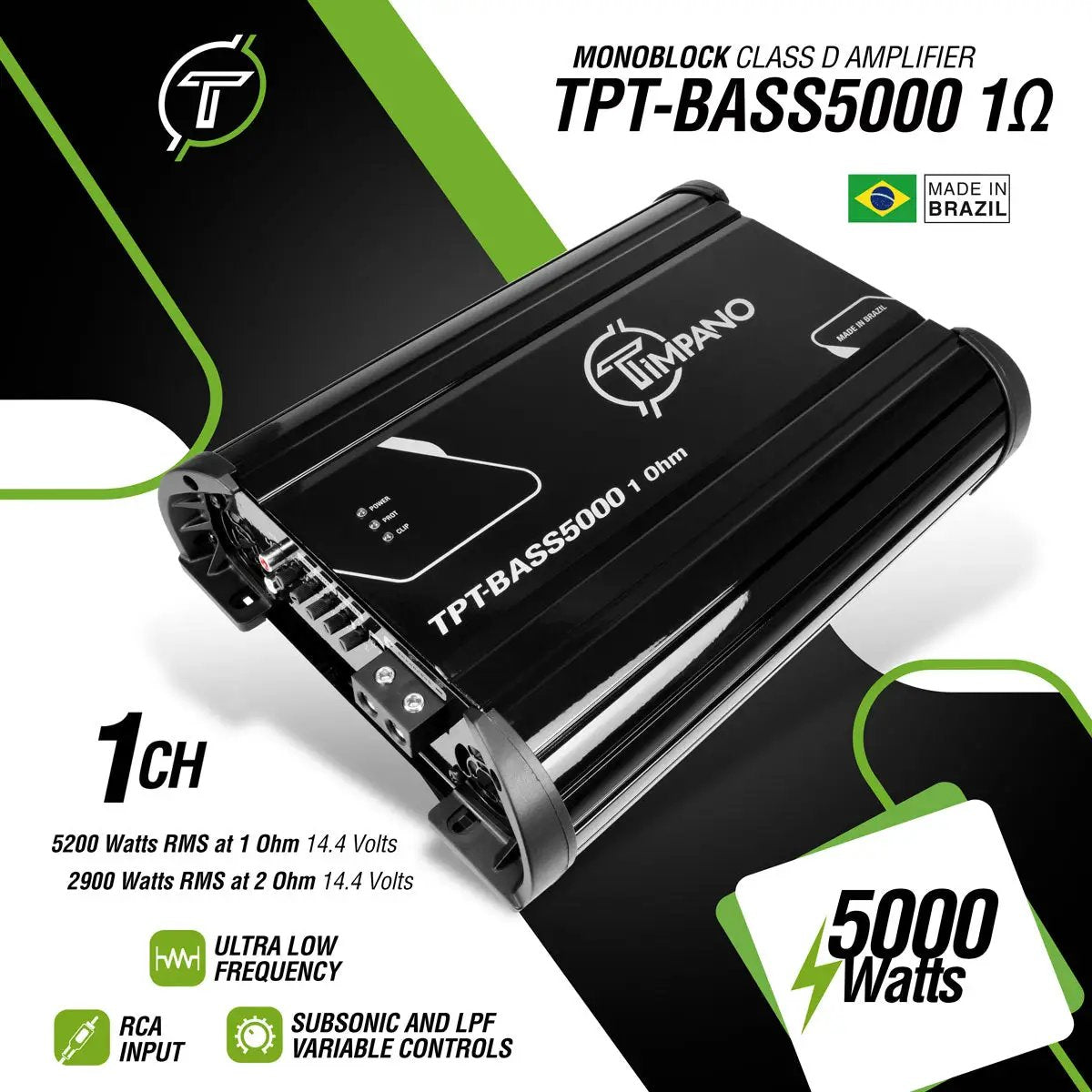

| RMS power at 14.4 V | 5,200 W × 1 at 1 ohm; 2,900 W × 1 at 2 ohms |
| Supply voltage | 9–17 V |
| Frequency response | 5–600 Hz with Flat on; 5–250 Hz with Flat off |
| Subsonic filter | 5–40 Hz |
| Low-pass filter | 30–250 Hz |
| Bass boost | 0 to +10 dB; frequency adjustable 30–70 Hz |
| Signal-to-noise ratio | >90 dB |

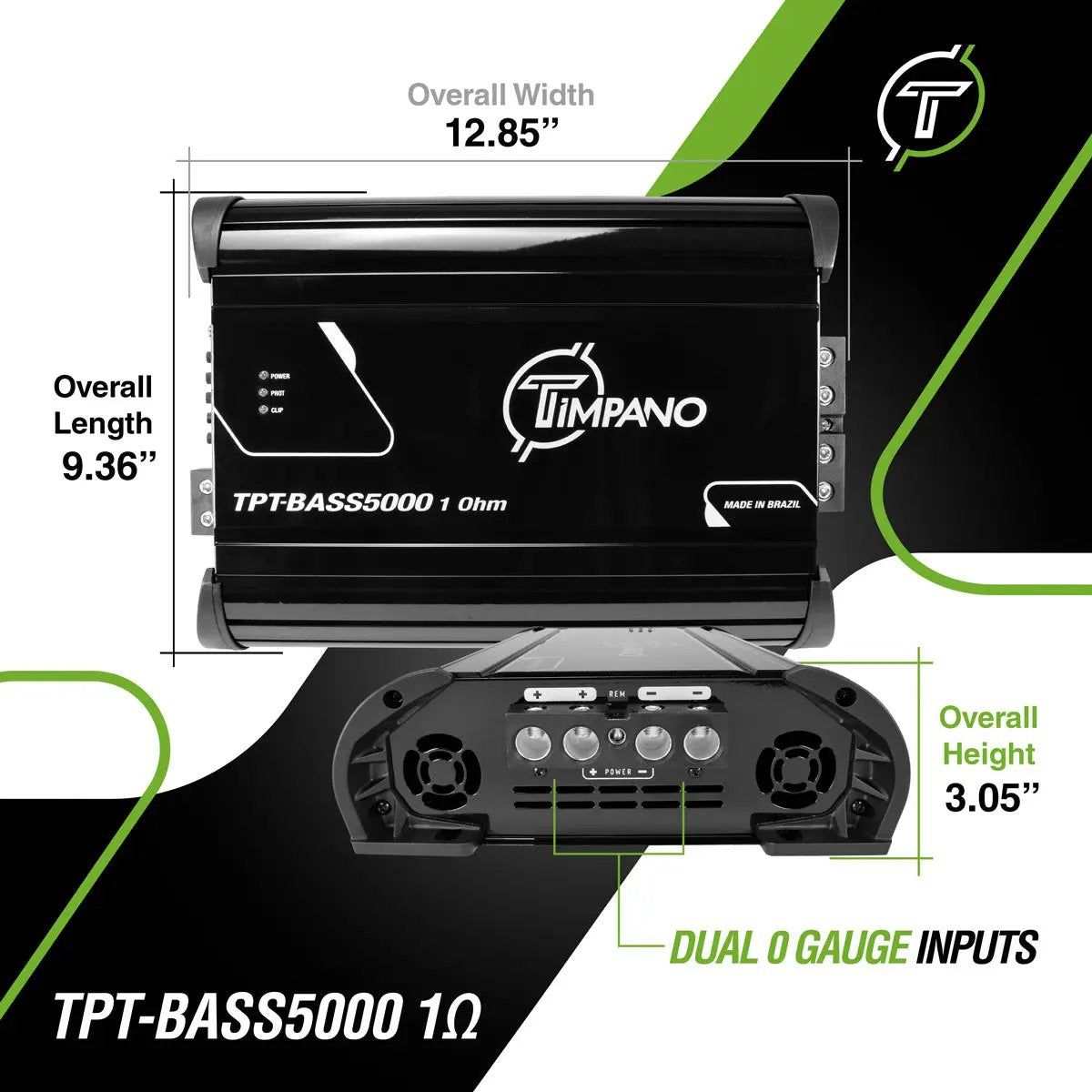

| Dimensions (manufacturer L × W × H) | 9.36 × 12.85 × 3.05 inches |
| Weight | 8.87 lb |
Why Choose This Product?
This amplifier is built specifically for bass, with filter controls for shaping its low-frequency range rather than treating it as a full-range speaker amplifier. Its separate 1-ohm and 2-ohm RMS ratings help you compare output options when planning a compatible system.
Installation & Compatibility Notes
Match speaker wiring to the amplifier’s minimum rated impedance, and size the vehicle’s electrical system for the intended installation. Output ratings depend on supply voltage and load impedance.
Use the manufacturer’s installation instructions for power wiring, fusing, ventilation and setup. Check the amplifier’s dimensions against your planned mounting space.
Frequently Asked Questions
What is the RMS power rating?
At 14.4 V, the amplifier is rated at 5,200 W × 1 at 1 ohm and 2,900 W × 1 at 2 ohms.
What speaker load can I use?
The minimum speaker load is 1 ohm. Match your speaker wiring to that rating.
Can I adjust the bass filtering?
Yes. The subsonic filter adjusts from 5–40 Hz, and the low-pass filter adjusts from 30–250 Hz. Bass boost is adjustable from 0 to +10 dB, with its frequency adjustable from 30–70 Hz.
What space should I allow for installation?
The manufacturer lists dimensions of 9.36 × 12.85 × 3.05 inches, measured L × W × H. Allow for the installation requirements in the manufacturer’s instructions.
