TRU SPEC Elite Prefab Single 15" Subwoofer Enclosure Sundown U 15"
Key features
- Double mounting baffle, triple flush baffle, internal bracing and 45-degree pieces.
- Made in the USA, as stated by the supplier.
- 0.75-inch MDF construction.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
TRU SPEC Elite Prefab Single 15" Subwoofer Enclosure Sundown U 15" is backordered and will ship as soon as it is back in stock.
TRU SPEC Elite Prefab Single 15" Subwoofer Enclosure Sundown U 15" is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

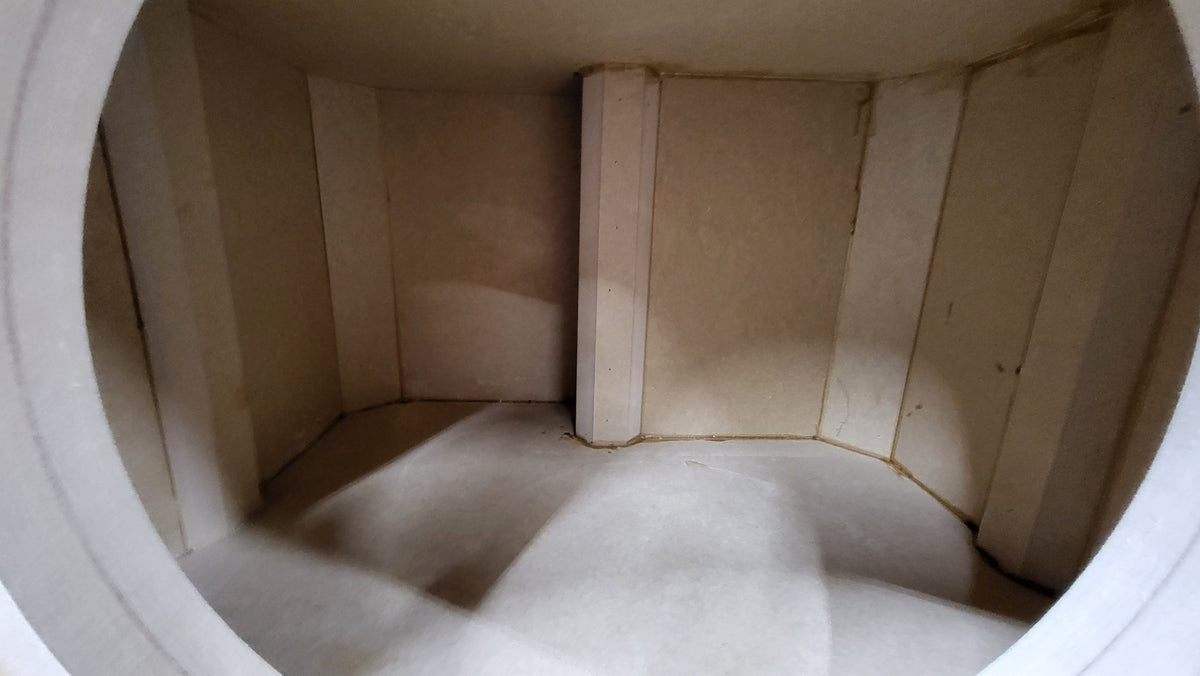

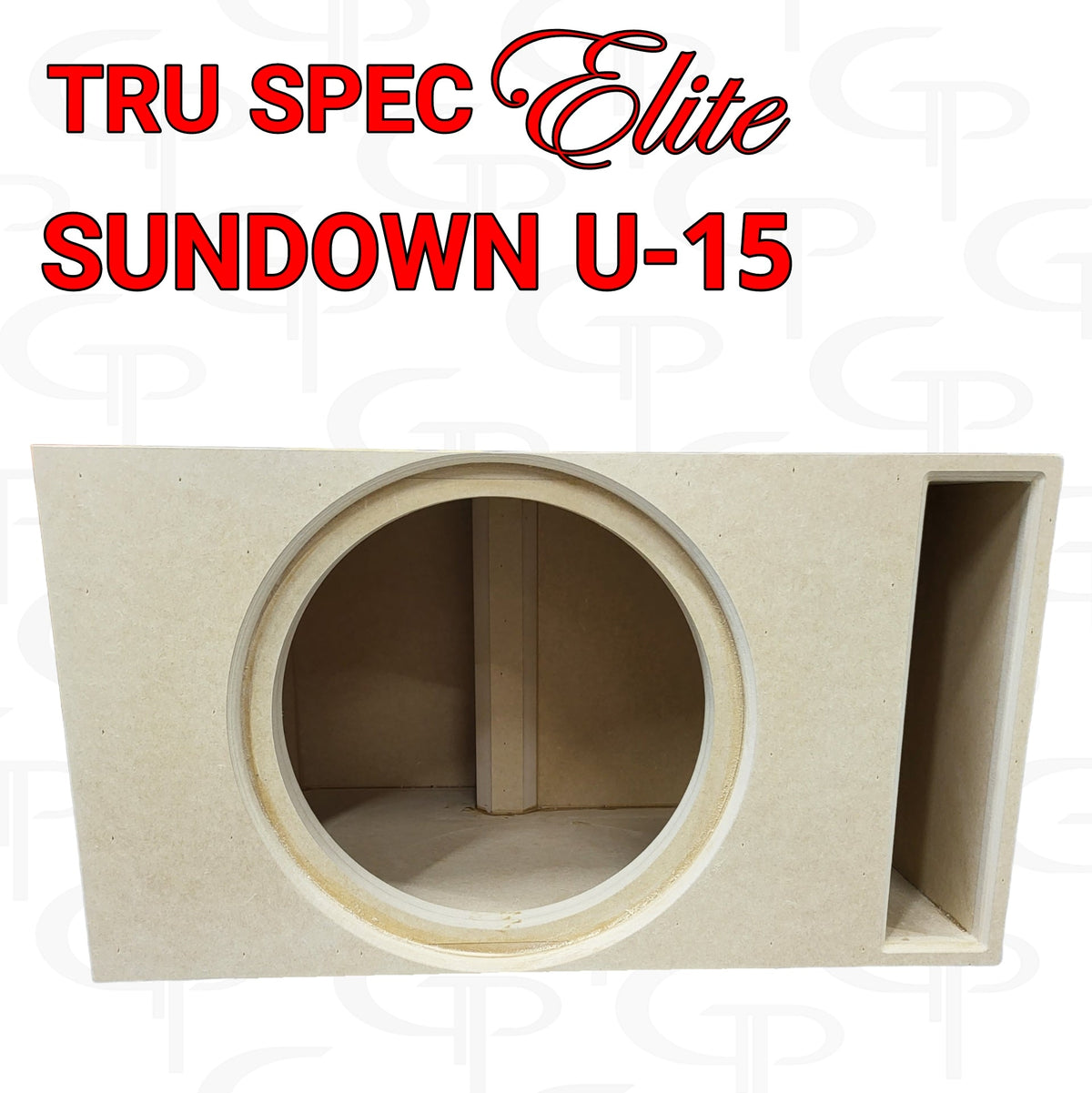

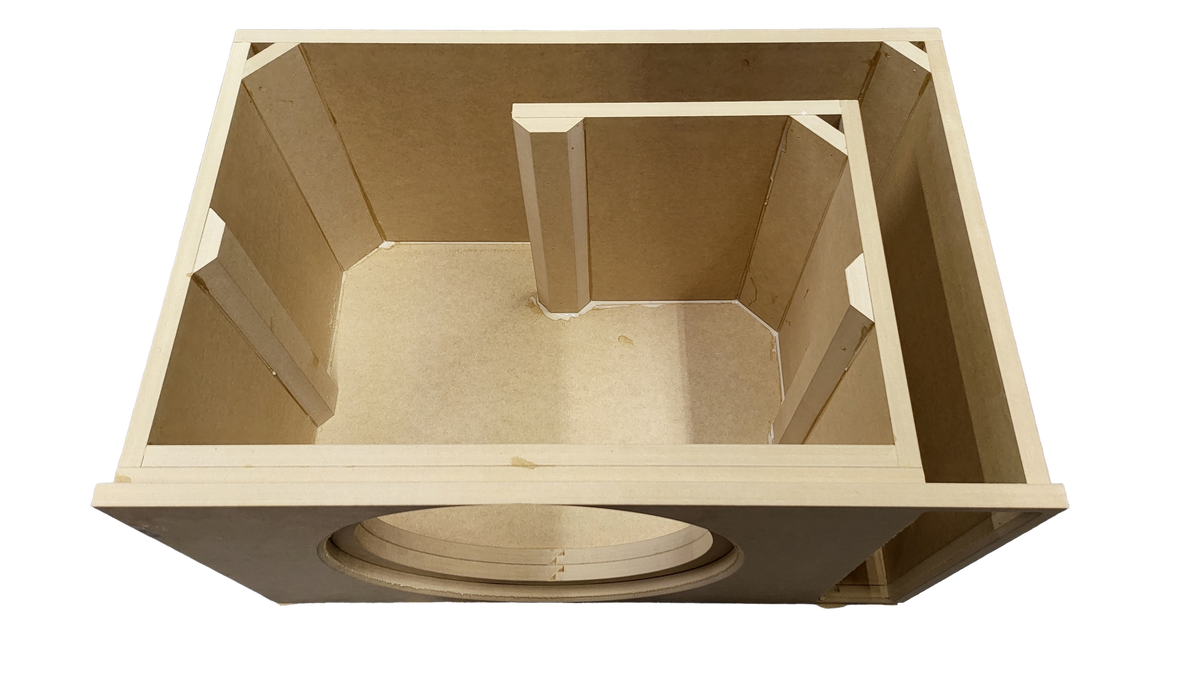

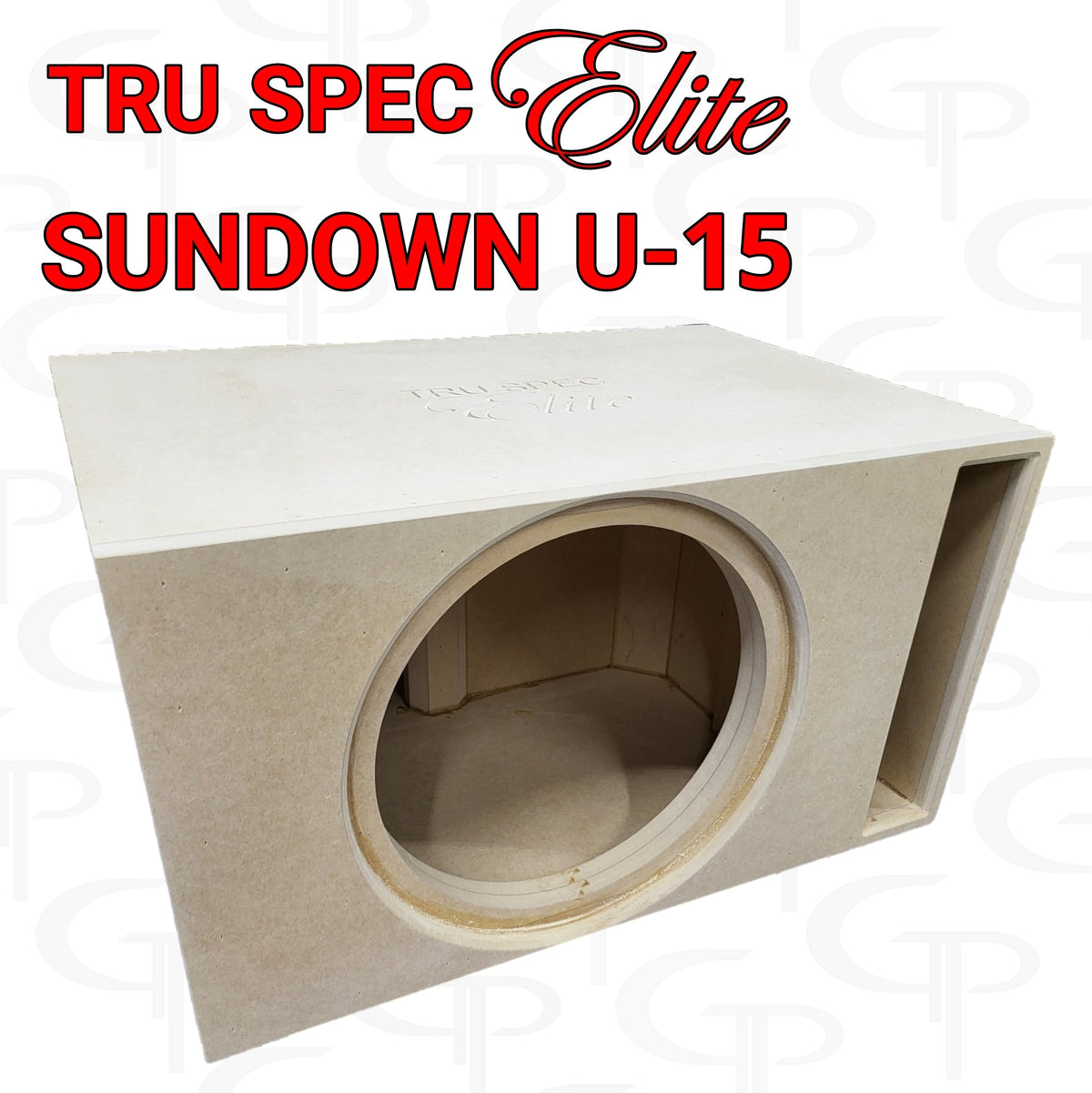

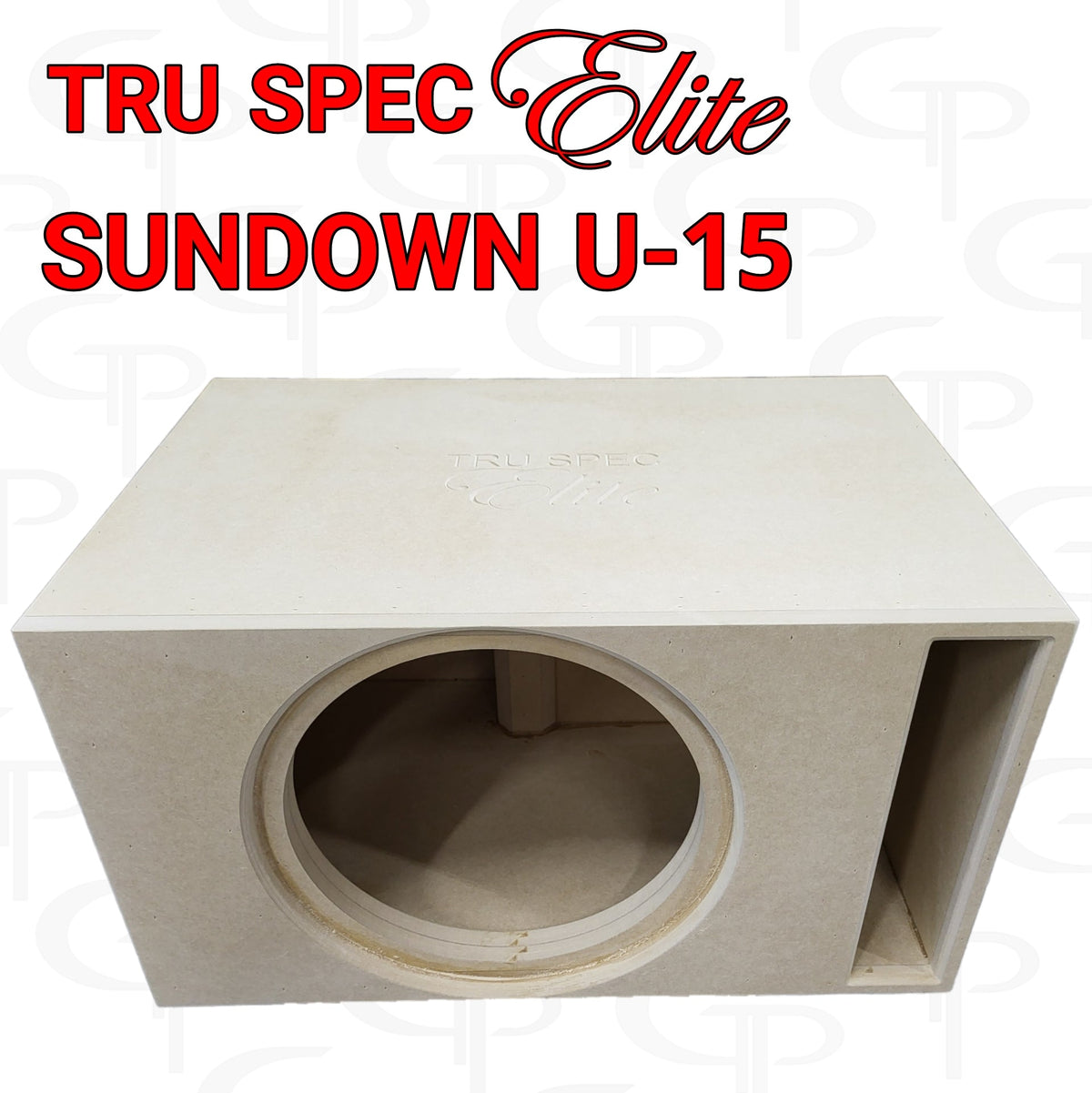

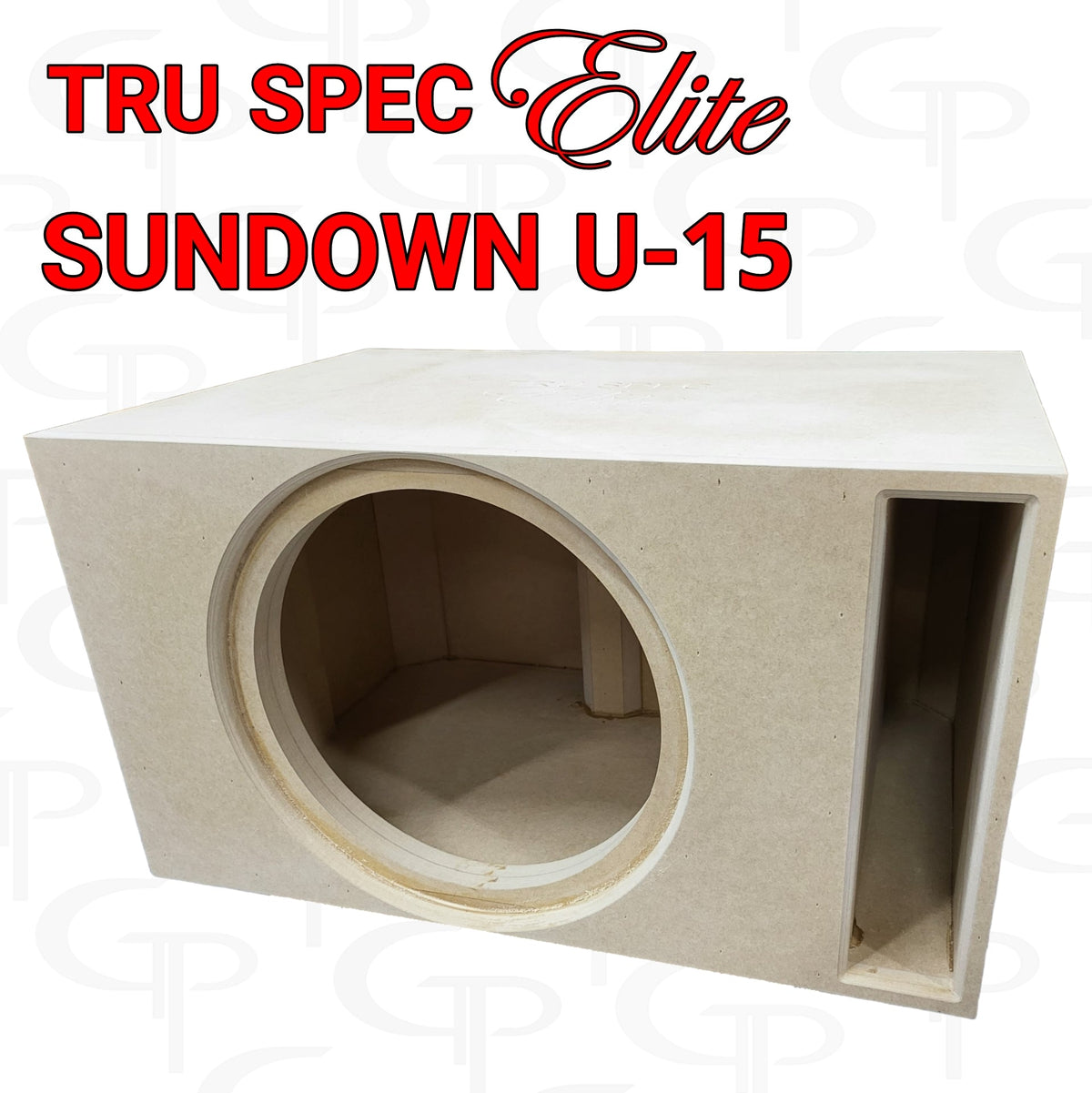

The Tru Spec Elite single 15-inch ported enclosure is specified for the Sundown U 15. Its reinforced baffle, internal bracing and 3.00 ft³ net volume give a single-driver build a documented enclosure configuration to work from.
This is an empty enclosure only. No subwoofer is included.
Key Features & Benefits
- Double mounting baffle, triple flush baffle, internal bracing and 45-degree pieces.
- Made in the USA, as stated by the supplier.
- 0.75-inch MDF construction, with the enclosure dimensions and acoustic specifications listed below for comparison.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
Technical Specifications
| Enclosure type | Ported; empty enclosure only |
|---|---|
| Subwoofer configuration | 1 x 15-inch |
| External dimensions (W x H x D) | 30.00 inches x 16.50 inches x 20.29 inches |
| Material | MDF |
| Material thickness | 0.75 inch |
| Total net internal volume | 3.00 ft³ |
| Tuning frequency | 32 Hz |
| Port area | 48.00 in² |
| Cutout diameter | 14.2 inches |
| Flush trim diameter | 15.75 inches |
| Baffle and reinforcement | Double mounting baffle, triple flush baffle, internal bracing and 45-degree pieces |
| Shipping weight | 72 lb |
| Country of manufacture | USA |
Why Choose This Product?
Consider this Elite enclosure when the Sundown U 15 is your chosen driver and the 32 Hz tuning matches your system plan. Its 48.00 in² port area and 20.29-inch depth differ from other Tru Spec single 15-inch boxes, so compare the exact listing specifications.
Installation & Compatibility Notes
- Supplier-listed applications: Sundown U 15-inch.
- Measure the intended vehicle space and its access opening. Check basket and motor clearance, mounting depth, terminals and cone clearance against the actual driver. No vehicle-specific fitment is claimed.
- A maximum mounting-depth measurement is not provided in the supplier description. Confirm clearance for your exact subwoofer before purchase.
- Leave the port opening unobstructed and confirm the driver manufacturer's recommended ported volume and tuning. Secure the enclosure appropriately for the vehicle installation.
Frequently Asked Questions
Are subwoofers included?
No. This listing is for an empty ported enclosure only. The 1 compatible 15-inch subwoofer is selected and purchased separately.
Does matching the nominal subwoofer size guarantee compatibility?
No. Confirm the exact model, cutout, mounting depth, basket clearance, displacement and recommended enclosure volume. A 15-inch size label alone is not enough to establish fit.
Will this enclosure fit my vehicle?
Vehicle-specific fitment is not provided. Compare the external dimensions with the installation area and access opening, then allow space for the driver, wiring and unobstructed port.
