Tru Spec Elite Single 12" XXL: Sundown M, X, Zv6, Zv7, NSv6
Key features
- Triple mounting baffle, quad flush baffle, internal bracing and 45-degree pieces.
- 0.75-inch MDF construction.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
Tru Spec Elite Single 12" XXL: Sundown M, X, Zv6, Zv7, NSv6 is backordered and will ship as soon as it is back in stock.
Tru Spec Elite Single 12" XXL: Sundown M, X, Zv6, Zv7, NSv6 is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

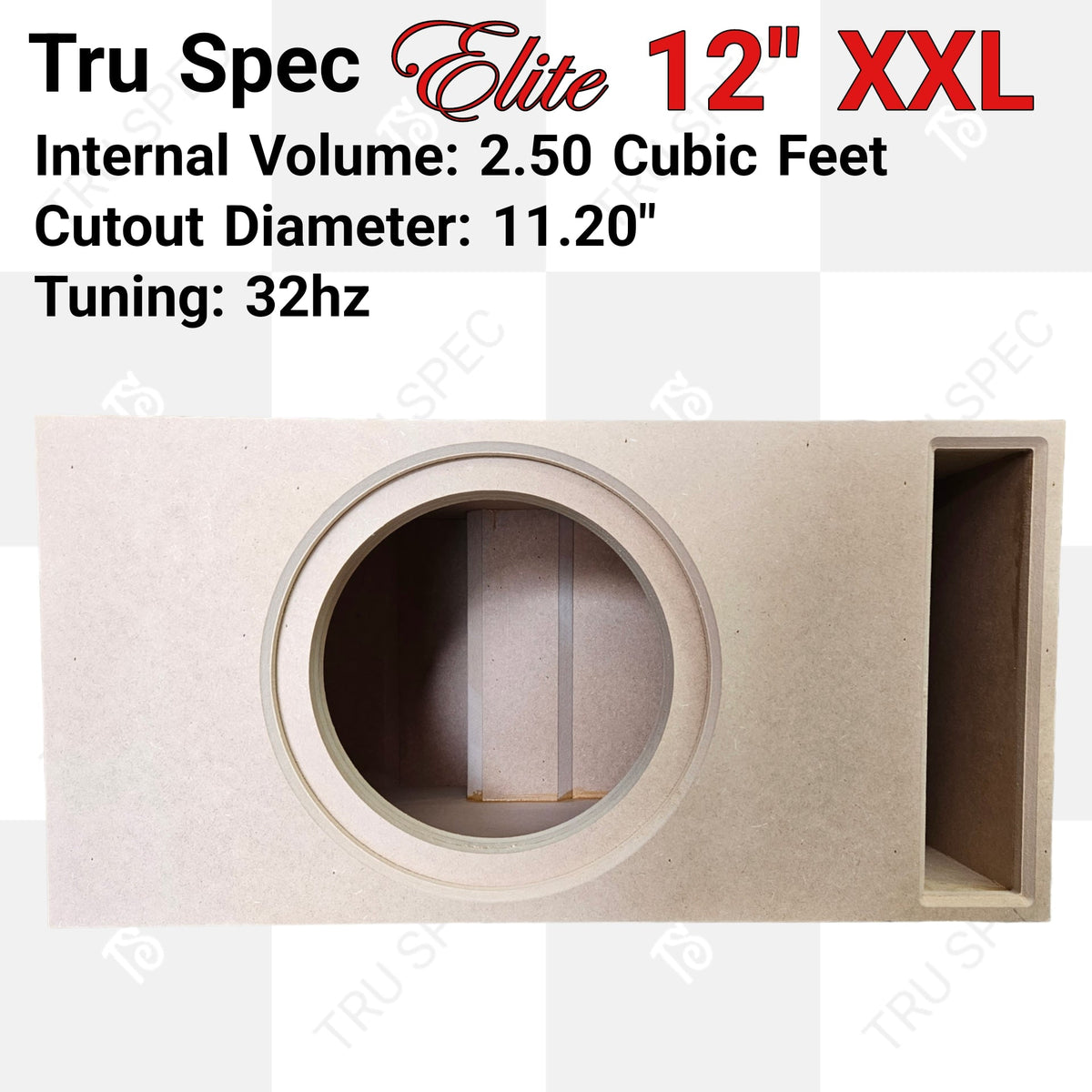

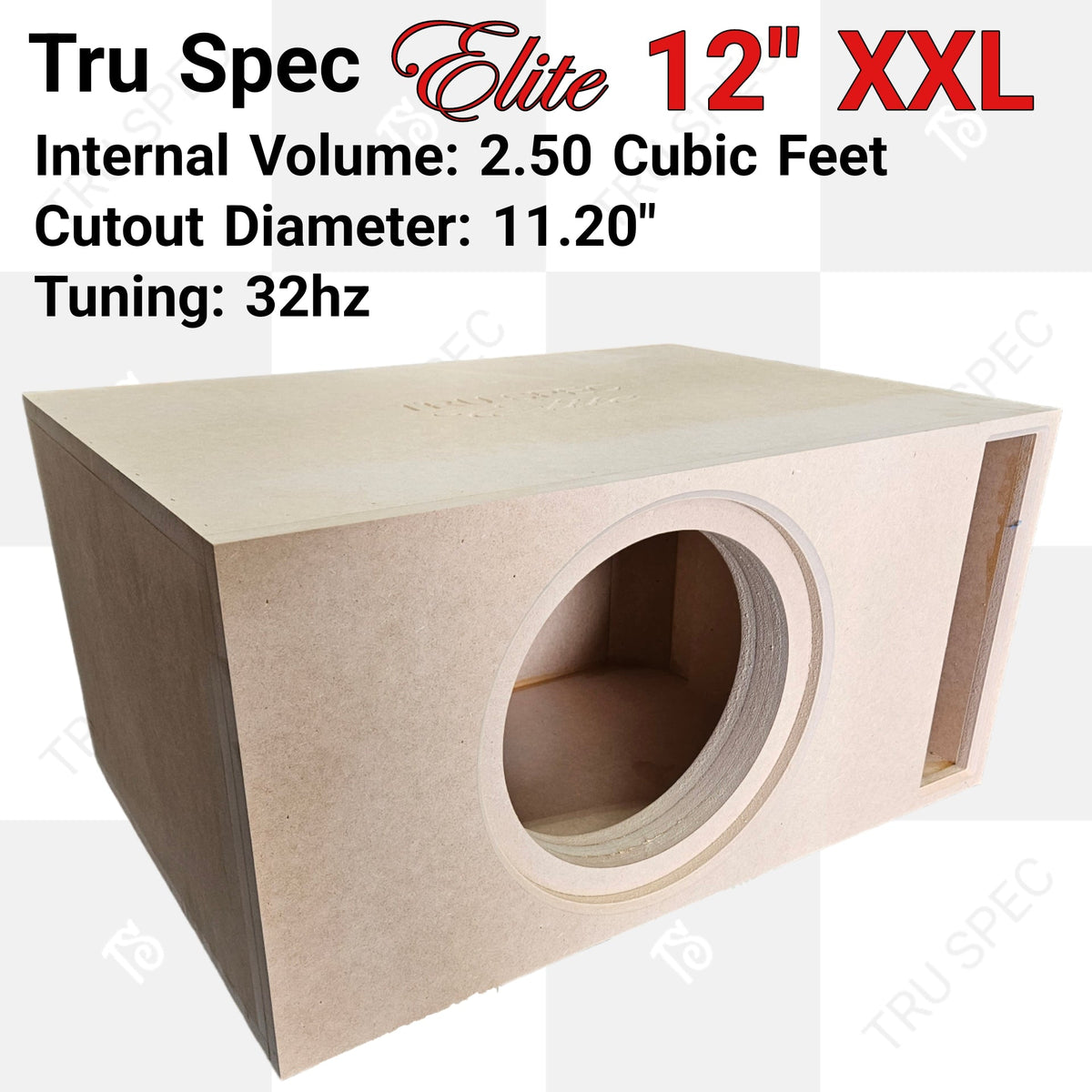

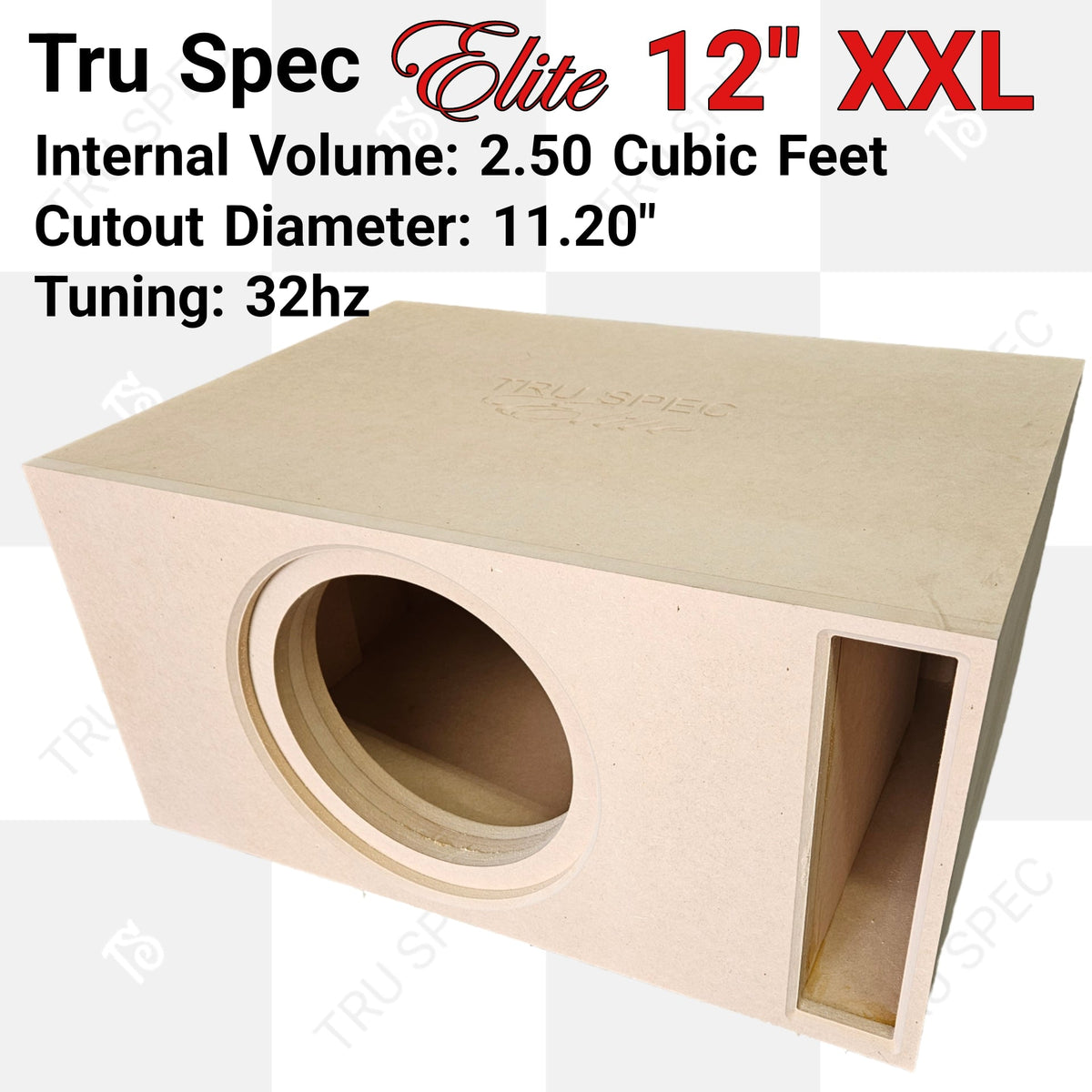

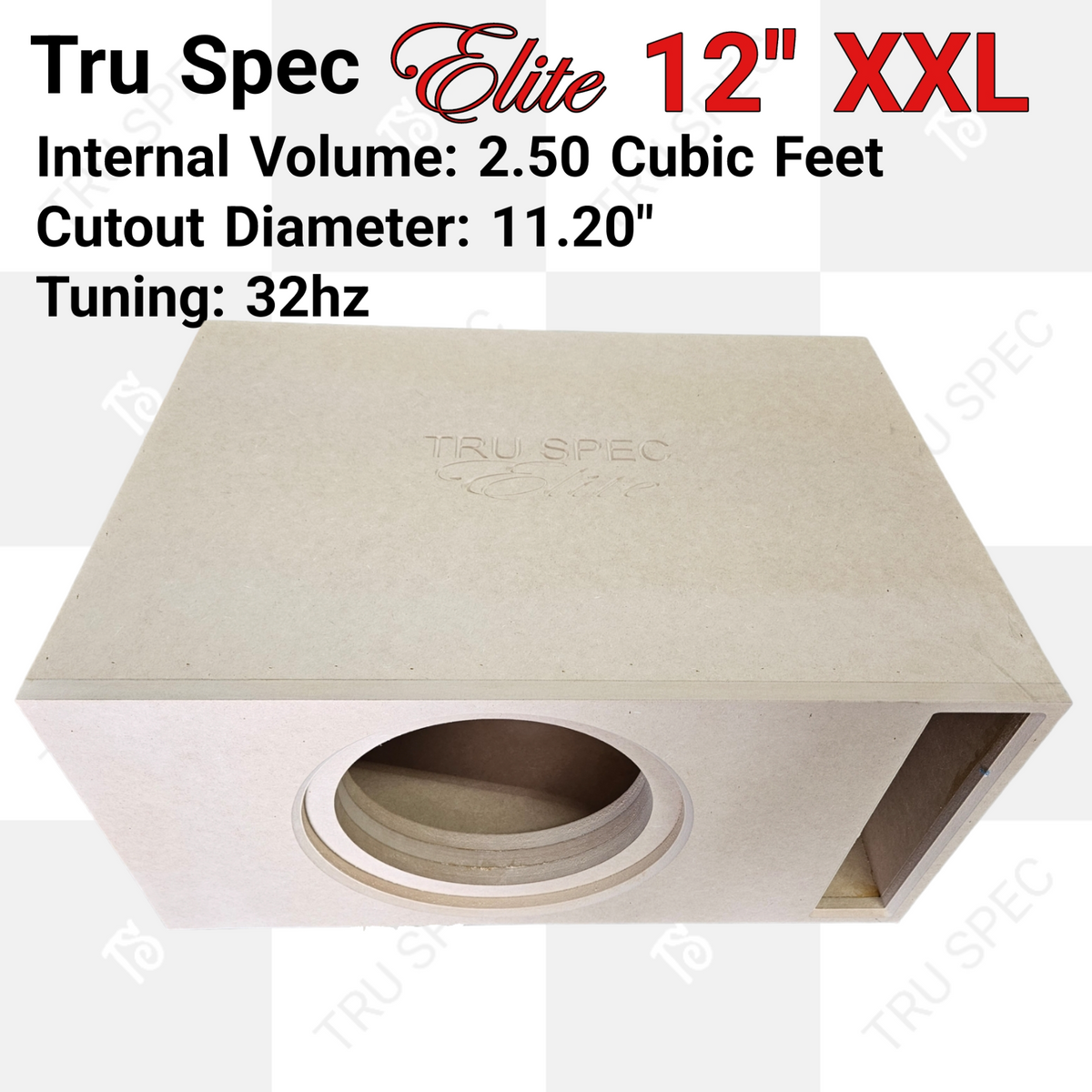

The Tru Spec Elite single 12-inch XXL enclosure pairs a triple mounting baffle with a quad flush baffle for a heavily reinforced mounting arrangement. The supplier listing identifies Sundown M, X, Zv6, Zv7 and NSv6 applications, with 2.50 ft³ of net volume based on a 0.24 ft³ driver-displacement allowance.
This is an empty enclosure only. No subwoofer is included.
Key Features & Benefits

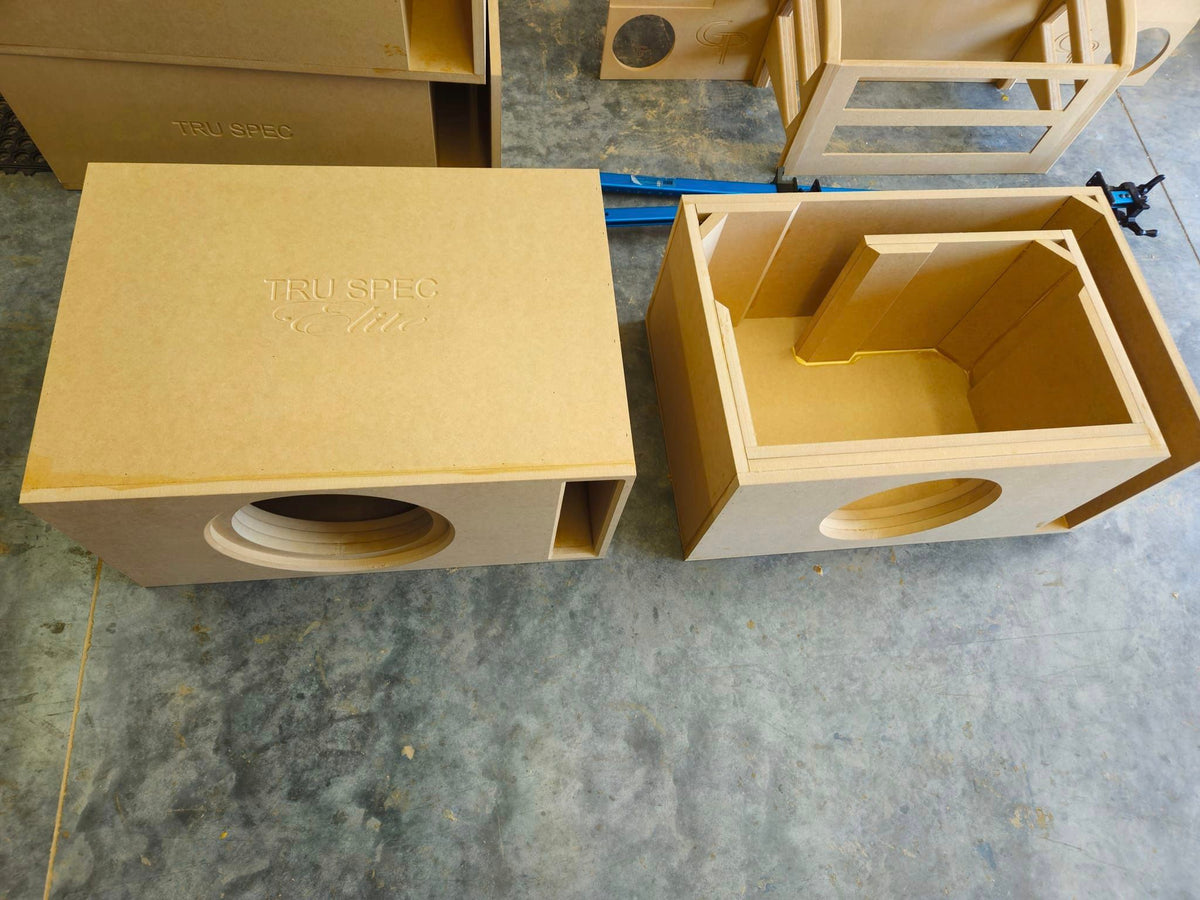

- Triple mounting baffle, quad flush baffle, internal bracing and 45-degree pieces.
- 0.75-inch MDF construction, with the enclosure dimensions and acoustic specifications listed below for comparison.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
Technical Specifications
| Enclosure type | Ported; empty enclosure only |
|---|---|
| Subwoofer configuration | 1 x 12-inch |
| External dimensions (W x H x D) | 30.00 inches x 15.00 inches x 21.21 inches |
| Material | MDF |
| Material thickness | 0.75 inch |
| Total net internal volume | 2.50 ft³ |
| Tuning frequency | 32 Hz |
| Port area | 40.00 in² |
| Cutout diameter | 11.20 inches |
| Baffle and reinforcement | Triple mounting baffle, quad flush baffle, internal bracing and 45-degree pieces |
| Total driver-displacement allowance | 0.24 ft³ |
Why Choose This Product?
Choose this Elite XXL when its 32 Hz tuning, 40.00 in² port area and reinforced construction suit your selected 12-inch driver. Check the exact Sundown model and revision against the 11.20-inch cutout and available mounting clearance before purchase.
Installation & Compatibility Notes
- Supplier-listed applications: Sundown M 12-inch, Sundown X 12-inch, Sundown Zv6 12-inch, Sundown Zv7 12-inch, Sundown NSv6 12-inch.
- The supplier title names M, X, Zv6, Zv7 and NSv6; its detailed description specifically names X, Zv6 and NSv6. Verify the exact model and revision with 12 Volt Outlet, particularly for M or Zv7.
- The quoted net volume uses the supplier's 0.24 ft³ total driver-displacement allowance. A different driver displacement changes the final available airspace.
- Measure the intended vehicle space and its access opening. Check basket and motor clearance, mounting depth, terminals and cone clearance against the actual driver. No vehicle-specific fitment is claimed.
- A maximum mounting-depth measurement is not provided in the supplier description. Confirm clearance for your exact subwoofer before purchase.
- Leave the port opening unobstructed and confirm the driver manufacturer's recommended ported volume and tuning. Secure the enclosure appropriately for the vehicle installation.
Frequently Asked Questions
Are subwoofers included?
No. This listing is for an empty ported enclosure only. The 1 compatible 12-inch subwoofer is selected and purchased separately.
Does matching the nominal subwoofer size guarantee compatibility?
No. Confirm the exact model, cutout, mounting depth, basket clearance, displacement and recommended enclosure volume. A 12-inch size label alone is not enough to establish fit.
Does the listed volume account for driver displacement?
The supplier states 2.50 ft³ after a 0.24 ft³ total driver-displacement allowance. Recheck available airspace if your selected driver differs from that assumption.
Explore More
Compare more options in our Tru Spec enclosures collection, or contact 12 Volt Outlet with your subwoofer model and available installation space for help checking this enclosure.
