TRU SPEC Prefab Single 12" High Output XXL Sub Up Port Back Subwoofer Enclosure
Key features
- Double flush baffle.
- Sub-up, port-back layout provides a defined orientation for planning driver and port clearance.
- Computer designed, CNC cut and assembled in-house at GP Car Audio, according to the supplier.
- 0.75-inch MDF construction.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
TRU SPEC Prefab Single 12" High Output XXL Sub Up Port Back Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
TRU SPEC Prefab Single 12" High Output XXL Sub Up Port Back Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

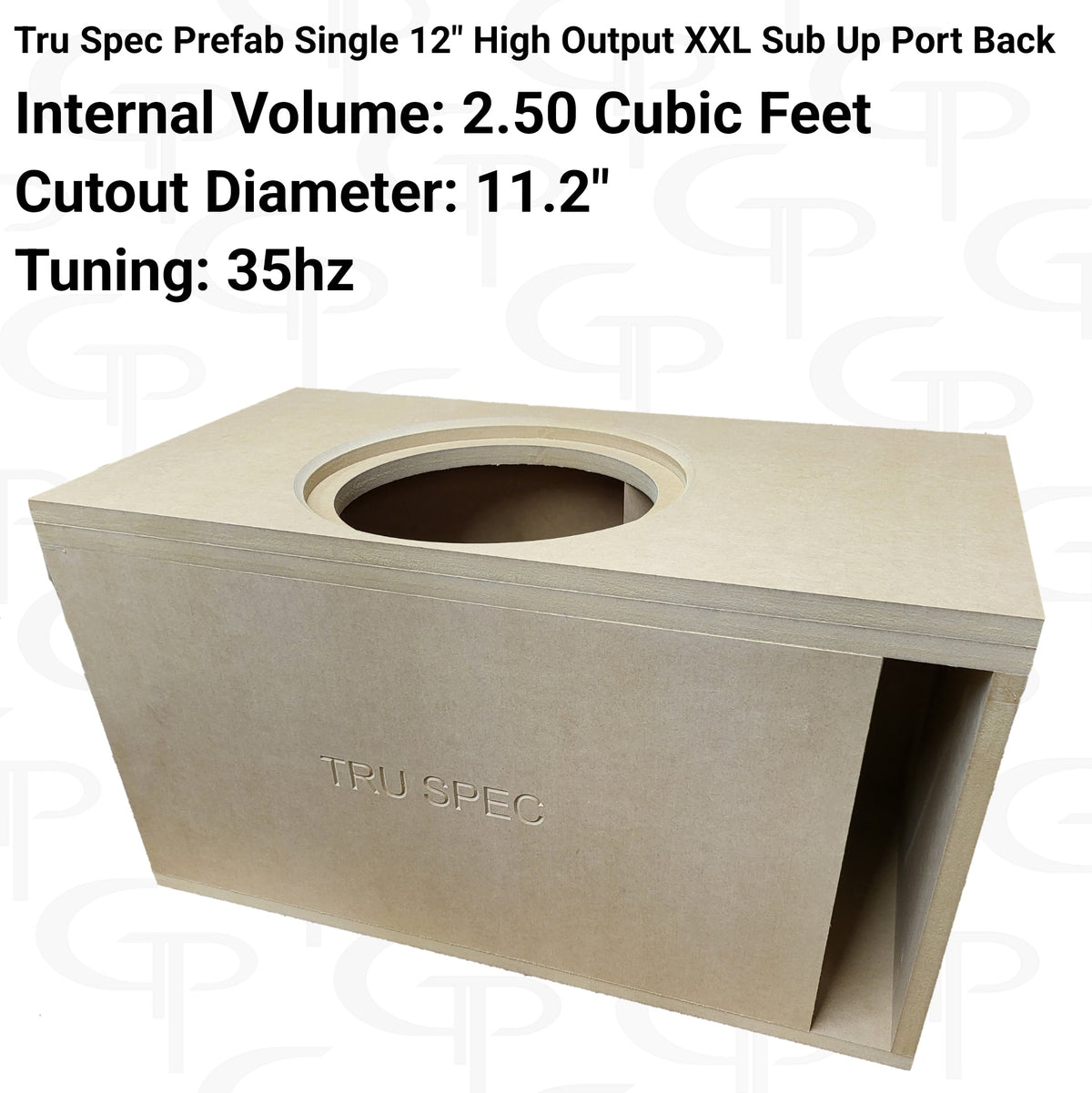

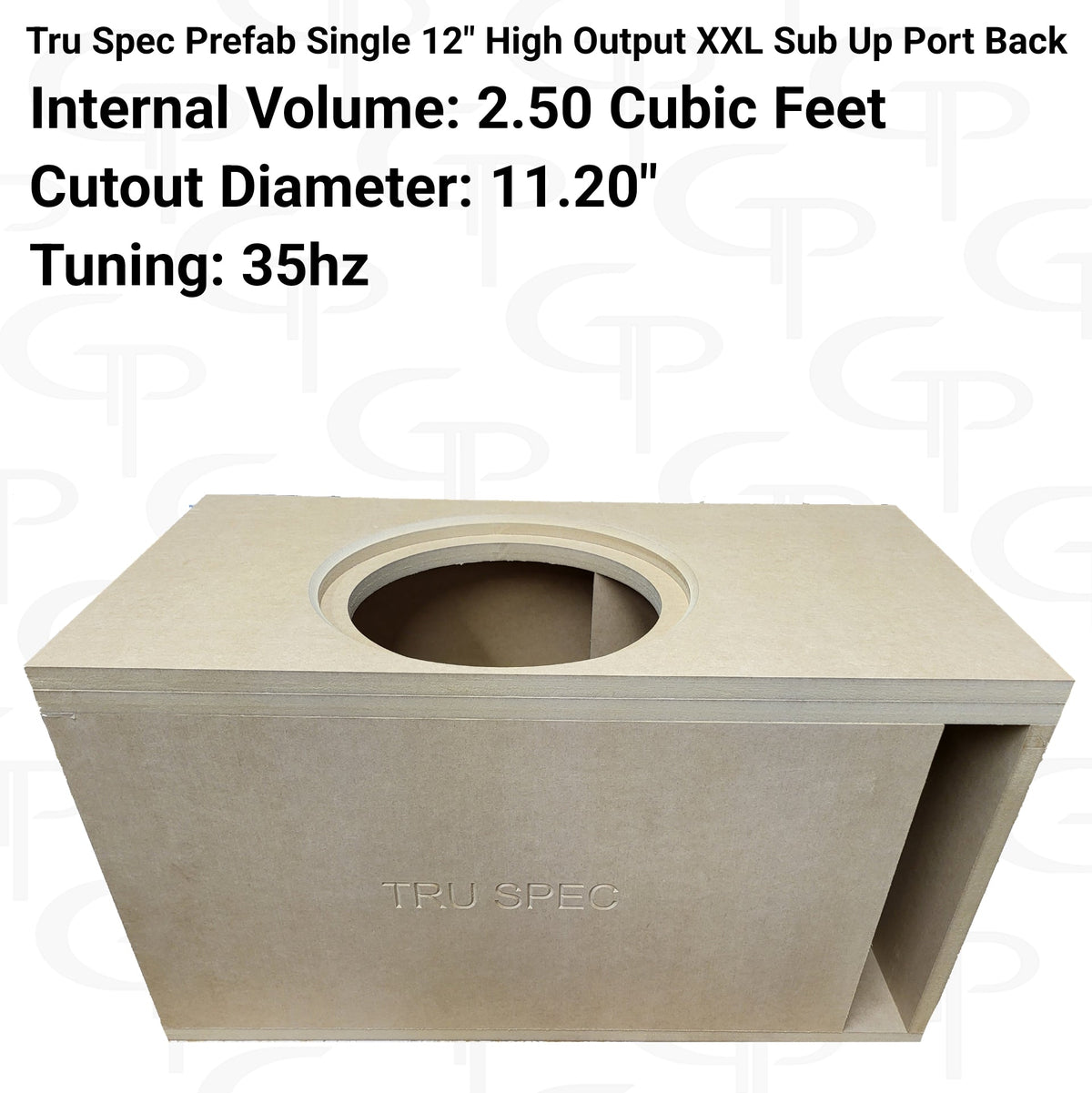

The Tru Spec single 12-inch High Output XXL enclosure is a sub-up, port-back design with 2.50 ft³ of stated net internal volume. A double flush baffle, 11.2-inch cutout and 13.1-inch flush trim diameter provide the key mounting dimensions for a compatible driver.
This is an empty enclosure only. No subwoofer is included.
Key Features & Benefits
- Double flush baffle.
- Sub-up, port-back layout provides a defined orientation for planning driver and port clearance.
- Computer designed, CNC cut and assembled in-house at GP Car Audio, according to the supplier.
- 0.75-inch MDF construction, with the enclosure dimensions and acoustic specifications listed below for comparison.
- Empty enclosure lets you select the subwoofer separately; no subwoofer is included.
Technical Specifications
| Enclosure type | Ported; empty enclosure only |
|---|---|
| Subwoofer configuration | 1 x 12-inch |
| External dimensions (W x H x D) | 30.00 inches x 16.50 inches x 15.88 inches |
| Material | MDF |
| Material thickness | 0.75 inch |
| Total net internal volume | 2.50 ft³ |
| Tuning frequency | 35 Hz |
| Port area | 37.13 in² |
| Cutout diameter | 11.2 inches |
| Flush trim diameter | 13.1 inches |
| Baffle and reinforcement | Double flush baffle |
| Layout | Subwoofer(s) up; port back |
| Total driver-displacement allowance | 0.24 ft³ |
Why Choose This Product?
This version is worth considering when a single 12-inch subwoofer calls for the listed airspace and 35 Hz tuning. Its 30.00 x 16.50 x 15.88-inch external dimensions offer a different layout from the model-specific Elite XXL enclosure, so check both fit and acoustic requirements.
Installation & Compatibility Notes
- The quoted net volume uses the supplier's 0.24 ft³ total driver-displacement allowance. A different driver displacement changes the final available airspace.
- Measure the intended vehicle space and its access opening. Check basket and motor clearance, mounting depth, terminals and cone clearance against the actual driver. No vehicle-specific fitment is claimed.
- A maximum mounting-depth measurement is not provided in the supplier description. Confirm clearance for your exact subwoofer before purchase.
- Leave the port opening unobstructed and confirm the driver manufacturer's recommended ported volume and tuning. Secure the enclosure appropriately for the vehicle installation.
Frequently Asked Questions
Are subwoofers included?
No. This listing is for an empty ported enclosure only. The 1 compatible 12-inch subwoofer is selected and purchased separately.
Does matching the nominal subwoofer size guarantee compatibility?
No. Confirm the exact model, cutout, mounting depth, basket clearance, displacement and recommended enclosure volume. A 12-inch size label alone is not enough to establish fit.
Which direction do the subwoofers and port face?
The driver mounting position faces upward and the port faces the back. Check clearance above the subwoofer and around the port in the planned installation.
