TRU SPEC Prefab Three 10" Sub Up Port Back Subwoofer Enclosure
Key features
- Double flush baffle.
- Sub-up, port-back layout provides a defined orientation for planning driver and port clearance.
- Computer designed, CNC cut and assembled in-house at GP Car Audio, according to the supplier.
- 0.75-inch MDF construction.
- Empty enclosure lets you select the subwoofers separately; no subwoofer is included.
TRU SPEC Prefab Three 10" Sub Up Port Back Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
TRU SPEC Prefab Three 10" Sub Up Port Back Subwoofer Enclosure is backordered and will ship as soon as it is back in stock.
Description
Description
Product Overview

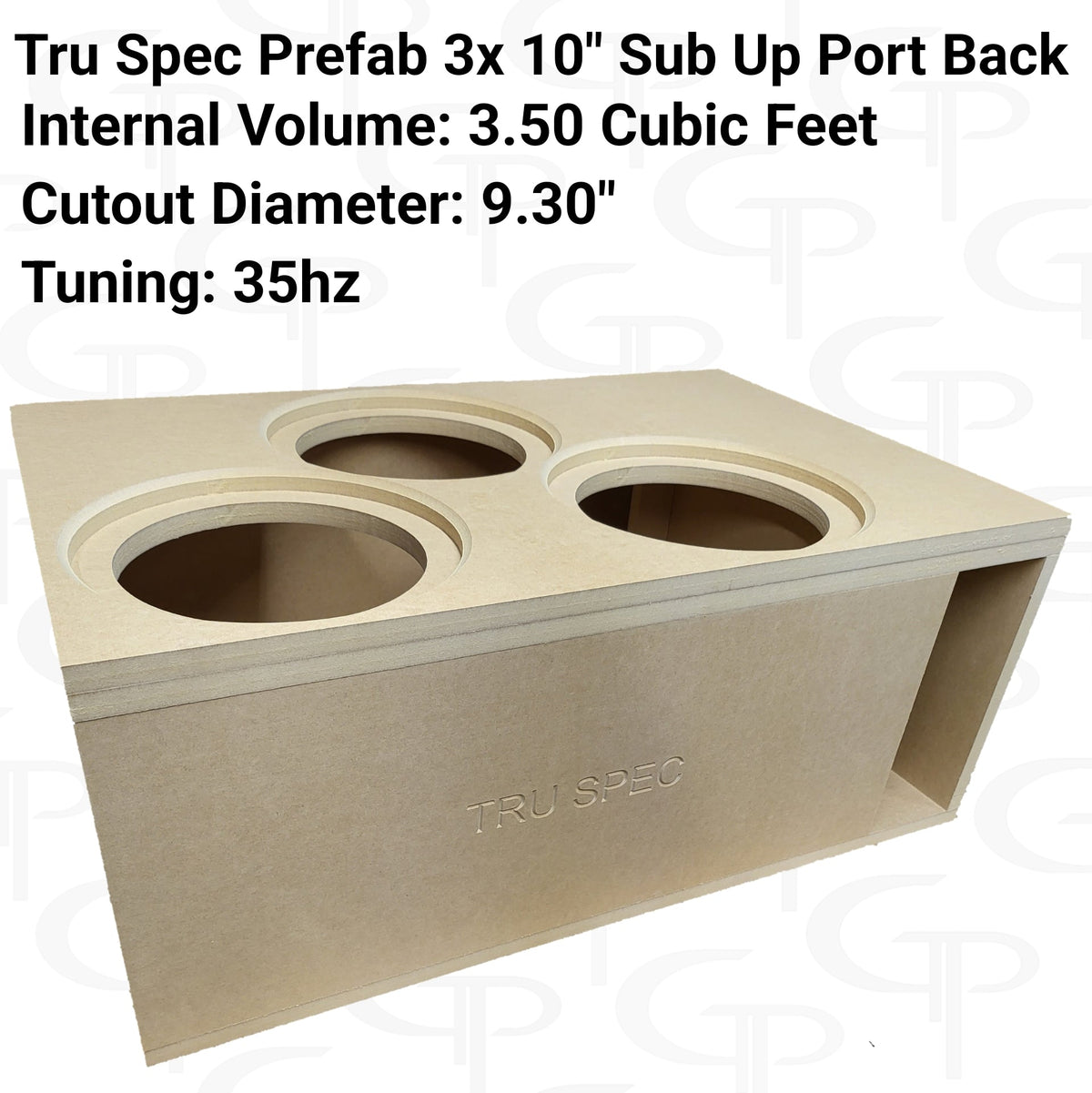

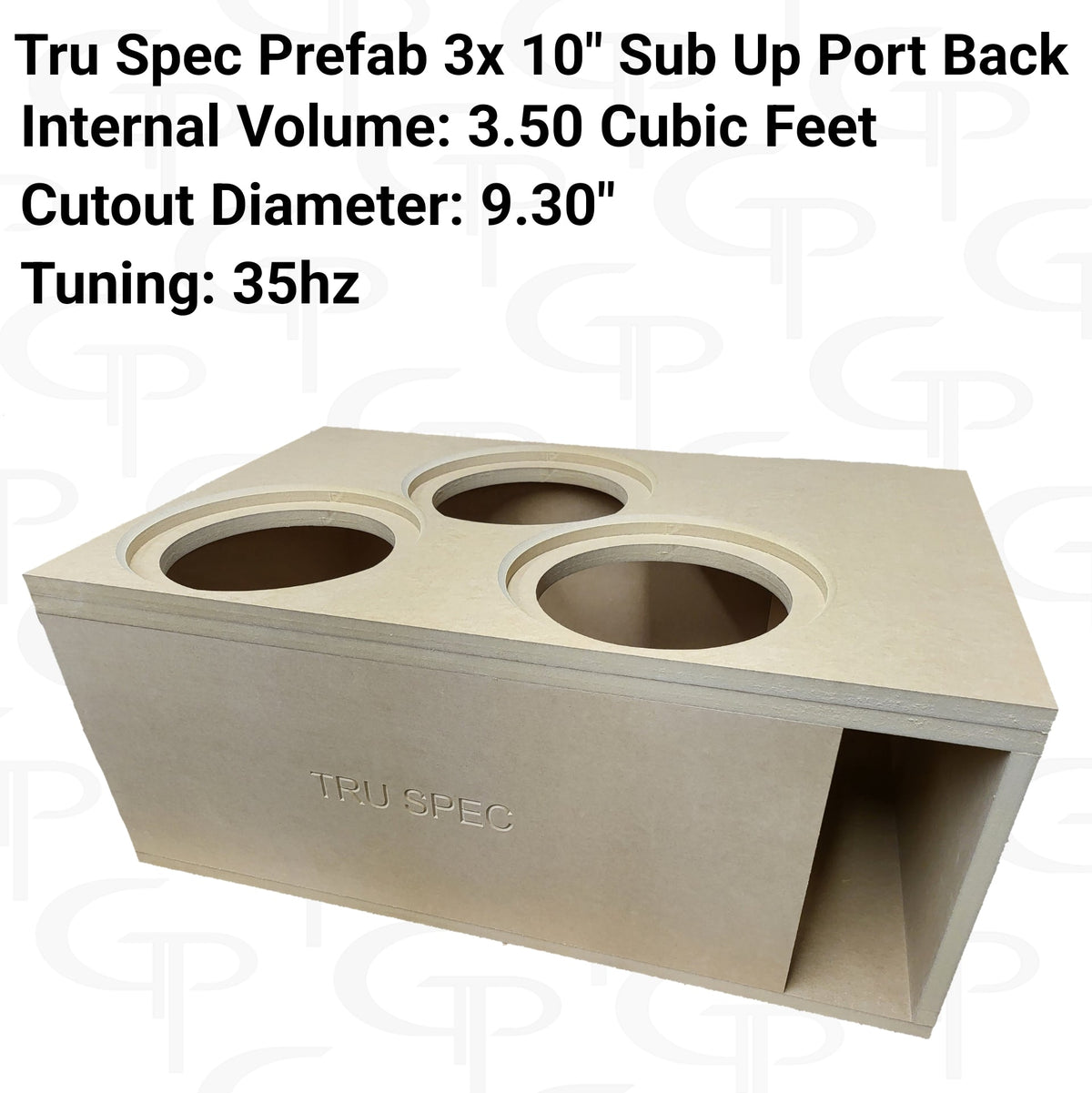

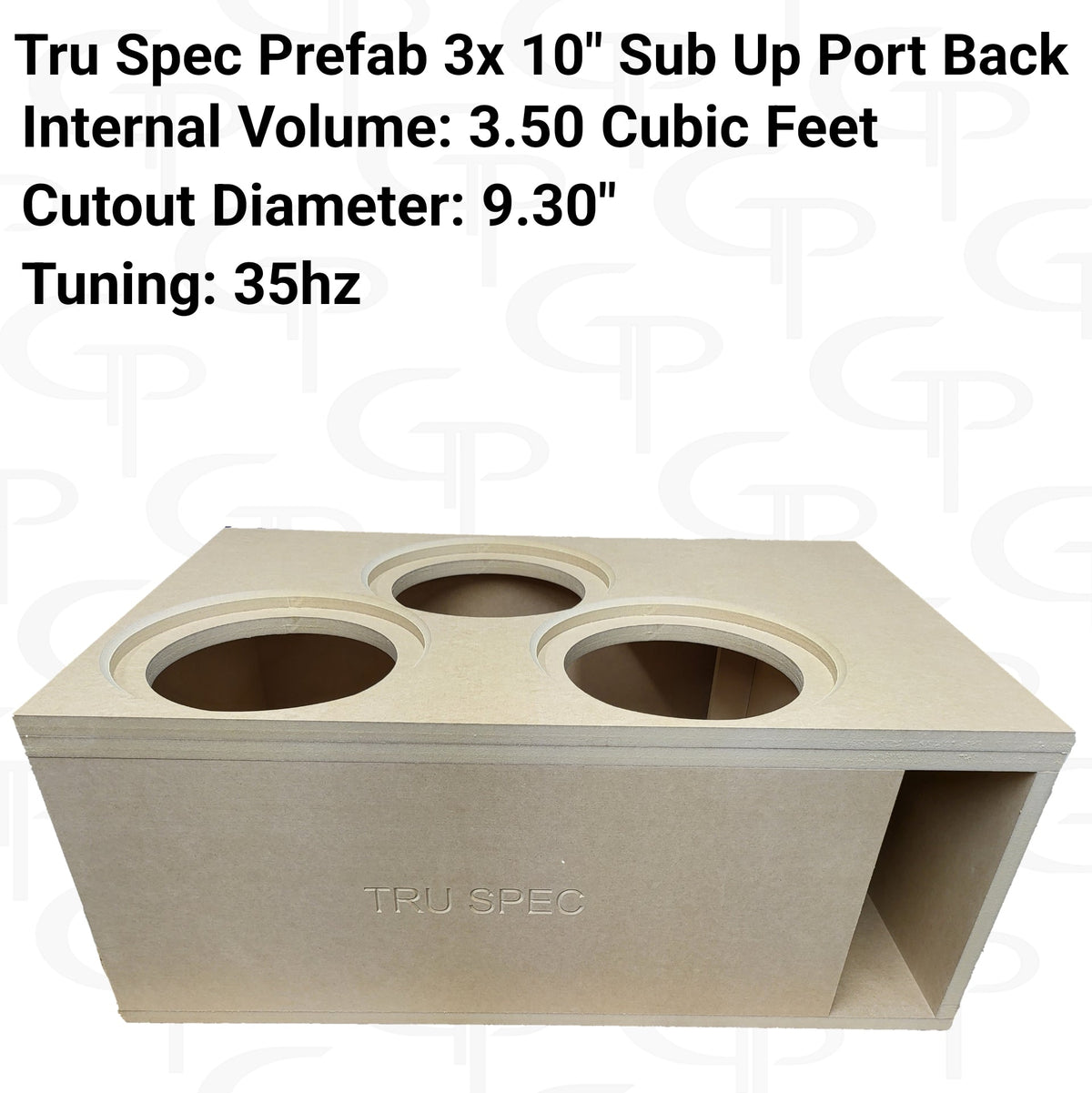

The Tru Spec three 10-inch enclosure gives a triple-subwoofer build a sub-up, port-back layout with a double flush baffle. The supplier specifies 3.50 ft³ total net internal volume and approximately 1.16 ft³ per subwoofer.
This is an empty enclosure only. No subwoofer is included.
Key Features & Benefits
- Double flush baffle.
- Sub-up, port-back layout provides a defined orientation for planning driver and port clearance.
- Computer designed, CNC cut and assembled in-house at GP Car Audio, according to the supplier.
- 0.75-inch MDF construction, with the enclosure dimensions and acoustic specifications listed below for comparison.
- Empty enclosure lets you select the subwoofers separately; no subwoofer is included.
Technical Specifications
| Enclosure type | Ported; empty enclosure only |
|---|---|
| Subwoofer configuration | 3 x 10-inch |
| External dimensions (W x H x D) | 34.00 inches x 14.00 inches x 22.00 inches |
| Material | MDF |
| Material thickness | 0.75 inch |
| Total net internal volume | 3.50 ft³ |
| Tuning frequency | 35 Hz |
| Port area | 52.00 in² |
| Cutout diameter | 9.30 inches |
| Flush trim diameter | 11.50 inches |
| Baffle and reinforcement | Double flush baffle |
| Layout | Subwoofer(s) up; port back |
| Total driver-displacement allowance | 0.24 ft³ |
| Supplier-listed airspace per subwoofer | 1.16 ft³ (approximate) |
Why Choose This Product?
This enclosure is intended for a three-driver plan rather than a single or dual layout. Its 34.00 x 14.00 x 22.00-inch footprint, 35 Hz tuning and 52.00 in² port area help you evaluate the enclosure alongside three compatible 10-inch subwoofers.
Installation & Compatibility Notes
- The quoted net volume uses the supplier's 0.24 ft³ total driver-displacement allowance. A different driver displacement changes the final available airspace.
- The supplier uses approximately 0.08 ft³ per 10-inch driver as its reference for this three-driver configuration. Check the actual displacement of the selected set.
- Measure the intended vehicle space and its access opening. Check basket and motor clearance, mounting depth, terminals and cone clearance against the actual driver. No vehicle-specific fitment is claimed.
- A maximum mounting-depth measurement is not provided in the supplier description. Confirm clearance for your exact subwoofer before purchase.
- Leave the port opening unobstructed and confirm the driver manufacturer's recommended ported volume and tuning. Secure the enclosure appropriately for the vehicle installation.
Frequently Asked Questions
Are subwoofers included?
No. This listing is for an empty ported enclosure only. The 3 compatible 10-inch subwoofers are selected and purchased separately.
Does matching the nominal subwoofer size guarantee compatibility?
No. Confirm the exact model, cutout, mounting depth, basket clearance, displacement and recommended enclosure volume. A 10-inch size label alone is not enough to establish fit.
Which direction do the subwoofers and port face?
The driver mounting positions face upward and the port faces the back. Check clearance above the subwoofers and around the port in the planned installation.
Explore More
Compare more options in our Tru Spec enclosures collection, or contact 12 Volt Outlet with your subwoofer model and available installation space for help checking this enclosure.
